Factory Price Vehicle Testing Machine
The Factory Price Vehicle Testing Machine is designed for product vibration and shock environmental testing, environmental stress screening, and reliability testing. This versatile testing platform serves various industries including aerospace, communications, electronics, electrical, and home appliances. It complies with multiple international testing specifications including IEC, MIL-STD, JIS, and ASTM standards.
Technical Specifications
| Model |
ES-10 |
ES-20 |
ES-30 |
ES-40 |
| Rated Sine Force (N) |
10000 |
20000 |
30000 |
40000 |
| Frequency Range (Hz) |
3-3000 |
3-3000 |
3-2800 |
3-2800 |
| Rated Acceleration (m/s²) |
1000 |
1000 |
1000 |
1000 |
| Rated Speed (m/s) |
1.8 |
1.8 |
1.8 |
1.8 |
| Rated Displacement (p-p) mm |
70 |
80 |
11100 |
100 |
| Max. Loading (Kg) |
270 |
300 |
450 |
500 |
| Moving Coil (Kg) |
14 |
30 |
40 |
50 |
| Dimension of Moving Coil (mm) |
Φ240 |
Φ320 |
Φ450 |
Φ450 |
Product Features
- Flexible suspension system with straight line guide for strong bearing capacity, excellent guidance performance, and high stability
- Central load airbag with large static stiffness and small dynamic stiffness for superior bearing capacity and dynamic performance
- Rapid self-examination diagnosis and chain protection for high safety and reliability
- Air bag isolating and damping device eliminates the need for special foundation, perfectly reproduces vibration waves, and reduces vibration transmission
- Provides different horizontal and vertical expansion platforms for versatile applications
- Compatible with various vibration controllers for simple operation

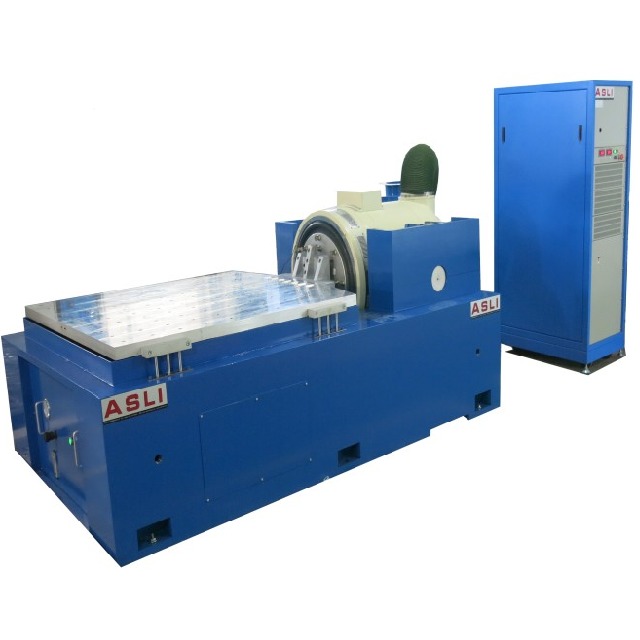

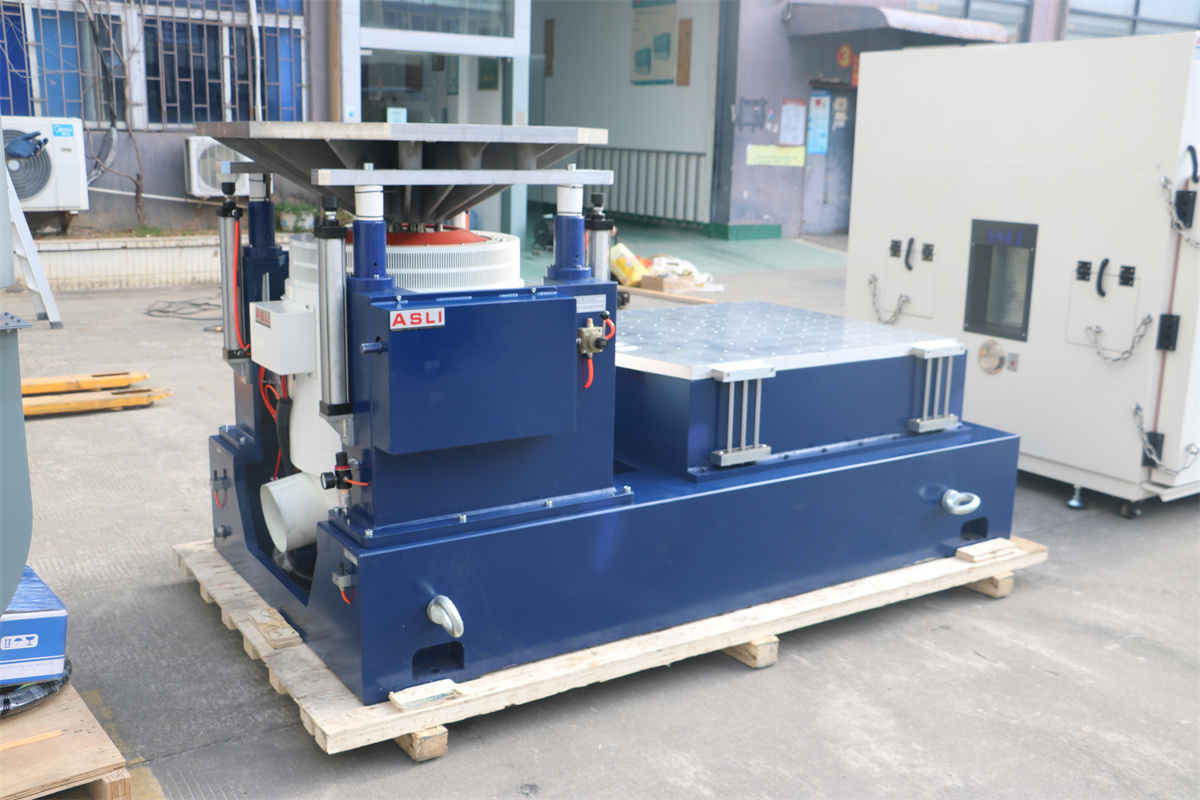

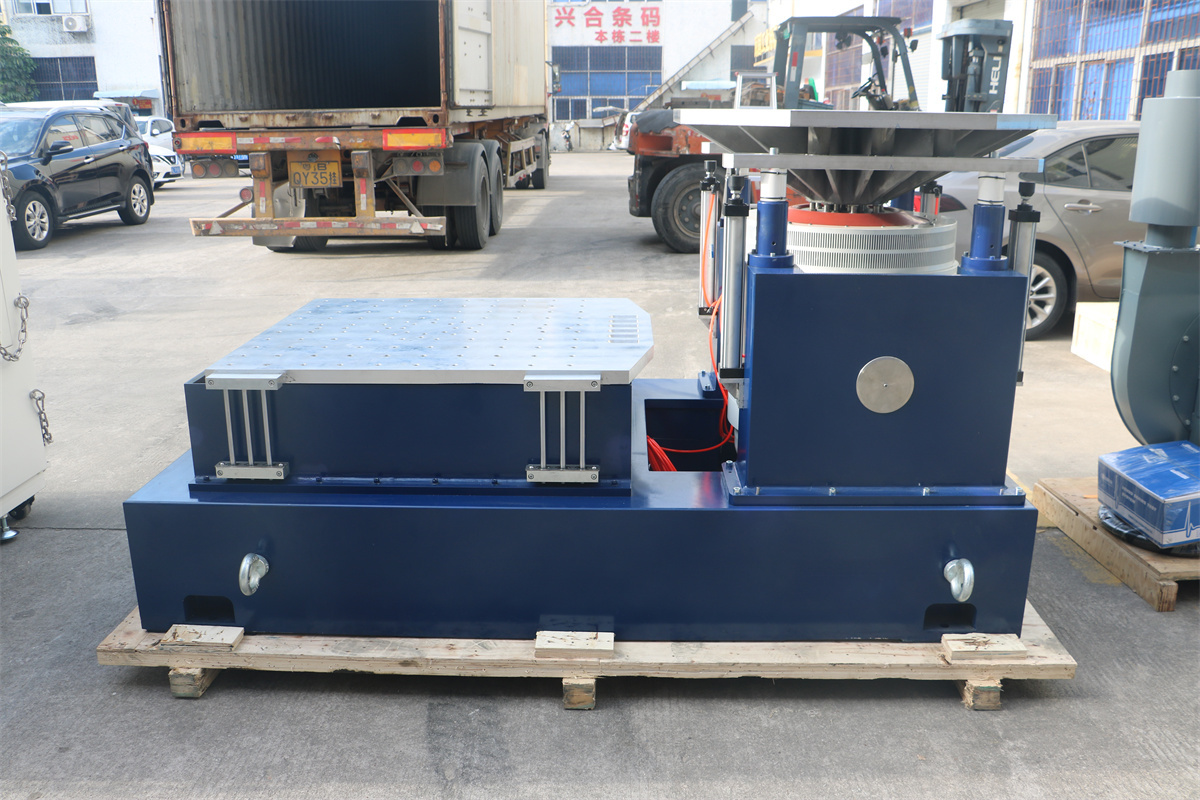

Horizontal Stand Features
- Small loading bench design enables higher acceleration and working frequency
- Improves loading capacity and overall machine performance
- Integral design of horizontal bench and vibration bench for perfect structure and easy installation
- Static pressure track with V-shape design for slope-resistant and bias-loading resistant capabilities
- Built-in oil pump with good structure for easy operation
Packaging & Delivery
To ensure the safety of your goods, we provide professional, environmentally friendly, convenient, and efficient packaging services.
Company Profile
With 28 years of experience, we are a established testing equipment manufacturer specializing in simulation environmental testing equipment and mechanical vibration and shock testing machines. Our horizontal and vertical vibration 3-axis high frequency vibration testers are star products, and we have obtained CE certification for these machines.
Frequently Asked Questions
Q1. What is your terms of packing?
A: PP film first, and then 10mm foam between machine and the case, and outside is standard export plywood case.
Q2. What is your terms of payment?
A: T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CIF, DDU, DAP, DDP
Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
If you need more information about our Factory Price Vehicle Testing Machine, please feel free to contact us.
