Customized Computerized Electronic Automobile Shock Absorber Testing Machine

Brand Name: ASLI
Place of Origin: Guangdong, China
Minimum Order Quantity: 1

Product Details


Power: 20kw Protection Class: IP55
Accuracy: +/-1% Sine Force: 10000N
Acceleration Sensor: 1 Pc Input: 1 Channel
Voltage: 380 V Vibration Directions: Three Directions Free Vibration
Vibration Wave: Sine, Random, Shock Rated Random Force: 10000N
Frequency Range: 3-3000Hz Rated Acceleration: 1000m/s2
Rated Speed: 1.8m/s Rated Displacement: 51mm
Max Loading: 270Kg
Highlight

customized automobile shock absorber tester

,

electronic vibration shaker system

,

computerized shock absorber testing machine

Product Description

Product Overview

The Customized Computerized Electronic Automobile Shock Absorber Testing Machine is an electrodynamic vibration testing system engineered for precise, repeatable evaluation of shock absorbers and related automotive components. Each unit is configured to customer requirements, combining computerized control with a high-performance moving coil assembly for accurate sine and random vibration simulation.

Technical Parameters
Model Rated Sine Force (N) Rated Random Force (N) Frequency Range (Hz) Rated Acceleration (m/s²) Rated Speed (m/s) Rated Displacement (p-p) mm Max. Loading (Kg) Moving Coil (Kg) Dimension of Moving Coil (mm)
ES-3 3000 3000 3–3500 1000 1.6 25 100 3.5 Φ150
ES-3a 3000 3000 3–3500 400 1.6 40 120 9 Φ230
ES-6 6000 6000 3–3500 1000 1.6 25 180 6.5 Φ230
ES-6a 6000 6000 3–3500 1000 1.6 51 250 12 Φ230
ES-10 10000 10000 3–3000 1000 1.8 51 270 14 Φ240
ES-20 20000 20000 3–3000 1000 1.8 51 300 30 Φ320
ES-30 30000 30000 3–2800 1000 1.8 51 450 40 Φ450
ES-40 40000 40000 3–2800 1000 1.8 51 500 50 Φ450
ES-50 50000 50000 3–2700 1000 1.8 51 750 50 Φ450
Expander Specifications
Technical Parameters of Vertical Expander
Technical parameters table of the vertical expander for the electrodynamic vibration testing machine
Technical Parameters of Horizontal Expander
Technical parameters table of the horizontal expander for the electrodynamic vibration testing machine
High Frequency Vibration Test Machine Specifications
  1. Well-designed dynamic coil skeleton, delivering a higher stage axial resonance frequency.
  2. Two-magnetic circuit design with low magnetic flux leakage, compact structure and rational layout.
  3. Rocker rod roller bearings with straight, import-oriented composite body stiffness orientation and strong eccentric load capacity.
  4. Trunnion isolation foundation dedicated to vibration use, with convenient mobile installation.
  5. Advanced moving system technology ensures high reliability of the dynamic coil.
  6. New duct design that enhances the cooling effect.
  7. Static stiffness and dynamic stiffness of the bearing reduce ballooning, raising the vibration table bearing capacity and improving low-frequency performance.

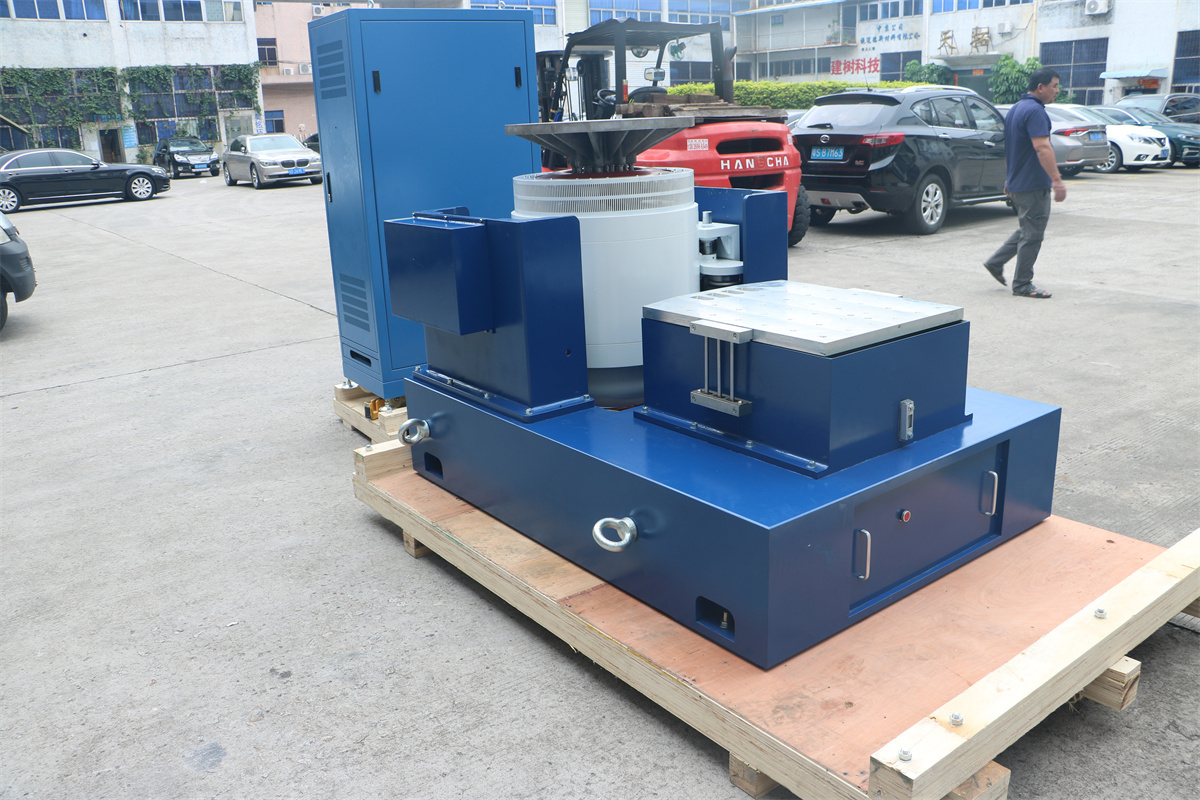

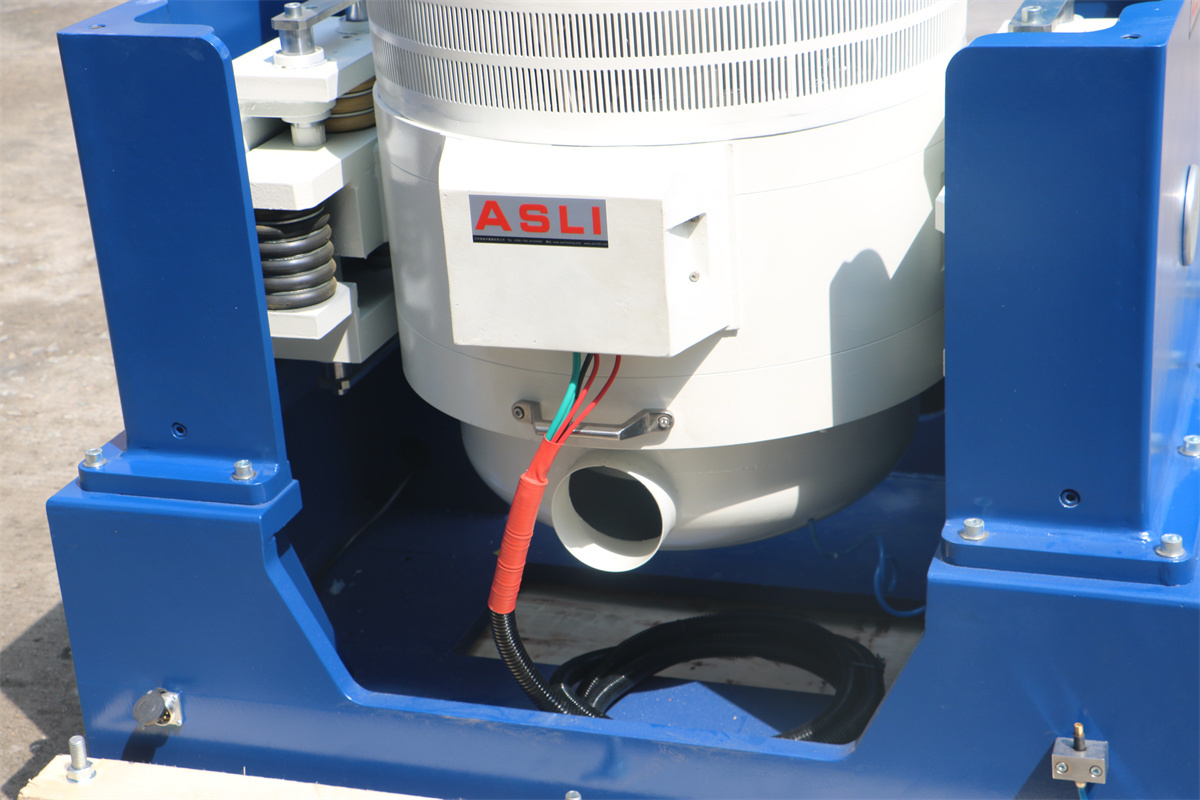

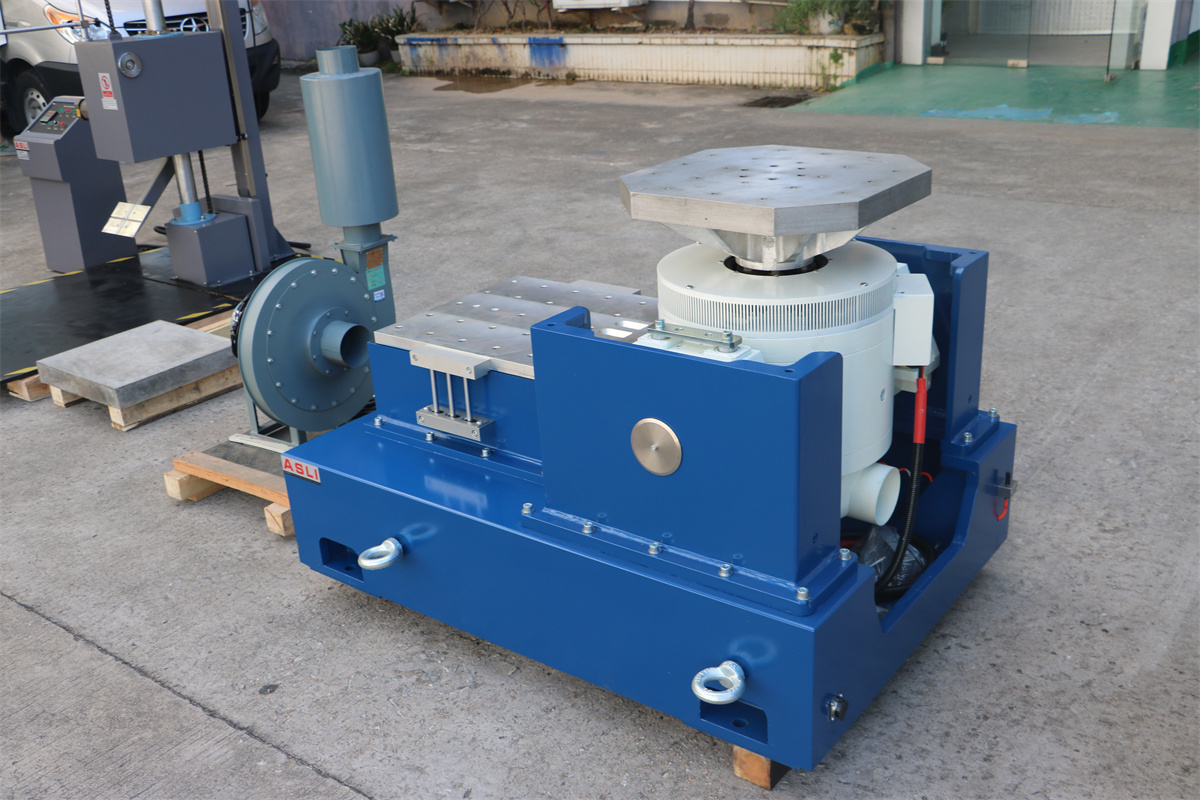

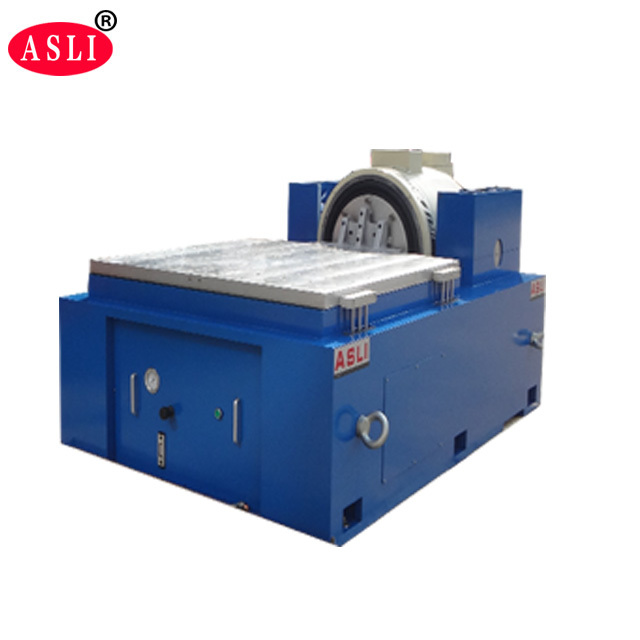

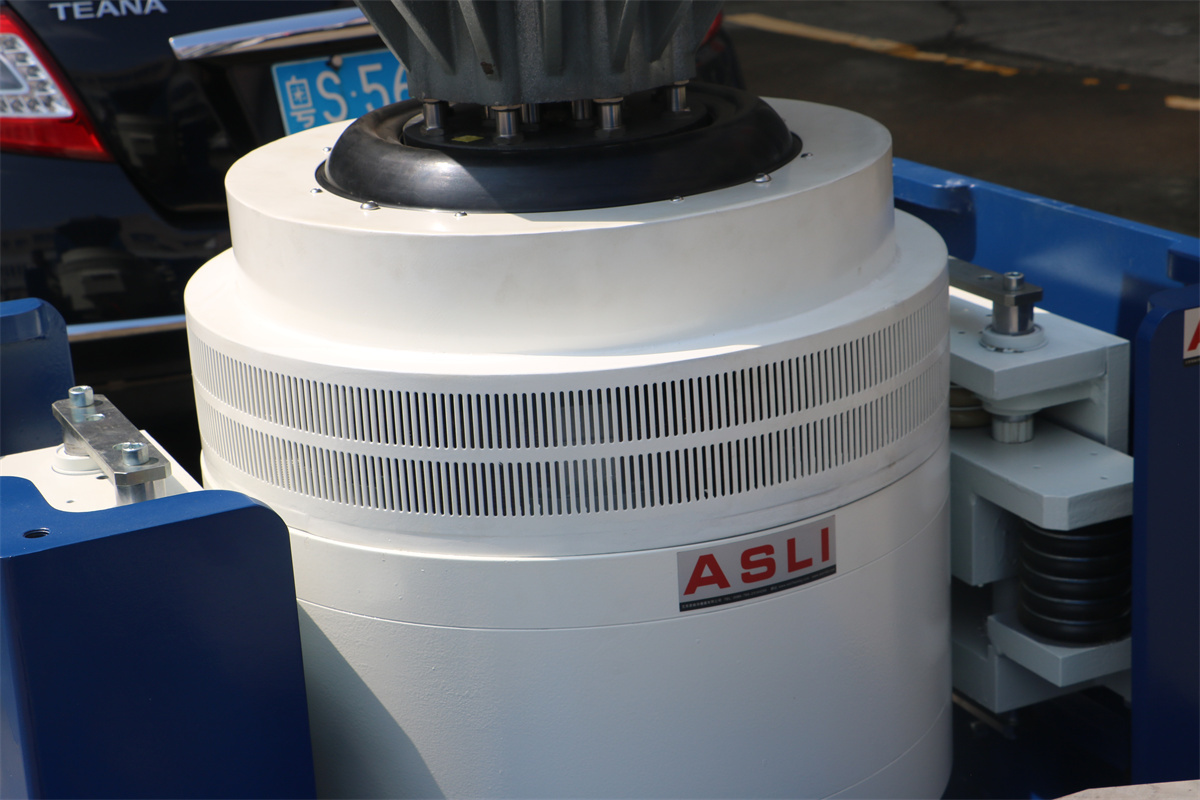

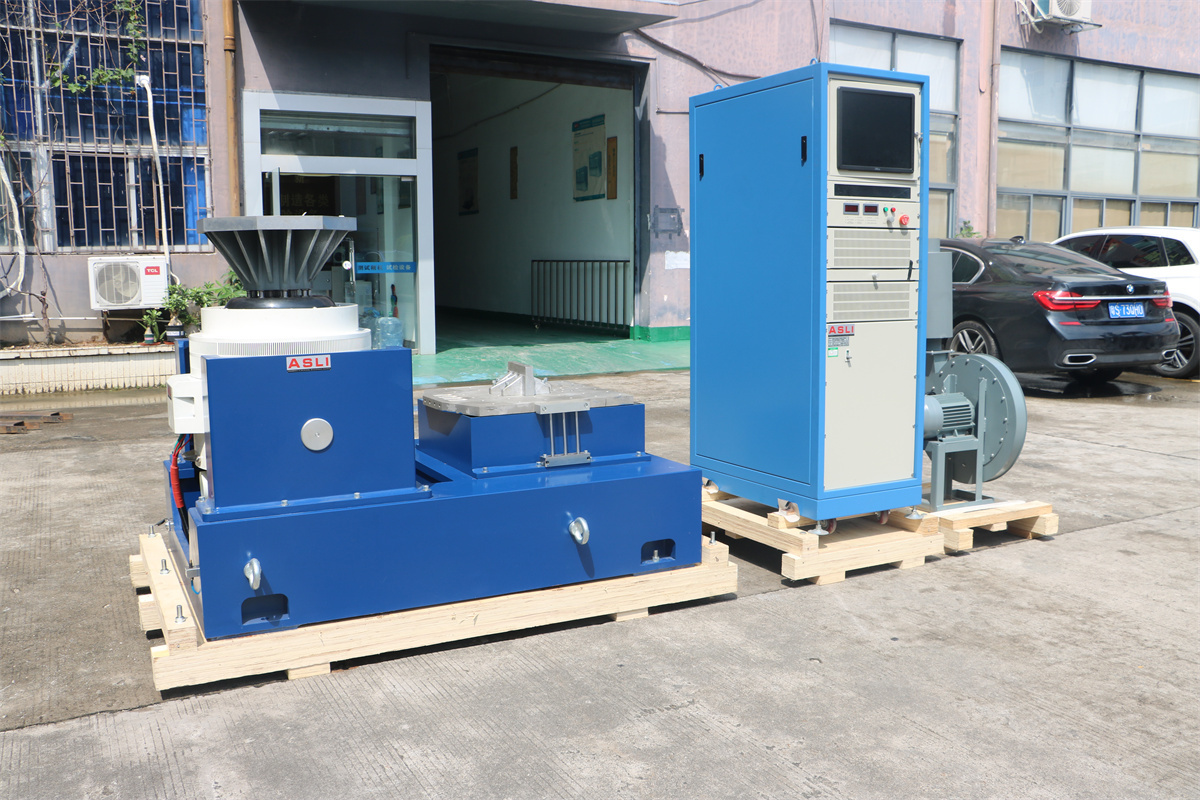

Detailed Images
Other Products
Overview of additional environmental and vibration testing equipment offered by ASLI
Our Company
ASLI manufacturing facility and production workshop

ASLI main products include climatic chambers, temperature chambers, humidity chambers, walk-in chambers, UV aging chambers, thermal shock chambers, xenon chambers, xenon combined UV aging chambers, PCT chambers, HAST chambers, vibration chambers, electrodynamic shakers, mechanical shock testers, and climatic combined vibration chambers.

Packing & Delivery
Export packing and delivery preparation of the vibration testing machine
Our Service
ASLI after-sales service and technical support team
FAQ

Q1. What are your terms of packing?

Generally, we pack our goods in neutral white boxes and brown cartons.

Q2. What are your terms of payment?

T/T 50% as deposit, and 50% before delivery. We will show you the photos of the products and packages before you pay the balance.

Q3. What are your terms of delivery?

EXW, FOB, CFR, CIF, DDU.

Q4. How about your delivery time?

Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

If you need more information about the Customized Computerized Electronic Automobile Shock Absorber Testing Machine, please don’t hesitate to send your inquiry.

Product Highlights

High-accuracy computerized shock absorber testing machine with 10000N sine force, IP55 protection, and ±1% accuracy. Supports sine, random, and shock vibration in three directions. Customizable OEM/ODM/OBM options with 1-year warranty.
