3-axis Electrodynamics Vibration Testing Machine With 100g Acceleration

Brand Name: ASLI
Place of Origin: Guangdong, China
Minimum Order Quantity: 1
Price: $23,500

Product Details


Acceleration: 100g Power: 20KW
Protection Class: IP55 Vibration Direction: Vertical + Horizontal
Voltage: 380 V Accuracy: +/-1%
Vibration Force: 10KN Displacement: 51mm
Moving Coil Size: Dia. 240mm Rated Sine Force: 6000
Frequency Range: 3-3500 Rated Acceleration: 1000
Rated Speed: 1.6 Max. Loading: 180
Moving Coil Weight: 6.5
Highlight

3-axis vibration testing machine

,

electrodynamics vibration shaker system

,

vibration testing machine 100g acceleration

Product Description

Product Description

The 3-axis Electrodynamics Vibration Testing Machine with 100g Acceleration incorporates advanced modern technologies including a double-magnetic circuit structure, self-generated skeleton action circles, airborne support, roller bearings and linear guidance, and trunnion isolation. It is capable of performing sinusoidal vibration tests and broadband random vibration tests across the X, Y, and Z axes, as well as classical pulse tests (half-sine, trapezoidal, sawtooth wave) and shock response spectrum tests. This equipment is widely used in national defense, weapons, aviation, aerospace, communications, electronics, electrical appliances, and home appliances industries.

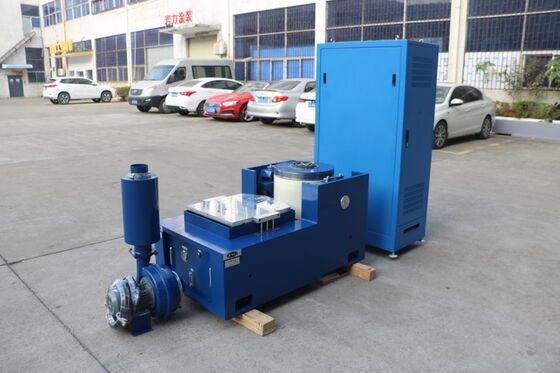

3-axis electrodynamics vibration testing machine with 100g acceleration, front view showing the main testing platform and control system
Specifications
Model ES-6 ES-6a ES-10 ES-20
Rated Sine Force (N) 6000 6000 10000 20000
Frequency Range (Hz) 3–3500 3–3500 3–3000 3–3000
Rated Acceleration (m/s²) 1000 1000 1000 1000
Rated Speed (m/s) 1.6 1.6 1.8 1.8
Rated Displacement (p-p) mm 25 51 51 51
Max. Loading (Kg) 180 250 270 300
Moving Coil (Kg) 6.5 12 14 30
Dimension of Moving Coil (mm) Φ230 Φ230 Φ240 Φ320
Vibration Direction Vertical, horizontal, Vertical + horizontal vibration
Expander Options
For Vertical Expander

The VT vertical extended-bench and specified clamps are precision-calculated and elaborately designed to ensure the customer acquires the best performance through a perfect structure, high-quality materials, and superior workmanship.

For Horizontal Expander
  • Within a small loading bench, higher acceleration and working frequency are realized to improve the loading capacity and performance of the whole machine bench.
  • The horizontal bench and vibration bench are an integral type, featuring a perfect structure and convenience for installation and adjustment.
  • Static pressure track, V-shape, with capacity for slope-resistant and bias-loading resistant operation.
  • Built-in oil pump, good structure, and easy operation.

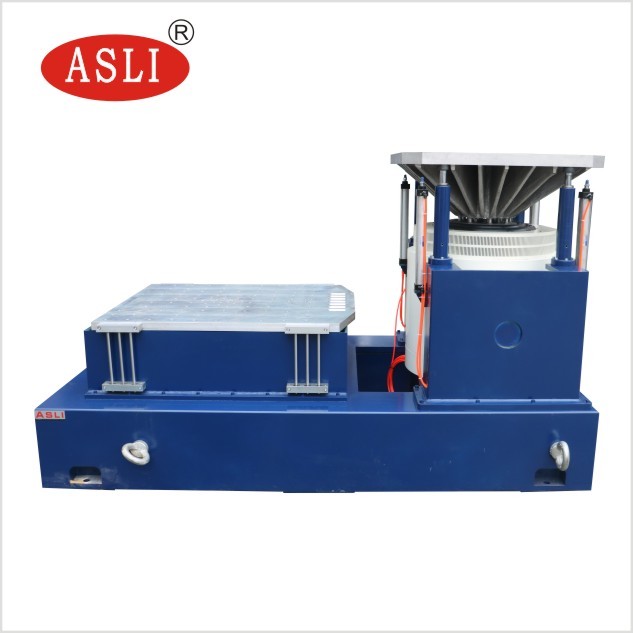

Vertical and horizontal expander accessories for the electrodynamics vibration testing machine, showing the extended bench and mounting clamps
Pictures for Your Reference

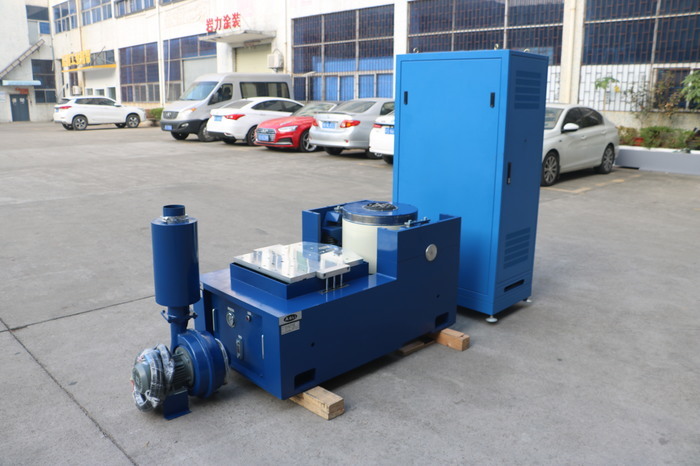

Electrodynamics vibration testing machine in operation, side view with control cabinet

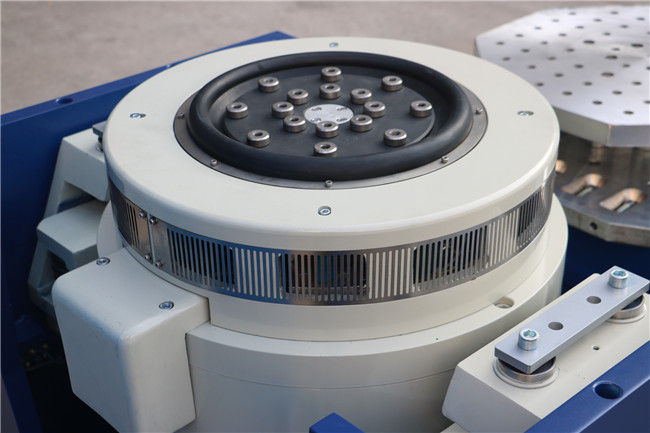

Close-up of the vibration testing machine's moving coil and armature assembly

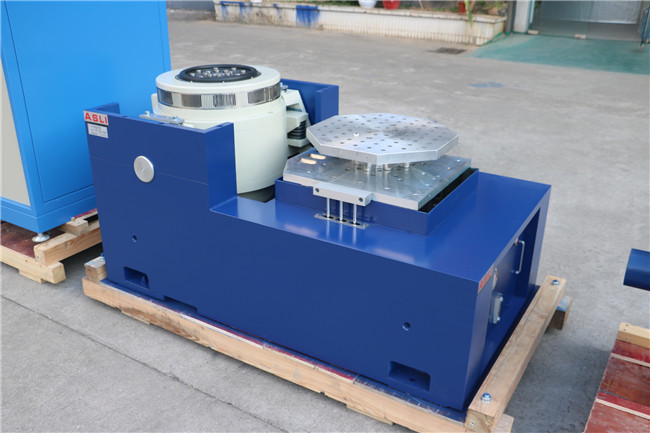

Vibration testing machine with horizontal expander and test specimen mounted
Rear view of the vibration testing machine showing cooling and power connections

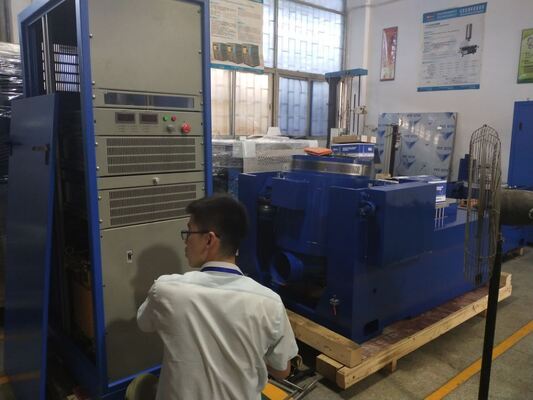

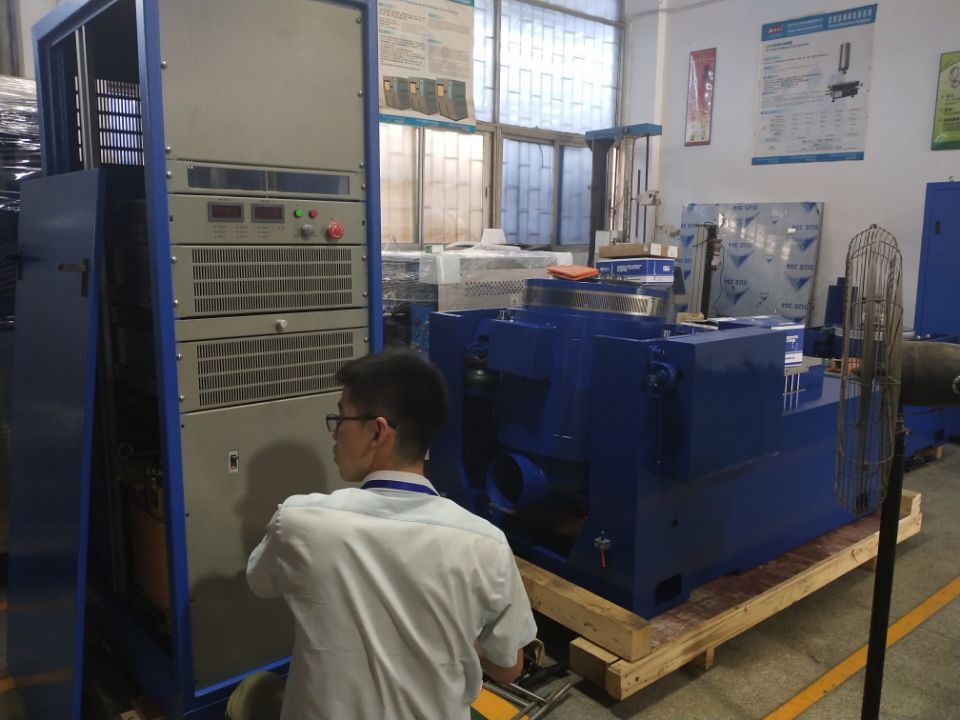

Control system and amplifier rack for the electrodynamics vibration testing machine

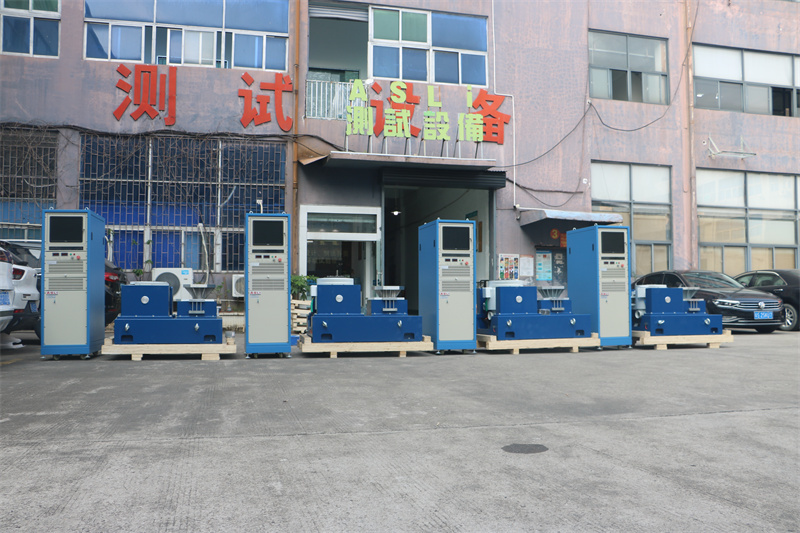

Complete vibration testing system setup in a laboratory environment
Packing & Delivery
Export plywood case packaging for the vibration testing machine, showing foam padding and secure strapping

To better ensure the safety of your goods, professional, environmentally friendly, convenient, and efficient packaging services will be provided.

Company Profile
Company factory and manufacturing facility overview

We are a long-established testing equipment manufacturer. Over the past 28 years, we have devoted ourselves to simulation environmental testing equipment and mechanical vibration and shock testing machines. Our vibration testing machine for packages and cartons is a star product, and we have obtained CE certification for this machine.

Mechanical Shock Tester
Mechanical shock tester machine for simulating impact and shock environments
Transportation Simulator Vibration Tester
Transportation simulator vibration tester for package and carton testing
Drop Test Machine

Our drop test machines are designed for precise and repeatable free-fall drop testing of packaged products.

Frequently Asked Questions
Q1. What are your terms of packing?

A: PP film first, and then 10mm foam between the machine and the case, and outside is a standard export plywood case.

Q2. What are your terms of payment?

A: T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages before you pay the balance.

Q3. What are your terms of delivery?

A: EXW, FOB, CIF, DAP, DDU, DDP.

Q4. How about your delivery time?

A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

If you need more information about the 3-axis Electrodynamics Vibration Testing Machine with 100g Acceleration, please don't hesitate to contact us.

Product Highlights

3-axis Electrodynamic Vibration Testing Machine delivers 100g acceleration, 10KN force, 51mm displacement, and ±1% accuracy. Complies with ISO 16750-03 and IEC 60068-2. Supports OEM/ODM customization, 380V power, IP55 protection, and 1-year warranty for auto parts and lab testing.
