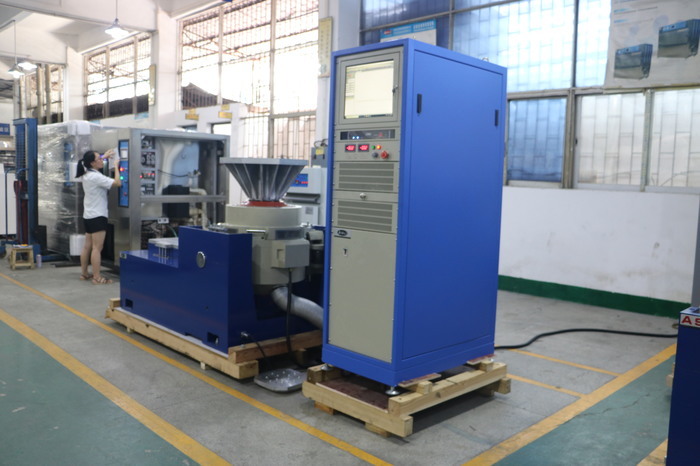

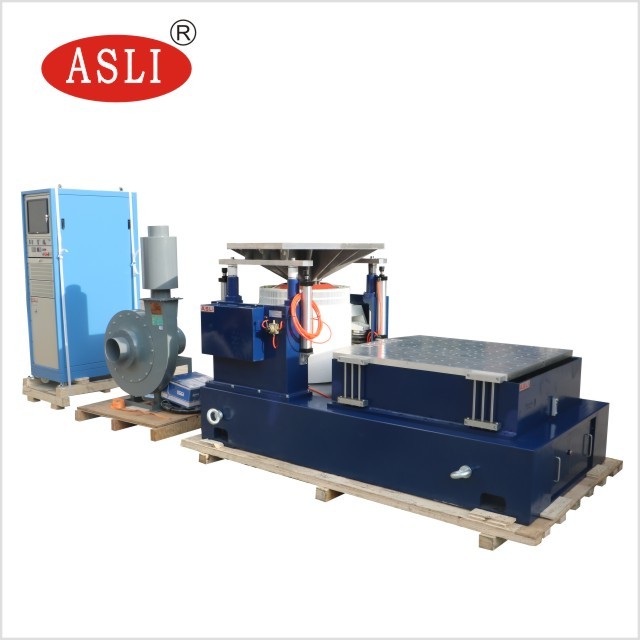

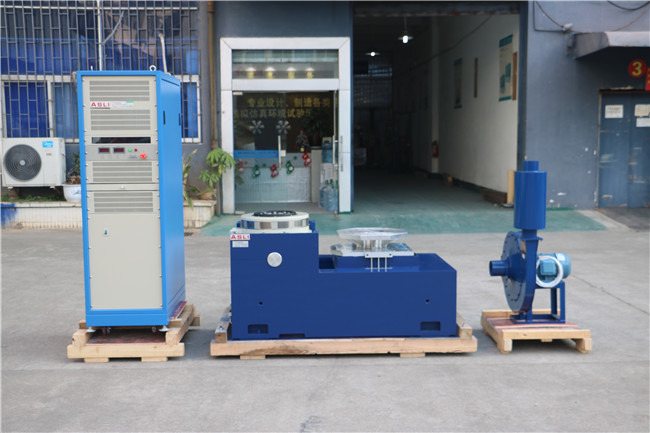

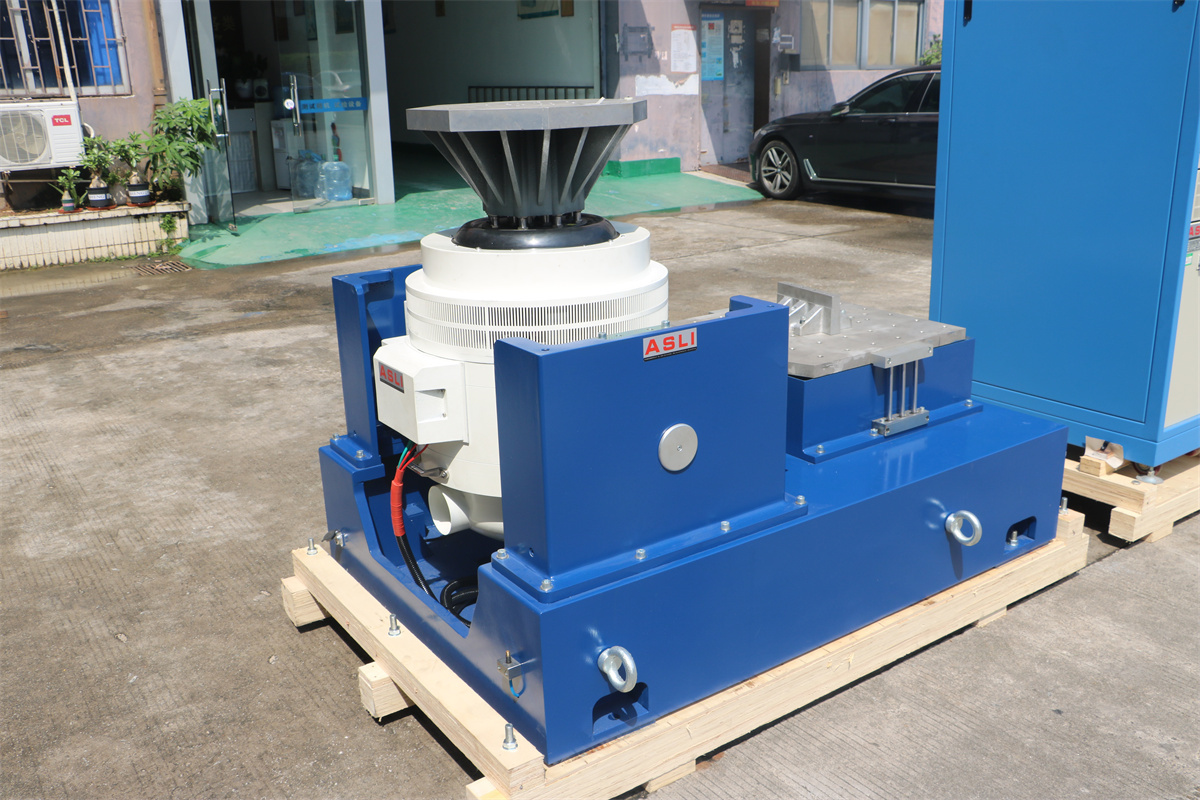

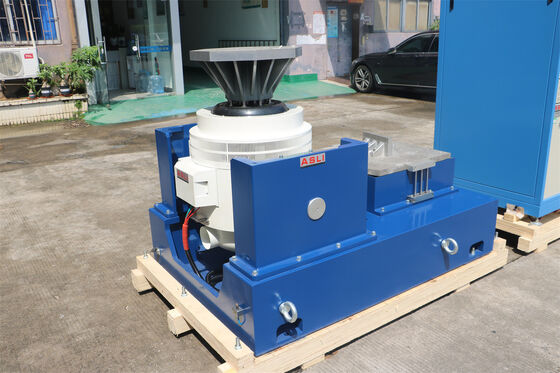

3 Axis Vibration System

Brand Name: ASLI
Place of Origin: Guangdong, China
Certification: CE,Third party calibration qualification report
Minimum Order Quantity: 1

Product Details


Vibration Directions: Three Directions Free Vibration Power: 20KW
Voltage: 380 V Accuracy: +/-1%
Sine Force: 10000N Vibration Wave: Sine, Random, Shock
Acceleration Sensor: 1 Pc Input: 1 Channel
Rated Sine Force: 10000N Rated Random Force: 10000N
Frequency Range: 3-3000 Hz Rated Acceleration: 1000 M/s2
Rated Speed: 1.8 M/s Rated Displacement: 51 Mm
Max Loading: 270 Kg
Highlight

3 axis vibration shaker system

,

vibration system with 3 axis

,

3 axis vibration testing system

Product Description

Product Overview

The 3 Axis Vibration System is designed for testing a wide variety of packaging materials, PC boards, and electrical products. It delivers reliable, repeatable vibration simulation for product qualification and reliability assessment.

  • IEC62133
  • UL1642
  • UN38.3
  • GB31241
Working Principle

The vibration tester operates on a principle similar to that of a loudspeaker: an electrical conductor is moved by the action of electromagnetic force within a magnetic field. The force that accelerates the moving part is generated by the balance between the driving current and the magnetic flux. By controlling the driving current, the vibration generator can be precisely controlled.

The maximum acceleration level of the electromagnetic vibration exciter is determined by the maximum current and the loading. At low frequencies, the displacement of the moving part is restricted, so the acceleration will not reach a high level. The resonance frequency of the moving element is set higher than the upper limit of the frequency range.

Air Cooling Vibration Testing Machine Parameters
Model Rated Sine Force (N) Rated Random Force (N) Frequency Range (Hz) Rated Acceleration (m/s²) Rated Speed (m/s) Rated Displacement (p-p) mm Max. Loading (Kg) Moving Coil (Kg) Dimension of Moving Coil (mm)
ES-3 3000 3000 3–3500 1000 1.6 25 100 3.5 Φ150
ES-3a 3000 3000 3–3500 400 1.6 40 120 9 Φ230
ES-6 6000 6000 3–3500 1000 1.6 25 180 6.5 Φ230
ES-6a 6000 6000 3–3500 1000 1.6 51 250 12 Φ230
ES-10 10000 10000 3–3000 1000 1.8 51 270 14 Φ240
ES-20 20000 20000 3–3000 1000 1.8 51 300 30 Φ320
ES-30 30000 30000 3–2800 1000 1.8 51 450 40 Φ450
ES-40 40000 40000 3–2800 1000 1.8 51 500 50 Φ450
ES-50 50000 50000 3–2700 1000 1.8 51 750 50 Φ450
Expander Technical Parameters
Vertical Expander
Technical parameters diagram of the vertical expander for the 3 Axis Vibration System
Horizontal Expander
Technical parameters diagram of the horizontal expander for the 3 Axis Vibration System
Vibration Testing Machine Specifications
  1. Well-designed dynamic circle skeleton, with a higher stage axial resonance frequency.
  2. Two-magnetic circuit design with low magnetic flux leakage, compact structure, and rational layout.
  3. Rocker rod roller bearings with straight and import-oriented composite body stiffness orientation, providing strong eccentric load capacity.
  4. Trunnion isolation foundation dedicated to hormone use, offering convenient mobile installation.
  5. Advanced technology move-around system ensures high reliability of the dynamic circle.
  6. New duct design enhances the cooling effect.
  7. Static stiffness and dynamic stiffness of the bearing with small balloon, raising the vibration table bearing capacity and improving low-frequency performance.
Detailed Images
Other Products
Overview of other testing equipment offered by ASLI
Our Company

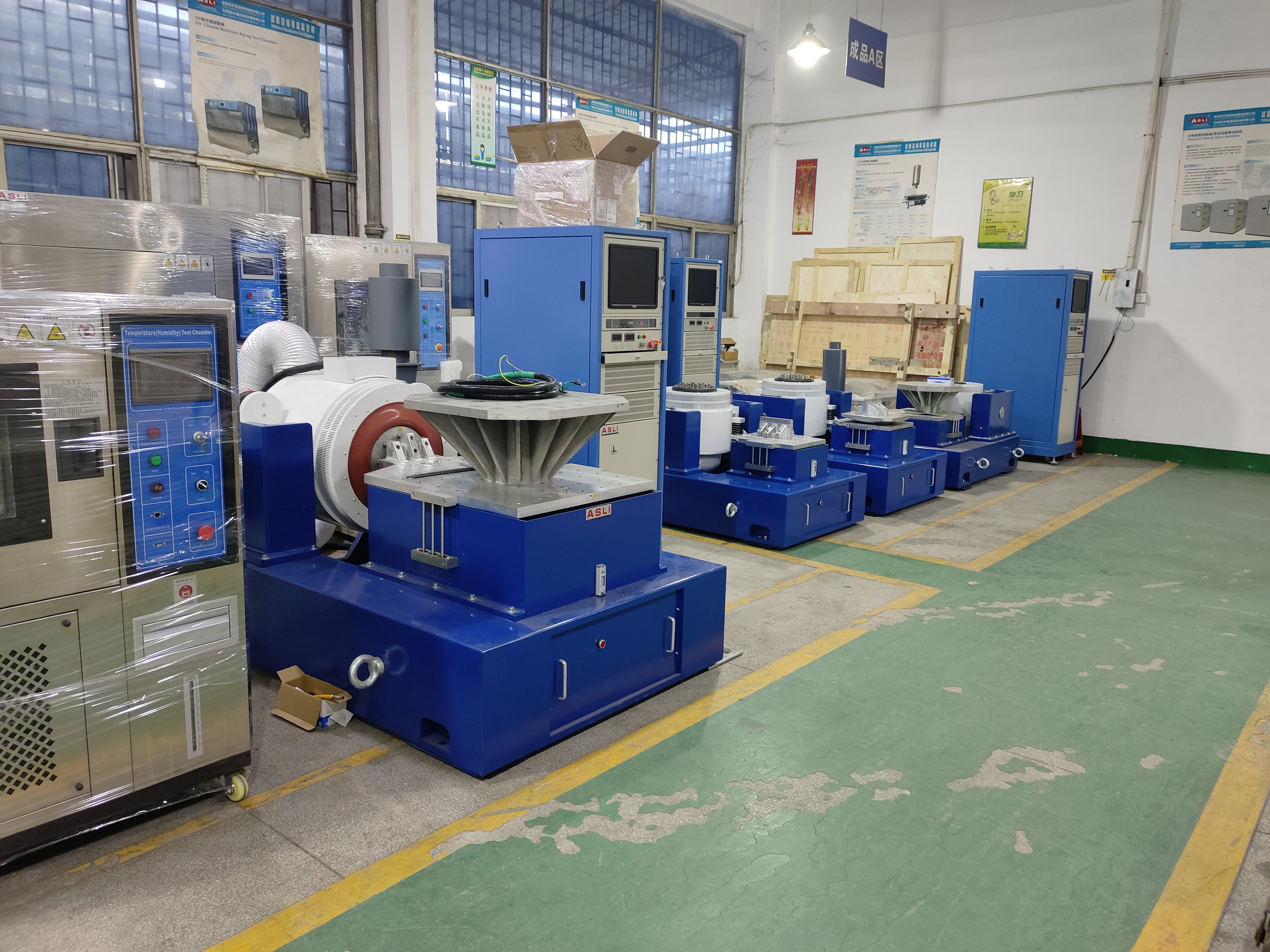

ASLI company facility and manufacturing environment

ASLI main products: climatic chamber, temperature chamber, humidity chamber, walk-in chamber, UV aging chamber, thermal shock chamber, xenon chamber, xenon combined UV aging chamber, PCT chamber, HAST chamber, vibration chamber, high frequency vibrating tester, mechanical shock tester, climatic combined vibration chamber, and more.

Packing & Delivery

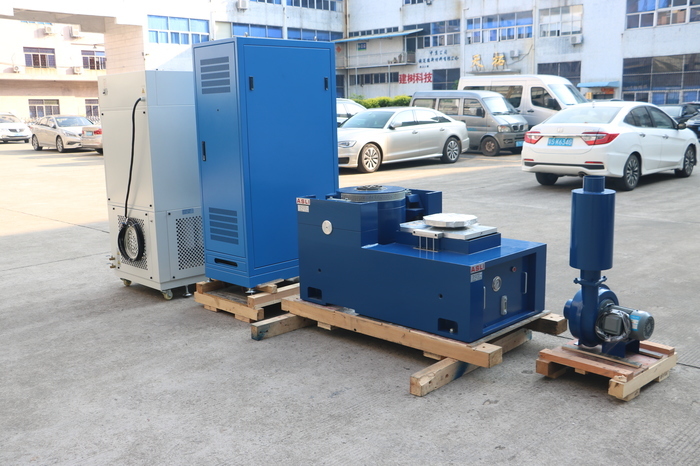

Packing and delivery preparation of the vibration testing system
Our Service
ASLI customer service and technical support team
FAQ

Q1. What are your terms of packing?

A: Generally, we pack our goods in neutral white boxes and brown cartons.

Q2. What are your terms of payment?

A: T/T 50% as deposit, and 50% before delivery. We will show you the photos of the products and packages before you pay the balance.

Q3. What are your terms of delivery?

A: EXW, FOB, CFR, CIF, DDU.

Q4. How about your delivery time?

A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

If you need more information about the 3 Axis Vibration System, please don't hesitate to send your inquiry.

Product Highlights

3 Axis Vibration System delivers 10000N sine force, ±1% accuracy, and three-direction free vibration for auto, plastic, textile, and electrical testing. IP55 rated, 20KW, 380V, with sine, random, and shock waveforms. Supports OEM, ODM, OBM customization and includes a 1-year warranty.
