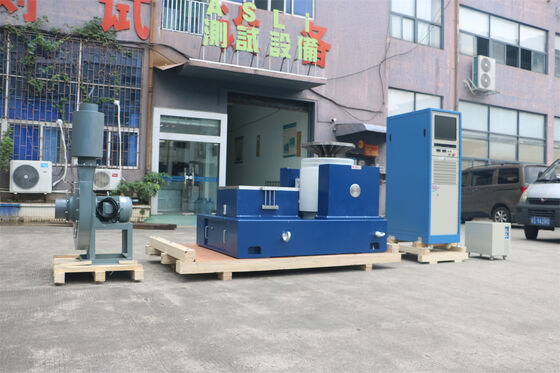

Carton Packaging Simulated Transport Vibrator Vibration Test Table
Product Details
| Power: | 20KW | Protection Class: | IP55 |
|---|---|---|---|
| Voltage: | 380 V | Frequency: | 3~3500HZ |
| Accuracy: | +/-1% | Rated Random Force: | 20000N |
| Vibration Method: | Sine &Random Vibration | Rated Sine Force: | 20000N |
| Max. Acceleration: | 100g | Control Method: | PC |
| Power Supply: | AC380V | Vibration Direction: | Vertical Vibration |
| Rated Speed: | 2.0m/s | Rated Displacement: | 51mm |
| Frequency Range: | 3-3500Hz | ||
| Highlight |
Carton packaging vibration test table,Simulated transport vibrator system,Vibration shaker test equipment |
||
Product Description

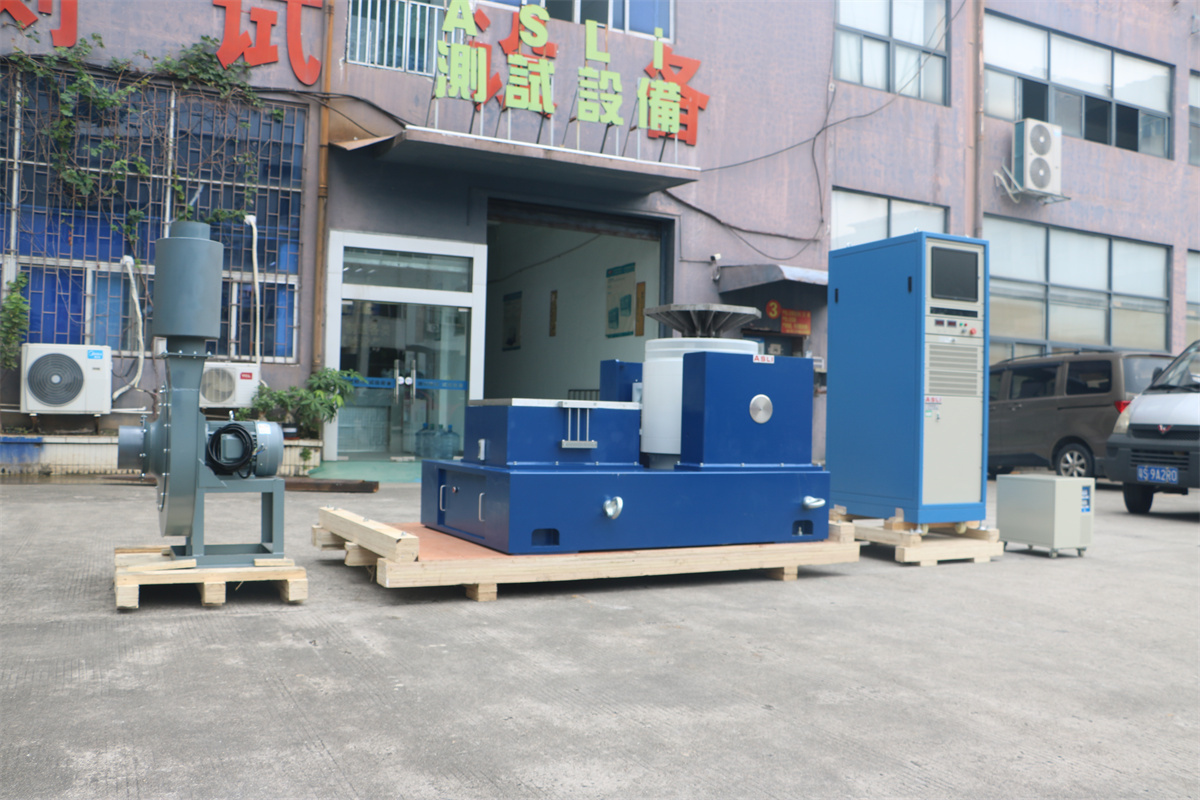

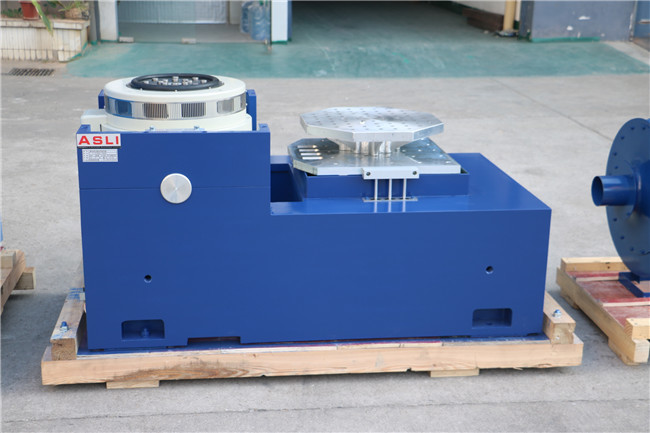

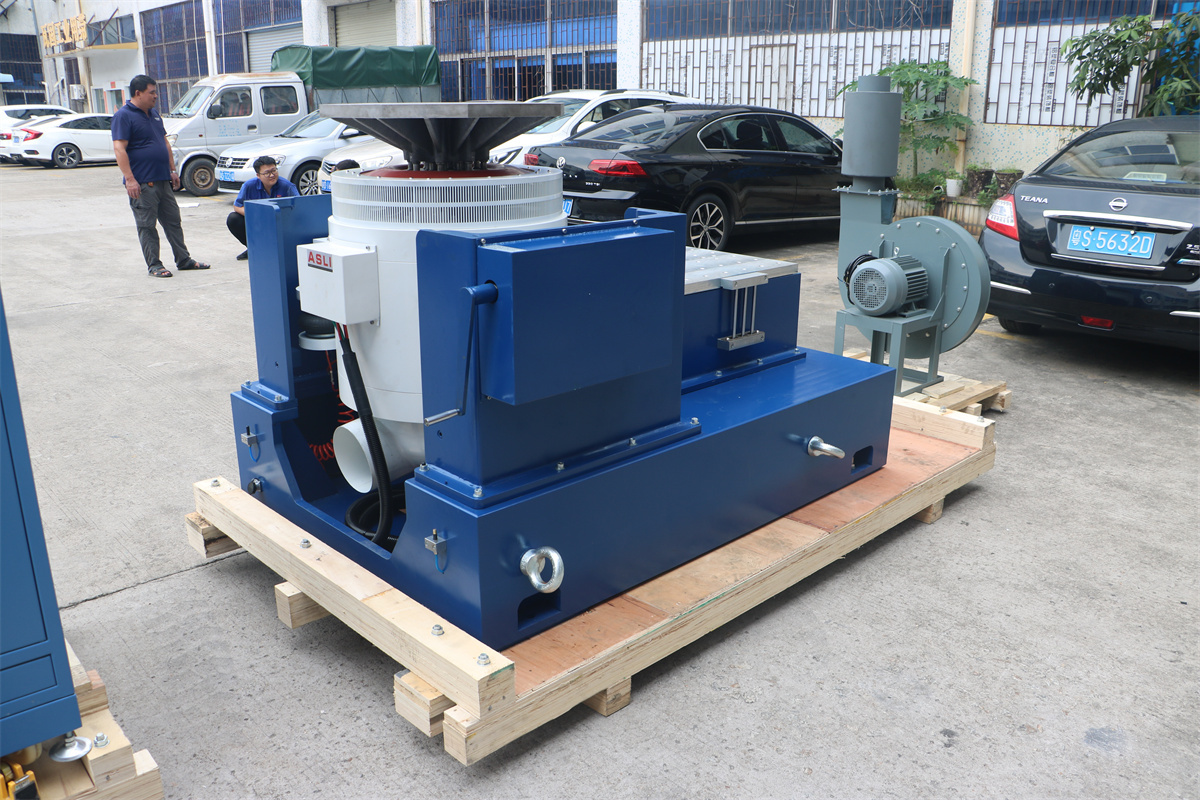

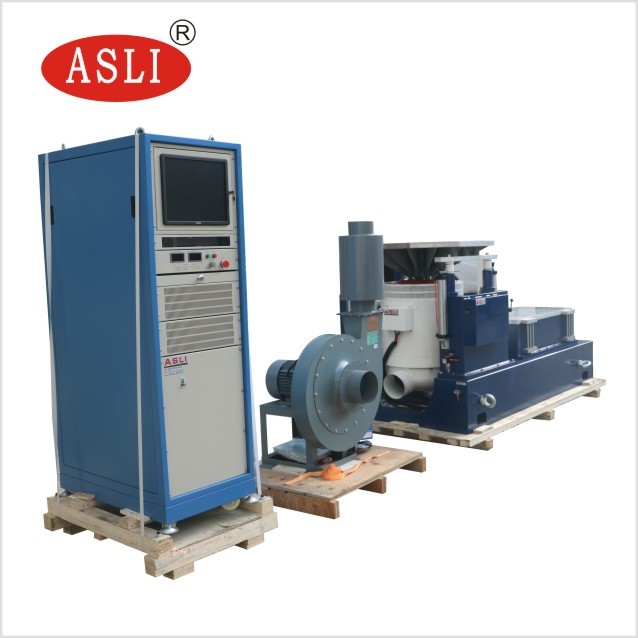

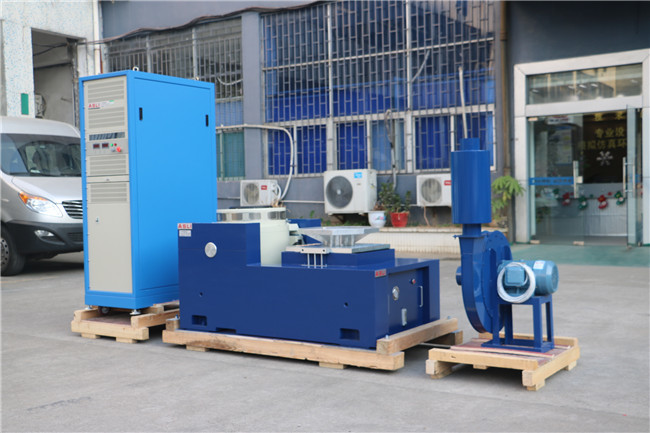

The Carton Packaging Simulated Transport Vibrator Vibration Test Table is a high-frequency electrodynamic vibration testing system designed to simulate transport and operational vibration conditions. Manufactured by ASLi, this equipment is built with advanced technologies including a double-magnetic circuit structure, self-generated skeleton action circles, airborne support, roller bearings with linear guidance, and trunnion isolation. It is capable of performing X, Y, and Z three-axis sinusoidal vibration tests, broadband random vibration tests, and classical pulse tests (half-sine, trapezoidal, sawtooth wave) as well as shock response spectrum testing.
These systems are widely used across national defense, weapons, aviation, aerospace, communications, electronics, electrical appliances, and home appliance industries.
| Model | Rated Sine Force (N) | Rated Random Force (N) | Frequency Range (Hz) | Rated Acceleration (m/s²) | Rated Speed (m/s) | Rated Displacement (p-p) mm | Max. Loading (Kg) | Moving Coil (Kg) | Dimension of Moving Coil (mm) |
|---|---|---|---|---|---|---|---|---|---|
| ES-1 | 1000 | 1000 | 3–3500 | 400 | 1.2 | 25 | 70 | 2.5 | Φ150 |
| ES-2 | 2000 | 2000 | 3–3500 | 800 | 1.6 | 25 | 70 | 2.5 | Φ150 |
| ES-2a | 2000 | 2000 | 3–3500 | 300 | 1.6 | 40 | 70 | 8 | Φ230 |
| ES-3 | 3000 | 3000 | 3–3500 | 1000 | 1.6 | 25 | 100 | 3.5 | Φ150 |
| ES-3a | 3000 | 3000 | 3–3500 | 400 | 1.6 | 40 | 120 | 9 | Φ230 |
| ES-6 | 6000 | 6000 | 3–3500 | 1000 | 1.6 | 25 | 180 | 6.5 | Φ230 |
| ES-6a | 6000 | 6000 | 3–3500 | 1000 | 1.6 | 51 | 250 | 12 | Φ230 |
| ES-10 | 10000 | 10000 | 3–3000 | 1000 | 1.8 | 51 | 270 | 14 | Φ240 |
| ES-20 | 20000 | 20000 | 3–3000 | 1000 | 1.8 | 51 | 300 | 30 | Φ320 |
| ES-30 | 30000 | 30000 | 3–2800 | 1000 | 1.8 | 51 | 450 | 40 | Φ450 |
| ES-40 | 40000 | 40000 | 3–2800 | 1000 | 1.8 | 51 | 500 | 50 | Φ450 |
| ES-50 | 50000 | 50000 | 3–2700 | 1000 | 1.8 | 51 | 750 | 50 | Φ450 |
| ES-60 | 60000 | 60000 | 3–2700 | 1000 | 1.8 | 51 | 750 | 60 | Φ450 |
| ES-100 | 100000 | 100000 | 3–2500 | 1000 | 1.8 | 51 | 1000 | 90 | Φ450 |
| ES-120 | 120000 | 120000 | 3–2200 | 1000 | 1.8 | 51 | 1100 | 90 | Φ500 |
| ES-160 | 160000 | 160000 | 3–2100 | 1000 | 1.8 | 51 | 1500 | 150 | Φ600 |
| ES-200 | 200000 | 200000 | 3–2000 | 1000 | 1.8 | 51 | 2500 | 200 | Φ650 |
| ES-350 | 350000 | 350000 | 3–1700 | 1000 | 1.8 | 51 | 4500 | 300 | Φ87 |
- Well-designed dynamic circle skeleton with a higher stage axial resonance frequency.
- Two-magnetic circuit design with low magnetic flux leakage, compact and rational structure.
- Rocker rod roller bearings with straight and import-oriented composite body stiffness orientation, providing excellent eccentric load capacity.
- Trunnion isolation foundation dedicated to vibration isolation, with convenient mobile installation.
- Advanced moving system technology ensures high reliability of the dynamic circle.
- New duct design enhances the cooling effect.
- Static stiffness and dynamic stiffness of the bearing with small balloon effect, raising the vibration table capacity and improving low-frequency performance.
- China official 3rd party calibration report
- CE certification
- PP film first
- Vacuum package
- PP film again
- 10mm thickness PU foam to avoid collision
- Strengthened plywood case
- Standard ASLI case mark
- High quality guarantee.
- Shipment with professional documents.
- Packing as your request, with photo before shipment.
- Reply within 48 hours and provide solution within 3 working days.
- Professional after-service from our engineers.
- Professional technology support.
- Full experience of large numbers of container loading in Chinese sea ports.
- Fast shipment by reputed shipping line.
- Best service after shipment with emails.
- We are a professional test equipment manufacturer in China with excellent experience and skills, also have best quality products.

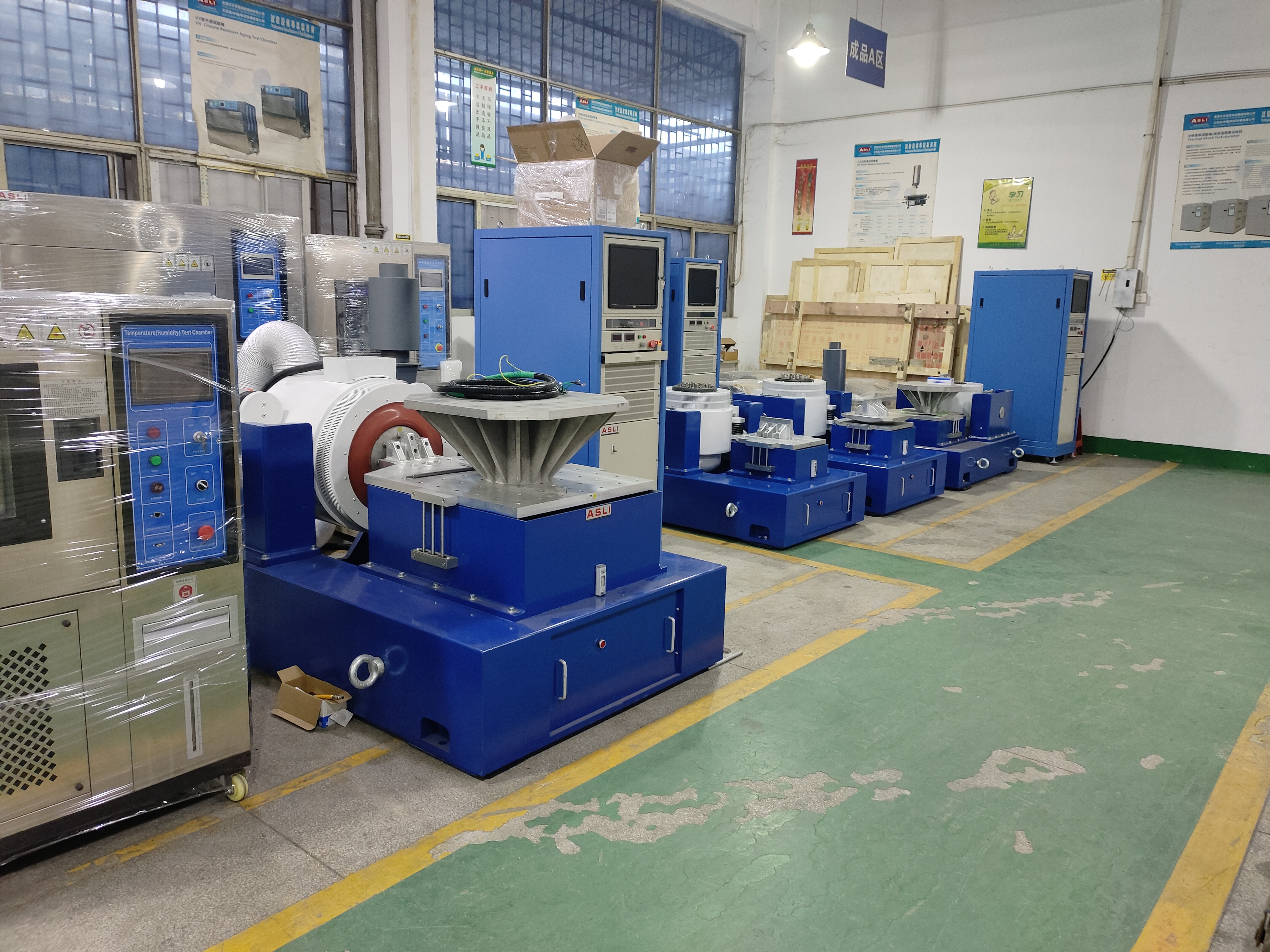

ASLi is a testing equipment manufacturer with a long history. Over the past 28 years, we have devoted ourselves to simulation environmental testing equipment and mechanical vibration and shock testing machines. The Carton Packaging Simulated Transport Vibrator Vibration Test Table is one of our star products, and we have obtained CE certification for this machine.
Environmental chambers, temperature (humidity) chambers, thermal shock chambers, PCT/HAST chambers (Highly Accelerated Stress Test chambers), ESS chambers, walk-in stability chambers, vacuum ovens, electrodynamic vibration shakers, mechanical shock testers, environmental combined vibration chambers, and more.
We are a factory with 28 years focusing on the test instruments field and 4 years of exporting experience.
Generally about 20 days. If we have finished products in stock, we can arrange shipment within 3 days. Please be aware that our production lead times depend on specific items and item quantities.
We offer a 12-month warranty. After the warranty period, our professional after-sale service team will provide perfect technical support and help customers solve problems encountered while using our products, handling guest problems and complaints in a professional and timely manner.
Please feel free to contact us if you have any questions or needs regarding the Carton Packaging Simulated Transport Vibrator Vibration Test Table.
Product Highlights
20KW carton transport vibration test table with 3-3500HZ frequency, ±1% accuracy, 20000N sine/random force and 100g acceleration. IP55 protection, PC control, vertical vibration. CE certified, 1-year warranty, OEM/ODM/OBM customization available.
