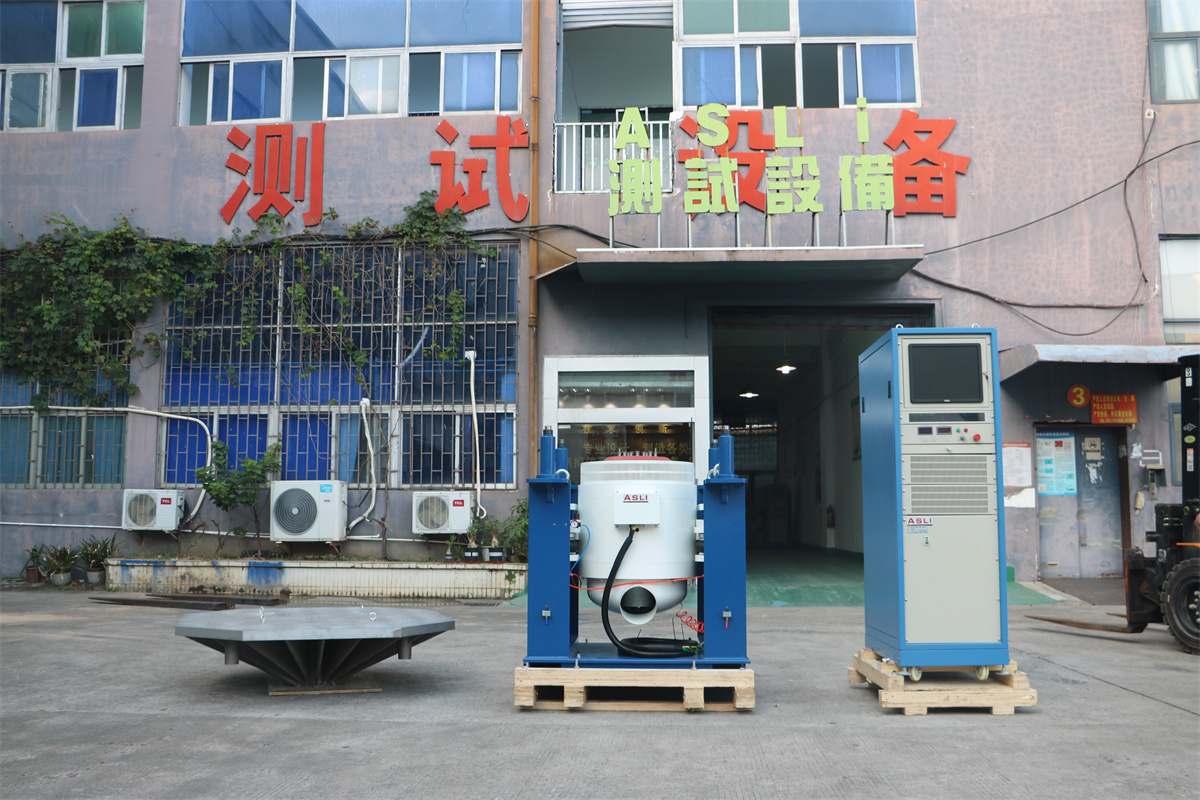

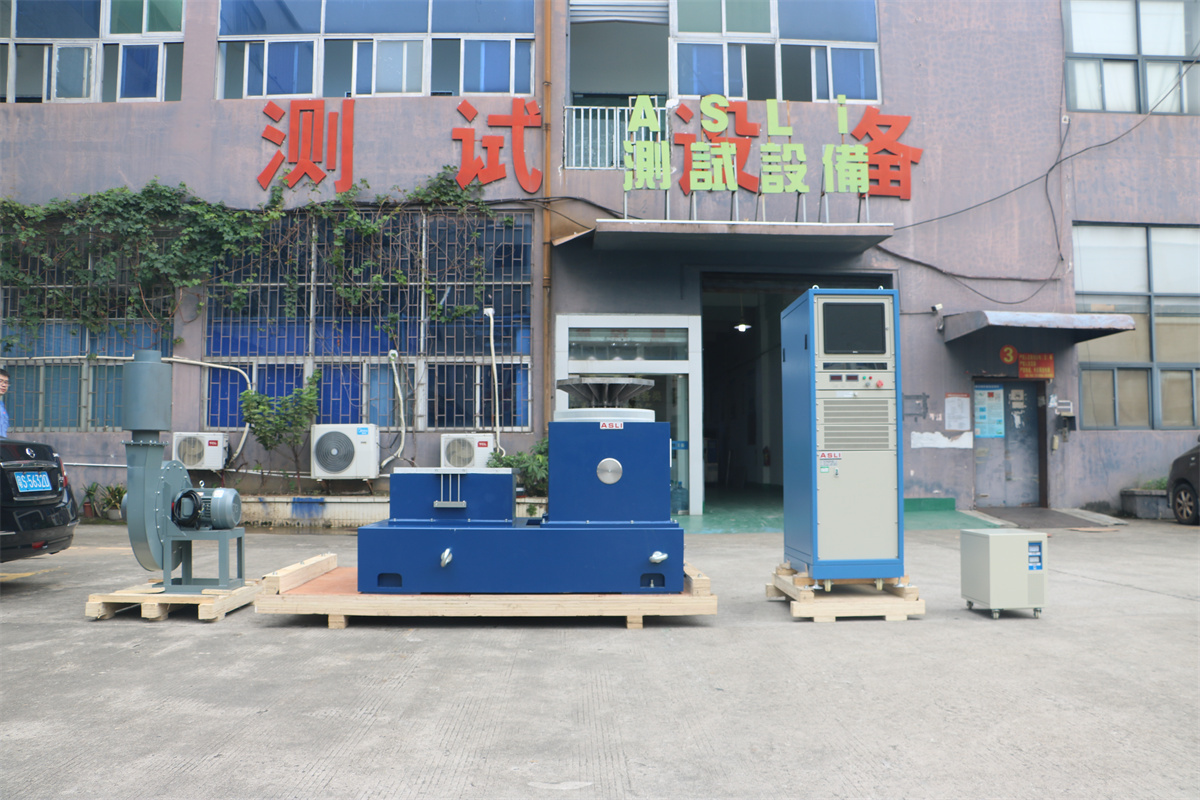

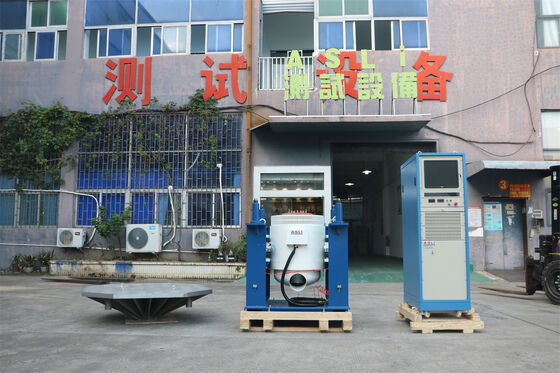

Vibrating Shaker Table Vibration Tester

Brand Name: ASLI
Place of Origin: Guangdong, China
Minimum Order Quantity: 1

Product Details


Vibration Directions: Vertical & Horizontal Voltage: 380 V
Moving Coil Size: Dia. 230 Mm Power: 20KW
Frequency Range: 5Hz To 3500Hz Protection Class: IP55
Moving Coil Weight: 6.5kg Accuracy: ±5%
Vibration Wave: Sine, Random, Shock Max. Acceleration: 1000m/s2
Impact Displacement: 25mm Max. Speed: 1.6m/s
Rated Sine Force: 6000 N Rated Random Force: 6000 N
Max. Loading: 180 Kg
Highlight

Vibrating shaker table tester

,

Vibration tester system

,

Shaker table vibration system

Product Description

Product Overview

The Vibrating Shaker Table Vibration Tester is engineered to perform both sinusoidal vibration tests and broadband random vibration tests. It also supports classic pulse testing (half sinusoid, trapezoid, and back peak saw tooth) as well as shock response spectrum testing. When paired with a climate chamber, it enables comprehensive mechanical and environmental condition testing.

This high-frequency vibration test system is widely used across national defense, weapon, aviation, aerospace, communication, electronics, electrical appliance, transportation, and household appliance industries. It can be configured to provide users with comprehensive test equipment for multiple environments, including climate and mechanical conditions.

Technical Specifications
ModelRated Sine Force (N)Rated Random Force (N)Frequency Range (Hz)Rated Acceleration (m/s²)Rated Speed (m/s)Rated Displacement (p-p) mmMax. Loading (Kg)Moving Coil (Kg)Dimension of Moving Coil (mm)
ES-3300030003–350010001.6251003.5Φ150
ES-3a300030003–35004001.6401209Φ230
ES-6600060003–350010001.6251806.5Φ230
ES-6a600060003–350010001.65125012Φ230
ES-1010000100003–300010001.85127014Φ240
ES-2020000200003–300010001.85130030Φ320
ES-3030000300003–280010001.85145040Φ450
ES-4040000400003–280010001.85150050Φ450
ES-5050000500003–270010001.85175050Φ450
Vibrating shaker table vibration tester system overview

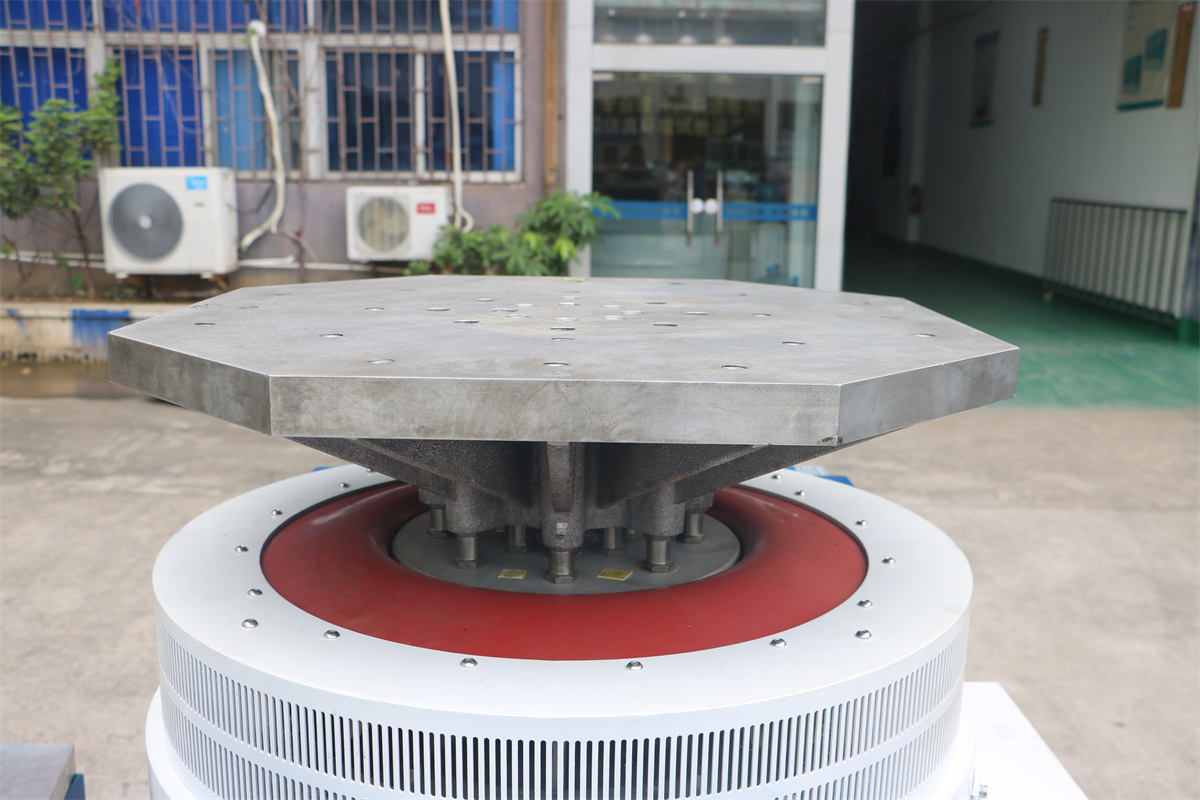

Vertical Expander

The VT vertical extended-bench and specified clamps are precision-calculated and elaborately designed to ensure the customer acquires the best performance. This is achieved through a perfect structure, high-quality materials, and superior workmanship.

Vertical expander for vibrating shaker table

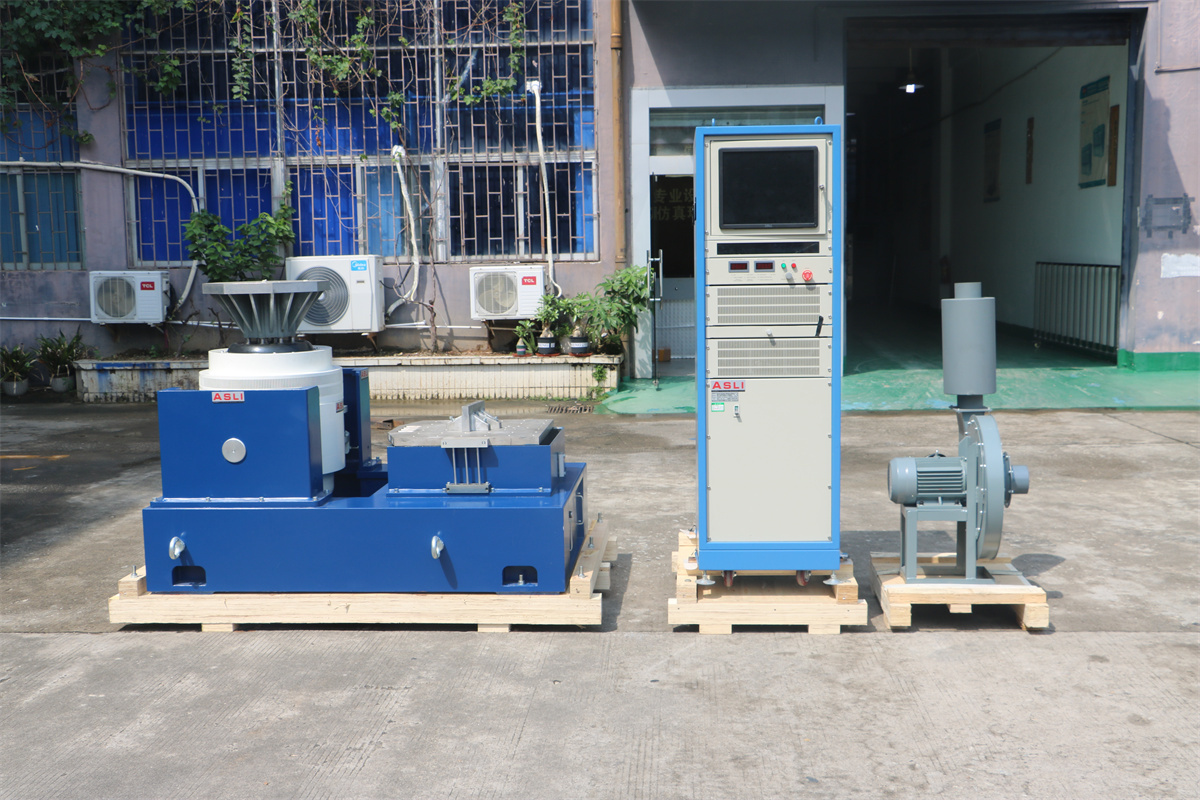

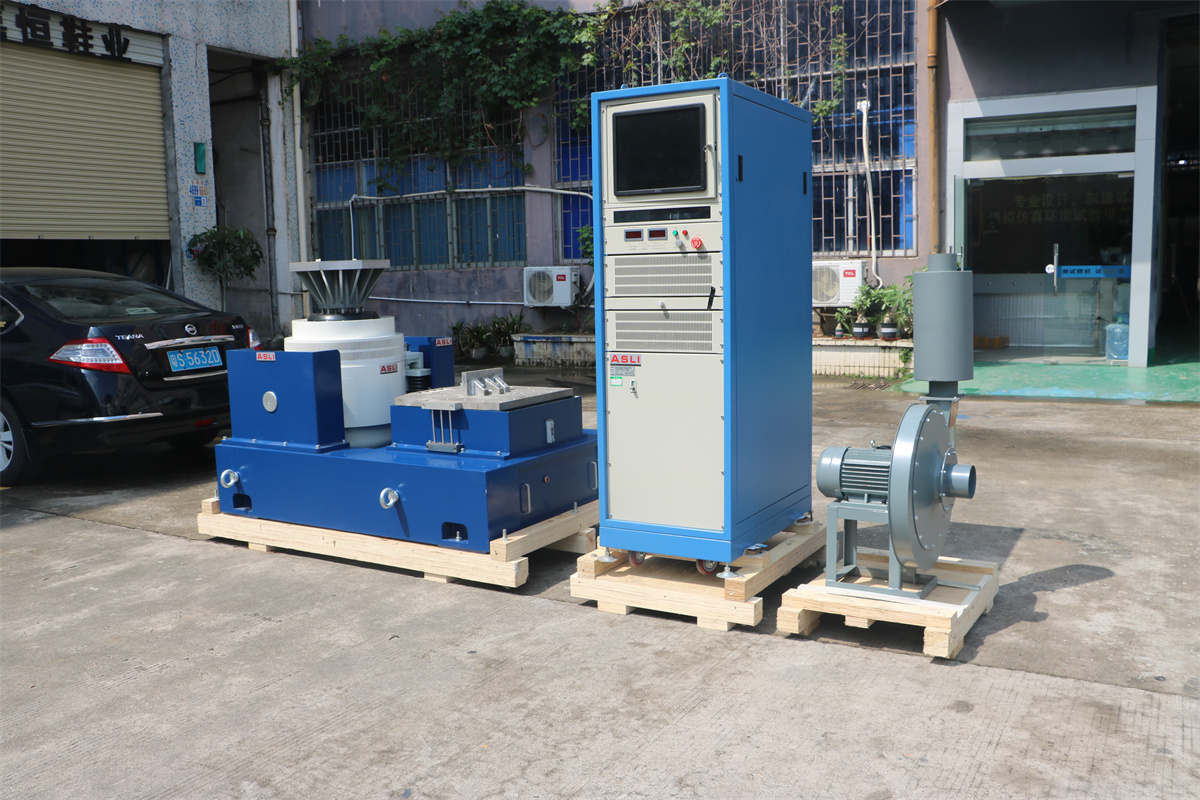

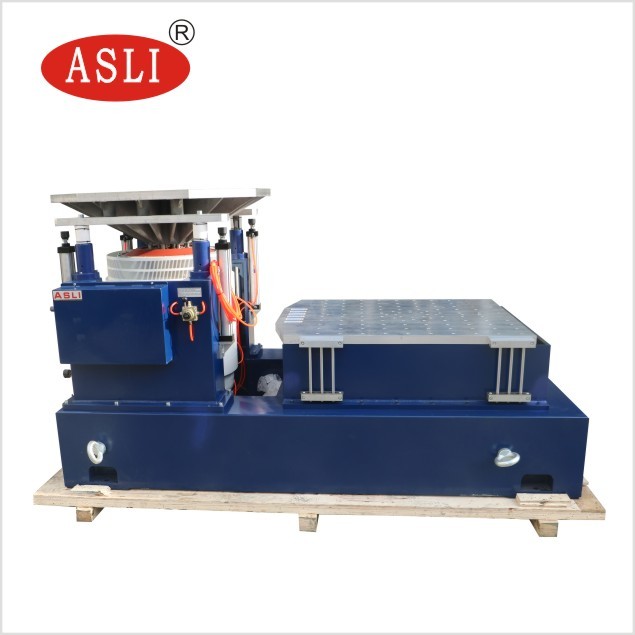

Horizontal Expander

Within a small loading bench, the horizontal expander realizes higher acceleration and working frequency, improving the loading capacity and performance of the whole machine bench.

The horizontal bench and vibration bench are an integral type, featuring a perfect structure that is convenient to install and adjust.

The static pressure track is V-shaped, with capacity for slope-resistant and bias-loading resistant operation.

A built-in oil pump provides a good structure and easy operation.

Horizontal expander for vibrating shaker table
Detailed Images
Detailed view of vibrating shaker table componentClose-up of vibration tester mechanical assemblyVibration shaker table control panel and connectionsVibrating shaker table system in operationVibration tester with expander and fixture setupIndustrial vibration testing equipment detail
Other Products
Additional testing equipment product lineup
Our Company
Manufacturing facility of testing equipment company

We are a long-established testing equipment manufacturer. Over the past 28 years, we have devoted ourselves to simulation environmental testing equipment and mechanical vibration and shock testing machines. Our lab package simulated vibration test equipment with slip table is a star product, and we have obtained CE certification for this machine.

Packing & Delivery
Packing and delivery preparation for vibration testing equipment
Our Service
  1. High quality guarantee.
  2. Shipment with professional documents.
  3. Packing as your request, with photo before shipment.
  4. Reply within 48 hours and provide solution within 3 working days.
  5. Professional after-service from our engineers.
  6. Warranty period: 12 months.
Exhibition
Company exhibition booth showcasing testing equipment

Please don't hesitate to contact us if you have any needs about the Vibrating Shaker Table Vibration Tester.

Product Highlights

Vibrating Shaker Table Vibration Tester delivers sine, random and shock testing with 5-3500Hz range, 1000m/s² max acceleration and ±5% accuracy. IP55 protection, 20KW, 380V, OEM/ODM/OBM support and 1-year warranty ensure reliable, customized lab performance.
