Features Gallery Product Description Request A Quote

Features

Specifications

Sine Force: 10000N

Vibration Wave: Sine, Random, Shock

Vibration Directions: Vertical Vibration+Horizontal Vibration

Accuracy: +/-1%

Power: 20KW

Protection Class: IP55

Moving Coil Weight: 14kg

Voltage: 380 V

Impact Displacement: 51mm

Frequency Range: 5 Hz To 3000Hz

Control Method: Amplifier

Rated Acceleration: 1000 M/s2

Rated Speed: 51 M/s

Max. Loading: 270 Kg

Moving Coil Diameter: Φ240

Highlight:

ISTA standard vibration test equipment

vibration shaker system supplier

package vibration test equipment

Basic Infomation

Place of Origin: Guangdong, China

Brand Name: ASLI

Certification: CE,Third party calibration qualification report

Payment & Shipping Terms

Gallery

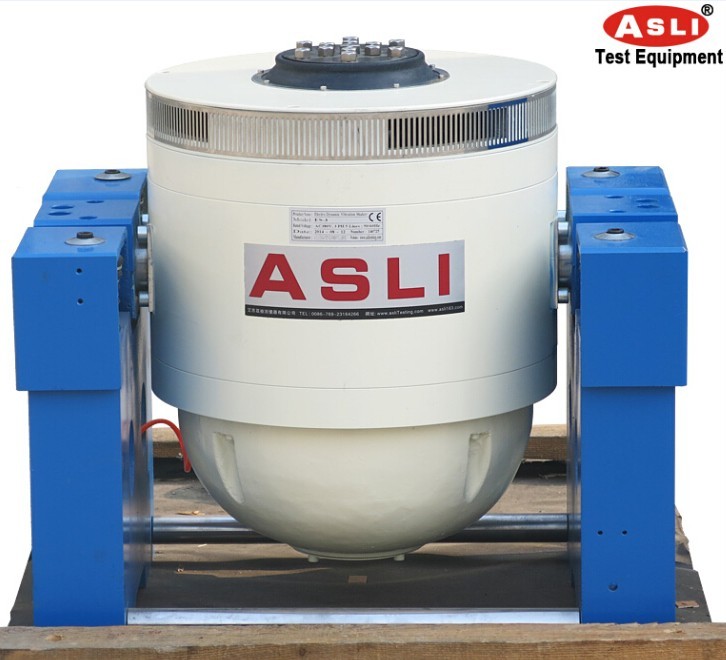

ISTA Standard Package Vibration Test Equipment Supplier

Product Description

ISTA Standard Package Vibration Test Equipment

Our Package Vibration Test Equipment incorporates advanced double-magnetic circuit structure, self-generated skeleton action circles, airborne support, roller bearings, and linear guidance with trunnion isolation technology. This sophisticated design enables comprehensive X, Y, Z three-axis sinusoidal vibration testing and broadband random vibration tests, along with classical pulse testing (half-sine, trapezoidal, sawtooth wave) and shock response spectrum analysis.

These vibration testing systems are extensively utilized across defense, weapons, aviation, aerospace, communications, electronics, electrical appliances, and consumer goods industries.

Testing Capabilities

Frequency Range: 5 Hz to 3000 Hz

Testing Modes: Fixed frequency, sweep back and forth, sine, random, shock

CE Certified High Frequency Vibration Shaker Applications

Automotive electronics devices, motor meter assemblies, automobile storage batteries, automotive electric equipment, automotive motors, water-soluble dielectric batteries, safety valves, auto air conditioning compressors, and related components.

Technical Specifications

Model	Rated Sine Force (N)	Rated Random Force (N)	Frequency Range (Hz)	Rated Acceleration (m/s²)	Rated Speed (m/s)	Rated Displacement (p-p) mm	Max Loading (Kg)	Moving Coil (Kg)
ES-3	3000	3000	3-3500	1000	1.6	25	100	3.5
ES-3a	3000	3000	3-3500	400	1.6	40	120	9
ES-6	6000	6000	3-3500	1000	1.6	25	180	6.5
ES-6a	6000	6000	3-3500	1000	1.6	51	250	12
ES-10	10000	10000	3-3000	1000	1.8	51	270	14
ES-20	20000	20000	3-3000	1000	1.8	51	300	30
ES-30	30000	30000	3-2800	1000	1.8	51	450	40
ES-40	40000	40000	3-2800	1000	1.8	51	500	50
ES-50	50000	50000	3-2700	1000	1.8	51	750	50

Key Features

Carefully designed moving coil skeleton with higher first-order axial resonant frequency
Light armature construction with high stiffness, supporting frequencies up to 3500 Hz
Computer-controlled operation with immediate data storage capabilities
Real-time control chart display for monitoring test parameters
Low resistance, high-performance design for maximum efficiency and cost-effectiveness
High reliability with minimal operational faults

Vertical Expander System

VT vertical extended-bench and specialized clamps are precision-calculated and elaborately designed to ensure optimal performance. Customers benefit from perfect structural integrity, high-quality materials, and superior workmanship.

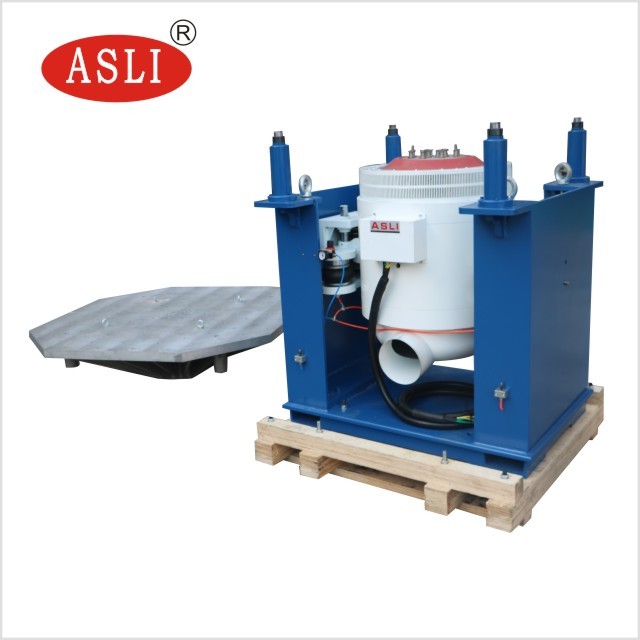

Horizontal Expander System

Our horizontal expander system enables higher acceleration and working frequency with small loading benches, significantly improving the loading capacity and overall machine performance.

The horizontal bench and vibration bench feature an integral design with perfect structure for convenient installation and adjustment.

Static pressure track with V-shape configuration provides exceptional slope-resistant and bias-loading resistant capabilities.

Built-in oil pump ensures optimal structure and easy operation.

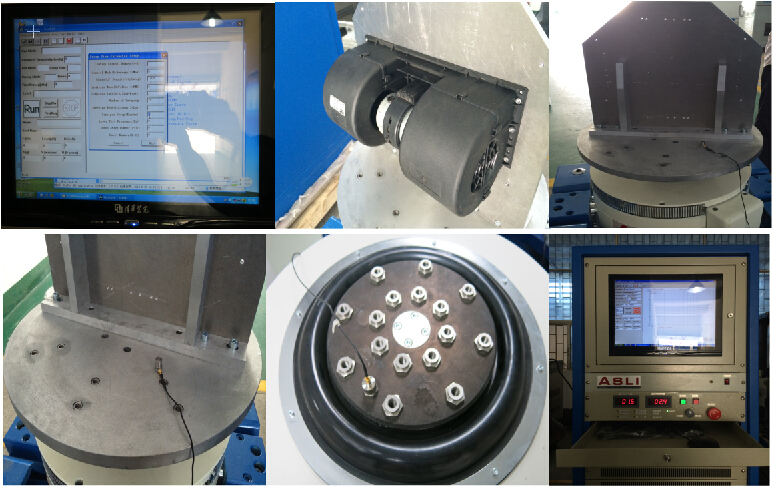

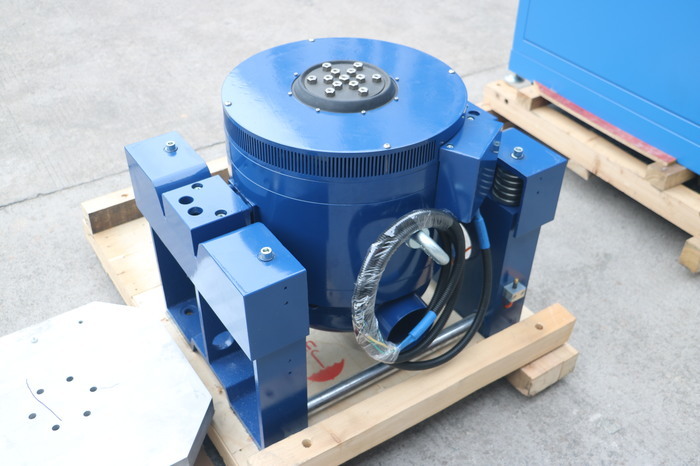

Detailed Product Images

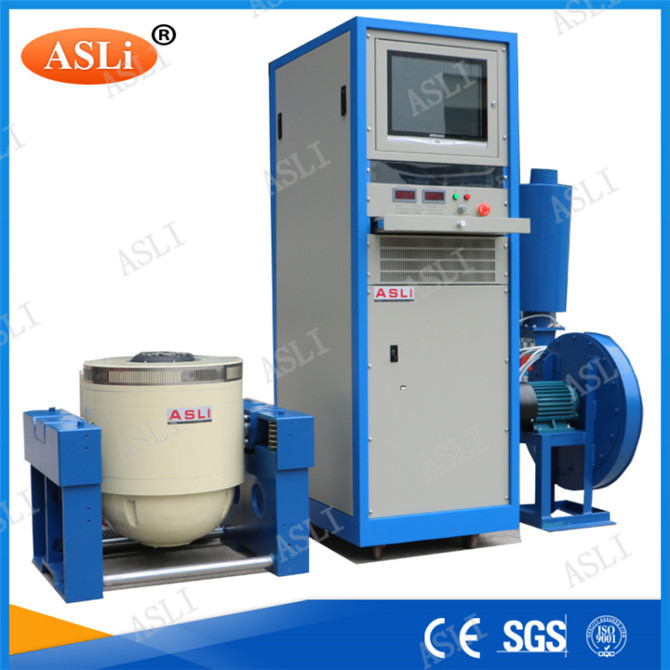

Our Testing Equipment Portfolio

About Our Company

With 28 years of industry experience, we are a established testing equipment manufacturer specializing in simulation environmental testing equipment and mechanical vibration and shock testing machines. Our Package Vibration Test Equipment is a star product line that has obtained CE certification, ensuring compliance with international standards.

Packing & Delivery

Our Service Commitment

High quality guarantee on all equipment
Professional documentation included with all shipments
Customized packing available with photos provided before shipment
Prompt response within 48 hours with solutions within 3 working days
Professional after-sales service from experienced engineers
Comprehensive 12-month warranty period

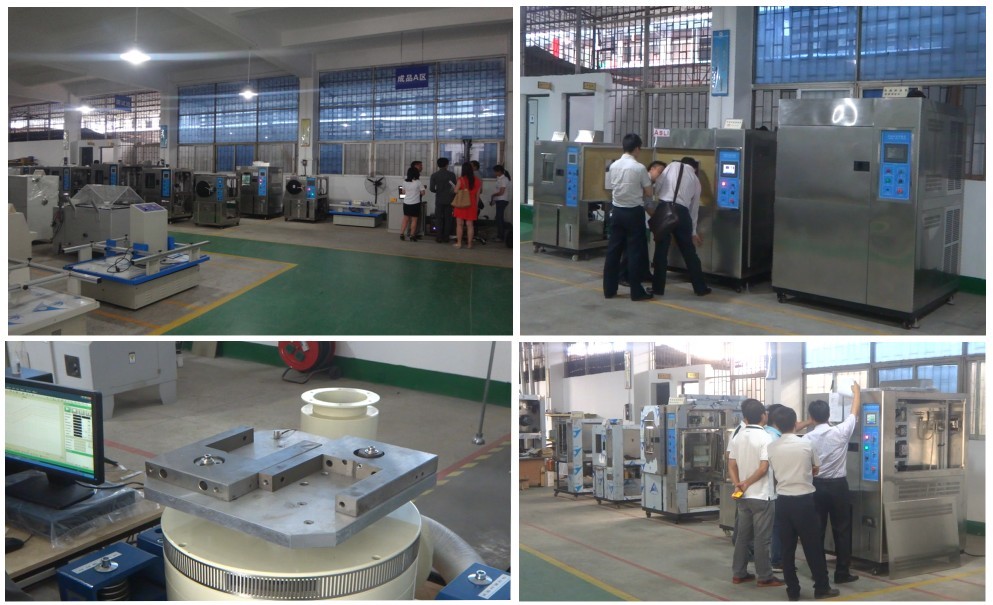

Industry Exhibitions

For more information about our ISTA Standard Package Vibration Test Equipment, please contact our technical team for detailed specifications and pricing.
