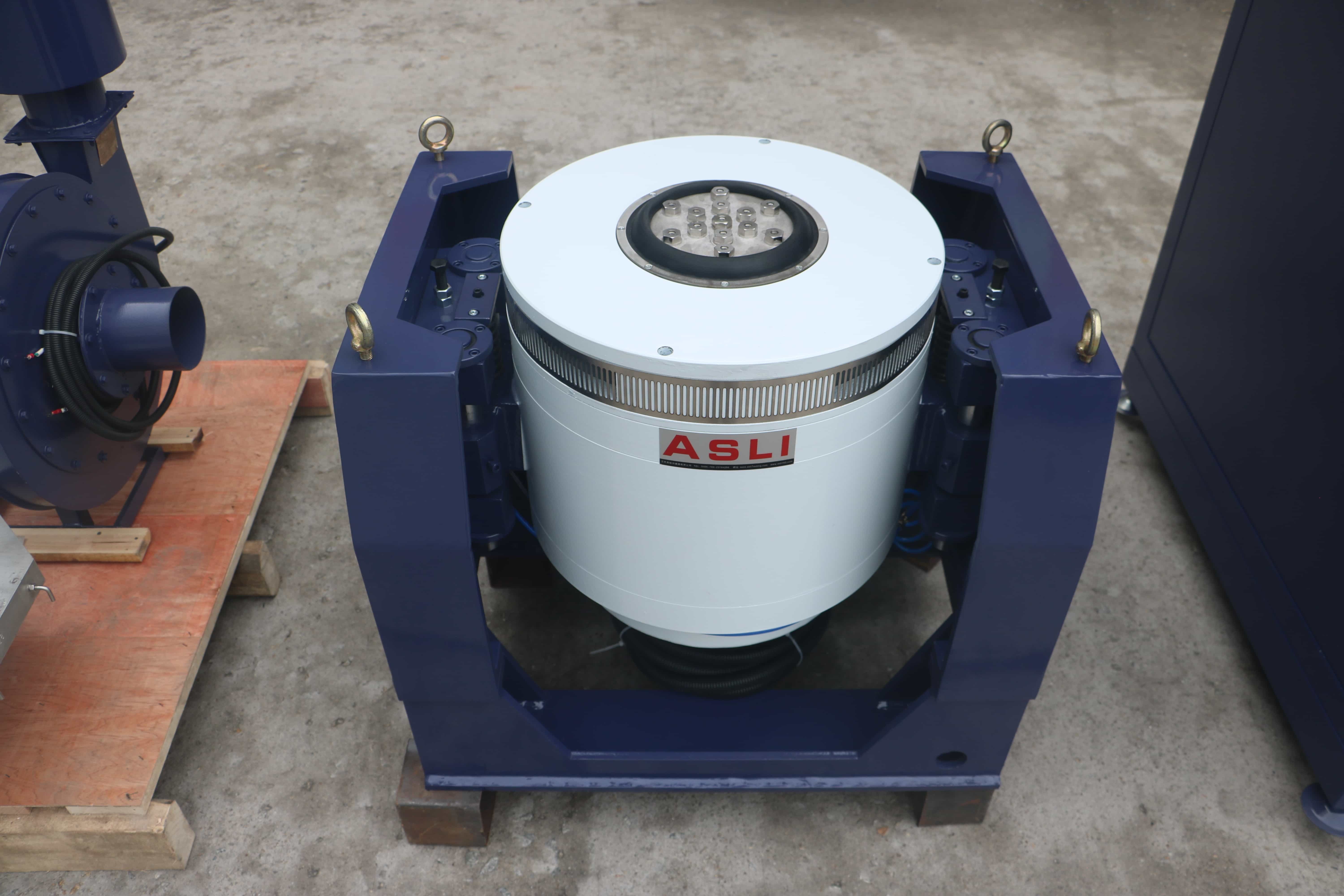

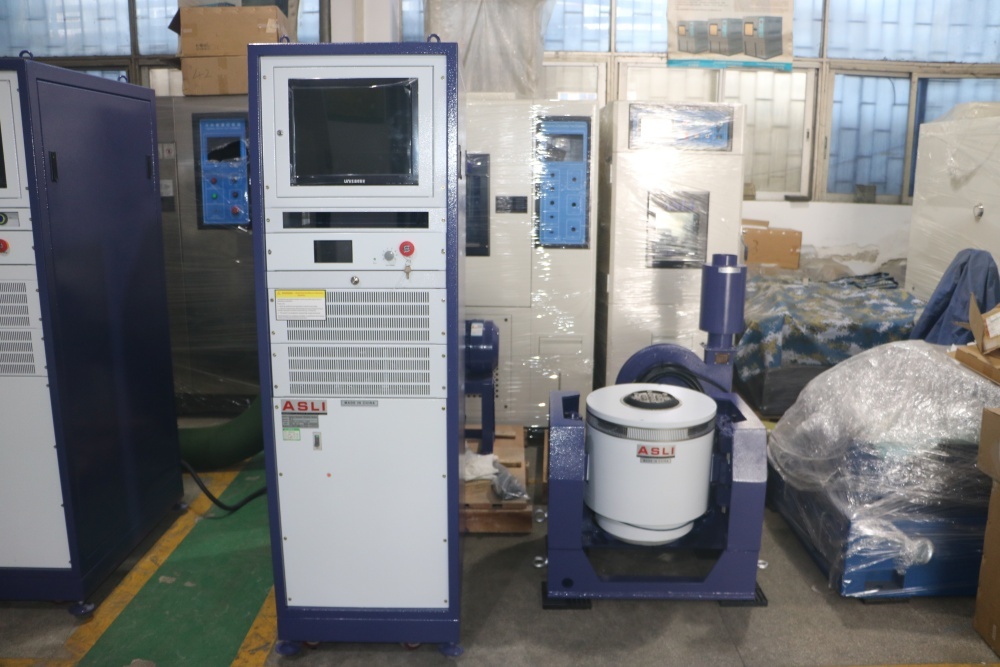

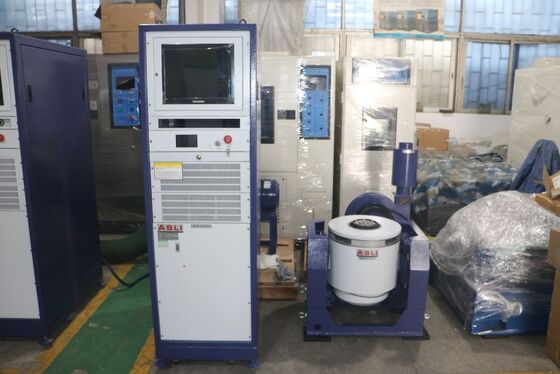

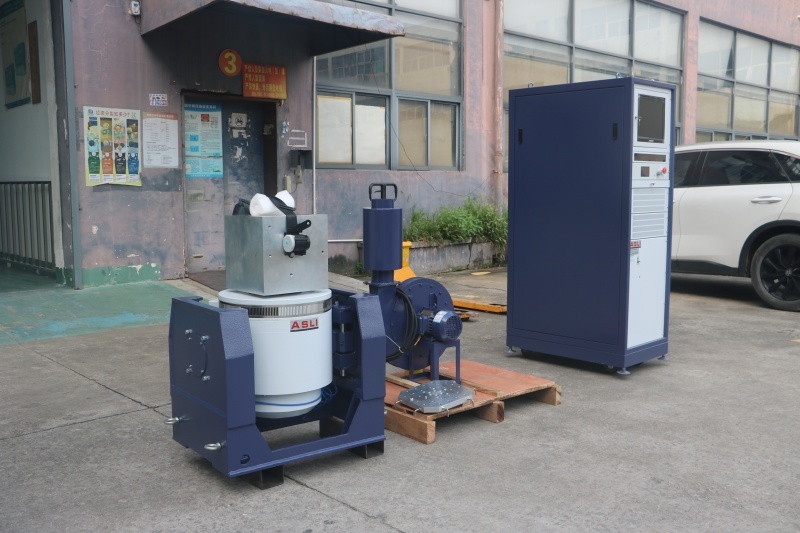

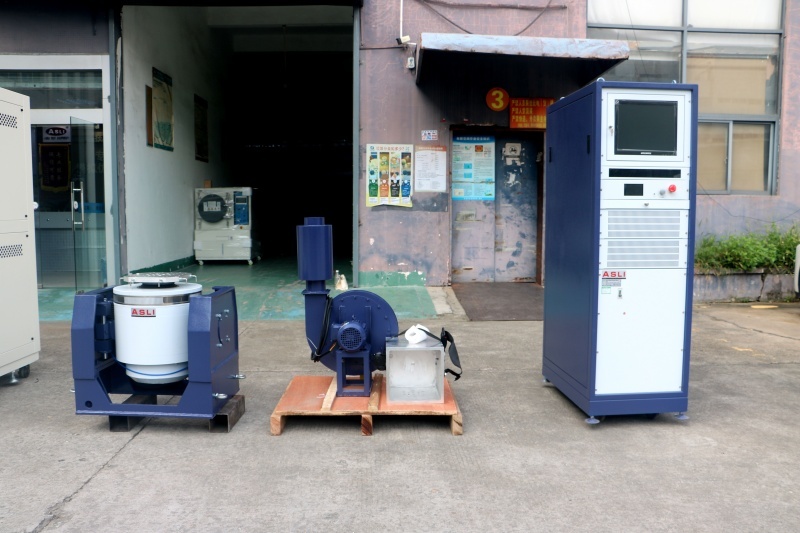

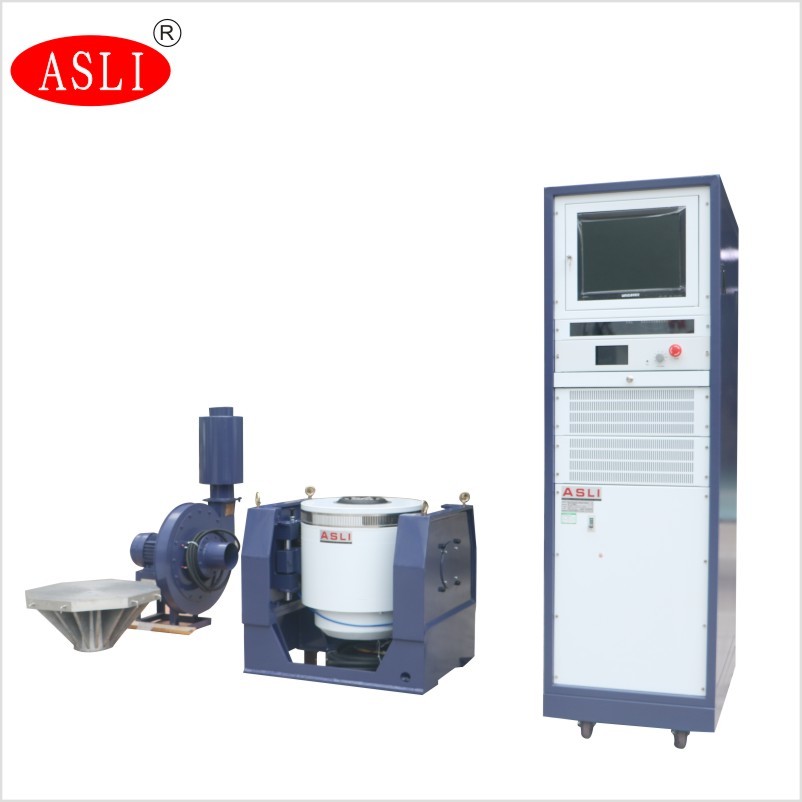

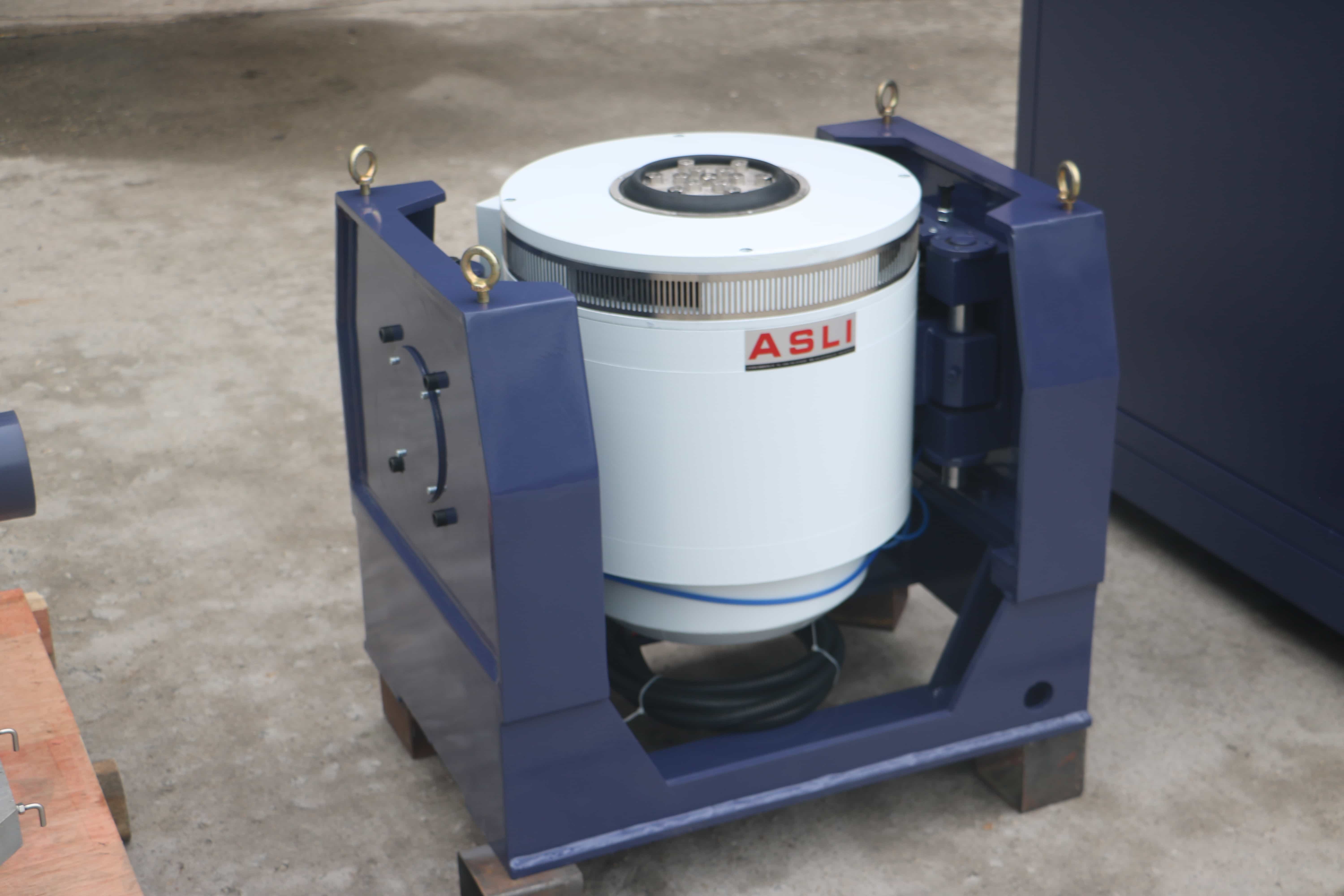

Vertical Vibration High Frequency Electrodynamics Vibration Tester with 51mm Displacement
Product Details
| Accuracy: | ±5% | Voltage: | 380 V |
|---|---|---|---|
| Max. Speed: | 1.6m/s | Displacement: | 51mm |
| Vibration Wave: | Sine, Random, Shock | Vibration Direction: | Vertical Vibration |
| Cooling Method: | Air Cooling | Frequency Range: | 3-3500Hz |
| Rated Acceleration: | 1000m/s2 | Max. Loading: | 100Kg |
| Moving Coil Weight: | 3.5Kg | Moving Coil Dimension: | Φ150mm |
| Rated Sine Force: | 3000N | ||
| Highlight |
Vertical vibration tester with 51mm displacement,High frequency electrodynamics vibration shaker,Vibration shaker system with high displacement |
||
Product Description
A high-frequency vibration test system—also known as an electromagnetic high-frequency vibration table or a swept-frequency vibration tester—is a device that uses electromagnetic force to drive a platform to generate controlled vibrations. It simulates the vibration environments products encounter during manufacturing, transportation, and actual use, thereby testing their reliability, structural integrity, and vibration resistance.
- Detecting early-stage failures: Exposing potential issues—such as faulty solder joints or loose components—during the product research and development phase.
- Simulating real-world operating conditions: Replicating scenarios such as the jolting experienced during automotive transport or the high-frequency vibrations affecting airborne equipment to assess product adaptability.
- Quality certification and reliability testing: Used for product quality inspection and system certification across industries such as electronics, telecommunications, automotive, home appliances, aerospace, and defense.
| Model | Rated Sine Force (N) | Rated Random Force (N) | Frequency Range (Hz) | Rated Acceleration (m/s²) | Rated Speed (m/s) | Rated Displacement (p-p) mm | Max. Loading (Kg) | Moving Coil (Kg) | Dimension of Moving Coil (mm) |
|---|---|---|---|---|---|---|---|---|---|
| ES-3 | 3000 | 3000 | 3-3500 | 1000 | 1.6 | 25 | 100 | 3.5 | Φ150 |
| ES-3a | 3000 | 3000 | 3-3500 | 400 | 1.6 | 40 | 120 | 9 | Φ230 |
| ES-6 | 6000 | 6000 | 3-3500 | 1000 | 1.6 | 25 | 180 | 6.5 | Φ230 |
| ES-6a | 6000 | 6000 | 3-3500 | 1000 | 1.6 | 51 | 250 | 12 | Φ230 |
| ES-10 | 10000 | 10000 | 3-3000 | 1000 | 1.8 | 51 | 270 | 14 | Φ240 |
| ES-20 | 20000 | 20000 | 3-3000 | 1000 | 1.8 | 51 | 300 | 30 | Φ320 |
| ES-30 | 30000 | 30000 | 3-2800 | 1000 | 1.8 | 51 | 450 | 40 | Φ450 |
| ES-40 | 40000 | 40000 | 3-2800 | 1000 | 1.8 | 51 | 500 | 50 | Φ450 |
| ES-50 | 50000 | 50000 | 3-2700 | 1000 | 1.8 | 51 | 750 | 50 | Φ450 |
| ES-60 | 60000 | 60000 | 3-2700 | 1000 | 1.8 | 51 | 750 | 60 | Φ450 |
To ensure the equipment arrives at the customer's facility in good condition, ASLI uses professional export packaging designed for long-distance transportation. The equipment is protected against dust, moisture, impact and movement during shipping, with suitable protective materials and a strong wooden case. All accessories and documents are securely packed to prevent loss or damage during transportation.
AI SI LI (CHINA) TEST EQUIPMENT CO., LTD. (ASLI) was established in 1988 and is a professional manufacturer of environmental and mechanical test equipment in Dongguan, China. We specialize in the design and manufacture of temperature & humidity chambers, thermal shock chambers, rapid temperature change chambers, walk-in chambers, salt spray chambers, UV/Xenon aging chambers, HAST/PCT chambers, dust chambers, vibration test systems, shock/impact testers and customized testing equipment.
With decades of experience in testing technology, ASLI provides both standard and customized testing solutions for industries including automotive, electronics, aerospace, photovoltaics, packaging and pharmaceuticals. Our products are supplied to customers worldwide and are designed according to international testing standards such as IEC, ISO, ASTM, MIL-STD, EN and GB. As a direct manufacturer, ASLI provides technical consultation, customized design, manufacturing, installation, commissioning and after-sales technical support.
1. Are you a manufacturer or a trading company?
ASLI is a direct manufacturer of environmental and mechanical test equipment. We design, manufacture, install and provide after-sales technical support for our equipment.
2. Can you customize the equipment?
Yes. We can customize the chamber size, temperature/humidity range, cooling system, test table, vibration force and other configurations according to the customer's specific requirements.
3. Do you provide spare parts and after-sales service?
Yes. We provide spare parts and technical support throughout the service life of the equipment.
4. What standards can your equipment meet?
Our equipment can be designed according to various international standards, including IEC, ISO, ASTM, MIL-STD, EN, GB, JIS and other applicable standards.
5. Can you provide a technical proposal before quotation?
Yes. Based on the customer's testing requirements, we can recommend a suitable model and provide the technical specifications and configuration for confirmation before quotation.
6. Do you provide installation and commissioning?
Yes. Installation and commissioning can be provided depending on the equipment and project requirements. We can also provide remote technical support when on-site service is not required.
7. What is the warranty period?
Our standard warranty period is one year from the date of shipment. Extended warranty options are also available upon request.
If you need more information about the Vertical Vibration High Frequency Electrodynamics Vibration Tester with 51mm Displacement, please don't hesitate to send your inquiry.
