Vibration Test Shaker Simulate Real World Vibration for Product Reliability Testing
Product Details
| Displacement: | 80mm | Power: | 20kw |
|---|---|---|---|
| Accuracy: | ±5% | Speed: | 1.8 M/s |
| Vibration Direction: | Vertical Horizontal | Vibration Force: | 20KN |
| Voltage: | 380 V | Protection Class: | IP55 |
| Frequency: | 3~3000Hz | Rated Sine Force: | 20000N |
| Rated Random Force: | 20000N | Rated Acceleration: | 1000 M/s2 |
| Rated Speed: | 1.8 M/s | Rated Displacement: | 51mm |
| Max Loading: | 300Kg | ||
| Highlight |
vibration test shaker for reliability testing,vibration shaker system for product testing,real world vibration test shaker |
||
Product Description

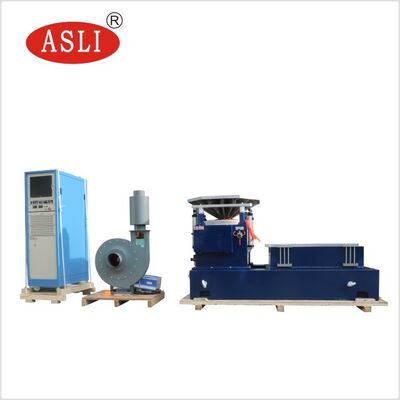

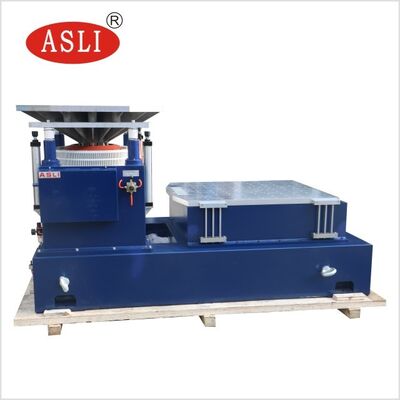

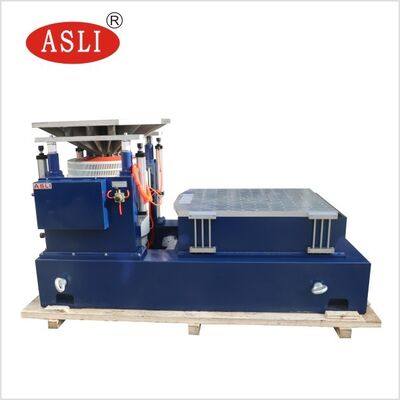

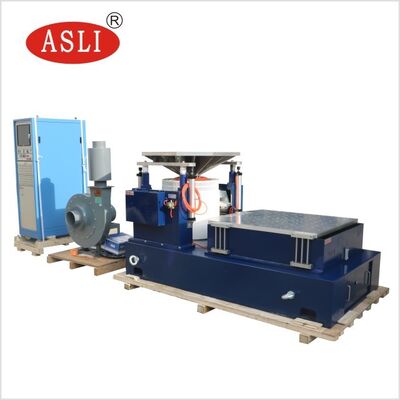

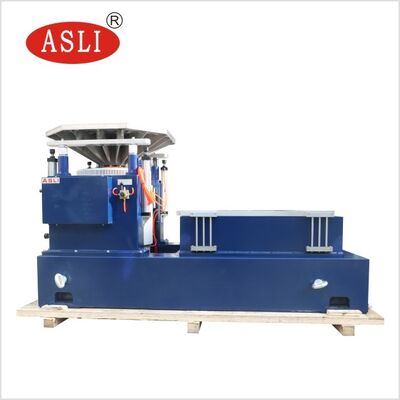

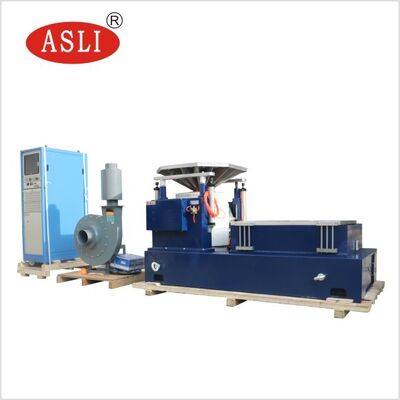

ASLI Electrodynamic Vibration Test Systems are designed to simulate the vibration conditions that products may experience during transportation, operation, and real-world applications.
The system can perform sine, random, sweep, resonance search, and other vibration tests to help identify potential mechanical weaknesses and improve product reliability.
Widely used for electronics, automotive components, aerospace products, batteries, packaging, and other products requiring mechanical reliability testing.
| Model | Rated Sine Force (N) | Rated Random Force (N) | Frequency Range (Hz) | Rated Acceleration (m/s²) | Rated Speed (m/s) | Rated Displacement (p-p) mm | Max. Loading (Kg) | Moving Coil (Kg) | Dimension of Moving Coil (mm) |
|---|---|---|---|---|---|---|---|---|---|
| ES-3 | 3000 | 3000 | 3–3500 | 1000 | 1.6 | 25 | 100 | 3.5 | Φ150 |
| ES-6 | 6000 | 6000 | 3–3500 | 1000 | 1.6 | 25 | 180 | 6.5 | Φ230 |
| ES-6a | 6000 | 6000 | 3–3500 | 1000 | 1.6 | 51 | 250 | 12 | Φ230 |
| ES-10 | 10000 | 10000 | 3–3000 | 1000 | 1.8 | 51 | 270 | 14 | Φ240 |
| ES-20 | 20000 | 20000 | 3–3000 | 1000 | 1.8 | 51 | 300 | 30 | Φ320 |
| ES-30 | 30000 | 30000 | 3–2800 | 1000 | 1.8 | 51 | 450 | 40 | Φ450 |
- Strength of the suspension system and linear motion guiding, strong carrying capacity, good guiding functions, high stability.
- Perfect performance on amplitude variation.
- High efficiency on D Class power conversion, 3-Sigma peak current, providing optimized power consumption and minimum harmonic distortion.
- Rapid self-test diagnostics and chain safeguard, high safety and reliability.
- Perfect reappearance of vibration waveform and reduction of vibration transmission.
- Different applications on the vertical and horizontal tables.
- Simple operation for the controller.
Established in 1988, ASLI is a professional manufacturer of environmental and mechanical test equipment based in Dongguan, China.
With decades of experience in testing technology, ASLI provides both standard and customized testing solutions for industries including automotive, electronics, aerospace, photovoltaics, packaging, and pharmaceuticals.
We are committed to providing reliable testing equipment and professional solutions to help customers improve product quality, reliability, and durability.
At ASLI, we provide comprehensive testing equipment solutions, from initial technical consultation and system design to installation, commissioning, and after-sales support.
We help customers identify suitable testing equipment based on their test standards, sample dimensions, sample weight, test conditions, and application requirements.
We provide customized testing equipment and configurations to meet specific testing requirements, including chamber size, temperature and humidity range, test table size, vibration force, and other special requirements.
As a direct manufacturer, ASLI manages the equipment manufacturing process to ensure reliable quality, stable performance, and consistent technical specifications.
Our engineers can provide equipment installation, commissioning, and operational verification at the customer's facility when required.
Our technical team provides remote technical support and on-site service when necessary, helping customers solve equipment and testing-related issues efficiently.
If you have any questions or needs regarding the Vertical Horizontal Universal High Frequency Electrodynamics Type Vibration Tester, please feel free to send your inquiry.
