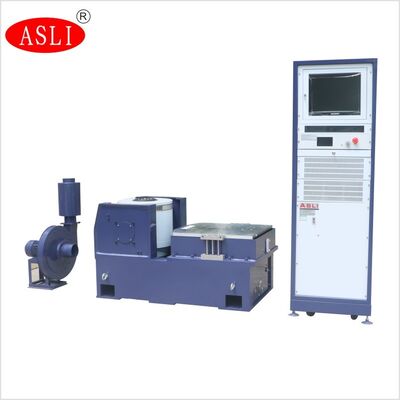

High Frequency Vibration Tester for Electrical Components
Product Details
| Power: | 25KW | Vibration Force: | 3KN |
|---|---|---|---|
| Speed: | 1.6m/s | Voltage: | 380 V |
| Max. Acceleration: | 100g Without Load | Vertical Table Size: | 300*300mm |
| Protection Class: | IP55 | Accuracy: | ±5% |
| Frequency Range: | 3~3500hz | Vibration Direction: | Vertical + Horizontal Vibration |
| Dynamic Circle Skeleton: | Well Designed | Axial Resonance Frequency: | Higher Stage |
| Test Axes: | X,Y,Z Three-axis | Test Types: | Sinusoidal, Broadband Random, Classical Pulse, Shock Response Spectrum |
| Cooling System: | Customizable | ||
| Highlight |
high frequency vibration tester,electrical component vibration shaker,vibration tester with warranty |
||
Product Description

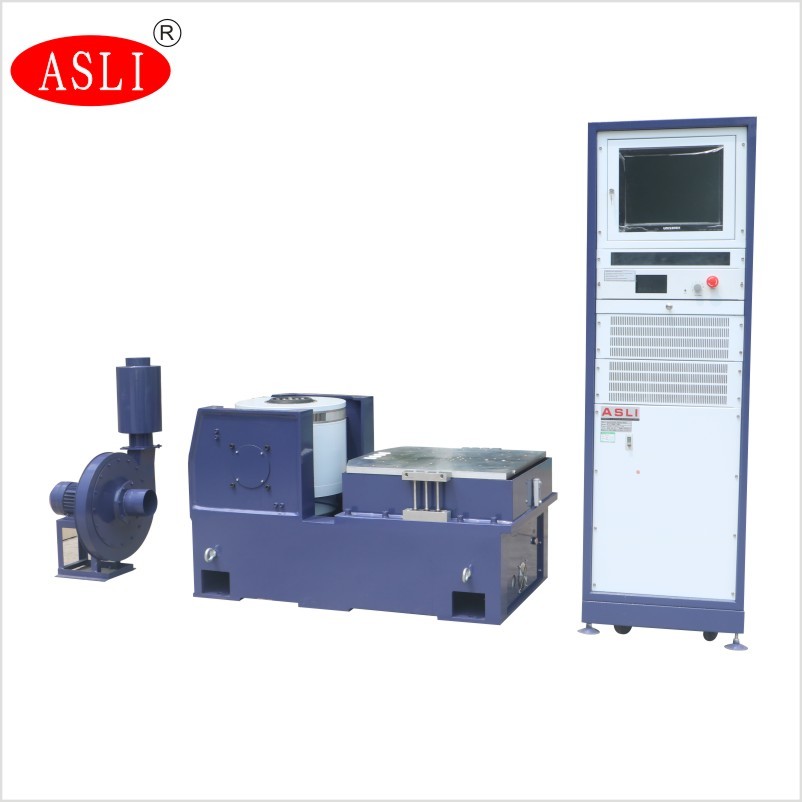

The Big Force High Frequency Electrodynamic Vibration Shaker System incorporates advanced modern technologies including a double-magnetic circuit structure, self-generated skeleton action circles, airborne support, roller bearings and linear guidance, and trunnion isolation. It is capable of completing X, Y, and Z three-axis sinusoidal vibration tests and broadband random vibration tests, as well as classical pulse tests (half-sine, trapezoidal, sawtooth wave) and shock response spectrum tests. These products are widely used in national defense, weapons, aviation, aerospace, communications, electronics, electrical appliances, and home appliances fields.
- High-Frequency Testing: Accurately diagnoses electrical component faults.
- Sensitive Vibration Detection: Identifies issues early for proactive maintenance.
- Optimized Dynamic Circle Skeleton: Well-designed structure with a higher stage axial resonance frequency.
- User-Friendly Interface: Easy setup and operation for technicians.
- Durable Build: Withstands frequent use in demanding environments.
AI SI LI (CHINA) TEST EQUIPMENT CO., LTD. (ASLI) was established in 1988 and is a professional manufacturer of environmental and mechanical test equipment based in Dongguan, China. We specialize in the design and manufacture of temperature & humidity chambers, thermal shock chambers, rapid temperature change chambers, walk-in chambers, salt spray chambers, UV/Xenon aging chambers, HAST/PCT chambers, dust chambers, vibration test systems, shock/impact testers, and customized testing equipment.
With decades of experience in testing technology, ASLI provides both standard and customized testing solutions for industries including automotive, electronics, aerospace, photovoltaics, packaging, and pharmaceuticals. Our products are supplied to customers worldwide and are designed according to international testing standards such as IEC, ISO, ASTM, MIL-STD, EN, and GB. As a direct manufacturer, ASLI provides technical consultation, customized design, manufacturing, installation, commissioning, and after-sales technical support.
Yes. ASLI has experience supplying equipment to customers in different countries and can arrange international shipment and export documentation.
The lead time depends on the equipment model and configuration. We will confirm the estimated delivery time when preparing the quotation.
Please provide us with your test requirements, sample dimensions and weight, and applicable test standard. Our technical team can recommend the most suitable model and configuration.
ASLI is a direct manufacturer of environmental and mechanical test equipment. We design, manufacture, install, and provide after-sales technical support for our equipment.
Yes. We can customize the table size, cooling system, vibration force, and other configurations according to the customer's specific requirements.
Product Highlights
High Frequency Vibration Tester with 25KW power, 3KN force, 3~3500Hz range, and ±5% accuracy. Meets ISTA, MIL-STD-810, UN38.3 standards. Durable IP55 build, vertical + horizontal testing. OEM/ODM/OBM customization available from ASLI, a direct manufacturer since 1988.
