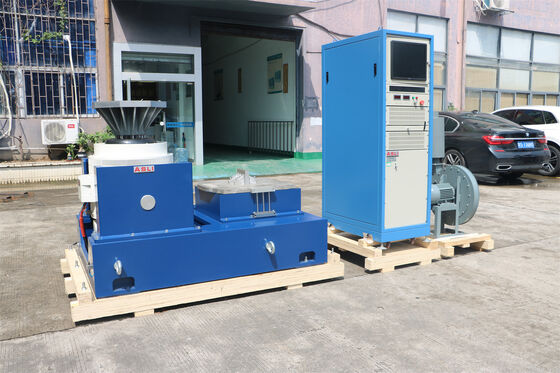

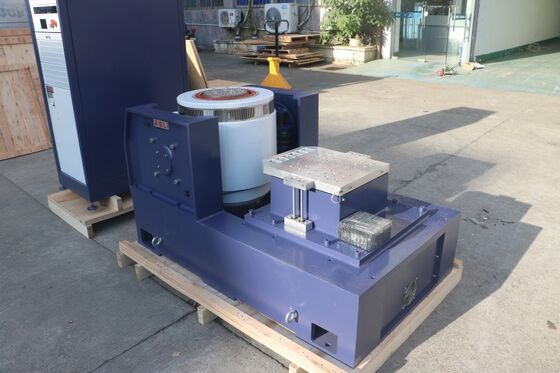

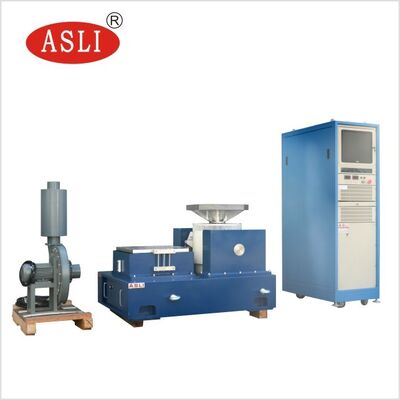

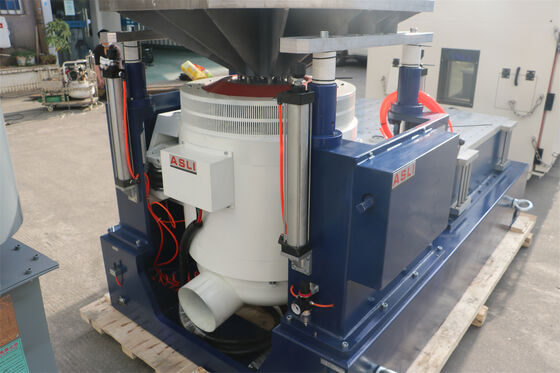

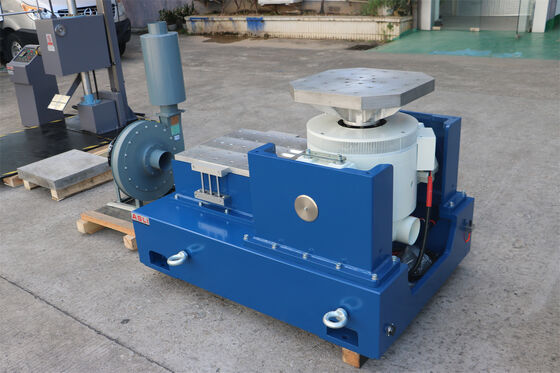

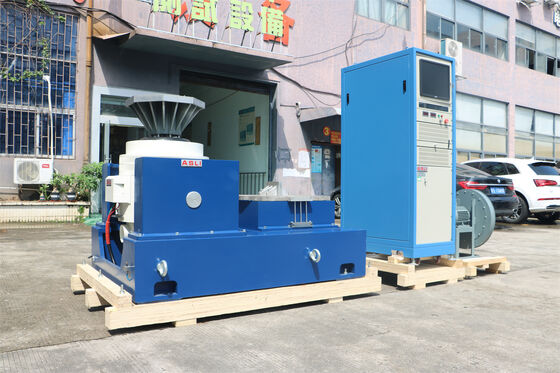

3 Axis High Frequency Electrodynamics Type Vibration Tester
Product Details
| Frequency Range: | 5~3500hz | Vibration Direction: | 3 Axis |
|---|---|---|---|
| Voltage: | 380 V | Control Method: | Computer +Software |
| Displacement: | 25mm (51mm Is Optional) | Accuracy: | ±5% |
| Protection Class: | IP55 | Vibration Force: | 6KN |
| Moving Coil Size: | Dia. 230mm | Power: | 25 KW |
| Test Table Size: | 600*600mm | Drive System: | Electrodynamic |
| Measurement Axes: | 3-Axis | Vibration Acceleration: | Adjustable |
| Test Time: | Adjustable | ||
| Highlight |
3 axis vibration tester,high frequency vibration shaker,electrodynamics vibration tester |
||
Product Description
The Electrodynamic High-Frequency Vibration Shaker is designed to simulate vibration conditions that products may experience during transportation, operation, and service. It uses an electromagnetic drive system for precise, reliable testing.
- 3-Axis Measurement: Accurately measures vibrations in three directions.
- Electrodynamic drive system for high-frequency vibration testing.
- Wide frequency range with precise frequency control.
- Adjustable vibration acceleration, displacement, and test time.
- Suitable for sine vibration and other programmable vibration tests.
- Stable operation and low mechanical noise.
- Various fixtures and tables available for different test samples.
- Safety protection functions for abnormal operating conditions.
- Suitable for laboratory and production-line reliability testing.
AI SI LI (CHINA) TEST EQUIPMENT CO., LTD. (ASLI) was established in 1988 and is a professional manufacturer of environmental and mechanical test equipment in Dongguan, China. We specialize in the design and manufacture of temperature & humidity chambers, thermal shock chambers, rapid temperature change chambers, walk-in chambers, salt spray chambers, UV/Xenon aging chambers, HAST/PCT chambers, dust chambers, vibration test systems, shock/impact testers and customized testing equipment.
With decades of experience in testing technology, ASLI provides both standard and customized testing solutions for industries including automotive, electronics, aerospace, photovoltaics, packaging and pharmaceuticals. Our products are supplied to customers worldwide and are designed according to international testing standards such as IEC, ISO, ASTM, MIL-STD, EN and GB.
As a direct manufacturer, ASLI provides technical consultation, customized design, manufacturing, installation, commissioning and after-sales technical support.
Our standard warranty period is one year from the date of shipment. Extended warranty options are also available upon request.
Yes. Installation and commissioning can be provided depending on the equipment and project requirements. We can also provide remote technical support when on-site service is not required.
Yes. Based on the customer's testing requirements, we can recommend a suitable model and provide the technical specifications and configuration for confirmation before quotation.
Yes. We can customize the chamber size, temperature/humidity range, cooling system, test table, vibration force and other configurations according to the customer's specific requirements.
Please provide us with your test requirements, sample dimensions and weight, and applicable test standard. Our technical team can recommend the most suitable model and configuration.
Yes. Once we receive the necessary technical information, we can prepare the technical proposal and quotation for your evaluation.
Product Highlights
3-axis electrodynamic vibration tester with 5~3500Hz range, 6KN force, ±5% accuracy, and 600*600mm table. Ideal for electronics, PCB, and battery testing. Supports OEM/ODM customization, backed by a 1-year warranty and ISO/IEC-compliant manufacturing.
