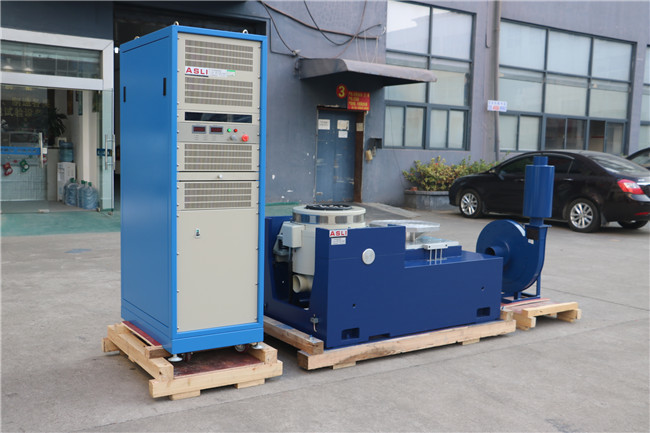

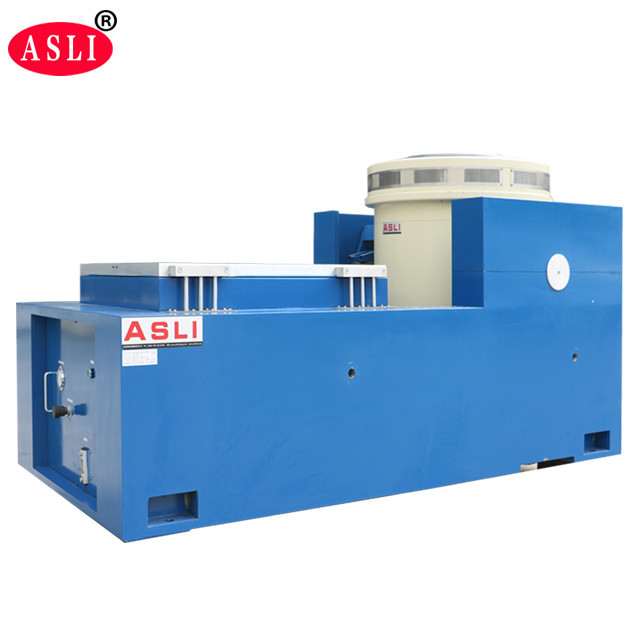

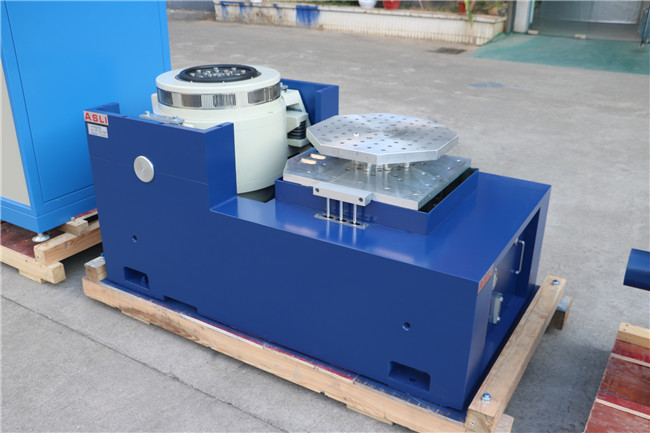

Three Axis Electrodynamic Random Vibration Testing Equipment with Large Displacement

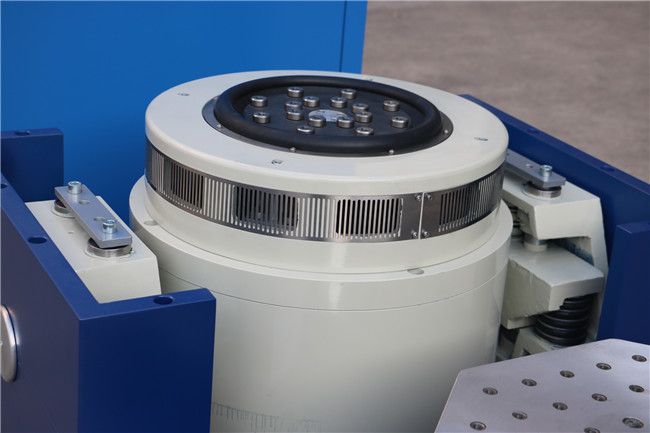

Air cooled series vibration table is a wide frequency vibration table, which is suitable for the vibration test of small size test pieces in medium and small size. The frequency can reach 3000H(385 can reach 5000Hz).The vibrating table of each type is adopted by Metal semi-circular supporting parts with reliable verification on site (616.816.624 for carbon fiber board),And with the high stiffness linear bearing as the moving coil guidance system.
Technical Parameters:
| ES-30 | 30000 | 30000 | 3-2800 | 1000 | 1.8 | 5l | 450 | 40 | Φ450 |
| ES-40 | 40000 | 40000 | 3-2800 | 1000 | 1.8 | 51 | 500 | 50 | Φ450 |
| ES-50 | 50000 | 50000 | 3-2700 | 1000 | 1.8 | 51 | 750 | 50 | Φ450 |
| ES-60 | 60000 | 60000 | 3-2700 | 1000 | 1.8 | 51 | 750 | 60 | Φ450 |
| ES-100 | 100000 | 100000 | 3-2500 | 1000 | 1.8 | 51 | 1000 | 90 | Φ450 |
| ES-120 | 120000 | 120000 | 3-2200 | 1000 | 1.8 | 51 | 1100 | 90 | Φ500 |
| ES-160 | 160000 | 160000 | 3-2100 | 1000 | 1.8 | 51 | 1500 | 150 | Φ600 |
Controller overview :
The system features
The main functions of the vibration control measurement system are vibration and signal analysis
The sine sweep
Control and measurement channels 1
Frequency range to 5000Hz
Sweep frequency, envelope, equal amplitude, equal velocity, equal acceleration, variable acceleration
Analysis mode RMS, tracking filtering
Sweep frequency, linear logarithmic, positive and negative sweep, fixed frequency
Resonance search and dwell :
Able to complete the search function of resonance cases through resonant find resonance point, this function can help users better find product installation, production process and fixture, to avoid resonance.
If it is necessary to enhance the reliability of the test product at the resonance point, the dwell function can satisfy the user's degree of damage to the specimen at the resonance point. The dwell time can be set.
In addition to the above 4 functions, the vibration test system can also perform sinusoidal random and random vibration
