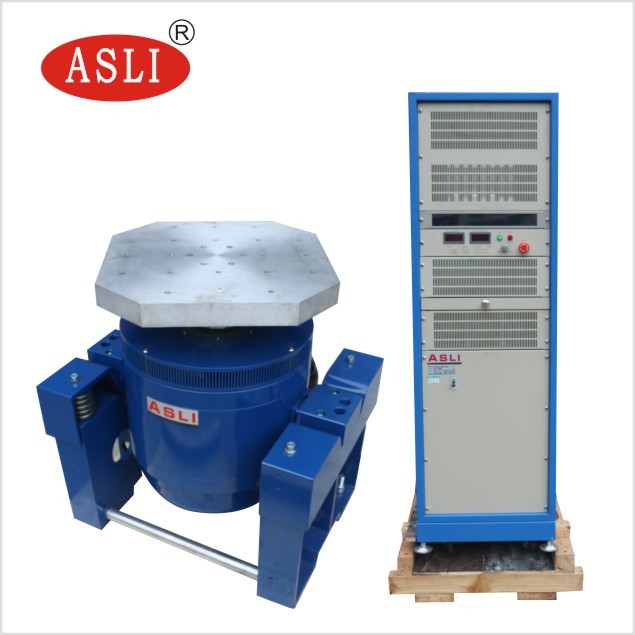

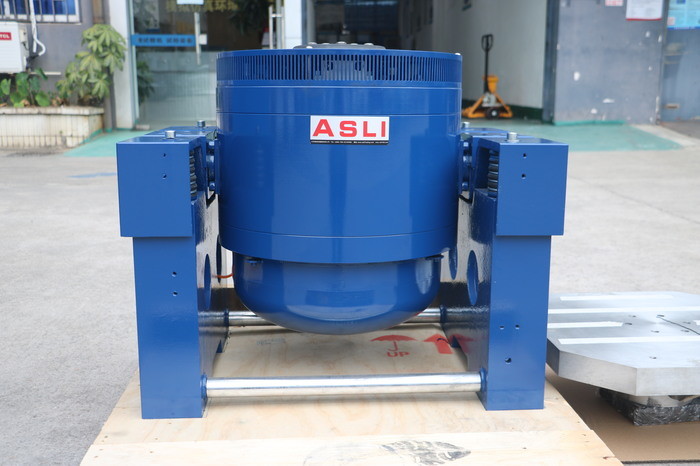

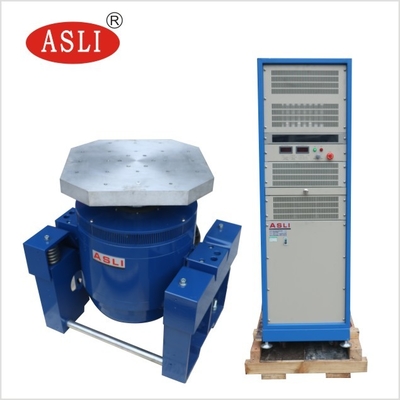

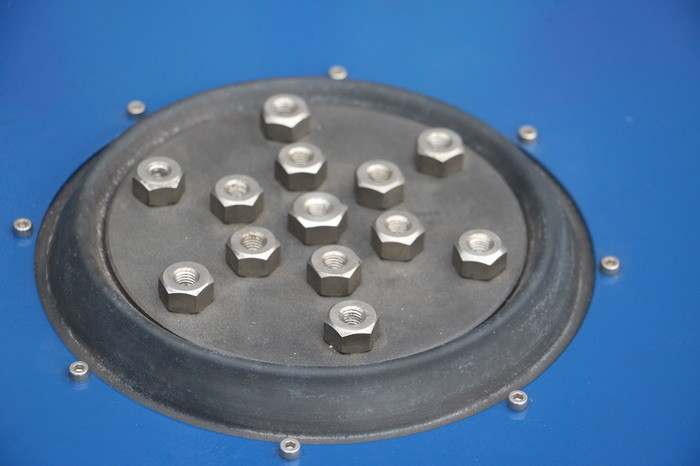

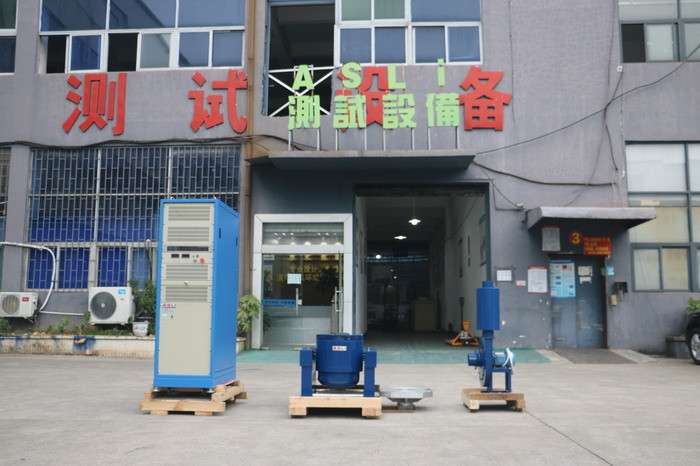

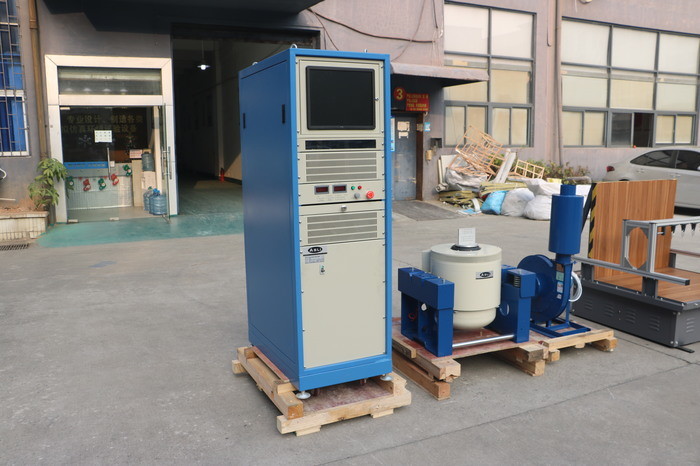

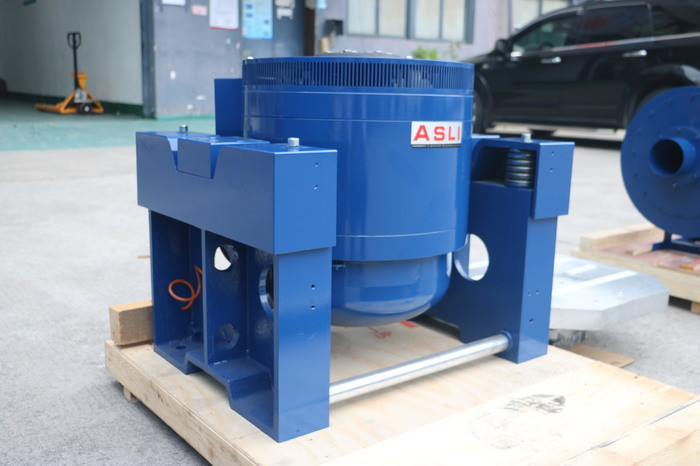

High Frequency Vertical Vibrating Electrodynamic Vibration Table Testing Machine
vibration testing system is composed of shaker, power and vibration measuring control system, in accordance with relevant national and international standards(such as: MIL-STD,DIN,ISO,ASTM,IEC,ISTA,GB,GJB,JIB,BS, etc.)to provide technical support for establishing product quality inspection.
High Frequency Vibration Shaker Technical Parameters:
| Model |
Rated Sine Force (N) |
Rated Random Force (N) |
Frequency Range (Hz) |
Rated Acceleration (m/s2) | Rated Speed(m/s) |
Rated displacement (p-p)mm |
Max. Loading (Kg) | moving coil(Kg) |
Dimension of Moving coil(mm) |
| ES-3 | 3000 | 3000 | 3-3500 | 1000 | 1.6 | 25 | 100 | 3.5 | Φ150 |
| ES-3a | 3000 | 3000 | 3-3500 | 400 | 1.6 | 40 | 120 | 9 | Φ230 |
| ES-6 | 6000 | 6000 | 3-3500 | 1000 | 1.6 | 25 | 180 | 6.5 | Φ230 |
| ES-6a | 6000 | 6000 | 3-3500 | 1000 | 1.6 | 51 | 250 | 12 | Φ230 |
| ES-10 | 10000 | 10000 | 3-3000 | 1000 | 1.8 | 51 | 270 | 14 | Φ240 |
| ES-20 | 20000 | 20000 | 3-3000 | 1000 | 1.8 | 51 | 300 | 30 | Φ320 |
| ES-30 | 30000 | 30000 | 3-2800 | 1000 | 1.8 | 5l | 450 | 40 | Φ450 |
| ES-40 | 40000 | 40000 | 3-2800 | 1000 | 1.8 | 51 | 500 | 50 | Φ450 |
| ES-50 | 50000 | 50000 | 3-2700 | 1000 | 1.8 | 51 | 750 | 50 | Φ450 |
| ES-60 | 60000 | 60000 | 3-2700 | 1000 | 1.8 | 51 | 750 | 60 | Φ450 |
1.Rugged suspension system and linear motion guiding, strong carrying capacity, good guiding functions, high stability;
Load center airbag has high static stiffness and low dynamic stiffness, strong carrying capacity, perfect performance on amplitude variation;
2.High efficiency D class power switching, 3-sigma peak current, provide finest power consumption and minimize harmonic distortion;
3.Quick self-diagnosis with safety interlock, high safety reliability;
4.Airbag shock isolation device for vibration platform without the need of additional foundation, perfect reproduction of vibrational wave and reduce vibration transmittance;
Technical Parameters of vertical expander:
| Model | Weight (kg) | Max. Frequency (Hz) | Bench Size |
| VT300 | 10 | 2000 | Φ300 |
| VT400 | 16 | 2000 | Φ400 |
| VT500 | 25 | 1500 | Φ500 |
| VT600 | 35 | 1000 | Φ600 |
| VT0303 | 15 | 2000 | 300×300 |
| VT0404 | 22 | 1500 | 400×400 |
| VT0505 | 30 | 500 | 500×500 |
| VT0606 | 58 | 350 | 600×600 |
| VT0808 | 140 | 350 | 800×800 |
| VTl010 | 180 | 350 | 1000×1000 |
| VT1212 | 250 | 350 | 1200 × 1200 |
| VT1212 (Round bench) | 220 | 350 | Φ1200 |
Besides vibration test bench, our product range also covers:
(1) Temperature/ humidity test series: Temperature humidity test chamber, Walk in stability, Thermal shock test chamber, Temperature Humidity UV test chamber, Ramp rate temperature chamber.
(2) Aging test series: High Temperature oven, Vacuum drying oven, Air ventilation aging test chamber, Steam aging test chamber, Ozone test chamber, Burn in test equipment
(3) Weather simulation test series: Rain spray test chamber, dust test chamber, Xenon lamp aging test chamber, UV resistance test chamber
(4) Mechanical test series: Vibration test machine, Drop test machine , Bump Test Machine, Acceleration mechanical shock tester etc.
If you want to get more information about High Frequency Vertical Vibrating Electrodynamic Vibration Table Testing Machine, please don't hesitate to send your inquiries.
