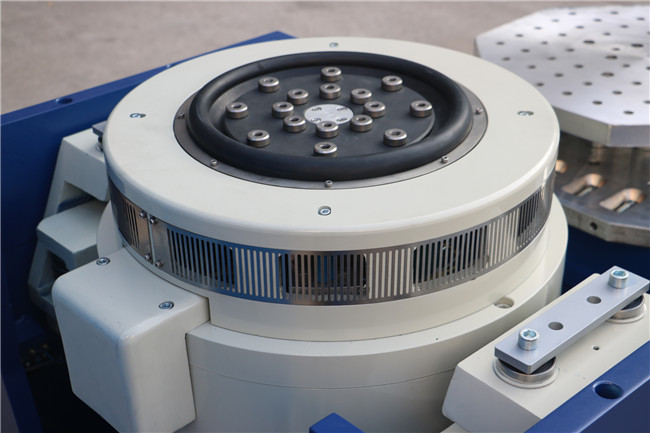

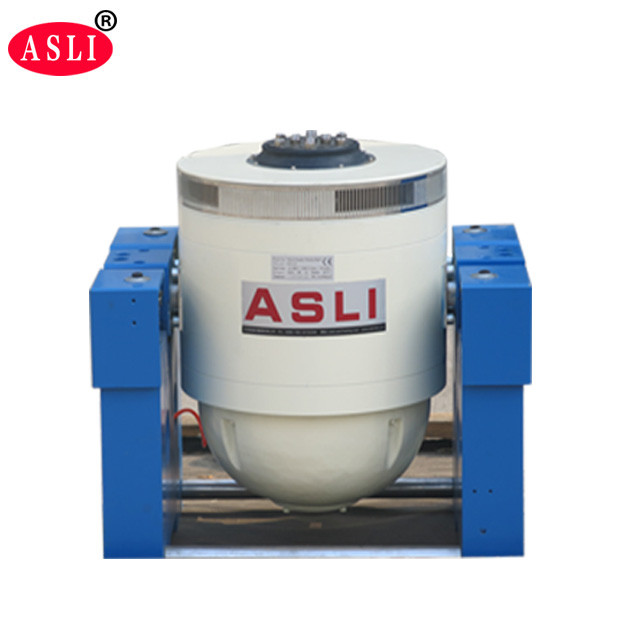

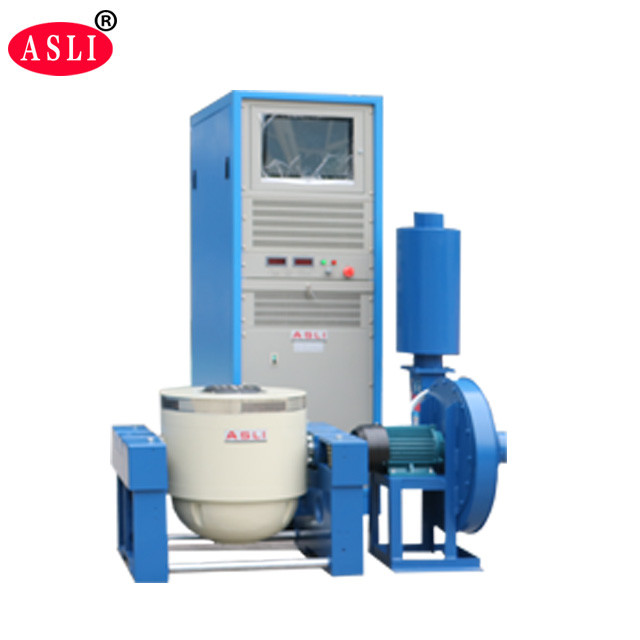

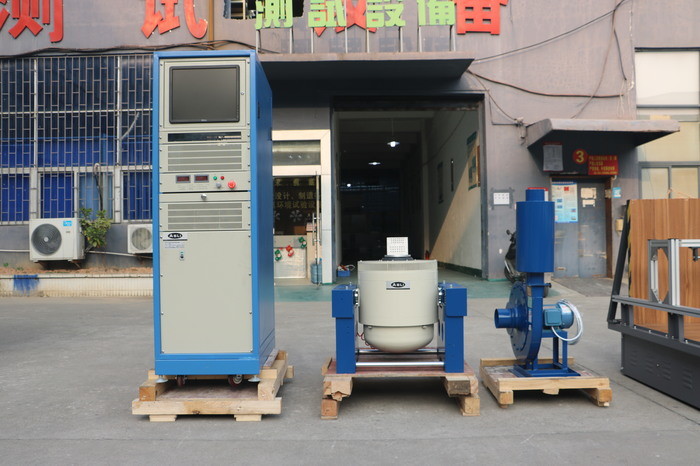

3KN Vibration Test Shaker , ISO 9001 Electrodynamic Vibration Machine
Product Details
| Customized Support: | OEM | Brand: | ASLI |
|---|---|---|---|
| Place Of Origin: | Guangdong, China | Power: | Electronic |
| Certificate: | ISO 9001:2008 | Packing Material: | Poly Wood Case |
| Vibration: | 3 Axis | Vibration Force: | Customized |
| Table Size: | Customized | Max Load: | 100Kg |
| Highlight |
3KN vibration test shaker,ISO 9001 electrodynamic vibration machine,vibration testing machine with warranty |
||
Product Description
Attractive Price CE Approved Electro-dynamic auto vibration test shaker
Solution

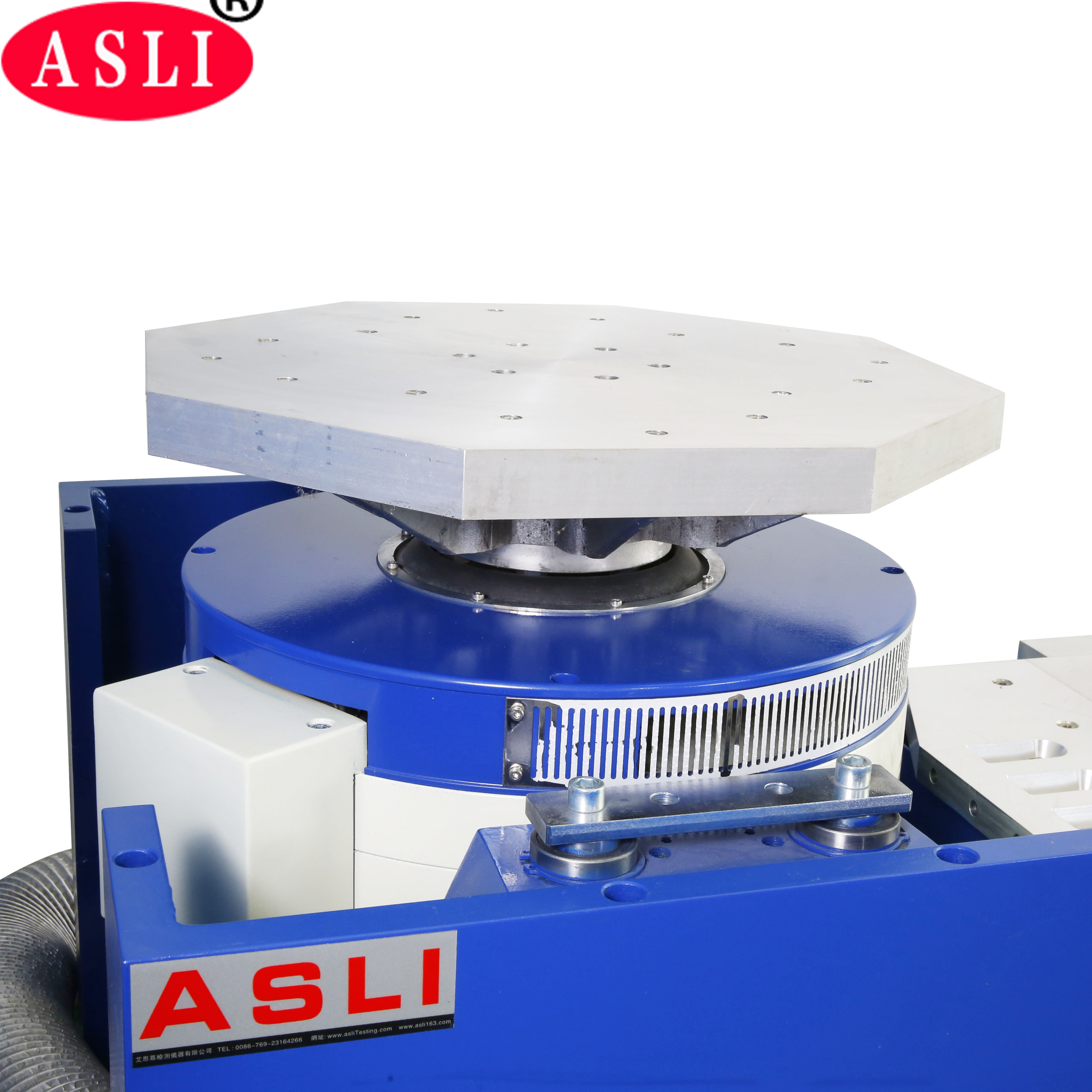

A set of vibration shaker equipping with two sets of horizontal slip tables (large and small) is used, to achieve the connection at two horizontal directions only if the shaker rotates 180°, thus meeting both large-size specimen low-acceleration tests and small-size specimen high-acceleration tests.
Technical Parameters:
| Model | ES-3 |
| Rated sine excitation force | 3000N |
| Rated random excitation force | 3000N |
| Shock excitation force | 6000N |
| Frequency range | 5-4,000Hz |
| Max. displacement | 25mm |
| Rated speed | 2m/s |
| Rated acceleration | 500m/s2 |
| First-order resonant frequency | 2,900 Hz±5% |
| Max. loading | 100kg |
| Vibration frequency | 3 Hz |
| Working table diameter | Φ150mm |
| Equivalent weight of moving parts | 2kg |
| Dimension | 764×530×660mm |
| Weight | About 480kg |
| Cooling method | Forced air cooling |
Product Highlights
Attractive Price CE Approved Electro-dynamic auto vibration test shaker Products Description Electron-dynamic Vibration Shaker is dedicated to high quality, high performance and high reliability, precision and accuracy, and convenient operation. It is a test platform that meets all kinds of test ...
