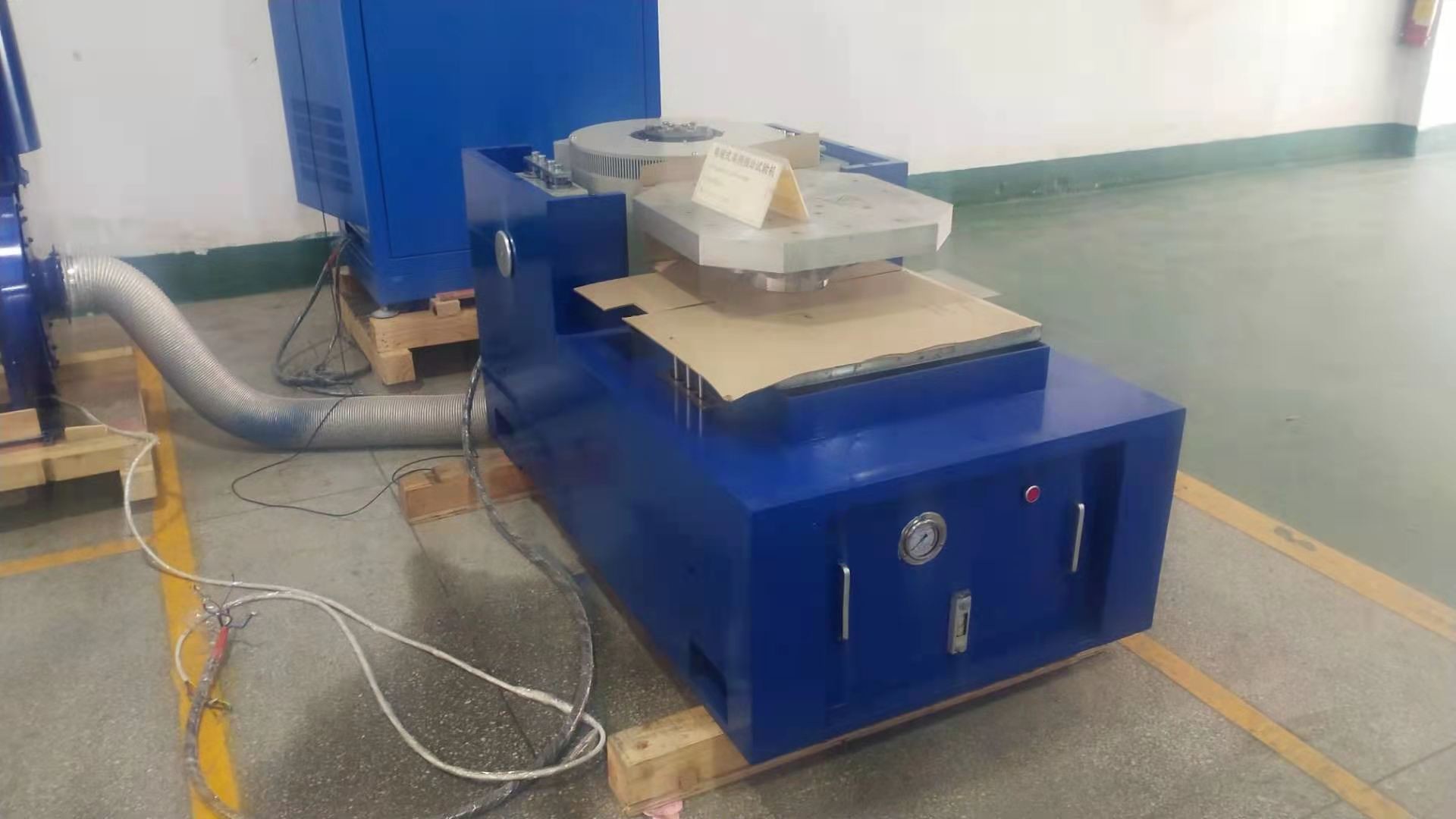

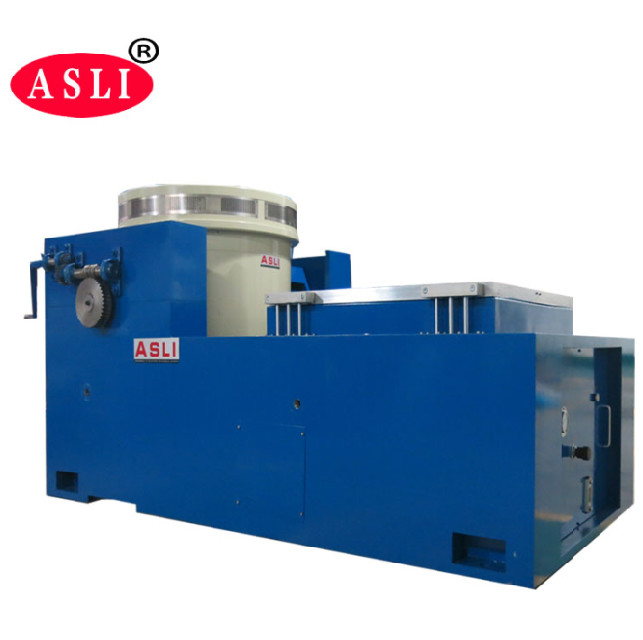

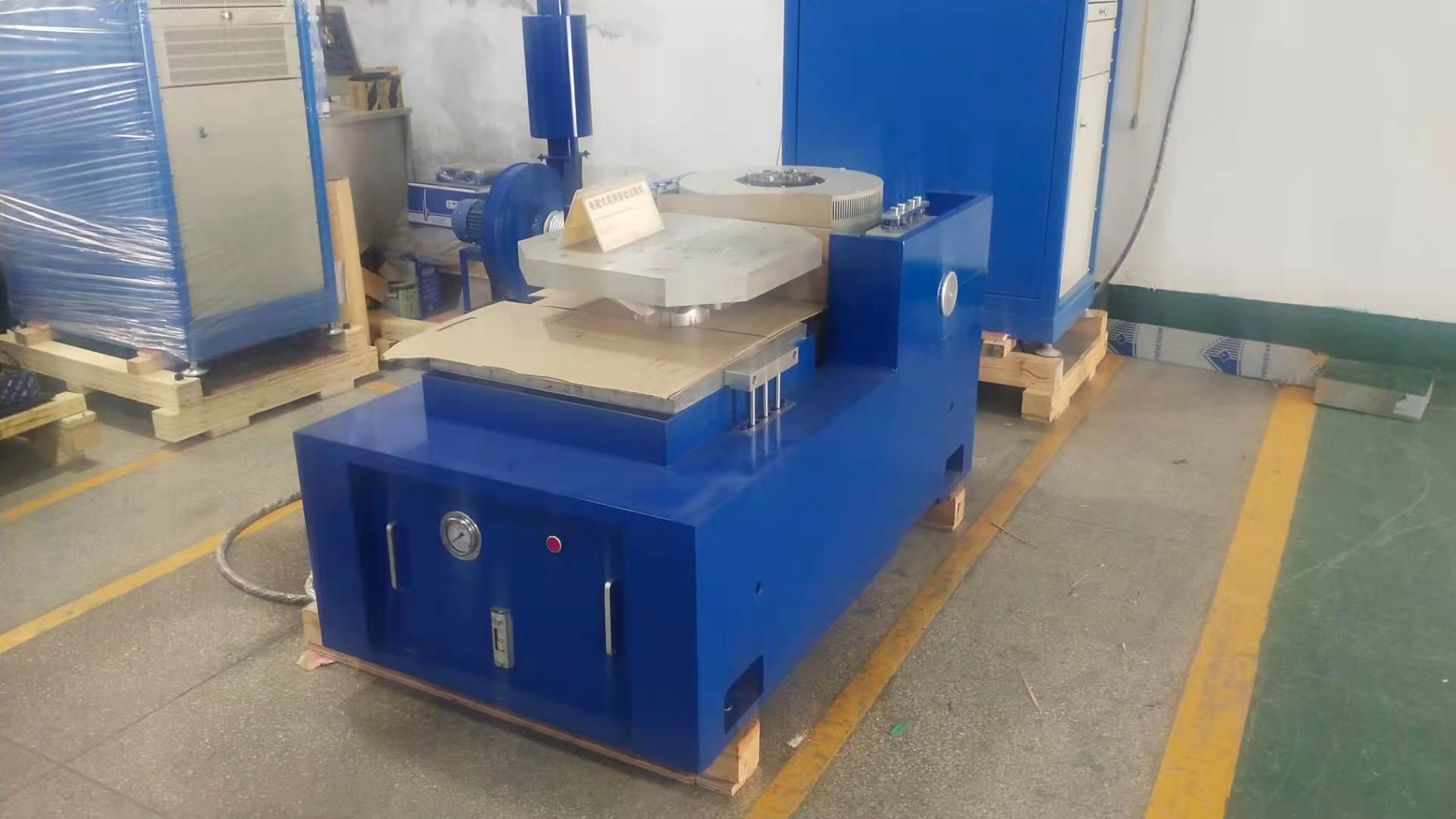

ASTM 2000Hz Random Vibration Testing Equipment With Horizontal Slip Table
Product Details
| Vibration Wave: | Sine And Random | Frequency: | 2000Hz |
|---|---|---|---|
| Vibration Direction: | Horizontal | Moving Coil: | Dia. 30mm |
| Application: | LED, Auto Parts, Package | Usage: | Vibration Test Machine |
| Highlight |
2000Hz random vibration testing equipment,ASTM random vibration testing equipment,2000Hz slip table vibration testing |
||
Product Description
The 2000Hz Sine and Random Vibration Testing Equipment with Horizontal Slip Table is engineered for product vibration and shock environmental testing, environmental stress screening, and reliability testing. It serves critical testing needs across aerospace, communications, electronics, electrical, home appliances, and other industries.
This system is a versatile test platform that meets a wide range of test specifications, including IEC, MIL-STD, JIS, and ASTM standards.
- Flexible suspension system and straight-line guide deliver strong bearing capacity, excellent guidance performance, and high stability.
- Central load airbag provides high static stiffness and low dynamic stiffness, ensuring strong bearing capacity and outstanding dynamic performance.
- Rapid self-diagnosis and chain protection system ensures high safety and reliability.
- Airbag isolation and damping device eliminates the need for a special foundation, perfectly reproduces vibration waves, and reduces vibration transmission.
| Model |
Rated Sine Force (N) |
Rated Random Force (N) |
Frequency Range (Hz) |
Rated Acceleration (m/s²) |
Rated Speed (m/s) |
Rated Displacement (p-p) mm |
Max. Loading (Kg) |
Moving Coil (Kg) |
Dimension of Moving Coil (mm) |
|---|---|---|---|---|---|---|---|---|---|
| ES-3 | 3000 | 3000 | 3–3500 | 1000 | 1.6 | 25 | 100 | 3.5 | Φ150 |
| ES-3a | 3000 | 3000 | 3–3500 | 400 | 1.6 | 40 | 120 | 9 | Φ230 |
| ES-6 | 6000 | 6000 | 3–3500 | 1000 | 1.6 | 25 | 180 | 6.5 | Φ230 |
| ES-6a | 6000 | 6000 | 3–3500 | 1000 | 1.6 | 51 | 250 | 12 | Φ230 |
| ES-10 | 10000 | 10000 | 3–3000 | 1000 | 1.8 | 51 | 270 | 14 | Φ240 |
| ES-20 | 20000 | 20000 | 3–3000 | 1000 | 1.8 | 51 | 300 | 30 | Φ320 |
| ES-30 | 30000 | 30000 | 3–2800 | 1000 | 1.8 | 51 | 450 | 40 | Φ450 |
| ES-40 | 40000 | 40000 | 3–2800 | 1000 | 1.8 | 51 | 500 | 50 | Φ450 |
| ES-50 | 50000 | 50000 | 3–2700 | 1000 | 1.8 | 51 | 750 | 50 | Φ450 |
| ES-60 | 60000 | 60000 | 3–2700 | 1000 | 1.8 | 51 | 750 | 60 | Φ450 |
| ES-100 | 100000 | 100000 | 3–2500 | 1000 | 1.8 | 51 | 1000 | 90 | Φ450 |
| ES-120 | 120000 | 120000 | 3–2200 | 1000 | 1.8 | 51 | 1100 | 90 | Φ500 |
| ES-160 | 160000 | 160000 | 3–2100 | 1000 | 1.8 | 51 | 1500 | 150 | Φ600 |
| ES-200 | 200000 | 200000 | 3–2000 | 1000 | 1.8 | 51 | 2500 | 200 | Φ650 |
| ES-350 | 350000 | 350000 | 3–1700 | 1000 | 1.8 | 51 | 4500 | 300 | Φ870 |
FAQ:
Q1: What is an Electrodynamic Vibration Shaker?
RE: An electrodynamic vibration shaker is a testing system used to simulate vibration conditions that products may experience during transportation, operation, or service. It is widely used for reliability, durability, and qualification testing.
Q2: What products can be tested?
RE: It can be used for electronic components, automotive parts, batteries, aerospace components, electrical products, packaging, communication equipment, and other products requiring vibration testing.
Q3: What vibration tests can the shaker perform?
RE: Depending on the system configuration, it can perform sine vibration, random vibration, shock testing, resonance search, frequency sweep, and other programmable vibration tests.
Q4: What is the maximum test frequency?
RE: The maximum frequency depends on the model and configuration. Different shaker models are available for different frequency requirements. Please provide your required frequency range so we can recommend a suitable model.
Q5: How do I select the correct shaker model?
RE: The main factors include:
- Maximum sample weight
- Sample dimensions
- Required vibration direction
- Frequency range
- Maximum acceleration
- Displacement
- Required vibration test standard
Based on these parameters, we can recommend a suitable shaker system.
Q6: Can the shaker perform both vertical and horizontal vibration?
RE: Yes. Depending on the configuration, the system can be supplied with a vertical test setup, horizontal test setup, or both.
Q7: Can it perform random vibration testing?
RE: Yes. A suitable vibration controller can be configured for random vibration testing, including PSD-based test profiles.
Q8: Can it perform shock testing?
RE: Yes, provided that the selected shaker system has sufficient force, displacement, and acceleration capability for the required shock profile.
An electrodynamic vibration shaker offers several advantages for high-frequency vibration testing:
- Wide frequency range: Suitable for both low-frequency and high-frequency vibration tests, especially for electronic and automotive components.
- High control accuracy: Frequency, acceleration, displacement, velocity and test duration can be precisely controlled.
- Fast response: The electrodynamic drive system responds quickly to control signals, making it suitable for sweep vibration tests.
- Stable vibration output: Closed-loop control helps maintain stable vibration levels throughout the test.
- Programmable testing: Test parameters such as frequency range, sweep rate, acceleration and number of cycles can be programmed automatically.
- Suitable for high-frequency testing: Particularly suitable for PCB/PCBA, automotive electronics, sensors, connectors, batteries and other electronic components.
- High automation: Test programs can be saved and executed automatically, improving testing efficiency and repeatability.
Product Highlights
2000Hz sine/random vibration tester with horizontal slip table. Features flexible suspension, airbag damping, and rapid self-diagnosis. Complies with IEC, MIL-STD, JIS, ASTM. Ideal for LED, auto parts, and package testing. Custom options available.
