20KN Vibration Table Testing Equipment 1.8m/s For Electric Accessories
Product Details
| Sine Force: | 20000N | Frequency Range: | 3hz To 2500hz |
|---|---|---|---|
| Speed: | 1.8m/s | Directly: | X,y,z |
| Acceleration: | 100g | Moving Coiling: | 30kg |
| Load: | 300kg | ||
| Highlight |
20KN Vibration Table Testing Equipment,1.8m/s Vibration Table Testing Equipment,20KN Vibration Testing Machine |
||
Product Description

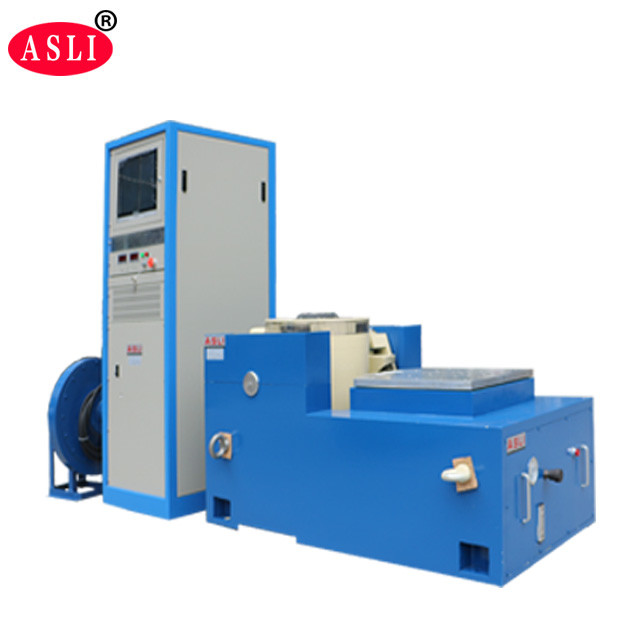

The ES-20 Digital Electrodynamics Type Vibration Tester is a high-frequency vibration test machine designed for precise and reliable testing of electric accessories and components. Manufactured by ASLi, a company with 28 years of experience in simulation environmental testing equipment and mechanical vibration and shock testing machines, this system is a star product that has earned CE certification.
With a long history spanning 28 years, ASLi is dedicated to the development and manufacturing of simulation environmental testing equipment, mechanical vibration and shock testing machines. The ES-20 Digital Electrodynamics Type Vibration Tester and High Frequency Vibration Test Machine are our flagship products, having obtained CE certification for quality and safety.
Each machine is carefully packaged for safe global transport: PP film is applied first, followed by 10mm foam between the machine and the case, with an outer standard export plywood case for maximum protection.
| Model | Rated Sine Force (N) | Rated Random Force (N) | Frequency Range (Hz) | Rated Acceleration (m/s²) | Rated Speed (m/s) | Rated Displacement (p-p) mm | Max. Loading (Kg) | Moving Coil (Kg) | Dimension of Moving Coil (mm) |
|---|---|---|---|---|---|---|---|---|---|
| ES-1 | 1000 | 1000 | 3–3500 | 400 | 1.2 | 25 | 70 | 2.5 | Φ150 |
| ES-2 | 2000 | 2000 | 3–3500 | 800 | 1.6 | 25 | 70 | 2.5 | Φ150 |
| ES-2a | 2000 | 2000 | 3–3500 | 300 | 1.6 | 40 | 70 | 8 | Φ230 |
| ES-3 | 3000 | 3000 | 3–3500 | 1000 | 1.6 | 25 | 100 | 3.5 | Φ150 |
| ES-3a | 3000 | 3000 | 3–3500 | 400 | 1.6 | 40 | 120 | 9 | Φ230 |
| ES-6 | 6000 | 6000 | 3–3500 | 1000 | 1.6 | 25 | 180 | 6.5 | Φ230 |
| ES-6a | 6000 | 6000 | 3–3500 | 1000 | 1.6 | 51 | 250 | 12 | Φ230 |
| ES-10 | 10000 | 10000 | 3–3000 | 1000 | 1.8 | 51 | 270 | 14 | Φ240 |
| ES-20 | 20000 | 20000 | 3–3000 | 1000 | 1.8 | 51 | 300 | 30 | Φ320 |
| ES-30 | 30000 | 30000 | 3–2800 | 1000 | 1.8 | 51 | 450 | 40 | Φ450 |
| ES-40 | 40000 | 40000 | 3–2800 | 1000 | 1.8 | 51 | 500 | 50 | Φ450 |
| ES-50 | 50000 | 50000 | 3–2700 | 1000 | 1.8 | 51 | 750 | 50 | Φ450 |
| ES-60 | 60000 | 60000 | 3–2700 | 1000 | 1.8 | 51 | 750 | 60 | Φ450 |
| ES-100 | 100000 | 100000 | 3–2500 | 1000 | 1.8 | 51 | 1000 | 90 | Φ450 |
| ES-120 | 120000 | 120000 | 3–2200 | 1000 | 1.8 | 51 | 1100 | 90 | Φ500 |
| ES-160 | 160000 | 160000 | 3–2100 | 1000 | 1.8 | 51 | 1500 | 150 | Φ600 |
| ES-200 | 200000 | 200000 | 3–2000 | 1000 | 1.8 | 51 | 2500 | 200 | Φ650 |
| ES-350 | 350000 | 350000 | 3–1700 | 1000 | 1.8 | 51 | 4500 | 300 | Φ870 |
- Well-designed dynamic circle skeleton with a higher stage axial resonance frequency.
- Two-magnetic circuit design ensures low magnetic flux leakage, compact structure, and rational layout.
- Rocker rod roller bearings with straight and import-oriented composite body stiffness orientation for excellent eccentric load capacity.
- Trunnion isolation foundation dedicated to hormone use, offering convenient mobile installation.
- Advanced technology move-around system ensures high reliability of the dynamic circle.
- New duct design enhances the cooling effect.
- Static stiffness and dynamic stiffness of the bearing with small balloon effect, raising the vibration table capacity and improving low-frequency performance.
| Model | Bench Size (mm) | Frequency Range (Hz) | Weight of Moving Parts (kg) |
|---|---|---|---|
| LT0303 | 300×300×22 300×300×26 300×300×30 | 5–1000 5–1500 5–2000 | 6.6 7.8 9.0 |
| LT0404 | 400×400×22 400×400×26 400×400×30 | 5–1000 5–1400 5–2000 | 11.2 13.2 16.0 |
| LT0505 | 500×500×25 500×500×30 500×500×35 | 5–1000 5–1500 5–2000 | 19.3 23.1 27.0 |
| LT0606 | 600×600×25 600×600×30 600×600×40 | 5–1000 5–1200 5–2000 | 27.5 33.0 45 |
| LT0707 | 700×700×25 700×700×30 700×700×35 | 5–800 5–1000 5–1500 | 36.8 44.2 52 |
| LT0808 | 800×800×30 800×800×40 800×800×45 | 5–1000 5–1500 5–2000 | 57.7 76.9 86.5 |
| LT1010 | 1000×1000×30 1000×1000×40 1000×1000×50 | 5–1000 5–1300 5–1500 | 89.1 118.8 147 |
| LT1212 | 1200×1200×30 1200×1200×40 1200×1200×50 | 5–800 5–1100 5–1400 | 126 168 210 |
| Model | Weight (kg) | Max. Frequency (Hz) | Bench Size |
|---|---|---|---|
| VT300 | 10 | 2000 | Φ300 |
| VT400 | 16 | 2000 | Φ400 |
| VT500 | 25 | 1500 | Φ500 |
| VT600 | 35 | 1000 | Φ600 |
| VT0303 | 15 | 2000 | 300×300 |
| VT0404 | 22 | 1500 | 400×400 |
| VT0505 | 30 | 500 | 500×500 |
| VT0606 | 58 | 350 | 600×600 |
| VT0808 | 140 | 350 | 800×800 |
| VT1010 | 180 | 350 | 1000×1000 |
| VT1212 | 250 | 350 | 1200×1200 |
| VT1212 (Round bench) | 220 | 350 | Φ1200 |

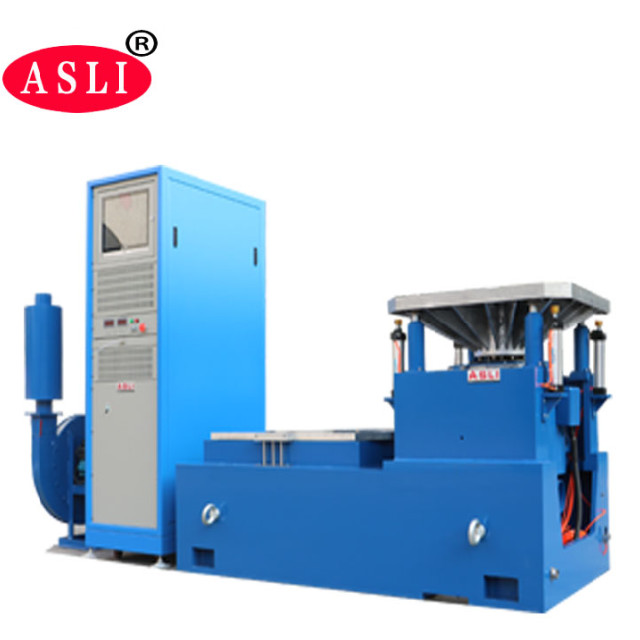

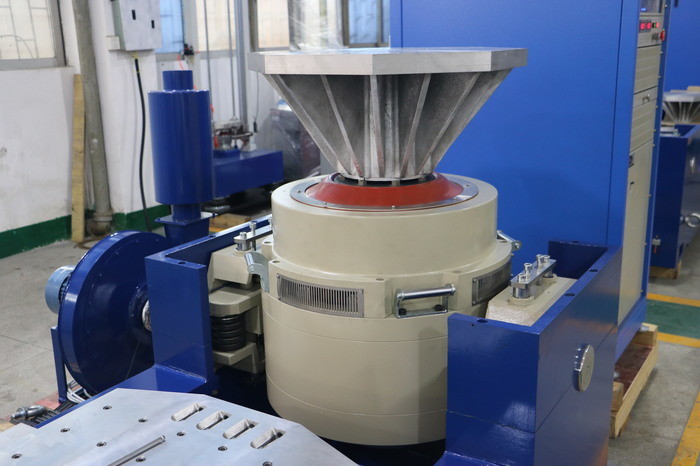

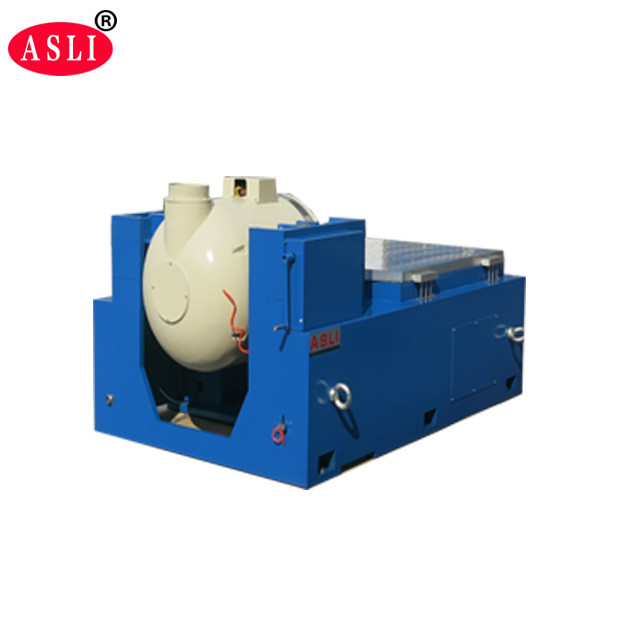

ASLi manufactures the ES-20 Digital Electrodynamics Type Vibration Tester and High Frequency Vibration Test Machine series, incorporating advanced modern technologies such as "double-magnetic circuit structure," "self-generated skeleton action circles," "Airborne Support," "roller bearings and linear guidance," and "trunnion isolation." These systems can perform X, Y, Z three-axis sinusoidal vibration tests and broadband random vibration tests, as well as classical pulse tests (half-sine, trapezoidal, sawtooth wave) and shock response spectrum tests.
These products are widely used in national defense, weapons, aviation, aerospace, communications, electronics, electrical appliances, and home appliances industries.
If you have any questions about the Vertical and Horizontal Vibration Tester, please feel free to contact us. We are happy to assist you.
Product Highlights
ES-20 vibration table: 20KN sine force, 3-2500Hz, 1.8m/s, XYZ axis, 300kg load. CE certified, 28-year manufacturer. Durable, efficient, customizable for electric accessories testing.
