CE Certified Rapid Temperature And Humidity Change Test Chamber Electrical Thermal Testing Climatic Test Equipment
Application :
CE Certified Rapid Temperature And Humidity Change Test Chamber Electrical Thermal Testing Climatic Test Equipment that able to offer quick and constant conditions from 5% to 98% R.H. +/- 0.5% and-70°C to 150°C +/-0.5°C, is widely used for the resistance test to heat, cold, dry, and humidity etc, and used for the conditioning of many kinds of samples prior to testing.
It is designed for testing the capability of heat-endurance, cold-endurance, dryness-endurance, and humidity-endurance, suitable for quality control of the industries of electron, electrical equipment, vehicle, metal, foodstuffs, chemistry, building materials, luggage, adhesion tape, printing, packaging, etc.
Temperature Humidity Machine Technical Parameter:
| Model | TH-1000 (A~F) |
| Internal Dimension | 1000x1000x1000 ( WxHxD mm) |
| External Dimension | 1750x1900x1750 (WxHxD mm) |
| Temperature Range |
Low Temperature(A:25°C B:0°C C:-20°C D:-40°C E:-60°C F:-70°C) High Temperature 150°C |
| Humidity Range | 20%~98%R.H.(10%-98% R.H. / 5%-98% R.H ,is optional , need Dehumidifier) |
| Indication relolution/ Distribution uniformity of temperature and humidity | 0.1°C; 0.1% R.H/±2.0°C; ±3.0% R.H. |
| Control Accuracy of Temperature and Humidity | ±0.5°C; ±2.5% R.H. |
| Temperature Rising/ Falling Velocity |
Temperature rising approx. 0.1~3.0°C/min ; temperature falling approx. 0.3~1.0°C/min; ( Falling Min.1.5°C/min is optional) |
| Inner and Outer Material | Interior material is SUS 304# stainless steel, exterior is stainless steel or SEE cold-rolled steel with paint coated. |
| Insulation Material | Resistant to high temperature, high density, formate chlorine, ethyl acetum foam insulation materials |
| Cooling System | Wind cooling or water cooling, (single segment compressor-40°C, double segment compressor -70°C) |
| Protection Devices | Fuse-free switch, overloading protection switch for compressor, high and low voltage coolant protection switch, over-humidity and over-temperature protection switch, fuses, fault warning system, water short storage warning protection |

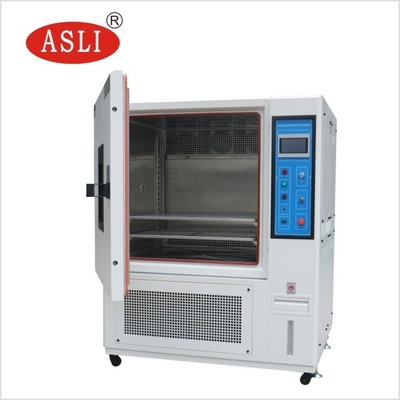

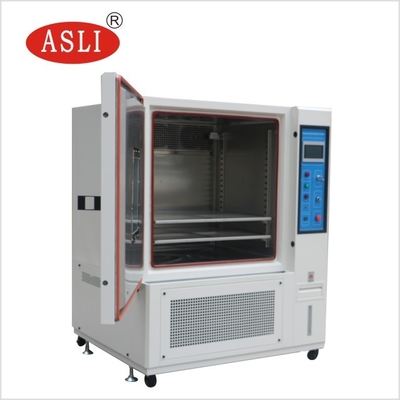

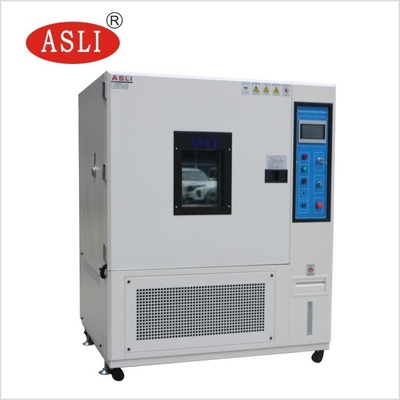

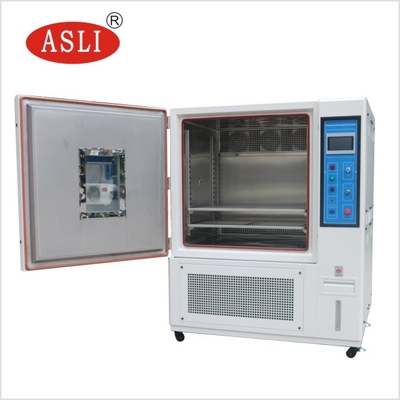

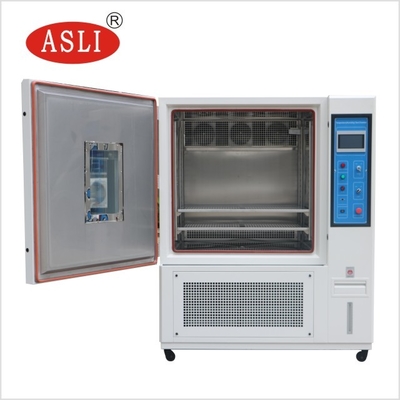

Pictures for reference:
Heated humidification system:
1.Adopt U-TYPE SUS#304ss Electric heat pipe heater
2.Humidify barrel made of SUS#304ss,with observation glass and electromagnetic valve of water level
3.Idepently heat,wet humidify,dehumidify system.
4.With auto heating,wetting and demist function,with observation glass and imported tube.
5.Humidification water recycling, automatic filling water system,25L built in draw-out type water tank
Exhibition:
