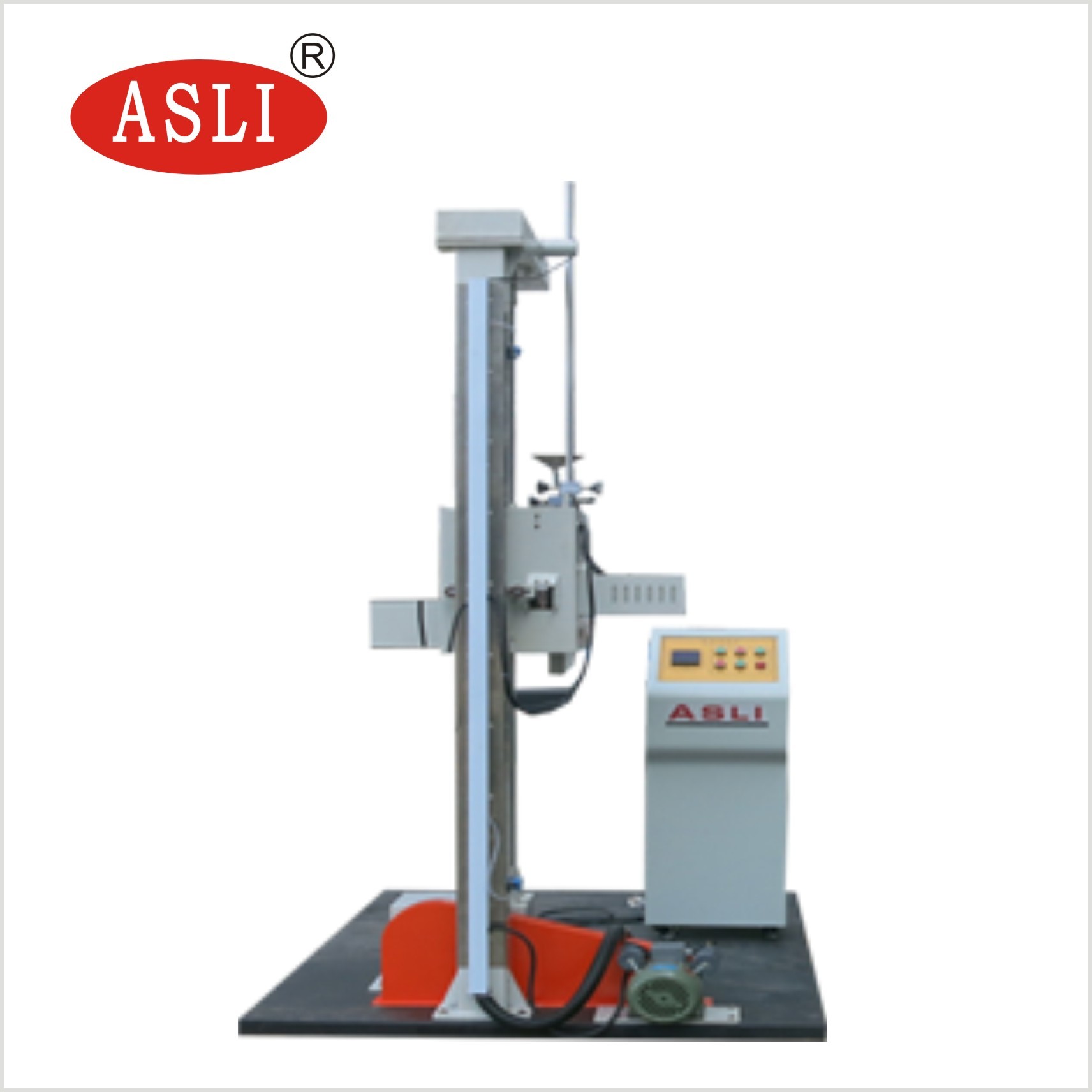

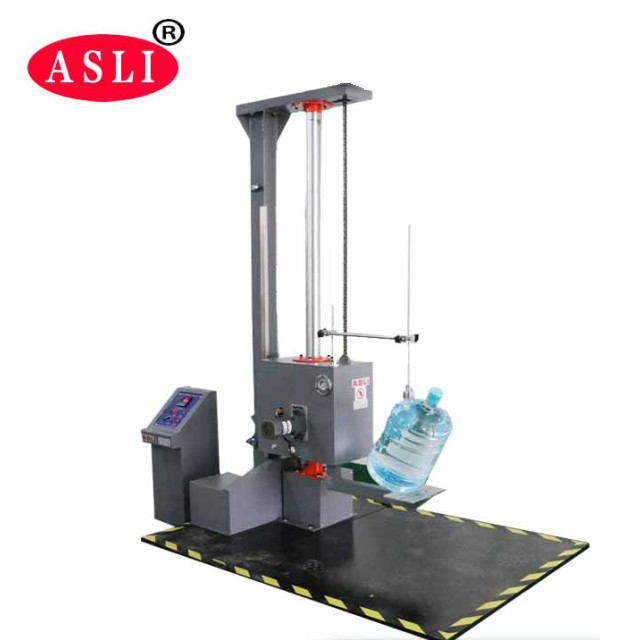

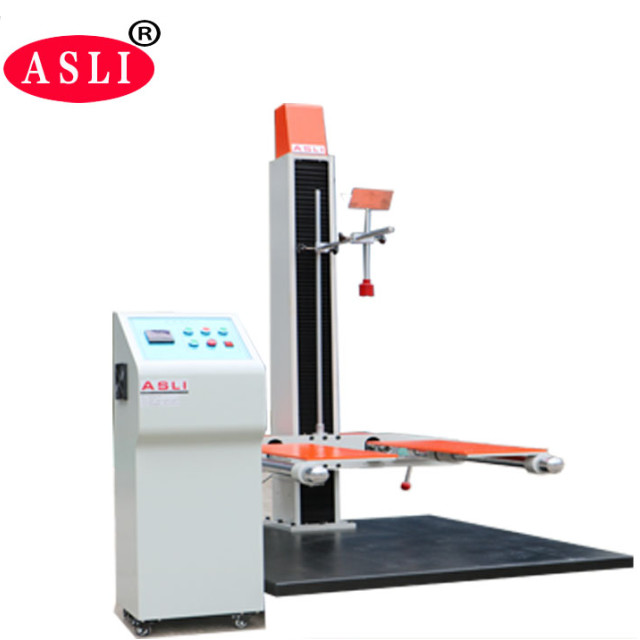

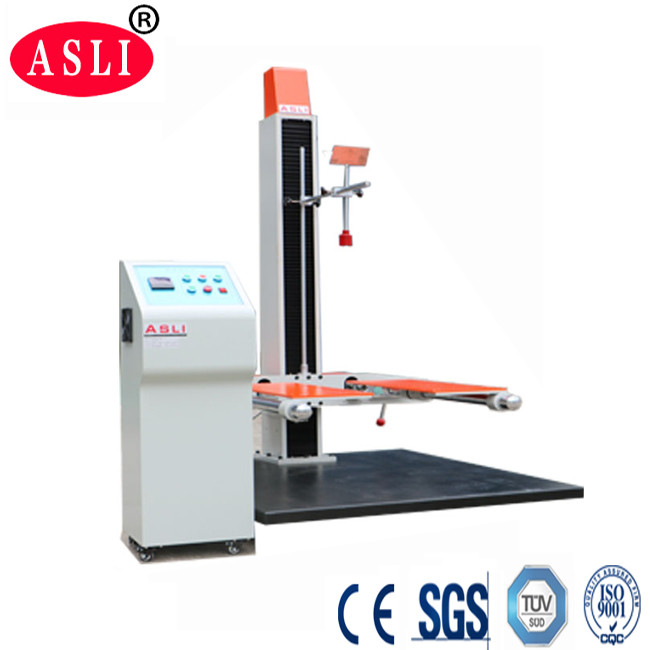

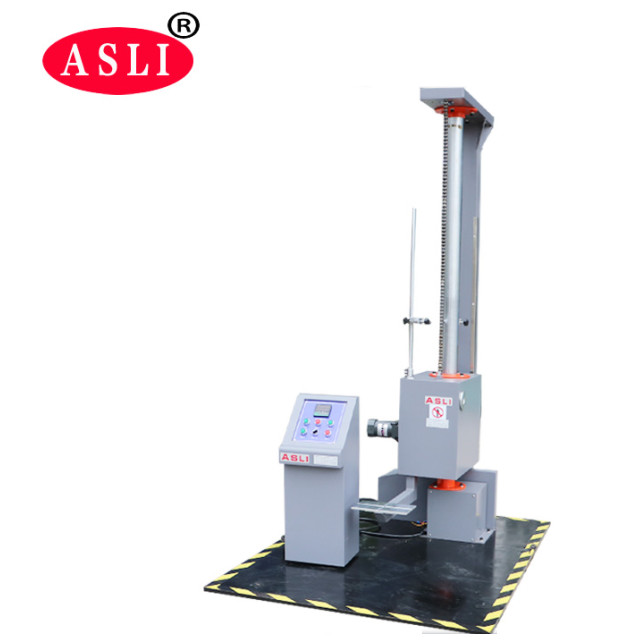

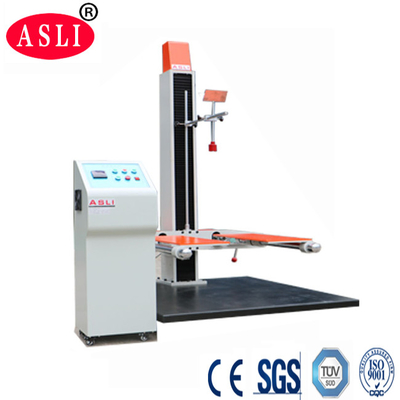

1500mm Adjustable Drop Height Packing Drop Test Machine
Product Details
| Max. Sample Size: | W1000*H800*D1000mm | Max. Load: | 60kg/ 80kg/ 100kg |
|---|---|---|---|
| Drop Height: | 300~1500mm | Application: | Packaging |
| Fall Speed: | Free Fall | Test Standard: | ASTM |
| Highlight |
1500mm adjustable packing drop tester,drop test machine for packaging,adjustable height environmental test chamber |
||
Product Description
300~1500mm drop height, adjustable
The drop height can be customized.
The machine can add guardrail.
With limit switch for protection machine.

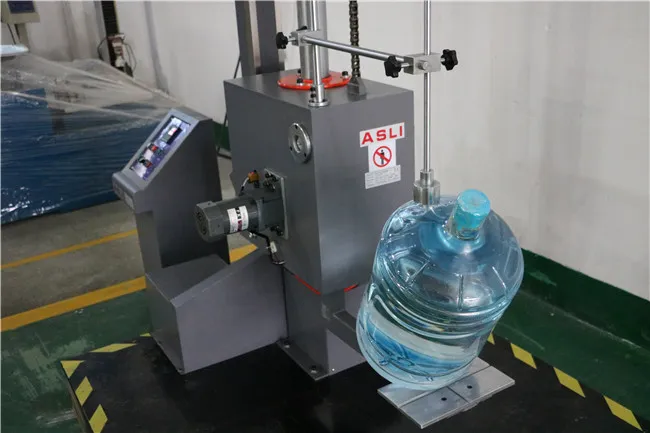

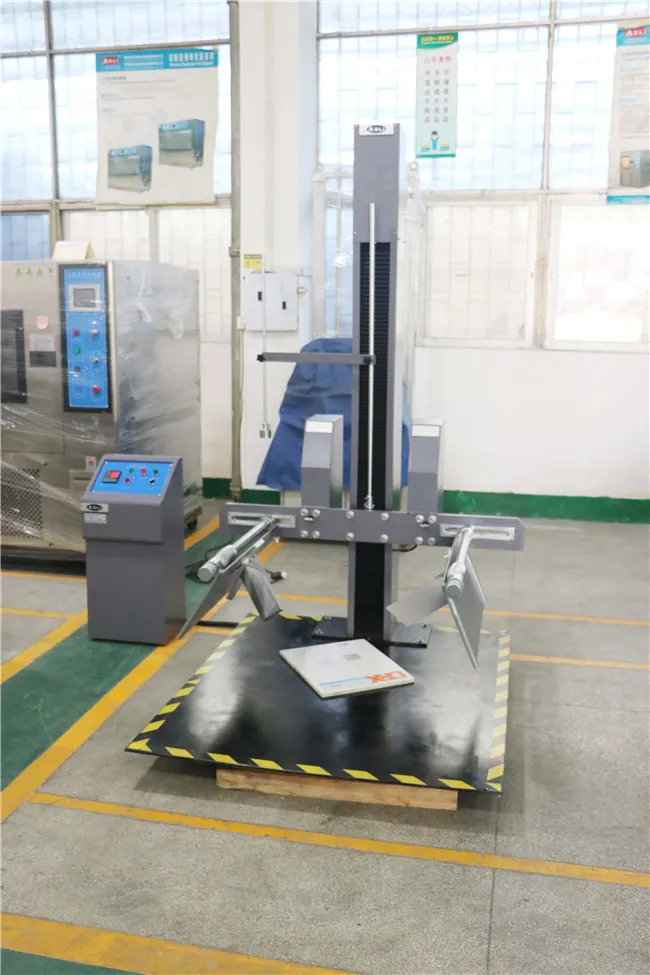

The Packing Drop Test Machine, also known as a drop tester or drop impact tester, is a device used to simulate the impact of a product or package during shipping or handling. The machine works by dropping the product or package from a specified height and measuring its performance or resistance to damage.
The function of a drop test machine is to assess the ability of a product or package to withstand impacts and vibrations that may occur during transport, storage, or handling. It is commonly used in industries such as packaging, transportation, and consumer electronics to evaluate the durability and reliability of their products.

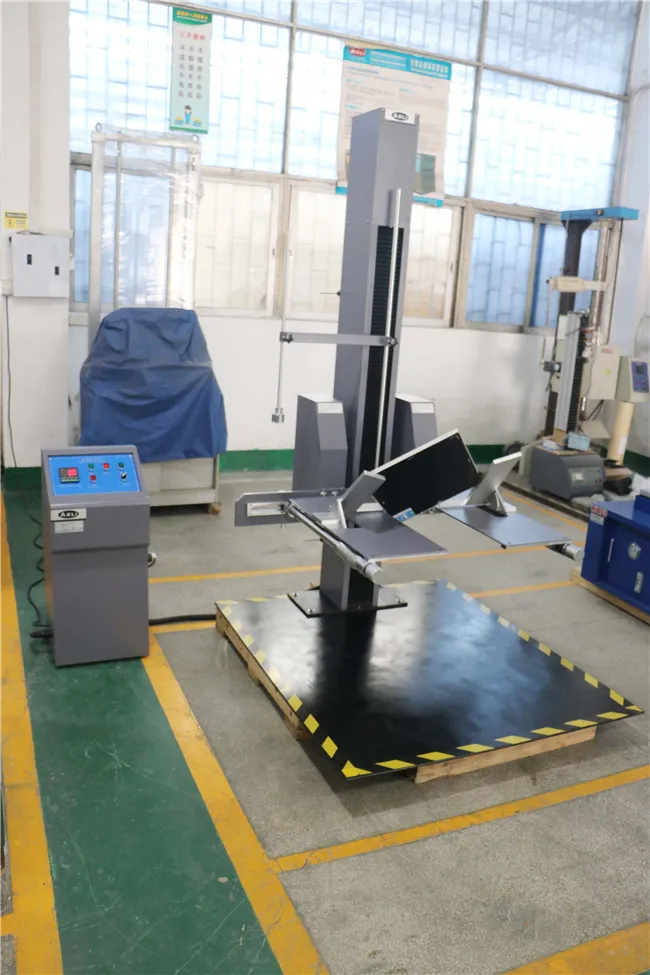

The drop test machine typically consists of a platform or fixture for holding the product or package, and a mechanism for raising it to a specified height and dropping it onto a hard surface. The height, orientation, and number of drops can be adjusted based on the specific requirements of the test.
During the test, the product or package is monitored for any damage, such as cracks, dents, or scratches. The severity and type of damage can be used to evaluate the effectiveness of the packaging design, materials, and manufacturing process. The data collected from the drop test can also be used to make improvements to the product or packaging design to ensure that it can withstand the rigors of transportation and handling.
| Model | AS-DT-120 | AS-DT-150 | AS-DT-200 |
|---|---|---|---|
| Max. Weight of Test Samples (Kg) | ≥200 | 100 | 100 |
| Height of Drop (mm) | 0~1200 | 300~1500 | 300~2000 |
| Max. Dimension of Test Sample WxHxD (mm) | 1200x1200x1200 | 1000x800x1000 | 1000x800x1000 |
| Falling Floor Size WxHxD (mm) | 1400x50x2000 | 1700x50x1200 | 1700x50x1200 |
| Drop Method | Face, edge, angle | ||
| Test Bench External Dimension WxHxD (mm) | 1400x2000x1800 | 1700x2700x1200 | 1700x2700x1200 |
| Weight (Kg) | 1500 | 600 | 700 |
| Power | AC 380V | ||
- The main axle of the tester uses a dual axle rod, providing high precision and good stability. Power failure safety design keeps the original condition under power cut, and the swing arm will not break away unusually.
- The tester has set limits upward and downward, and will not exceed the safety range when testing.
- Support arm with electronic reset capability can avoid accidents caused by manual operation.
- Multi-functional sample supporter: can rapidly fix different size packages to test package edges, sides, and corners.
- Micro adjusting control allows rapid setting to the needed testing height.
- PP film first
- Vacuum package
- PP film again
- 10mm thickness PU foam to avoid collision
- Strengthened plywood case
- Standard ASLI case mark
We are a long-established testing equipment manufacturer. Over the past 28 years, we have devoted ourselves to simulation environmental testing equipment and mechanical vibration and shock testing machines. The Free Fall Drop Test Machine for Packaging is one of our star products, and we have obtained the CE certification for this machine.
Product Highlights
1500mm adjustable drop height, 100kg load, ASTM compliant. Dual-axle precision, power-failure safety, electronic reset. Custom heights and guardrails available. CE certified by 28-year manufacturer. Ideal for packaging durability testing.
