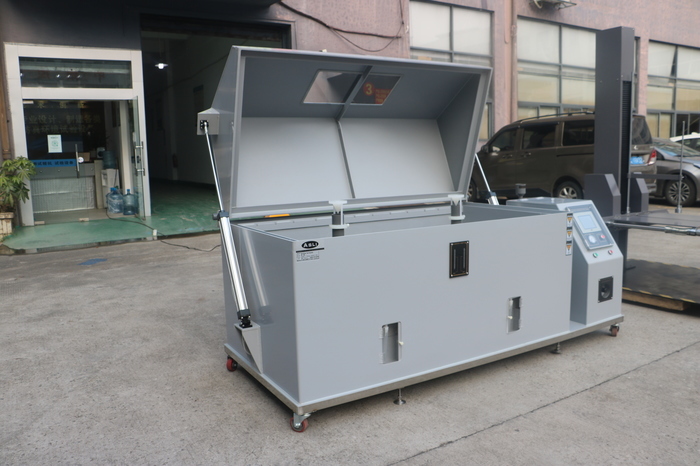

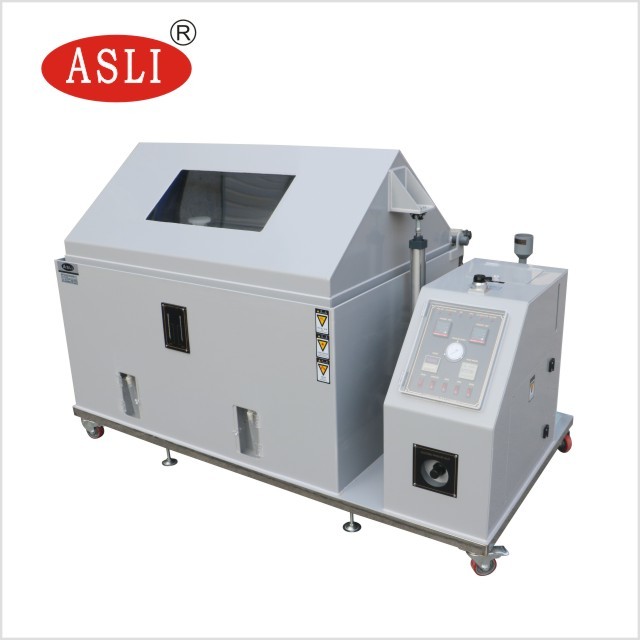

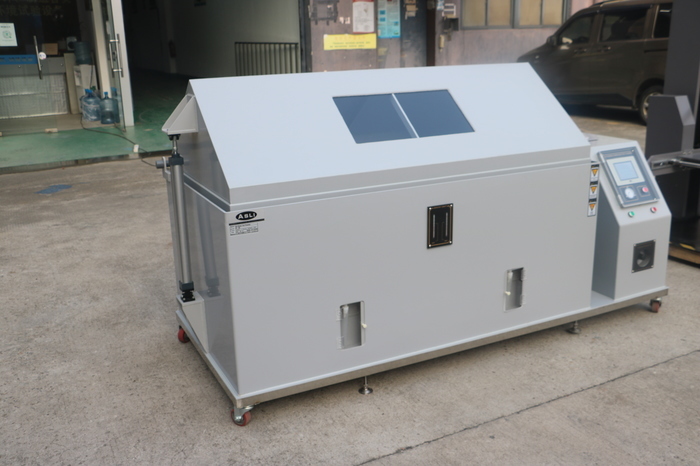

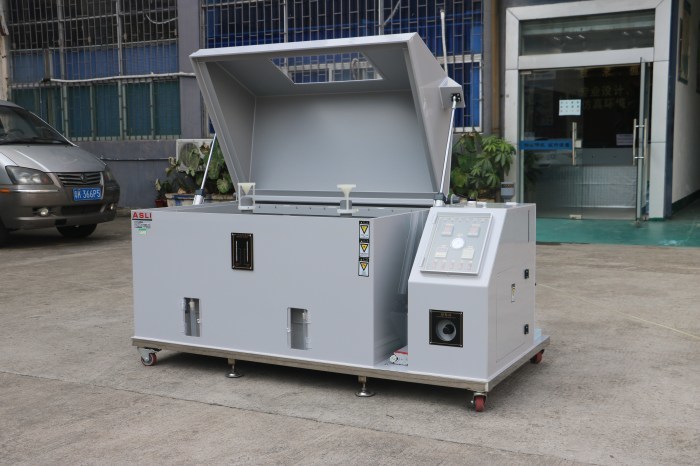

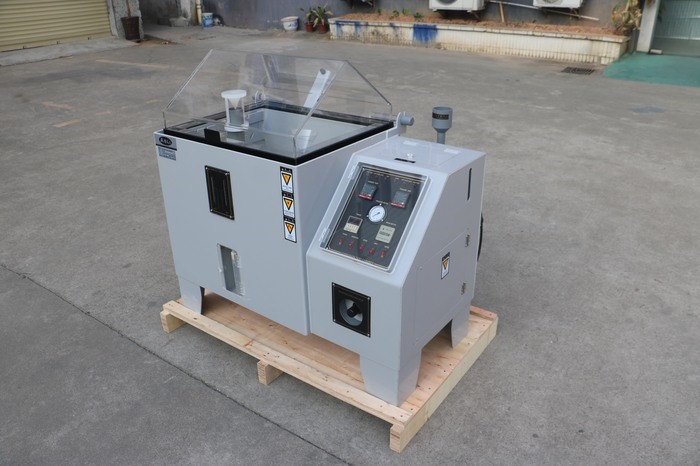

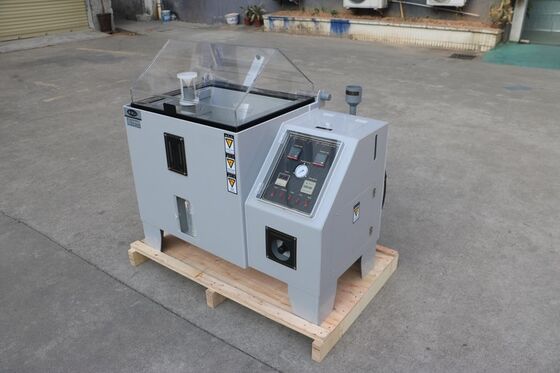

The ISO 9227 Industrial Dry and Wet Composite Salt Water Spray Test Device is designed to create and maintain salt spray (fog) test environments for evaluating the anti-corrosion quality of material surfaces. This specialized equipment tests corrosion resistance of paints, coatings, metal structures, and electrical systems by exposing them to salt-intensive atmospheres at controlled temperatures.
| Model | SH-60 | SH-90 | SH-120 | SH-160 | SH-200 |
|---|---|---|---|---|---|
| Internal Dimension WxHxD (mm) | 600x400x450 | 900x500x600 | 1200x500x800 | 1600x500x800 | 2000x500x800 |
| External Dimension WxHxD (mm) | 1100x600x1200 | 1400x950x1200 | 1900x1300x1400 | 2300x1300x1400 | 2700x1500x1500 |
| Lab Temperature | Saline test (NSS ACSS) 35±1°C; Corrosion Test (CASS) 50±1°C | ||||
| Pressure Bucket Temperature | Saline test method (NSS ACSS) 47±1°C / Corrosion Test (CASS) 63±1°C | ||||
| Lab Capacity (L) | 108 | 270 | 480 | 640 | 800 |
| Saline Capacity (L) | 15 | 25 | 40 | 40 | 40 |
| Saline Concentration | 5% concentration of NaCl, or every Liter 5% NaCl add 0.26g CuCl2H2O | ||||
| Compressed Air Pressure (Kgf) | 1.0~6.0 | ||||
| Spray Volume | 1.0~2.0ml /80cm²/h (working at least 16 hours, and take the average value) | ||||
| Spray Form | Continuous Spraying or Programmable Spraying | ||||
| Power | AC220V 1 ph 3 lines 15A | ||||
| Weight (Kg) | 65 | 80 | 120 | 160 | 200 |
Package: PP film first, and then 10mm foam between machine and the case, and outside is standard export plywood case.
ASLI is a testing equipment manufacturer with 28 years of experience, specializing in simulation environmental testing equipment and mechanical vibration/shock testing machines. Our salt spray corrosion resistance testers are star products that have obtained CE certification.
Environmental chambers, temperature (humidity) chamber, Thermal shock chamber, PCT/Hast chamber (Highly accelerated stress test chamber), ESS chamber, Walk-in stability chamber, Vacuum oven, electrodynamic vibration shaker, mechanical shock tester, environmental combined vibration chamber, etc.
Factory, 28 years focusing on test instruments field, 4 years exporting experience.
Generally about 20 days. If we have finished products, we can arrange shipment within 3 days. Please be aware that our production lead times depend on specific items and item quantities.
12 months warranty. After the warranty, our professional after-sale service team provides technical support and helps solve problems encountered while using our products.
