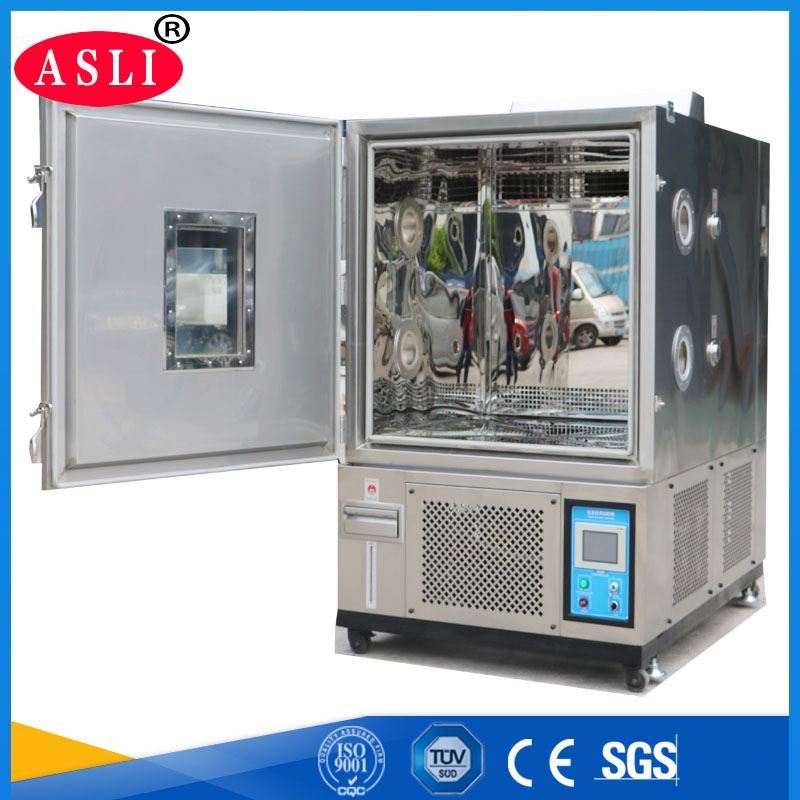

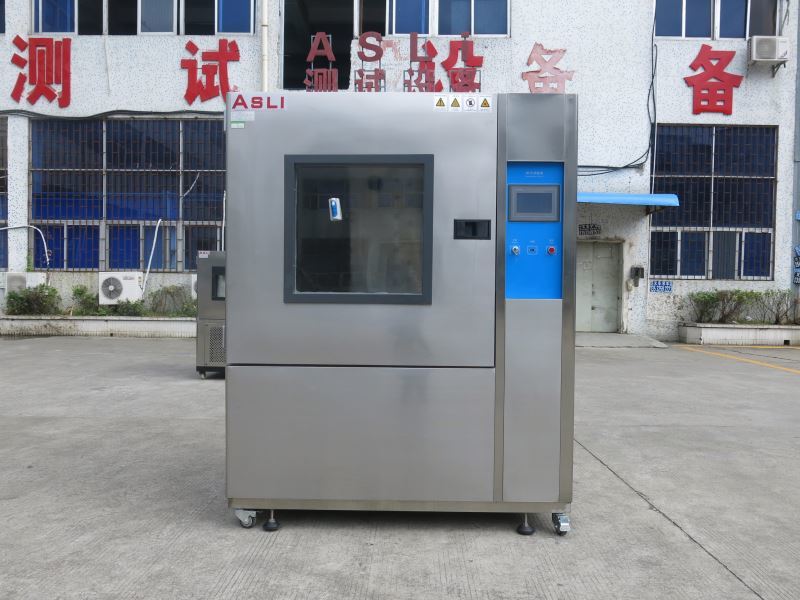

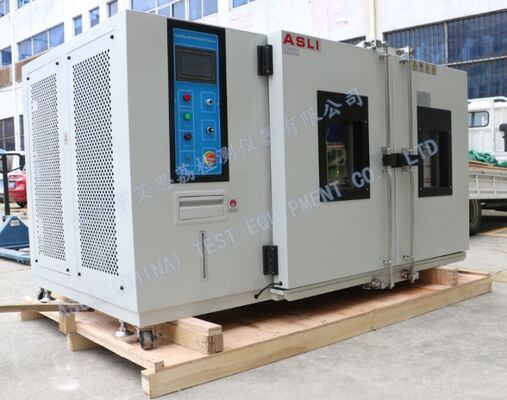

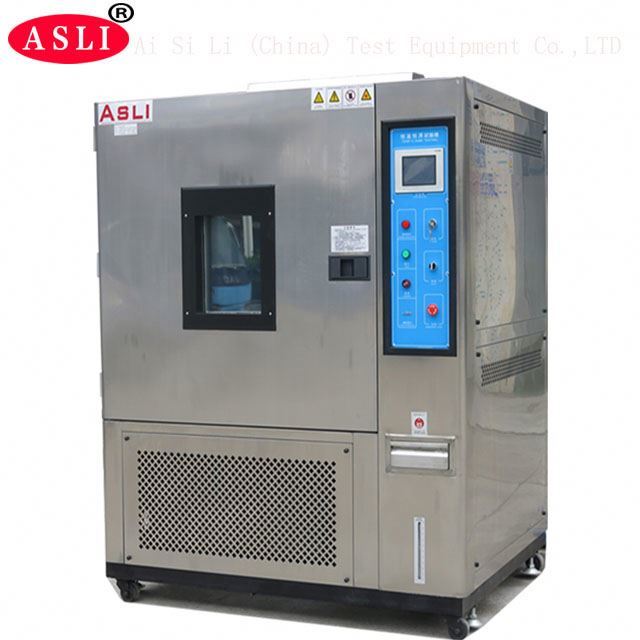

TH-225-A Humidity Chamber - Chemical Composition Testing Machine
CE Approved high-quality temperature and humidity testing chamber designed for laboratory testing equipment applications. This climatic chamber provides precise environmental simulation for material testing and quality control.
Applications
This climatic chamber is designed to test material tolerances for heat, cold, dry, and humidity conditions. Ideal for quality inspection across multiple industries including electronics, appliances, communications, automotive, plastics, metals, food processing, chemicals, building materials, medical devices, and aerospace.
Key Features
- Elegant circular-shaped body with mist strip surface treatment and ergonomic handle design
- Rectangular double-glassed observation window with anti-condensation heating and PL fluorescent lighting
- Double-layer insulated airtight doors for effective temperature isolation
- External water supply system with automatic recycling for humidification
- French Tecumseh compressor system with environmentally friendly refrigerants (R232, R404)
- Imported LCD display showing measured values, set values, and time
- Multi-segment program editing with temperature and humidity slope control
- Mobile pulley system with positioning screws for easy relocation
Technical Specifications
| Parameter |
Specification |
| Model |
TH-225-A |
| Internal Dimension |
W600×H750×D500 (mm) |
| External Dimension |
W1200×H1900×D1150 (mm) |
| Temperature Range |
Low: Customizable from -25°C | High: 150°C |
| Humidity Range |
20% to 98% R.H. |
| Analytic Accuracy |
0.1°C; 0.1% R.H. |
| Distribution Uniformity |
±2.0°C; ±3.0% R.H. |
| Control Accuracy |
±0.5°C; ±2.5% R.H. |
| Temperature Rate |
Rising: 0.1-3.0°C/min | Falling: 0.1-1.5°C/min |
| Construction Material |
Inner: SUS 304 stainless steel | Outer: Stainless steel or painted cold-rolled steel |
| Cooling System |
Wind or water cooling with single/double segment compressor |
| Power Supply |
AC220V 1ph 3 lines or AC380V 3ph 5 lines, 50/60Hz |
| Approximate Weight |
400 kg |
Protection & Safety Systems
Comprehensive protection including fuse-free switch, compressor overload protection, high/low pressure coolant protection, over-humidity and over-temperature protection, fuses, fault warning system, and water shortage protection.
Optional Accessories
Inner door with operation hole, data recorder, water purifier, dehumidifier.
Packaging & Shipping
Professional export packaging with PP film wrapping, 10mm foam cushioning, and standard export plywood case for secure international shipping.
Manufacturer Information
ASLi Test Equipment Co., Ltd. - 25 years of expertise in simulation environmental testing equipment and mechanical vibration systems. Specialized in HAST Un-Saturated Steam Chambers with CE certification.
Frequently Asked Questions
Are you a trading company or manufacturer?
We are the factory with 28 years of experience in test instruments and 4 years of export experience.
What is the delivery time?
Typically 20 working days. For finished products, shipment can be arranged within 3 working days. Production lead times vary by specific items and quantities.
What is the warranty and after-sales service?
12-month warranty with professional technical support and problem resolution services after warranty period.
What services and quality assurance do you provide?
OEM services, design services, and buyer label services. All instruments undergo 100% quality examination and third-party calibration before shipment.
How is installation and training handled?
Simple installations use operation manuals. Complex systems include factory training or overseas engineer support.
What are your main products?
Environmental chambers, temperature/humidity chambers, HAST chambers, ESS chambers, walk-in stability chambers, vacuum ovens, altitude chambers, vibration test systems, and environmental combined vibration chambers.
Welcome visits from new and regular customers. Please contact us for any inquiries!
