Quality 1000L Environmental Temperature and Humidity Cycle test Chamber Textile Testing factory
<
Quality 1000L Environmental Temperature and Humidity Cycle test Chamber Textile Testing factory
Quality 1000L Environmental Temperature and Humidity Cycle test Chamber Textile Testing factory
Quality 1000L Environmental Temperature and Humidity Cycle test Chamber Textile Testing factory
Quality 1000L Environmental Temperature and Humidity Cycle test Chamber Textile Testing factory
>

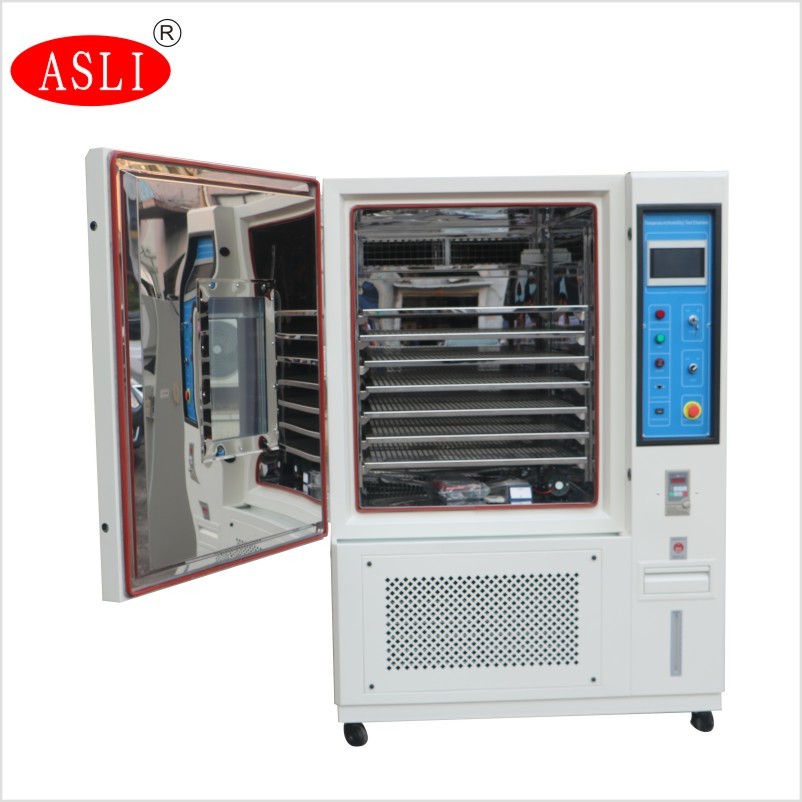

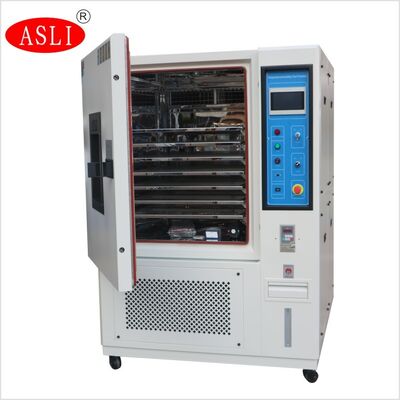

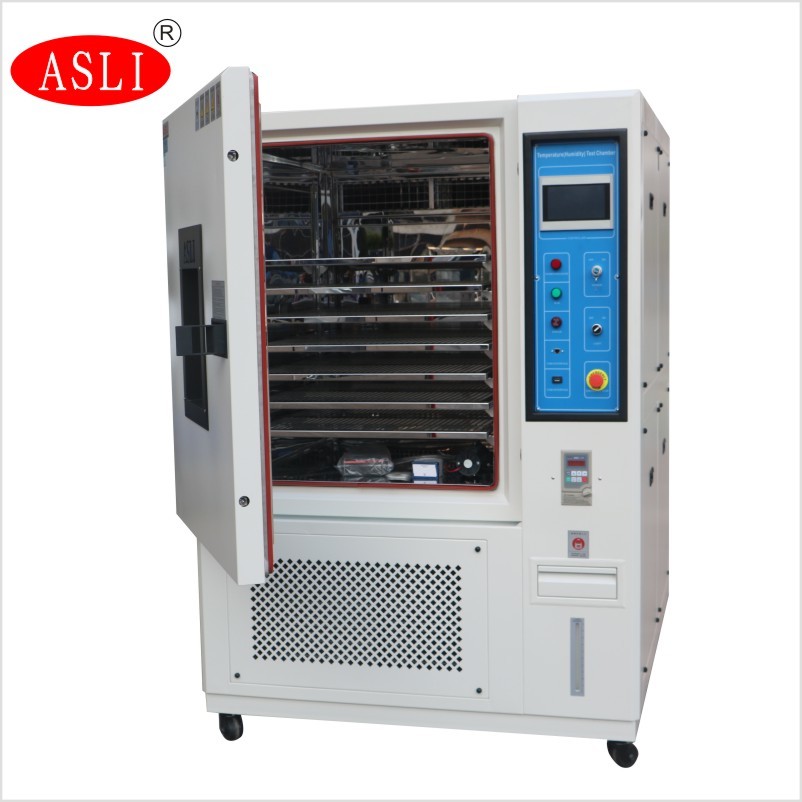

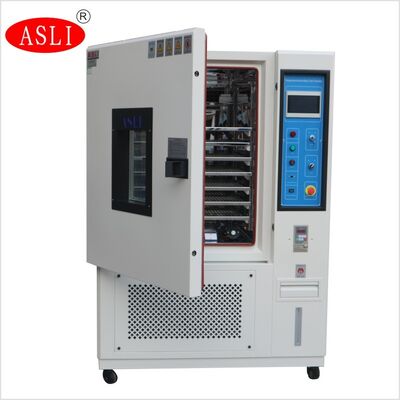

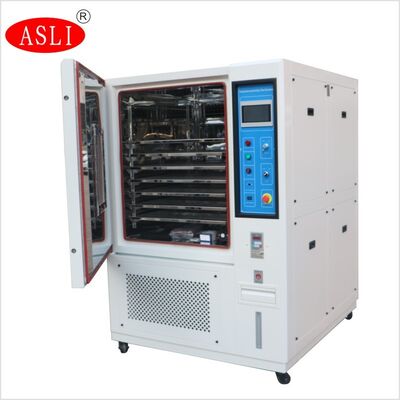

1000L Environmental Temperature and Humidity Cycle test Chamber Textile Testing

Brand Name: ASLI
Place of Origin: Guangdong, China
Minimum Order Quantity: 1

Product Details


Accuracy: 0.05 Power: 7KW, AC380V 220V
Protection Class: IP66 Voltage: 380 V
Low Temperature: -40℃ High Temperature: 150℃(max 200degree)
Humidity Range: 20%-98%R.H Analytic Accuracy: 0.1℃; 0.1% R.H
Distribution Uniformity: ±2.0℃; ±3.0% R.H. Compressor Brand: Germany Bizer
Refrigerant Type: R23 Or R404A Viewing Window: Double-paned
Door Insulation: Double-layer Water Supply: Externally Connectable
Display Type: LCD
Highlight

1000L temperature humidity test chamber

,

environmental test chamber for textiles

,

temperature cycle test chamber with warranty

Product Description

Product Overview

The Climate Control Chamber Environmental Cycle Testing Machine is a programmable constant temperature and humidity test system, also known as an environmental testing machine. It is designed to evaluate how various materials tolerate heat, cold, dry, and humid conditions. It is widely used for quality inspection across electronic products, electric appliances, and products from the communication, instrument, automobile, plastic, metal, food, chemical, building materials, medical, and aerospace industries.

Features at a Glance
1000L environmental temperature and humidity cycle test chamber, standard model

80–1000L standard model

Large walk-in environmental test chamber for temperature and humidity cycling

Large walk-in chamber

Combined shaker and environmental test chamber system

Combined shaker chamber

Product Specifications
Technical specification table for the 1000L temperature and humidity test chamber
Detailed dimensional and performance specifications of the environmental test chamber
Key Features

Laboratory IEC constant temperature and humidity test apparatus features:

  1. Graceful appearance with a circularly shaped body, surface treated with mist strips. Easy to operate, safe, and reliable.
  2. Rectangular double-paned viewing window for observing samples under test, with interior lighting.
  3. Double-layer insulated airtight doors that effectively insulate the internal temperature.
  4. Externally connectable water supply system, convenient for refilling the humidifying pot and automatically recyclable.
  5. French Tecumseh compressor with environmentally friendly refrigerant R23 or R404A.
  6. LCD display screen capable of showing measured values as well as set values and time.
  7. Control unit with multi-segment program editing functions, supporting quick or ramp-rate control of temperature and humidity.
  8. Casters provided for ease of mobility, with strong positioning screws.
Interior view of the temperature and humidity test chamber showing sample placement area
Pressure Cooker Chamber

Highly accelerated stress testing for altitude testing is widely applied to evaluate the sealing properties of multi-layer circuit boards, IC sealing packages, LCD screens, LEDs, semiconductors, magnetic materials, NdFeB, rare earths, and magnet iron. The resistance to pressure and air tightness of the above products can be tested.

Relative pressure: Display values indicated on the pressure gauge.
Absolute pressure: Value that adds 100 kPa to the display value indicated on the pressure gauge (the actual value inside the inner box).
Pressure cooker chamber used for highly accelerated stress testing and altitude testing
Electrodynamic Vibration Shaker

The hot-selling electrodynamic shaker machine adopts a double-magnetic circuit structure, self-generated skeleton action circles, airborne support, roller bearings and linear guidance, and trunnion isolation. Using advanced modern and special technology, it can complete X, Y, Z three-axis sinusoidal vibration tests and broadband random vibration tests, as well as classical (half-sine, trapezoidal, sawtooth wave) pulse and shock response spectrum tests. These products are widely used in national defense, weapons, aviation, aerospace, communications, electronics, electrical appliances, and home appliances.

Electrodynamic vibration shaker system front view
Electrodynamic vibration shaker with control cabinet
Close-up of vibration shaker armature and guidance system
Vibration shaker testing setup with fixture and accelerometer
Electrodynamic shaker system installed in testing laboratory
Vibration shaker control and monitoring interface
Successful Projects
Completed environmental test chamber project installation site
Customer site with installed temperature and humidity test chamber
Successful project reference for environmental testing equipment
Similar Products
Similar model of temperature and humidity test chamber
Alternative environmental test chamber configuration
Related climatic testing equipment from the same product line
FAQ
Frequently asked questions about environmental test chamber ordering and delivery

Q1. What are your terms of packing?

A: Generally, we pack our goods in neutral white boxes and brown cartons.

Q2. What are your terms of payment?

A: T/T 50% as deposit, and 50% before delivery. We will show you photos of the products and packages before you pay the balance.

Q3. What are your terms of delivery?

A: EXW, FOB, CFR, CIF, DDU.

Q4. How about your delivery time?

A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Product packaging and shipping preparation for test chambers
Wooden crate packaging for environmental test chamber shipment
Packing Details
Packing process for temperature and humidity test chamber
Secured packaging of environmental testing equipment for transport
Final packed test chamber ready for delivery
Our Factory

ASLI main products include climatic chambers, temperature chambers, humidity chambers, walk-in chambers, UV aging chambers, thermal shock chambers, xenon chambers, xenon combined UV aging chambers, PCT chambers, HAST chambers, vibration chambers, electrodynamic shakers, mechanical shock testers, and climatic combined vibration chambers.

Product Highlights

1000L environmental temperature and humidity cycle test chamber for textile testing. Features -40℃ to 150℃ range, 20%-98%R.H, ±2.0℃ uniformity, Germany Bizer compressor, IP66 protection, LCD display, double-paned window, and externally connectable water supply. Ideal for quality inspection across electronics, automotive, aerospace, and textile industries.
