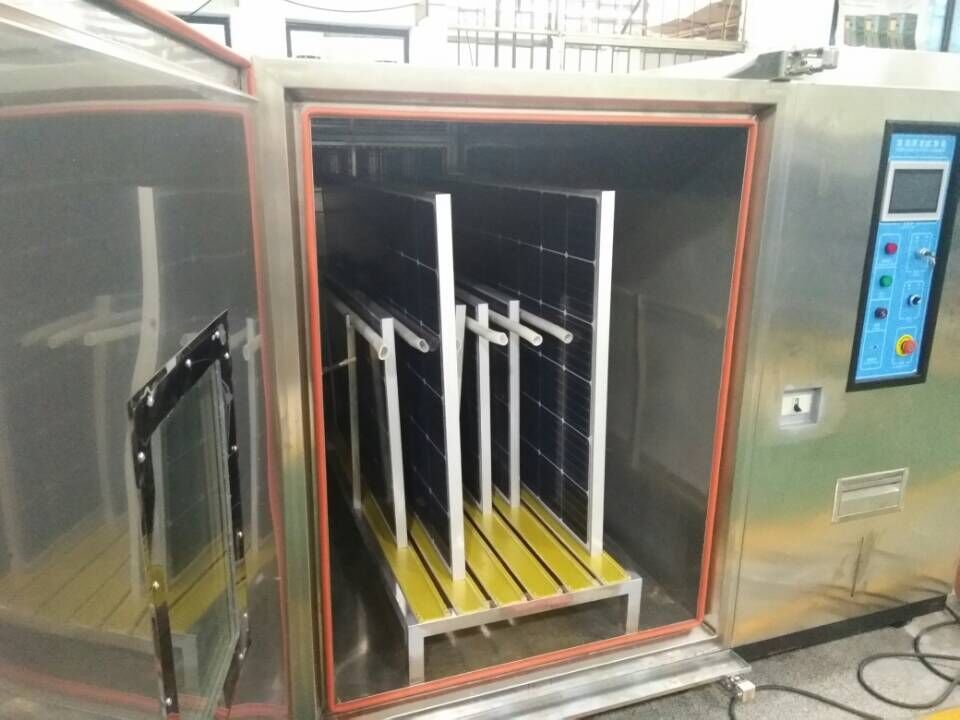

IEC62133 Programmable Durable Constant Temperature Humidity Climate Test Chamber for PV Module
Product Details
| Internal Dimension: | W600*H750*D500mm | Volume: | 225L |
|---|---|---|---|
| Display Type: | Programmable Touch Screen | Test Hole Diameter: | 50mm |
| Communication Interface: | RS232 | Power Supply: | AC 380V |
| Temperature Range: | -40ºC~200ºC | Humidity Range: | 20%~98%R.H. |
| Control Accuracy: | ±0.5℃; ±2.5% R.H. | Temperature Velocity: | 0.1~3.0℃/min (rising); 0.1~1.0℃/min (falling) |
| Inner Material: | SUS 304# Stainless Steel | Outer Material: | Stainless Steel Or SEE Cold-rolled Steel |
| Sheet Thickness: | 2.0mm | Safety Device: | Emergency Stop Button |
| Computer Control: | Yes | ||
| Highlight |
IEC62133 programmable test chamber,durable climate test chamber,PV module humidity chamber |
||
Product Description
- 28+ Years Experience
- OEM Accepted
- Reasonable Price
- Fast Delivery
Programmable Temperature Chambers are designed to test the performance indexes of aeronautic and astronautic products, ships, weapons, academies, motorcycles, information electronics, instruments and meters, materials, electronic engineering, electronic products, various electronic elements, foodstuffs, chemistry, building materials, luggage, adhesion tape, printing, packaging, plastics, medical products, and more — under high-low temperature or temperature and humidity alternation environments.
| Parameter | TH-225 (A~F) | TH-408 (A~F) | TH-800 (A~F) |
|---|---|---|---|
| Internal Dimension W×H×D (mm) | 600×750×500 | 600×850×800 | 1000×1000×800 |
| External Dimension W×H×D (mm) | 1200×1900×1150 | 1200×1950×1350 | 1600×2000×1450 |
| Temperature Range | Low Temperature (A: 25℃, B: 0℃, C: -20℃, D: -40℃, E: -60℃, F: -70℃); High Temperature: 150℃ | ||
| Humidity Range | 20%~98% R.H. (10%~98% R.H. / 5%~98% R.H. is optional; requires dehumidifier) | ||
| Control Accuracy of Temperature and Humidity | ±0.5℃; ±2.5% R.H. | ||
| Temperature Rising / Falling Velocity | Temperature rising approx. 0.1~3.0℃/min; temperature falling approx. 0.1~1.0℃/min (falling min. 1.5℃/min is optional) | ||
| Inner and Outer Material | Interior material is SUS 304# stainless steel; exterior is stainless steel or SEE cold-rolled steel with paint coating. | ||
- The adjustable air outlet maintains the optimal temperature and humidity regularity. The treble independent temperature safety protector ensures that a failure in one unit does not affect the other two.
- Evaporator coils, fins, and other connectors are all made of copper. The coefficient of heat transfer is over 20, and it avoids chemical coupling from stainless steel or aluminum.
- Depending on the strong control system, the refrigeration system has perfect functions. The chamber can reach -90℃ using only mechanical refrigeration.
- The appearance breaks traditional design and can match various colors and different appearance effects. The "L" solid design is not only beautiful but also stands for "LIK" culture.
- Large-scale temperature range: -40℃~200℃; 2.0mm thickness sheet metal.
- Unique temperature and humidity controlled range.
- This series of equipment adopts an automatic watering and drawer-type hidden water tank double-duty device. The water recovery system allows customers to decide whether to recycle automatically or not. It features a water level sensor that observes water level and waters automatically based on the water level.
- Highly competitive factory price with high quality and powerful after-sales service.
We are a long-established testing equipment manufacturer. Over the past 28 years, we have devoted ourselves to simulation environmental testing equipment and mechanical vibration and shock testing machines. The Programmable Temperature Chamber is one of our star products, and we have obtained CE certification for this machine.
- High quality guarantee.
- Shipment with professional documents.
- Packing as your request, with photo before shipment.
- Reply within 48 hours and provide solution within 3 working days.
- Professional after-service from our engineers.
- Warranty period: 12 months.
A: PP film first, and then 10mm foam between machine and the case, and outside is standard export plywood case.
A: T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages before you pay the balance.
A: EXW, FOB, CIF, DDU, DDP.
A: Generally, it will take 25 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Any doubt or needs about the Programmable Temperature Chamber, please feel free to send your inquiry.
Product Highlights
IEC62133 programmable climate chamber with 225L SUS304 interior, -40ºC~200ºC range, ±0.5℃ accuracy, touch screen, RS232, and 28 years OEM expertise. CE certified, durable, energy-efficient, and customizable for PV module testing.
