ASLI Brand Environmental Temperature Humidity Test Machine Climatic Chamber

Brand Name: ASLI
Model Number: TH-225-E
Place of Origin: Guangdong, China
Minimum Order Quantity: 1

Product Details


Internal Dimension: W600*H750*D500mm Volume: 225L
Display: Programmable Touch Screen Safety Device: Emergency Stop Button
Control Interface: RS232 Power Supply: AC 380V
Temperature Range: -40ºC~200ºC Humidity Range: 20%~98%R.H.
Control Accuracy: ±0.5℃; ±2.5% R.H. Temperature Velocity: 0.1~3.0℃/min (rising); 0.1~1.0℃/min (falling)
Inner Material: SUS 304# Stainless Steel Outer Material: Stainless Steel Or SEE Cold-rolled Steel
Sheet Thickness: 2.0mm Test Hole: Dia. 50mm
Computer Control: Yes
Highlight

ASLI climatic chamber temperature humidity

,

environmental test chamber with warranty

,

temperature humidity test machine ASLI

Product Description

ASLI Brand Environmental Temperature Humidity Test Machine Climatic Chamber
  • 28+ Years Experience
  • OEM Accepted
  • Reasonable Price
  • Fast Delivery

The Environmental Temperature Humidity Test Chamber is designed for testing the performance indexes of aeronautic and astronautic products, ships, weapons, academies, motorcycles, information electronics, instruments and meters, materials, electronic engineering, electronic products, various electronic elements, foodstuffs, chemistry, building materials, luggage, adhesion tape, printing, packaging, materials, plastics, medical devices, and more — in high-low temperature or temperature and humidity alternation environments.

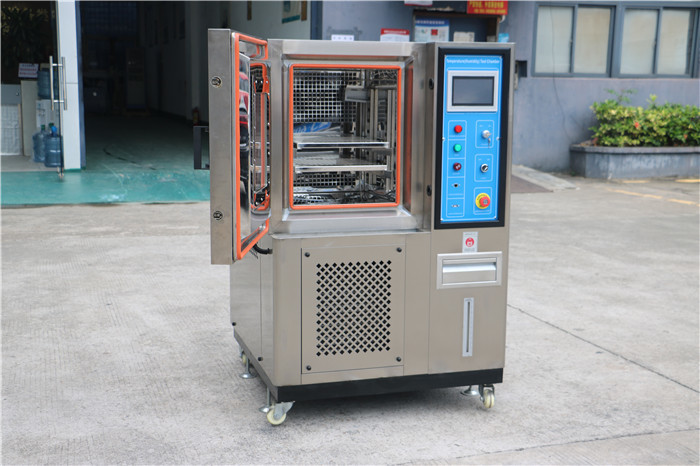

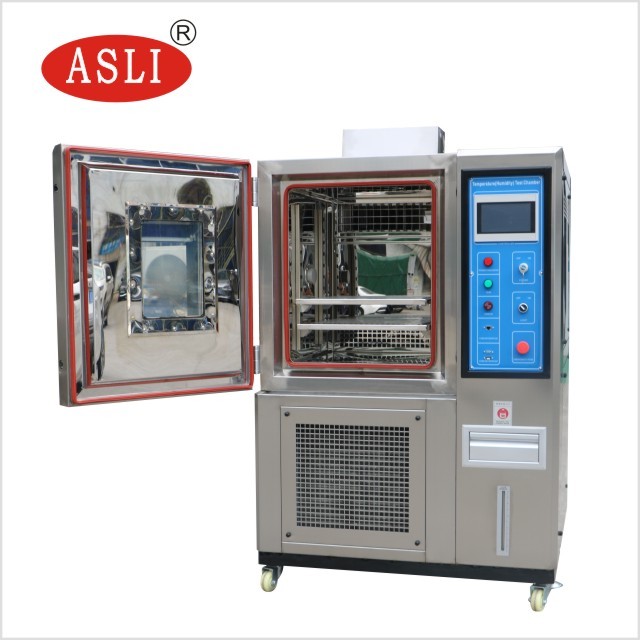

ASLI Environmental Temperature Humidity Test Chamber exterior view
Technical Specifications
Parameter TH-225 (A~F) TH-408 (A~F) TH-800 (A~F)
Internal Dimension W×H×D (mm) 600×750×500 600×850×800 1000×1000×800
External Dimension W×H×D (mm) 1200×1900×1150 1200×1950×1350 1600×2000×1450
Temperature Range Low Temperature: A: 25°C, B: 0°C, C: -20°C, D: -40°C, E: -60°C, F: -70°C
High Temperature: 150°C
Humidity Range 20%~98% R.H. (10%~98% R.H. / 5%~98% R.H. is optional, requires Dehumidifier)
Control Accuracy of Temperature and Humidity ±0.5°C; ±2.5% R.H.
Temperature Rising / Falling Velocity Temperature rising approx. 0.1~3.0°C/min; temperature falling approx. 0.1~1.0°C/min; (Falling Min. 1.5°C/min is optional)
Inner and Outer Material Interior material is SUS 304# stainless steel; exterior is stainless steel or SEE cold-rolled steel with paint coated.
Key Features
  1. The adjustable air outlet maintains the best temperature/humidity level regularity. The treble independent temperature security protector ensures that a failure in one does not affect the other two.
  2. Evaporator coils, fins, and other connectors are all made of copper. The coefficient of heat transfer is over 20, and it avoids chemical coupling from stainless steel or aluminum.
  3. Depending on the strong control system, the refrigeration system has perfect functions. The chamber can reach -90°C under the condition that it just depends on mechanical refrigeration.
  4. The appearance breaks traditional design, which could match various colors and different appearance effects. The "L" solid design is not only beautiful but also stands for "LIK" culture.
  5. Large-scale temperature range: -40°C~200°C; 2.0mm thickness sheet metal.
  6. Unique temperature and humidity controlled range.
    1. This series of equipment adopts automatic watering and drawer-type hidden water tank double-duty device.
    2. Water recovery system — customers can decide whether to recycle automatically or not.
    3. Equipped with a water level sensor to observe water level and water automatically based on water level.
  7. High competitive factory price with high quality and powerful after-sales service.
Detailed Images

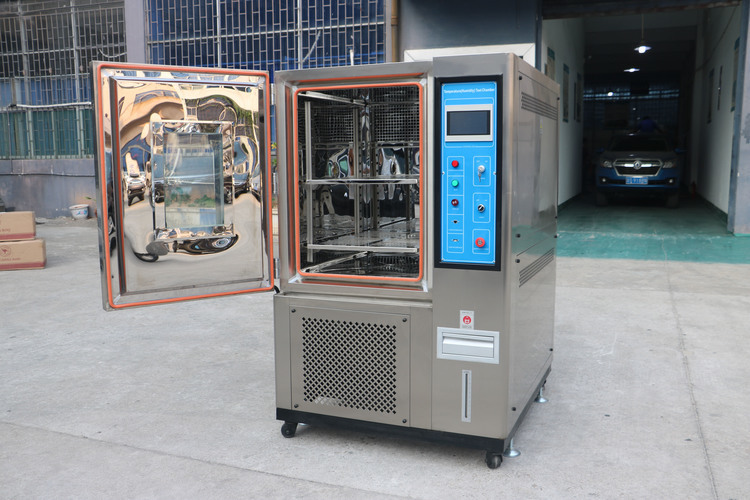

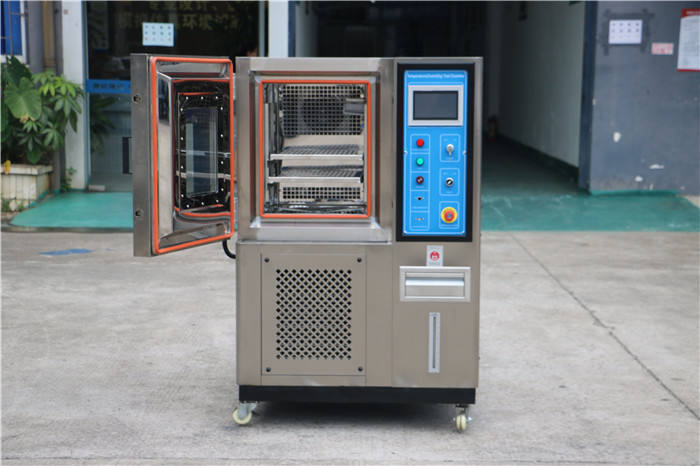

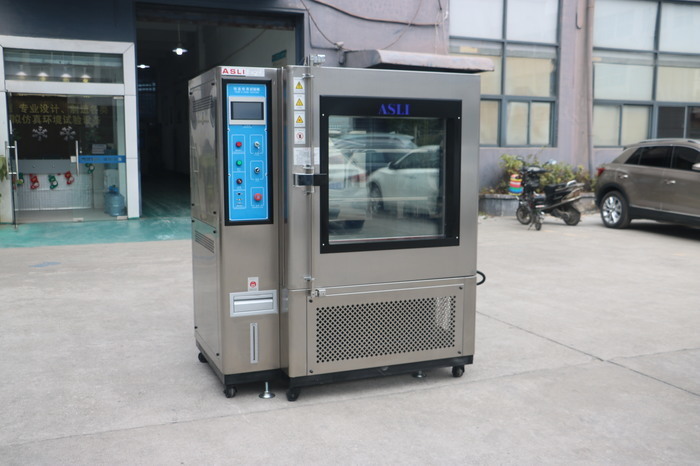

Temperature humidity test chamber interior view Temperature humidity test chamber control panel Temperature humidity test chamber door and sealing Temperature humidity test chamber rear connections Temperature humidity test chamber water system Temperature humidity test chamber display and controls
Other Products
Thermal Shock Test Chamber Temperature Humidity Vibration Test System Acceleration Mechanical Shock Tester

Thermal Shock Test Chamber  |  Temperature Humidity Vibration Test  |  Acceleration Mechanical Shock Tester

Our Company
ASLI testing equipment manufacturing facility

We are a long-history testing equipment manufacturer. Over the past 28 years, we have devoted ourselves to simulation environmental testing equipment and mechanical vibration and shock testing machines. The Environmental Temperature Humidity Test Chamber is our star product, and we have obtained the CE certification for this machine.

Packing & Delivery
Export plywood case packing for temperature humidity test chamber
Our Service
  1. High quality guarantee.
  2. Shipment with professional documents.
  3. Packing as your request, with photo before shipment.
  4. Reply within 48 hours and provide solution within 3 working days.
  5. Professional after-service from our engineers.
  6. Warranty period: 12 months.
ASLI service and warranty badge
FAQ
Q1. What is your terms of packing?

A: PP film first, and then 10mm foam between machine and the case, and outside is standard export plywood case.

Q2. What is your terms of payment?

A: T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages before you pay the balance.

Q3. What is your terms of delivery?

A: EXW, FOB, CIF, DDU, DDP.

Q4. How about your delivery time?

A: Generally, it will take 25 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.


Any doubt or needs about the Environmental Temperature Humidity Test Chamber? Please feel free to send your inquiry.

Product Highlights

ASLI 225L climatic chamber: -40~200°C, 20~98%RH, ±0.5°C accuracy, SUS304 steel, touch screen, RS232, CE certified. 28 years OEM experience, custom options, fast delivery.
