High Quality Humidity Dry Chamber Environmental Lab Equipment

Brand Name: ASLI
Model Number: TH-80-F
Place of Origin: Guangdong, China
Certification: CE,Third party calibration qualification report
Minimum Order Quantity: 1

Product Details


Internal Dimension: W400*H500*D400mm Temperature Range: -70~150C
Humidity Range: 20%~98%R.H. Temperature Accuracy: ±0.5℃
Humidity Accuracy: ±2.5% R.H. Volume: 225L
Test Hole: Dia.50 Mm Communication Interface: RS232
Temperature Sensor: DIN PT-100Ω Noise Level: 68 DBA
Weight: 150 Kg Temperature Rising Velocity: 0.1~3.0℃/min
Temperature Falling Velocity: 0.1~1.0℃/min Program Segments: 50 Segments
Cycle Testing: 13450 Times
Highlight

humidity dry chamber lab equipment

,

environmental test chamber with warranty

,

high quality humidity control chamber

Product Description

Applications
  • Temperature and humidity environmental control test chamber designed to simulate test environments with varying temperature and humidity conditions.
  • Cyclic testing includes climatic conditions such as holding test, cooling-off test, heating-up test, moistening test, and drying test.
  • Cable port with flexible silicone plug for cable routing, allowing the test unit to operate under real working conditions.
  • Uncovers test unit weaknesses in a short-term test through accelerated time effect.
Chamber Design Features
  • High performance with quiet operation at 68 dBA.
  • Space-saving design suitable for flush installation to wall.
  • Full thermal break around the doorframe.
  • One 50 mm diameter cable port on the left, fitted with a flexible silicone plug.
  • Accurate wet/dry-bulb humidity measurement system for easy maintenance.
Programmable Controller
  • PLC controller dedicated to the test chamber.
  • Step types include ramp, soak, jump, auto-start, and end.
  • RS-232 interface for connection to a computer for data output.
Temperature Humidity Climate Testing Chamber Specifications
Parameter TH-80(A~F) TH-150(A~F) TH-225(A~F)
Internal Dimension W×H×D (mm) 400 × 500 × 400 500 × 600 × 500 600 × 750 × 500
External Dimension W×H×D (mm) 950 × 1650 × 950 1050 × 1750 × 1050 1200 × 1900 × 1150
Temperature Range Low Temperature (A: 25℃, B: 0℃, C: -20℃, D: -40℃, E: -60℃, F: -70℃); High Temperature 150℃
Humidity Range 20%–98% R.H. (10%–98% R.H. / 5%–98% R.H. is optional and requires a dehumidifier)
Control Accuracy of Temperature and Humidity ±0.5℃; ±2.5% R.H.
Temperature Rising / Falling Velocity Temperature rising approx. 0.1–3.0℃/min; temperature falling approx. 0.1–1.0℃/min (falling min. 1.5℃/min is optional)
Optional Accessories Inner door with operation hole, recorder, water purifier, dehumidifier
Weight (kg) 150 180 250
Environmental Control Test Chamber Specifications
  1. Imported LCD display screen capable of displaying the measured value as well as the set value and time.
  2. Fixed condition or programmable condition can be set.
  3. Fixed condition setting time range: 0 – 99999 H 59 MIN.
  4. Programmable mode can set 269 different programs at the same time; each program can set several segments to perform cycle testing.
  5. Each program can have a maximum of 50 segments with different temperature settings; segment running time max. 530 hr 59 min; max. 13450 cycles.
  6. Power-off memory device allows the program to resume from where it left off.
  7. The control unit features slope control of temperature and a self-calibration temperature function.
  8. Equipped with timer signal output relay.
  9. Temperature sensor adopts DIN PT-100Ω.
Detailed Images

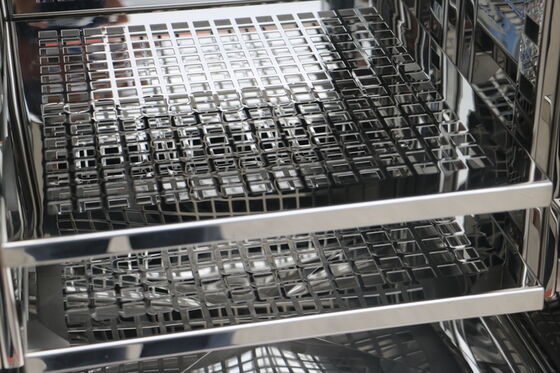

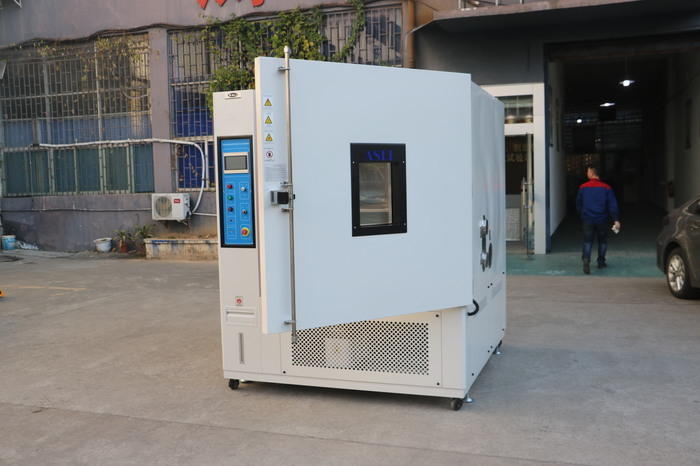

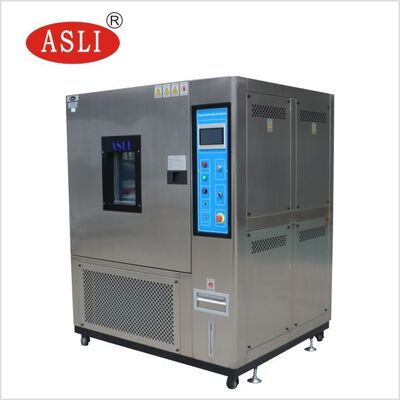

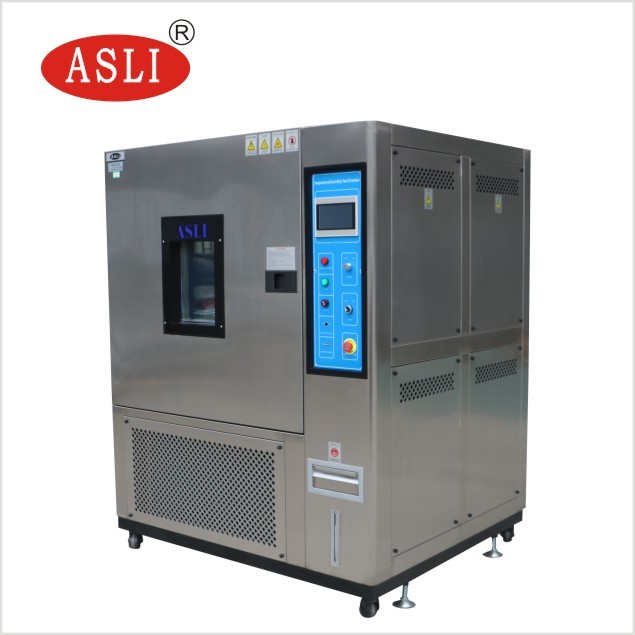

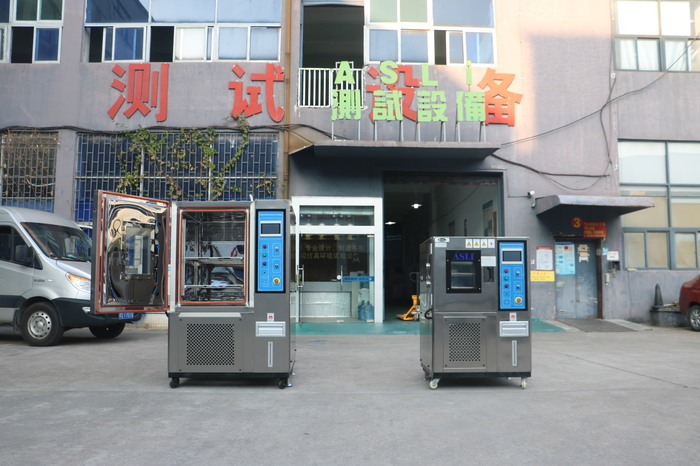

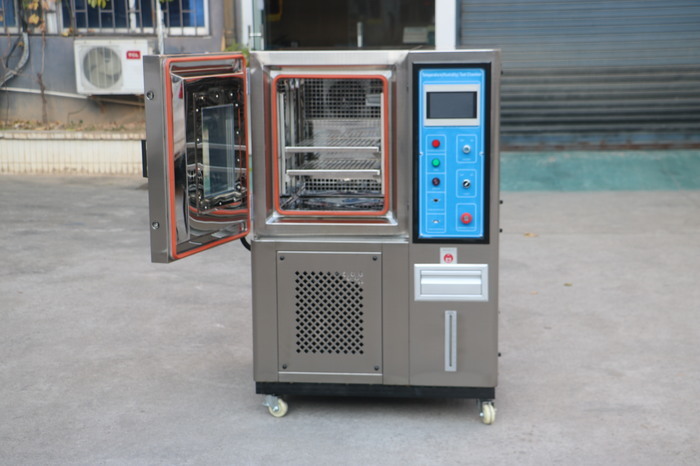

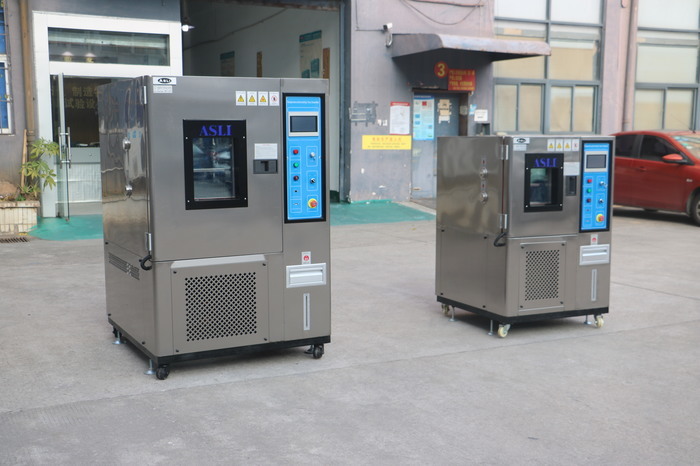

Temperature humidity environmental control test chamber front view Close-up of the test chamber control panel and LCD display Interior of the temperature humidity test chamber showing shelving Side view of the environmental test chamber with cable port Detail of the chamber door seal and thermal break construction Programmable PLC controller interface of the test chamber
Other Products
Additional testing equipment offered by the manufacturer
Our Company
Manufacturing facility of the testing equipment company

We are a testing equipment manufacturer with a long history. Over the past 28 years, we have devoted ourselves to simulation environmental testing equipment and mechanical vibration and shock testing machines. The Temperature Humidity Environmental Control Test Chamber is one of our star products, and we have obtained CE certification for this machine.

Packing & Delivery
Export plywood case packing for the test chamber
Our Service
Customer service and after-sales support for testing equipment
FAQ
Q1. What are your terms of packing?

A: PP film first, then 10 mm foam between the machine and the case, and outside is a standard export plywood case.

Q2. What are your terms of payment?

A: T/T 50% as deposit, and 50% before delivery. We will show you the photos of the products and packages before you pay the balance.

Q3. What are your terms of delivery?

A: EXW, FOB, CIF.

If you need more information about the Temperature Humidity Environmental Control Test Chamber, please feel free to contact us.

Product Highlights

High-precision humidity dry chamber with -70~150°C range, ±0.5°C accuracy, 225L capacity, and 50 programmable segments. Features RS232 interface, 50mm cable port, and quiet 68dBA operation. CE certified by a 28-year manufacturer, with custom options available.
