Small Constant Temperature and Humidity Chamber

Brand Name: ASLI
Model Number: TH-80-D
Place of Origin: Guangdong, China
Minimum Order Quantity: 1

Product Details


Internal Dimension: W400*H500*D400mm Temperature Range: -40~150C
Humidity Range: 15%~98%R.H. Temperature Accuracy: ±0.5℃
Humidity Accuracy: ±2.5% R.H. Volume: 225L
Test Hole: Dia.50 Mm Communication Interface: RS232
Temperature Sensor: DIN PT-100Ω Noise Level: 68 DBA
Weight: 150 Kg Temperature Rising Velocity: 0.1~3.0℃/min
Temperature Falling Velocity: 0.1~1.0℃/min Program Segments: 50 Segments
Cycle Testing: 13450 Times Cycle
Highlight

small constant temperature chamber

,

humidity test chamber with warranty

,

compact environmental test chamber

Product Description

Applications
  1. Constant Temperature and Constant Humidity Chamber simulates test environments with different temperature and humidity conditions.
  2. Cyclic tests include climatic conditions: holding test, cooling-off test, heating-up test, moistening test, and drying test.
  3. Cable port with flexible silicone plug for cable routing, providing the condition of the test unit under operation.
  4. Uncover test unit weakness in a short-term test with accelerated time effect.
Chamber Design Features
  1. High performance and quiet operation (68 dBA).
  2. Space-saving design for flush installation to wall.
  3. Full thermal break around doorframe.
  4. One 50mm diameter cable port on left, with flexible silicone plug.
  5. Accurate wet/dry-bulb humidity measurement system for easy maintenance.
Programmable Controller
  1. PLC controller for test chamber.
  2. Step types include: ramp, soak, jump, auto-start, and end.
  3. RS-232 interface to connect computer for output.
Temperature Humidity Climate Testing Chamber Specifications
Parameter TH-80(A~F) TH-150(A~F) TH-225(A~F)
Internal Dimension W×H×D (mm) 400×500×400 500×600×500 600×750×500
External Dimension W×H×D (mm) 950×1650×950 1050×1750×1050 1200×1900×1150
Temperature Range Low Temperature (A: 25℃, B: 0℃, C: -20℃, D: -40℃, E: -60℃, F: -70℃); High Temperature 150℃
Humidity Range 20%~98% R.H. (10%~98% R.H. / 5%~98% R.H. is optional, requires Dehumidifier)
Control Accuracy of Temperature and Humidity ±0.5℃; ±2.5% R.H.
Temperature Rising / Falling Velocity Temperature rising approx. 0.1~3.0℃/min; temperature falling approx. 0.1~1.0℃/min (Falling Min. 1.5℃/min is optional)
Optional Accessories Inner door with operation hole, Recorder, Water Purifier, Dehumidifier
Weight (kg) 150 180 250

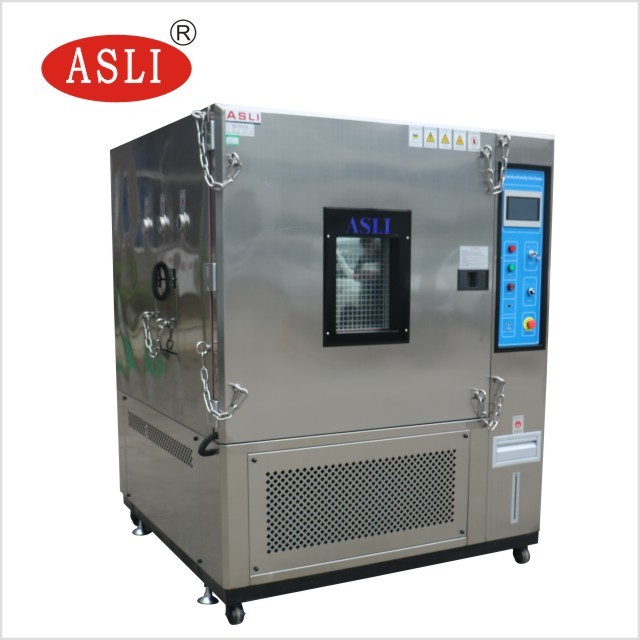

Small constant temperature and humidity chamber exterior view
Temperature and Humidity Control Tester Specifications
  1. Imported LCD display screen, capable of displaying the measured value as well as the set value and time.
  2. Fixed condition or programmable condition can be set.
  3. Fixed condition setting time range: 0 – 99999 H 59 MIN.
  4. Programmable mode can set 269 different programs at the same time; each program can set several segments to do cycle testing.
  5. Each program can have max. 50 segments with different temperature settings; segment running time max. 530 hr 59 min; max. can do 13450 times cycle.
  6. With power-off memory device, reply message to continue with the rest of the program.
  7. The control unit has slope control of temperature, and with self-calibration temperature function.
  8. With TIMER SIGNAL OUTPUT RELAY.
  9. Temperature sensor adopts DIN PT-100Ω.
Detailed Images

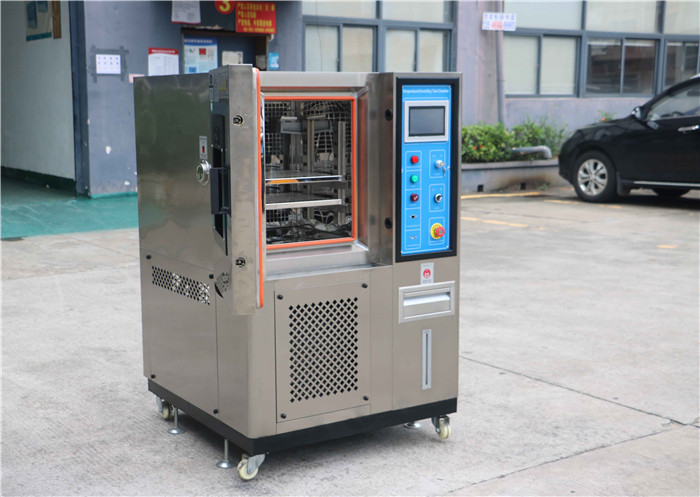

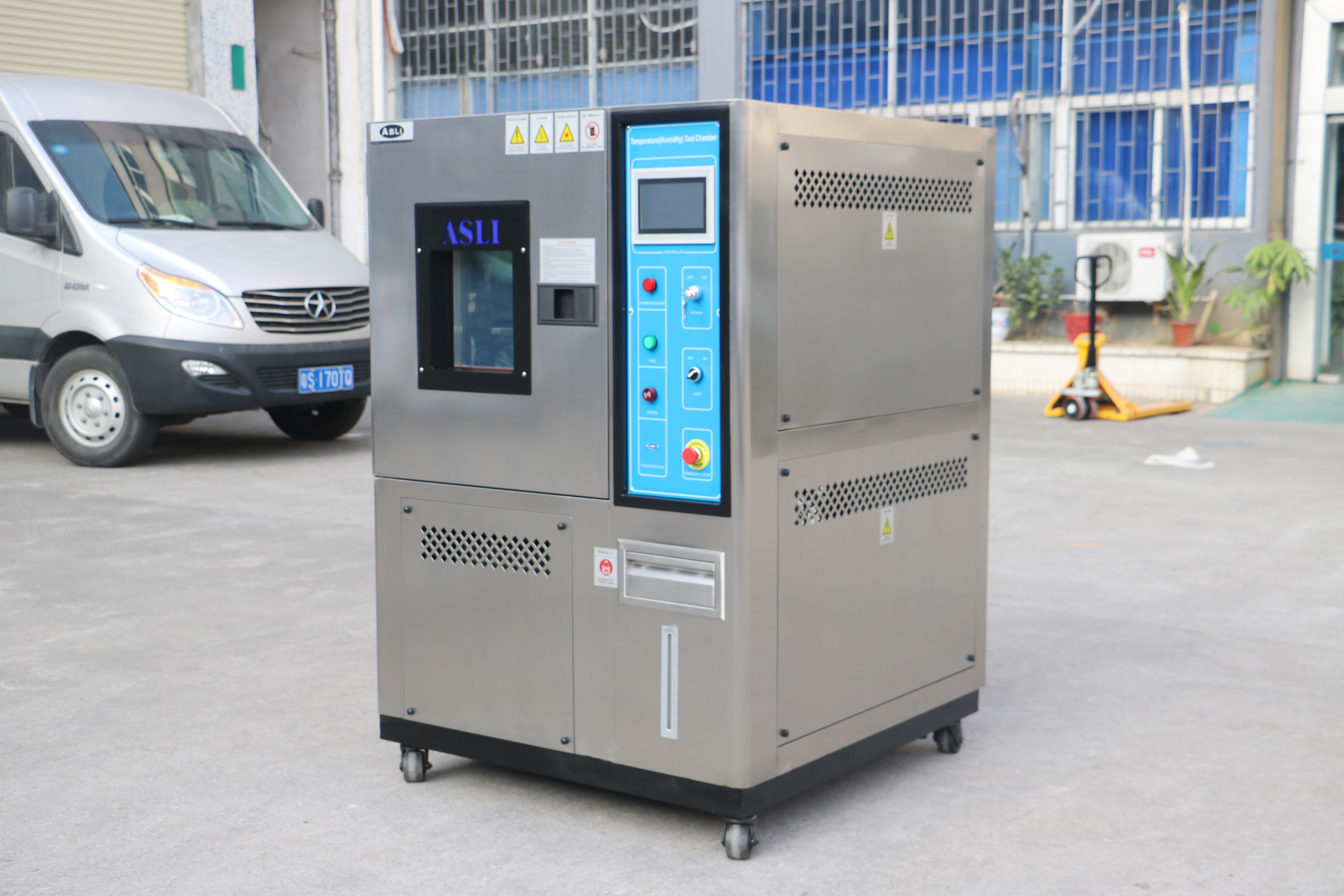

Detailed view of the temperature and humidity chamber interior Close-up of the chamber control panel and display Chamber door and sealing mechanism detail Cable port with flexible silicone plug on the chamber Internal shelving and air circulation system of the chamber Rear view showing connections and ventilation of the chamber
Other Products
Overview of additional testing equipment offered by the manufacturer
Our Company

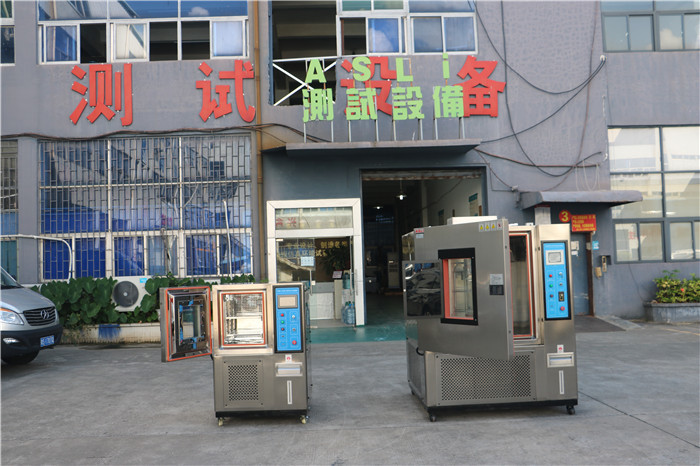

Manufacturing facility and team of the testing equipment company

We are a long-established testing equipment manufacturer. Over the past 28 years, we have devoted ourselves to simulation environmental testing equipment and mechanical vibration and shock testing machines. The Constant Temperature and Constant Humidity Chamber is one of our star products, and we have obtained CE certification for this machine.

Packing & Delivery

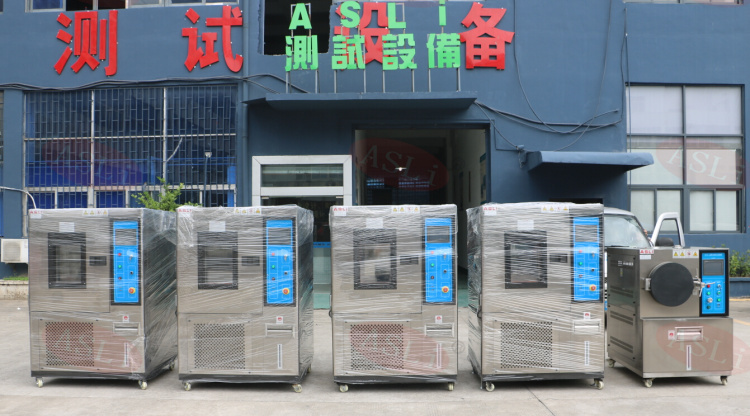

Export plywood case packaging for the temperature and humidity chamber
Our Service
Customer service and technical support team of the manufacturer
FAQ
Q1. What are your terms of packing?

A: PP film first, then 10mm foam between machine and the case, and outside is a standard export plywood case.

Q2. What are your terms of payment?

A: T/T 50% as deposit, and 50% before delivery. We will show you the photos of the products and packages before you pay the balance.

Q3. What are your terms of delivery?

A: EXW, FOB, CIF.

If you need more information about the Constant Temperature and Constant Humidity Chamber, please feel free to contact us.

Product Highlights

Space-saving 225L chamber with -40~150°C, 15~98%RH, ±0.5°C accuracy, 50-segment PLC controller, RS232, 68dBA quiet operation, 50mm cable port, CE certified, 28-year manufacturer.
