Walk-In Environmental Test Chamber for Temperature and Humidity Control | ASLI Climate Room
Product Details
| Accuracy: | ±1% | Power: | 15KW |
|---|---|---|---|
| Protection Class: | IP55 | Voltage: | 380 V |
| Refrigerants: | R404A Or Equivalent | Test Hole: | Dia. 50mm & 100mm |
| Communication Interface: | RS232,R485 | Temperature Range: | -70~+150C |
| Humidity Range: | 20% R.H.~98% R.H | Heating Rate: | 5K/MIN |
| Cooling Rate: | 5K/MIN | Chamber Type: | Panelized Or One Piece |
| Control Accuracy: | ±0.5℃; ±2.5% R.H. | Temperature Rising Velocity: | 0.1~3.0°C/min |
| Temperature Falling Velocity: | 0.1~1.0°C/min | ||
| Highlight |
walk-in environmental test chamber with humidity control,ASLI climate room for temperature testing,environmental test chamber with temperature control |
||
Product Description
The UN38.3 battery testing equipment walk-in fast temperature heating and cooling chamber is designed to test the capability of heat-endurance, cold-endurance, dryness-endurance, and humidity-endurance. It is suitable for quality control across industries including electronics, electrical equipment, vehicles, metal, foodstuffs, chemistry, building materials, luggage, adhesion tape, printing, and packaging.

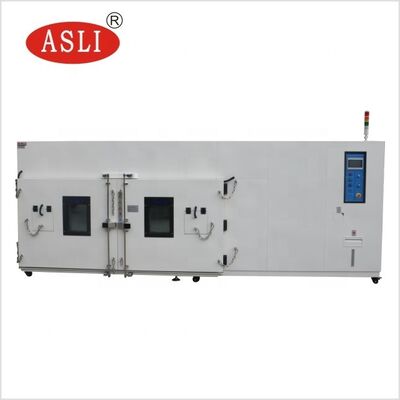

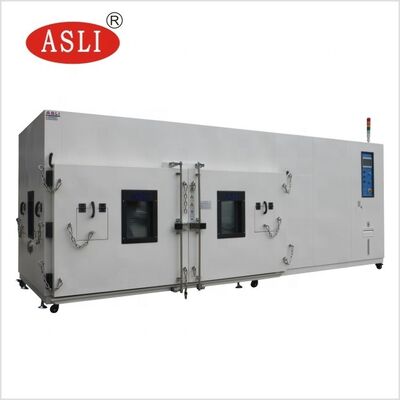

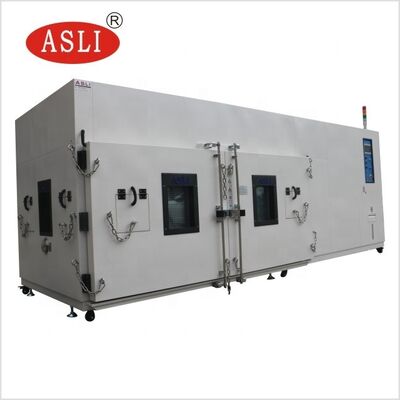

Room Size Customized Walk-In Temperature & Humidity Environmental Test Chamber
| Model | THR-volume (low-temperature options: A ~ F) |
|---|---|
| Inner Dimensions (cm) | Customers designated space size and design |
| Temperature Range |
Low Temperature (A: 25°C B: 0°C C: -20°C D: -40°C E: -60°C F: -70°C) High Temperature 80°C (80°C ~ 150°C is optional) |
| Humidity Range | 20% ~ 98% R.H. (10%–98% R.H. / 5%–98% R.H. is a special optional condition, need dehumidifier) |
| Control Accuracy of Temperature and Humidity | ±0.5°C; ±2.5% R.H. |
| Temperature Rising / Falling Velocity |
Temperature rising approx. 0.1~3.0°C/min Temperature falling approx. 0.1~1.0°C/min (The Falling Velocity Min. 1.0°C/min is optional) |
| Cooling System | Water cooled |
| Optional Accessories | Slope for cart, Recorder, Water Purifier, Dehumidifier |
- Graceful appearance, circularly shaped body, surface treated with mist strips. Easy to operate, safe and reliable.
- Rectangular double-paned viewing window for viewing sample under test, with interior light.
- Double-layer-insulated airtight doors, able to insulate the internal temperature effectively.
- Water supply system that is externally connectable, convenient for refilling water into the humidifying pot and automatically recyclable.
- French Tecumseh is used as compressor, with environment friendly refrigeration R23 or R404A.

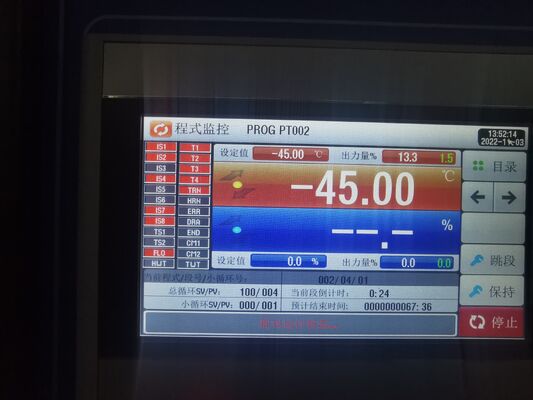

- LCD display screen, capable of displaying the measured value as well as the set value and time.

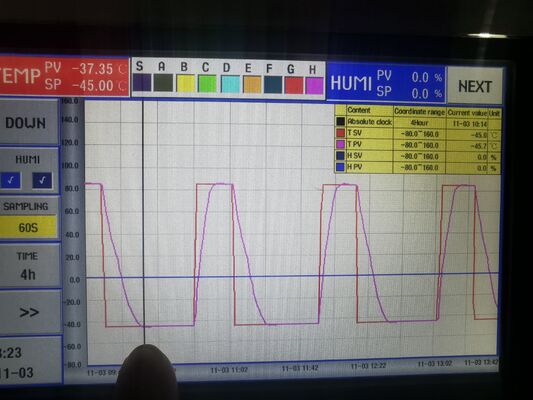

- The control unit has the functions of multiple segment program editing, with quick or ramp rates control of temperature and humidity.
- Casters are provided for ease of mobility, with strong positioning screws.
We are a long-established testing equipment manufacturer. Over the past 28 years, we have devoted ourselves to simulation environmental testing equipment and mechanical vibration and shock testing machines. Our custom large low and high temperature walk-in cold room testing chamber for industrial product testing is one of our star products, and we have obtained CE certification for this machine.
Factory. 28 years focusing on the test instruments field, 4 years exporting experience.
Generally about 20 days. If we have finished products, we can arrange shipment within 3 days. Please be aware that our production lead times depend on specific items and item quantities.
12 months warranty. After the warranty, the professional after-sale service team will provide perfect technical support and help customers solve problems encountered while using our product, handling guest problems and complaints in a professional and timely manner.
Product Highlights
ASLI walk-in climate chamber offers -70~+150°C and 20-98% R.H. control with ±0.5°C accuracy. Features 5K/min cooling, R404A refrigerant, RS232/R485 interface, IP55 protection, and CE certification. Custom sizes available for battery, pharma, and industrial testing.
