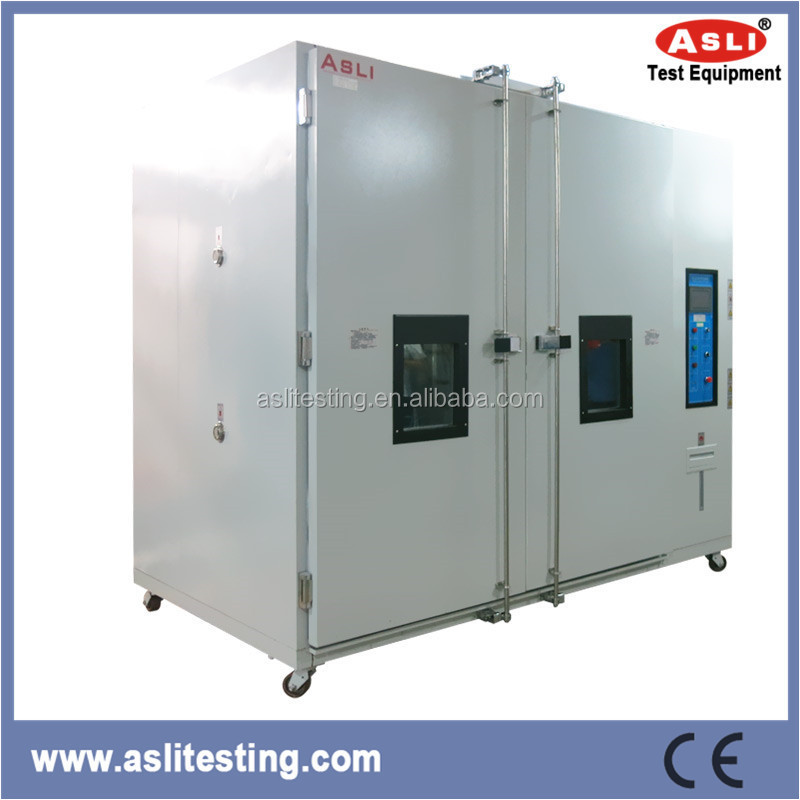

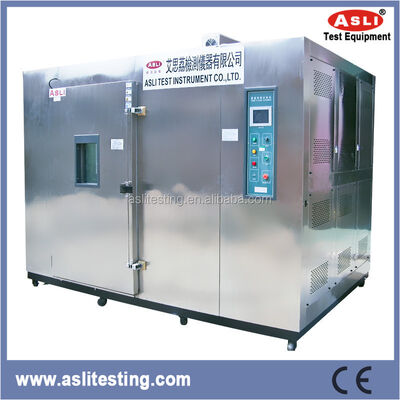

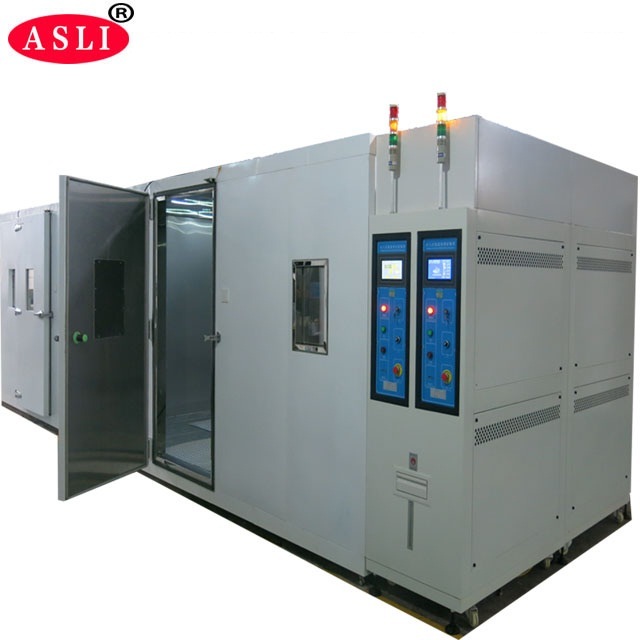

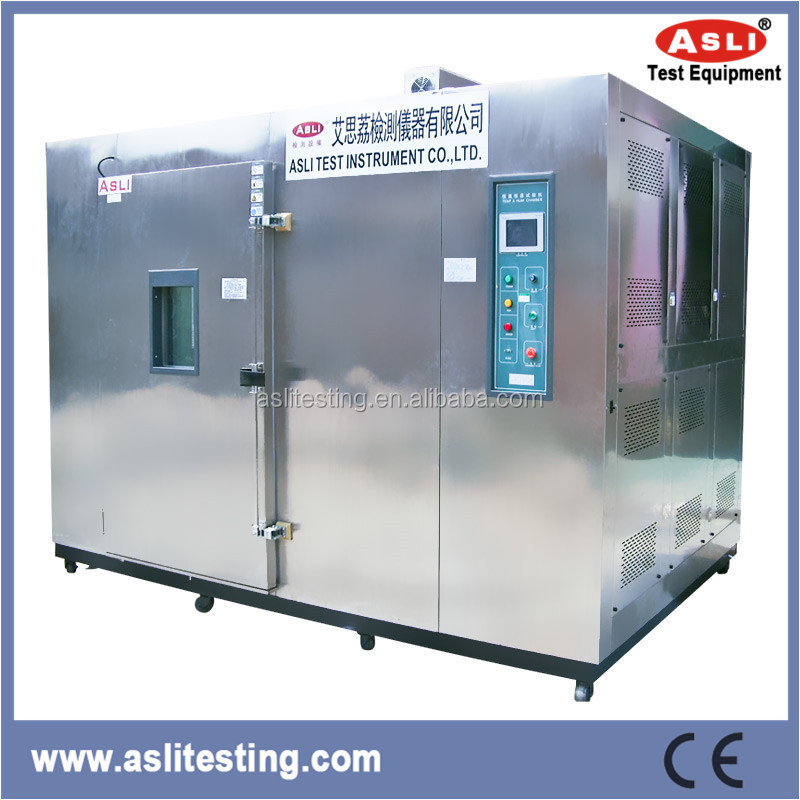

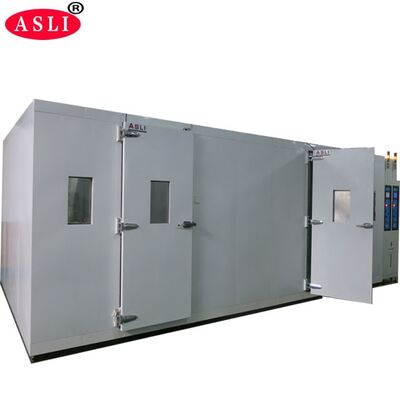

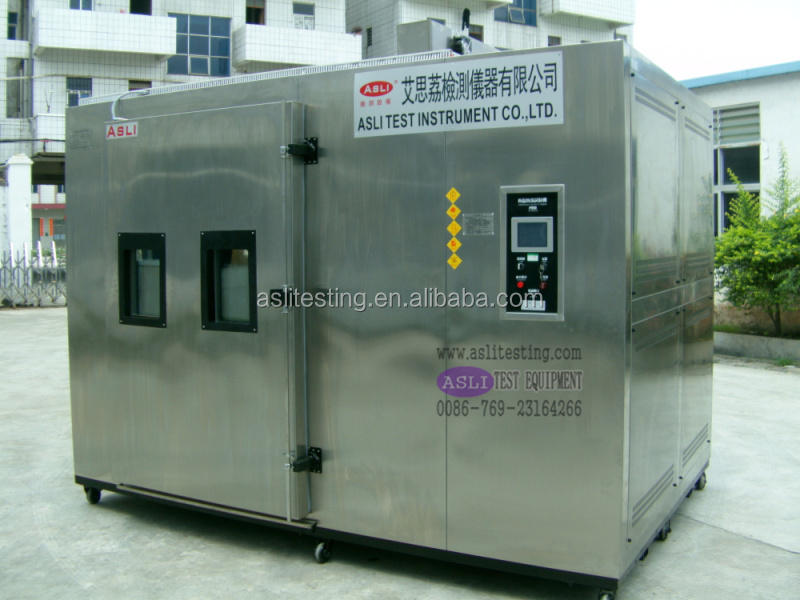

Burn-In Test Oven Walk in Stability Chamber
Product Details
| Temperature Range: | RT+10°C~80°C(80°C ~150°C Optional) | Temperature Accuracy: | ±0.5℃ |
|---|---|---|---|
| Temperature Resolution: | 0.1℃ | Temperature Uniformity: | ±2.5℃ |
| Temperature Rising Speed: | 0.1~3.0 (°C/min) | Power: | 20KW |
| Voltage: | 380 V | Protection Class: | IP55 |
| Cooling System: | Compressor Refrigeration | Compressor Brand: | French Tecumseh, Germany Bizer |
| Refrigerant: | R23, R404A | Inner Dimensions: | Customers Designated Size |
| Humidity Range: | 85% RH (optional) | Control Interface: | LCD Display |
| Mobility: | Casters With Positioning Screws | ||
| Highlight |
walk-in stability test chamber,burn-in test oven chamber,environmental stability test chamber |
||
Product Description
The Burn-In Test Oven Walk-In Stability Chamber is designed to test various types of materials for their tolerance to heat, cold, dry, and humidity conditions. It is widely used for quality inspection of large test samples, including electronic products, electrical appliances, and products from the communication, instrument, automobile, plastic, metal, food, chemical, building materials, medical, and aerospace industries.
Humidity control and display unit (optional)
Capable of long-duration 85 °C / 85 % RH tests
Comprehensive safety protection system
Easy operation with a friendly interface

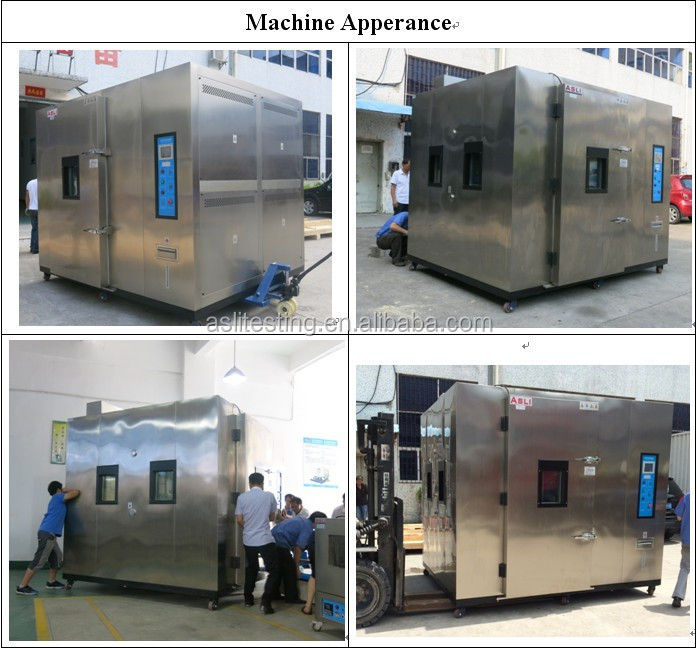

- Graceful appearance with a circularly shaped body, surface treated with mist strips and a plane finish. Easy to operate, safe, and reliable.
- Rectangular double-paned viewing window for observing samples under test, with interior lighting.
- Externally connectable water supply system for convenient refilling of the humidifying pot, with automatic recycling.
- French Tecumseh compressor with environmentally friendly refrigerants R23 and R404A.
- LCD display screen capable of showing set point and actual values simultaneously.
- Control unit supports multiple-segment program editing and quick or ramp rate control of temperature.
- Casters provided for ease of mobility, with strong positioning screws.
| Parameter | Specification |
|---|---|
| Model | TAR-volume |
| Inner Dimensions (cm) | Customer-designated space size and design |
| Temperature Range | RT+10°C ~ 80°C (80°C ~ 150°C is optional) |
| Indication Resolution / Distribution Uniformity of Temperature | 0.1°C / ±2.5°C |
| Control Accuracy of Temperature | ±0.5°C |
| Temperature Rising Speed Rate | Approx. 0.1 ~ 3.0 °C/min |
| Cooling System | Refrigeration by compressor, according to customer's requirements |
| Protection Devices | Fuse-free switch, overloading protection switch for compressor, high and low voltage coolant protection switch, over-temperature protection switch, fuses, fault warning system |
| Optional Accessories | Slope for cart, Recorder |
| Compressor | French Tecumseh Brand, Germany Bizer Brand |
| Power | AC 380 V, 50/60 Hz, 3-phase, 5 lines |
Package: PP film first, then 10mm foam between the machine and the case, and outside is a standard export plywood case.
- Warranty: One year free warranty for the whole machine set, with lifelong maintenance.
- After-sale service: Feedback within 8 hours after receiving a call or email.
- Service: OEM service, design service, and buyer label service.
We are a long-established testing equipment manufacturer. Over the past 28 years, we have devoted ourselves to simulation environmental testing equipment and mechanical vibration and shock testing machines. The burn-in aging test chamber is one of our star products, and we have obtained CE certification for this machine.
Environmental chambers, temperature (humidity) chambers, thermal shock chambers, PCT/HAST chambers (Highly Accelerated Stress Test chambers), ESS chambers, walk-in stability chambers, vacuum ovens, electrodynamic vibration shakers, mechanical shock testers, environmental combined vibration chambers, and more.
If you need more information about the Burn-In Test Oven Walk-In Stability Chamber, please don't hesitate to send your inquiry.
Product Highlights
Walk-in Burn-In Test Oven with 0.1°C resolution, ±0.5°C accuracy, and 85°C/85% RH optional humidity. Features French Tecumseh compressors, LCD control, IP55 protection, and custom sizes. CE certified with one-year warranty and OEM service.
