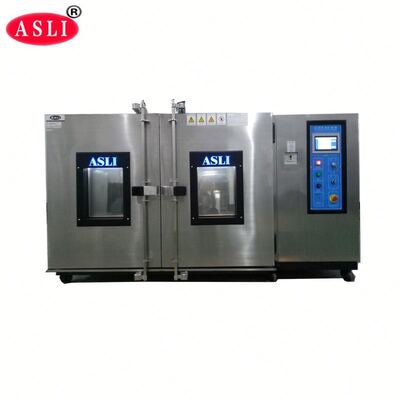

Walk-In Climatic Test Chamber | Large Temperature Humidity Room for Environmental Simulation
Product Details
| Accuracy: | ±1% | Power: | 20KW |
|---|---|---|---|
| Voltage: | 380 V | Refrigerants: | R404A Or Equivalent |
| Test Hole: | Dia. 50mm | Communication Interface: | RS232,R485 |
| Temperature Range: | Low Temperature(A:25℃ B:0℃ C:-20℃ D:-40℃ E:-60℃ F:-70℃) High Temperature 80℃ (80℃ ~150℃ Optional) | Humidity Range: | 20%~98%R.H. (10%-98% R.H. / 5%-98% R.H Optional) |
| Control Accuracy: | ±0.5℃; ±2.5% R.H. | Temperature Rising Velocity: | 0.1~3.0°C/min |
| Temperature Falling Velocity: | 0.1~1.0°C/min (Min.1.0°C/min Optional) | Cooling System: | Water Cooled |
| Protection Class: | IP55 | Inner Dimensions: | Customers Designated Space Size And Design |
| Compressor: | French Tecumseh | ||
| Highlight |
walk-in climatic test chamber,large temperature humidity chamber,environmental simulation test room |
||
Product Description
The Laboratory Walk-In Test Chamber (Temperature, Humidity, Climate, Cryo) is engineered for testing heat-endurance, cold-endurance, dryness-endurance, and humidity-endurance capabilities. It is suitable for quality control across industries including electronics, electrical equipment, vehicles, metal, foodstuffs, chemistry, building materials, luggage, adhesive tape, printing, and packaging.
| Model | THR-volume (low-temperature options: A ~ F) |
|---|---|
| Inner Dimensions (cm) | Customer-designated space size and design |
| Temperature Range | Low Temperature (A: 25°C | B: 0°C | C: -20°C | D: -40°C | E: -60°C | F: -70°C) High Temperature: 80°C (80°C ~ 150°C is optional) |
| Humidity Range | 20% ~ 98% R.H. (10%–98% R.H. / 5%–98% R.H. is a special optional condition, requires dehumidifier) |
| Control Accuracy of Temperature and Humidity | ±0.5°C; ±2.5% R.H. |
| Temperature Rising / Falling Velocity | Temperature rising approx. 0.1 ~ 3.0°C/min Temperature falling approx. 0.1 ~ 1.0°C/min (The falling velocity min. 1.0°C/min is optional) |
| Cooling System | Water cooled |
| Optional Accessories | Slope for cart, Recorder, Water Purifier, Dehumidifier |
- Graceful appearance with a circularly shaped body, surface treated with mist strips. Easy to operate, safe, and reliable.

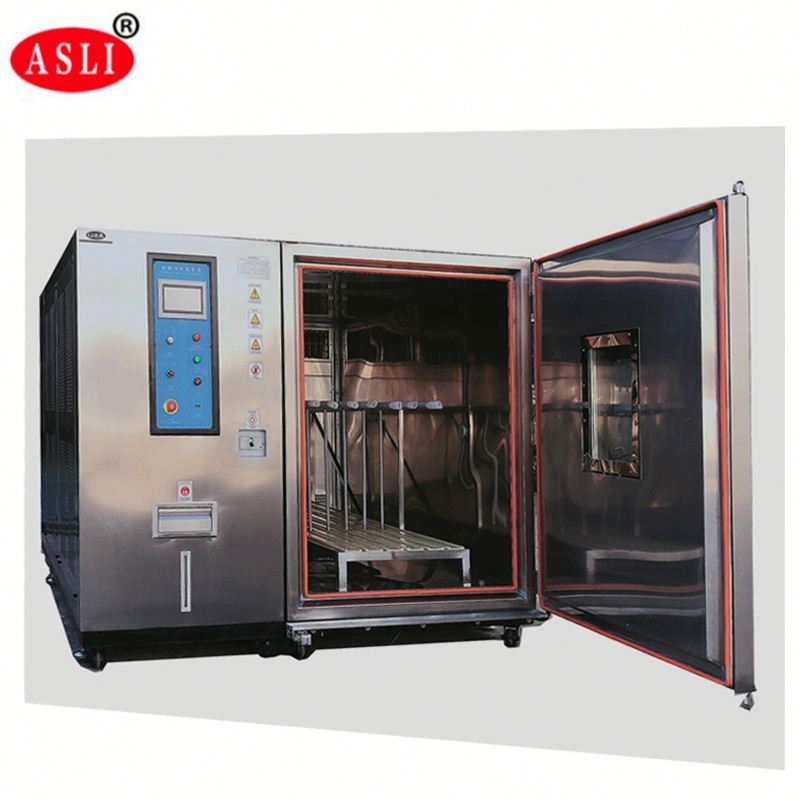

- Rectangular double-paned viewing window for observing samples under test, with interior lighting.
- Double-layer insulated airtight doors that effectively insulate the internal temperature.
- Externally connectable water supply system for convenient refilling of the humidifying pot, with automatic recycling.
- French Tecumseh compressor with environmentally friendly refrigerant R23 or R404A.
- LCD display screen capable of showing measured values, set values, and time.
- Control unit supports multiple-segment program editing with quick or ramp rate control of temperature and humidity.
- Casters provided for ease of mobility, with strong positioning screws.
We are a long-established testing equipment manufacturer with 28 years of dedication to simulation environmental testing equipment and mechanical vibration and shock testing machines. Our custom large low and high temperature walk-in cold room testing chamber for industrial product testing is one of our star products, and we have obtained CE certification for this machine.
1. Are you a trading company or a factory?
We are a factory with 28 years focusing on the test instruments field and 4 years of exporting experience.
2. After an order is placed, when will you deliver?
Generally about 20 days. If we have finished products, we can arrange shipment within 3 days. Please be aware that our production lead times depend on specific items and item quantities.
3. What about the warranty and after-sales services?
12 months warranty. After the warranty, our professional after-sale service team will provide perfect technical support and help customers solve problems encountered while using our product, handling guest problems and complaints in a professional and timely manner.
Product Highlights
Walk-in climatic test chamber with custom sizes, -70℃ to 150℃, 20-98% RH, ±0.5℃ accuracy, French Tecumseh compressor, water cooling, CE certified, 28-year manufacturer, 12-month warranty.
