Walk-in Stability Chamber / Climatic Control Test Chamber
Laboratory Walk In Temperature Test Chamber consists of Control Panel, electrical panels, moisturizing plate blower, heater, humidifier, and freezer. It provides ample space to test temperature and humidity for large-scale parts and semi-finished products. Ideal for testing large-scale items or high-quantity products such as computer terminals and vehicle components.
| Model |
THR-volume (low-temperature options: A ~ F) |
| Inner Dimensions |
Customer designated space size and design |
| Temperature Range |
Low Temperature (A:25°C B:0°C C:-20°C D:-40°C E:-60°C F:-70°C)
High Temperature 80°C (80°C ~200°C optional) |
| Humidity Range |
20%~98% R.H. (10%-98% R.H. / 5%-98% R.H. special optional condition, requires dehumidifier) |
| Temperature Rising/Falling Velocity |
Temperature rising approx. 0.1~3.0°C/min
Temperature falling approx. 0.1~1.0°C/min
(Minimum falling velocity 1.0°C/min optional) |
| Optional Accessories |
Slope for cart, Recorder, Water Purifier, Dehumidifier |
| Compressor |
French Tecumseh Brand, Germany Bizer Brand |
| Power |
AC 380 V(±10%), 50/60HZ, 3 ph 5 Lines |
Compliance Standards
- GB11158 Technical conditions for high-temperature testing room
- GB10589-89 Technical conditions for low-temperature testing room
- GB/T10586-89 technical conditions for humidity testing room
- GB/T2423.1-2001 testing methods for low-temperature
- GB/T2423.2-2001 testing methods for high-temperature
- GB/T2423.3-93 technical conditions for humidity testing room
- GB/T2423.4-93 testing method for alternating hot and humid
- IEC60068-2-1.1990 testing methods for low-temperature
- IEC60068-2-2.1974 testing methods for high-temperature
- GJB150.3 High-temperature test
- GJB150.4 Low-temperature test
- GJB150.9 muggy test
- GB/T2423.22 temperature test

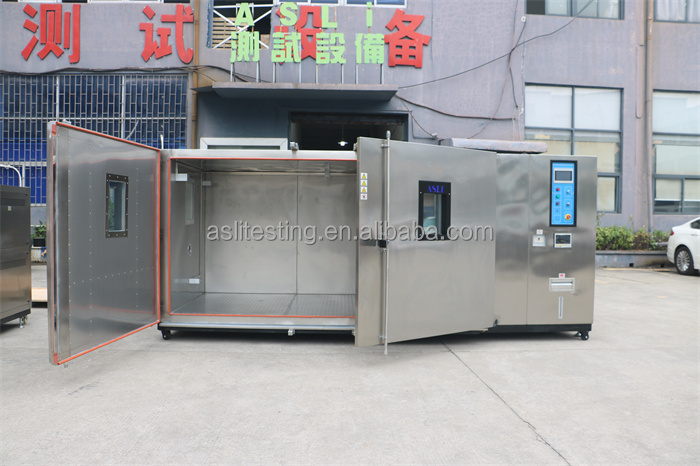

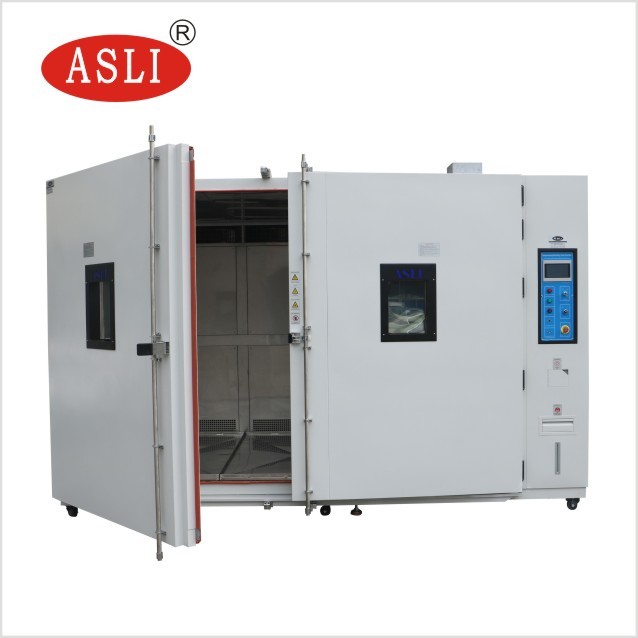

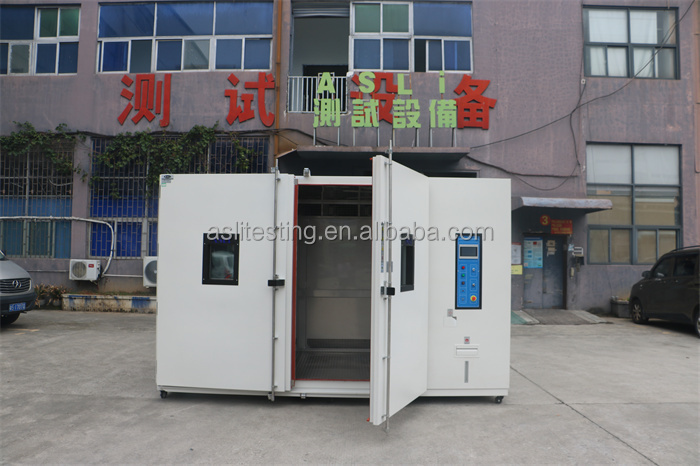

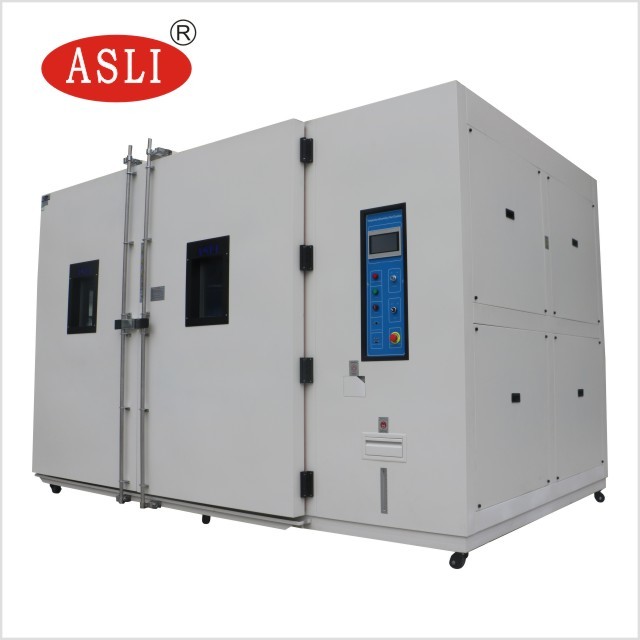

Product Gallery
Chamber Details
Quality Certifications
Passed the ISO9001:2008 quality system authentication and ROHS authentication.
Manufacturing Facility

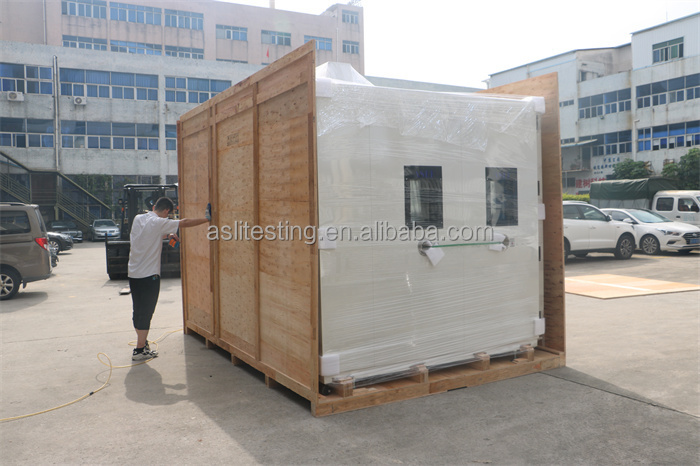

Packaging & Delivery
Packing Details: Export standard plywood case
Delivery Details: 30 days after order
Key Features
1. Graceful appearance, circularly shaped body, surface treated with mist strips. Easy to operate, safe and reliable.
2. Rectangular double-paned viewing window for viewing sample under test, with interior light.
3. Double-layer-insulated airtight doors, able to insulate the internal temperature effectively.
4. Water supply system that is externally connectable, convenient for refilling water into the humidifying pot and automatically recyclable.
5. French Tecumseh compressor with environment friendly refrigeration R23 or R404A.
6. LCD display screen, capable of displaying measured values as well as set values and time.
7. Control unit with multiple segment program editing, with quick or ramp rates control of temperature and humidity.
8. Casters provided for ease of mobility, with strong positioning screws.
Technical Specifications
Display & Control Parameters
Display Mode: LCD display, touch control
Display Accuracy: temperature 0.1%, humidity 0.1%
Set Accuracy: temperature 0.1℃, humidity 0.1%
Display Resolution: temperature 0.1℃, humidity 0.1%
Sampling Time: 1 time/S
Graphical Display: Full display of setting and program curve
Program Capacity: Max. 100 programs, each program with 50 segments, max. 999 cycles
Safety Protection Systems
- Grounded protection
- Leakage/breakage protection
- Heater short-circuit protection
- Blower motor overload protection
- Refrigerator over-voltage protection
- Refrigerator overload protection
- Water shortage protection
