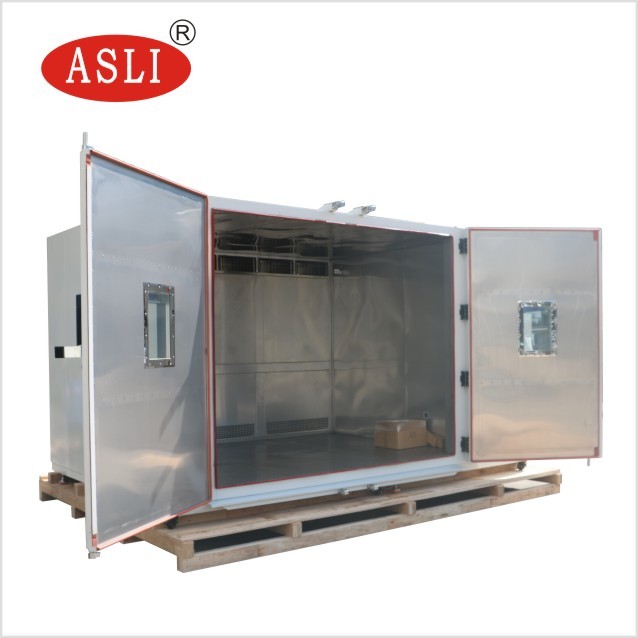

Walk in Environmental test Walk-in Climate test Chamber
Product Details
| Accuracy: | ±1% | Power: | 18kw |
|---|---|---|---|
| Voltage: | 380 V | Internal Dimension: | W2000*H2000*D2000mm |
| Volume: | 8000L | Temperature Range: | -70~200C |
| Humidity Range: | 20%~98%R.H | Test Hole: | Dia. 100mm |
| Viewing Window: | W350*D450mm | Material: | SUS 304 Stainless Steel |
| Temperature Rising Velocity: | 0.1~3.0°C/min | Temperature Falling Velocity: | 0.1~1.0°C/min |
| Compressor Brand: | French Tecumseh, Germany Bizer | Display Accuracy: | Temperature 0.1%, Humidity 0.1% |
| Protection Class: | IP55 | ||
| Highlight |
walk-in climate test chamber,environmental test chamber with warranty,walk-in environmental test equipment |
||
Product Description
The Laboratory Walk-In Temperature Test Chamber is a large-capacity environmental simulation system composed of a control panel, electrical panels, a moisturizing plate blower, heater, humidifier, and freezer. It provides a spacious testing area for temperature and humidity evaluation of large-scale parts and semi-finished products, making it ideal for testing products that are oversized or produced in high quantities — such as computer terminals and vehicle components.
| Model | THR-volume (low-temperature options: A ~ F) |
|---|---|
| Inner Dimensions (cm) | Customers designated space size and design |
| Temperature Range |
Low Temperature (A: 25°C, B: 0°C, C: -20°C, D: -40°C, E: -60°C, F: -70°C) High Temperature 80°C (80°C ~ 200°C is optional) |
| Humidity Range | 20% ~ 98% R.H. (10%–98% R.H. / 5%–98% R.H. are special optional conditions requiring a dehumidifier) |
| Temperature Rising / Falling Velocity |
Temperature rising approx. 0.1 ~ 3.0°C/min Temperature falling approx. 0.1 ~ 1.0°C/min (Falling velocity min. 1.0°C/min is optional) |
| Optional Accessories | Slope for cart, Recorder, Water Purifier, Dehumidifier |
| Compressor | French Tecumseh Brand, Germany Bizer Brand |
| Power | AC 380 V (±10%), 50/60 Hz, 3 ph 5 Lines |
- GB11158 — Technical conditions for high-temperature testing room
- GB10589-89 — Technical conditions for low-temperature testing room
- GB/T10586-89 — Technical conditions for humidity testing room
- GB/T2423.1-2001 — Testing methods for low-temperature
- GB/T2423.2-2001 — Testing methods for high-temperature
- GB/T2423.3-93 — Technical conditions for humidity testing room
- GB/T2423.4-93 — Testing method for alternating hot and humid
- IEC60068-2-1.1990 — Testing methods for low-temperature
- IEC60068-2-2.1974 — Testing methods for high-temperature
- GJB150.3 — High-temperature test
- GJB150.4 — Low-temperature test
- GJB150.9 — Muggy test
- GB/T2423.22 — Temperature test
Packing Details: Export standard plywood case
Delivery Details: 30 days after order
- Professional placement
- Professional shock protection
- Complete package
- Graceful appearance with a circularly shaped body, surface treated with mist strips. Easy to operate, safe, and reliable.
- Rectangular double-paned viewing window for viewing samples under test, with interior light.
- Double-layer insulated airtight doors, able to insulate the internal temperature effectively.
- Water supply system that is externally connectable, convenient for refilling water into the humidifying pot and automatically recyclable.
- French Tecumseh is used as compressor, with environment-friendly refrigerant R23 or R404A.
- LCD display screen, capable of displaying the measured value as well as the set value and time.

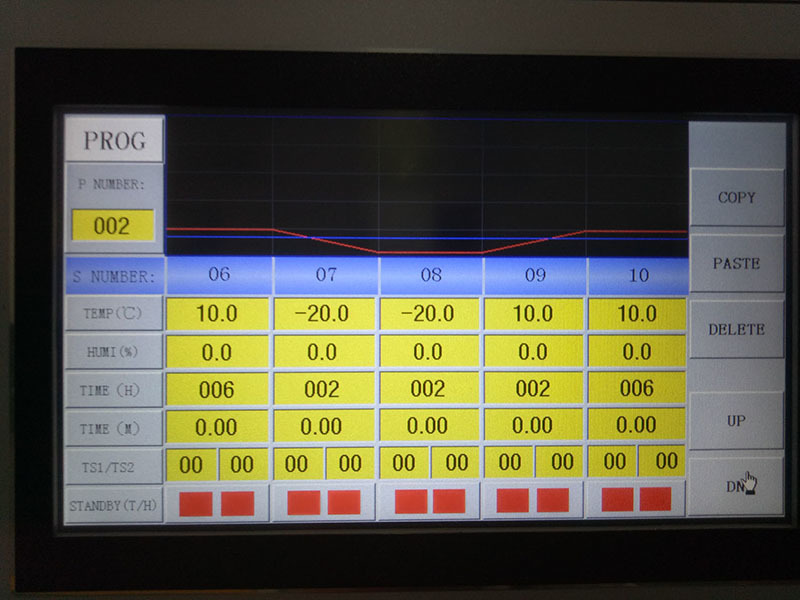

- The control unit has the functions of multiple segment program editing, with quick or ramp rate control of temperature and humidity.
- Casters are provided for ease of mobility, with strong positioning screws.
- Display Mode: LCD display, touch control
- Display Accuracy: Temperature 0.1%, humidity 0.1%
- Set Accuracy: Temperature 0.1°C, humidity 0.1%
- Display Resolution: Temperature 0.1°C, humidity 0.1%
- Sampling Time: 1 time/S
- Graphical Display: Full display of setting and program curve
- Program Capacity: Max. 100 programs, each program with 50 segments, max. 999 cycles
- Grounded protection
- Leakage / breakage protection
- Heater short-circuit protection
- Blower motor overload protection
- Refrigerator over-voltage protection
- Refrigerator overload protection
- Water shortage protection
- We usually quote within 24 hours after we receive your inquiry (except weekends and holidays).
- If you are very urgent to get the price, please email us or contact us in other ways so that we can offer you a quote.
- It depends on the order quantity and the season you place the order.
- Usually we can ship within 7–15 days for small quantity, and about 30 days for large quantity.
- It could be shipped by sea, by air, or by express (EMS, UPS, DHL, TNT, FEDEX, etc.).
- Please confirm with us before placing orders.
- We keep good quality and competitive price to ensure our customers benefit.
- We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
