Walk-In Climatic Test Chamber | Large Temperature Humidity Room for Environmental Simulation
Product Details
| Power: | 20kw | Voltage: | 380 V |
|---|---|---|---|
| Refrigerants: | R404A Or Equivalent | Test Hole: | Dia. 50mm |
| Communication Interface: | RS232,R485 | Temperature Range: | -60℃ ～ +150 ℃ |
| Humidity Range: | 20% ~ 98% RH | Humidity Deviation: | ± 2.5% RH |
| Temperature Change Rate: | 1 ~ 3.4℃ / Min | Panel Size: | 1M*2M |
| Cooling: | R23/R404A | Controller: | Programmable Color LCD Touch Screen Controller |
| Sensor: | PT100Ω | Interior Material: | SUS 316 Stainless Steel |
| Power Supply: | 220V 50Hz / 380V 50HZ | ||
| Highlight |
walk-in climatic test chamber,large temperature humidity test chamber,environmental simulation test chamber |
||
Product Description

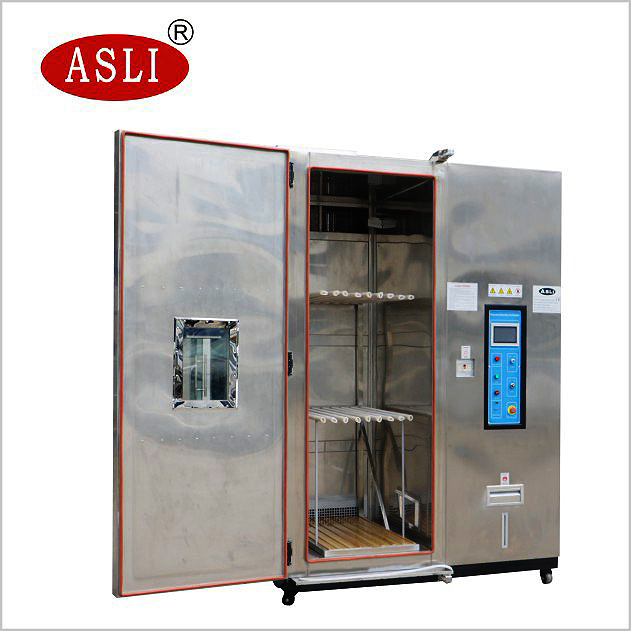

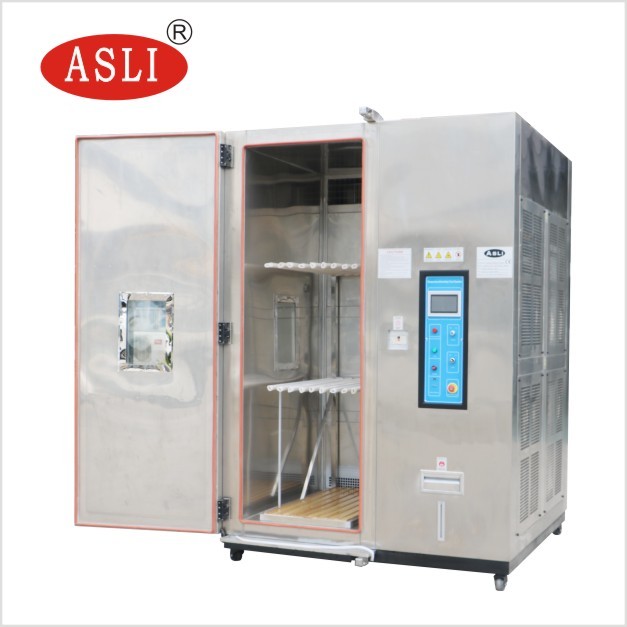

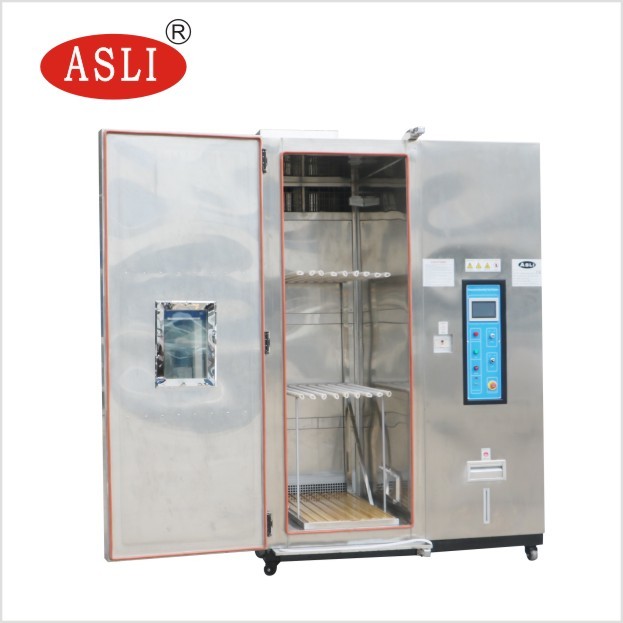

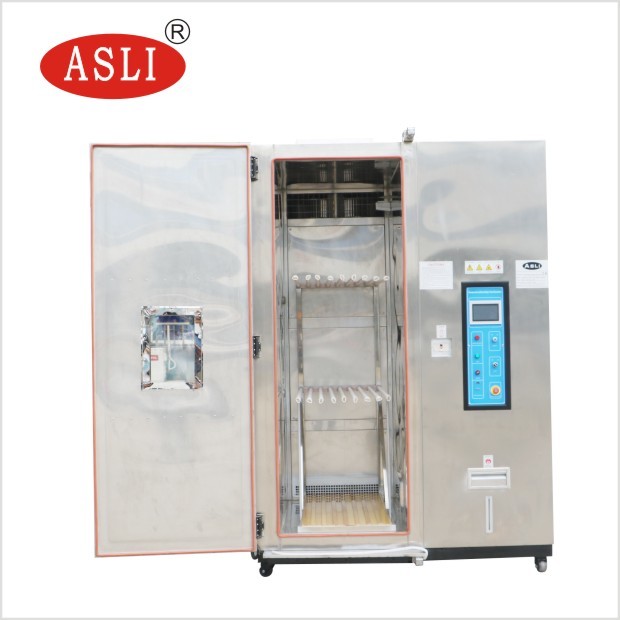

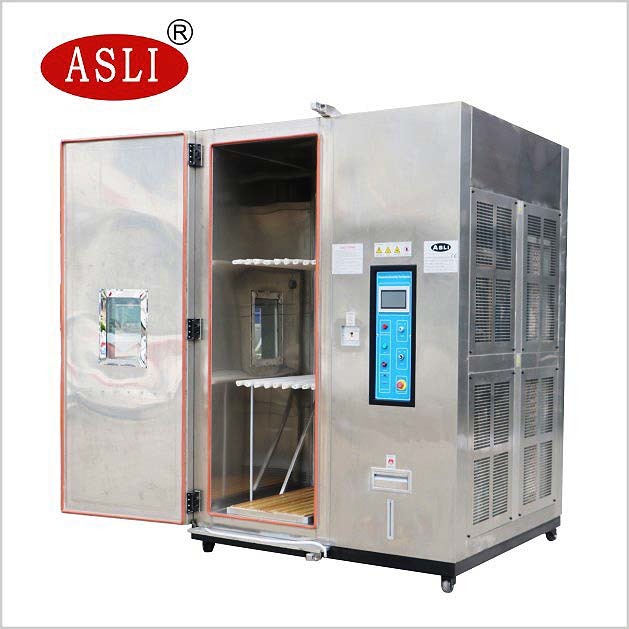

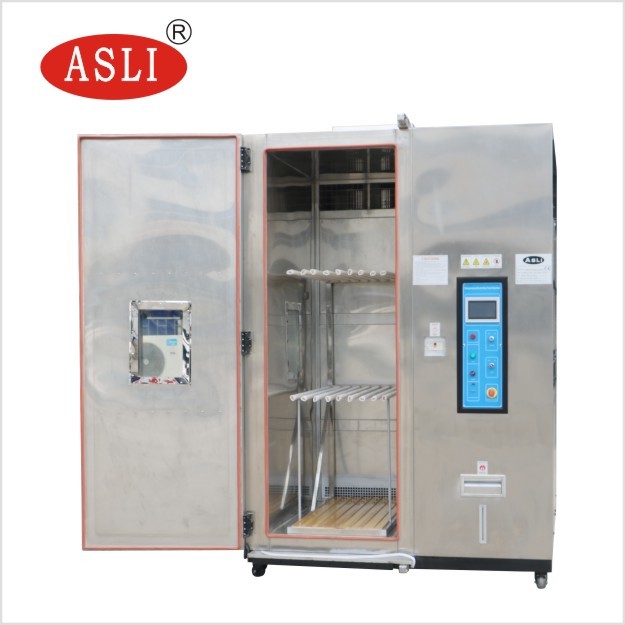

The Walk-In Climatic Test Chamber is a large-scale environmental simulation room designed for testing photovoltaic (PV) solar panels and modules under precisely controlled temperature and humidity conditions. With a temperature range of −60°C to +150°C and humidity control from 20% to 98% RH, this chamber delivers reliable, repeatable results for demanding PV testing applications.
| Model | THV-Volume-5 |
|---|---|
| Internal Dimension (mm) | To be confirmed |
| Overall Dimension (mm) | To be confirmed |
| Temperature Range | −60°C ∼ +150°C |
| Humidity Range | 20% ∼ 98% RH |
| Humidity Deviation | ± 2.5% RH |
| Temperature Change Rate | 1 ∼ 3.4°C / Min |
| Panel Size | 1M × 2M |
| Panel Capacity | 4 / 6 / 8 / 10 / 12 pieces (customized accordingly) |
| Cooling | R23 / R404A |
| Controller | Programmable color LCD touch screen controller, Ethernet connection, PC Link, USB |
| Sensor | PT100Ω |
| Safety Device | Humidifier dry-combustion protection; Over-temperature protection; Over-current protection; Refrigerant high-pressure protection; Water shortage protection; Earth leakage protection |
| Exterior Material | White powder coated |
| Interior Material | SUS 316 stainless steel |
| Standard Configuration | Cable hole (Φ 50 or Φ 100) with plug; and 1 sample rack |
| Power Supply | 220V 50Hz / 380V 50Hz |
| Standards | IEC 61215, IEC 61646, IEC 61108, IEC 62688, UL 1703, IEC 61345, IEC 61730, IEC 61290, IEC 61282, ASTM E1036 |
- 7-inch LCD touch screen (TATO TT5166)
- PID control of temperature and humidity
- Both temperature and humidity are programmable
- Equipped with humidity sensor
- Thermostats to prevent overheating
- Test hole (50 mm diameter)
- Data storage function via USB flash memory
- Protection features: phase protection, overheat protection, over-current protection, and more
- Water tank with level detector
- Adjustable shelf
- RS485/232 output to computer
- Remote fault notification (optional)
- Observation window for monitoring the device under test; multi-layer vacuum glass
- User-friendly three-color LED indicator lamp for easy reading of working condition
- Pure water filter (optional)
- Chamber door with manual locking mechanism
- CFC-free refrigerant
- Automatic defrost system to prevent condensation
- Emergency stop button
- Automatic shutdown when system temperature exceeds defined hot or cold thresholds
- Compressor high-pressure protector
Product Highlights
Walk-in climatic test chamber with -60℃~+150℃ range, 20%~98% RH, SUS 316 interior, and programmable touch controller. Complies with IEC61215, UL1703. Custom panel capacity and RS485/232 available for reliable environmental simulation.
