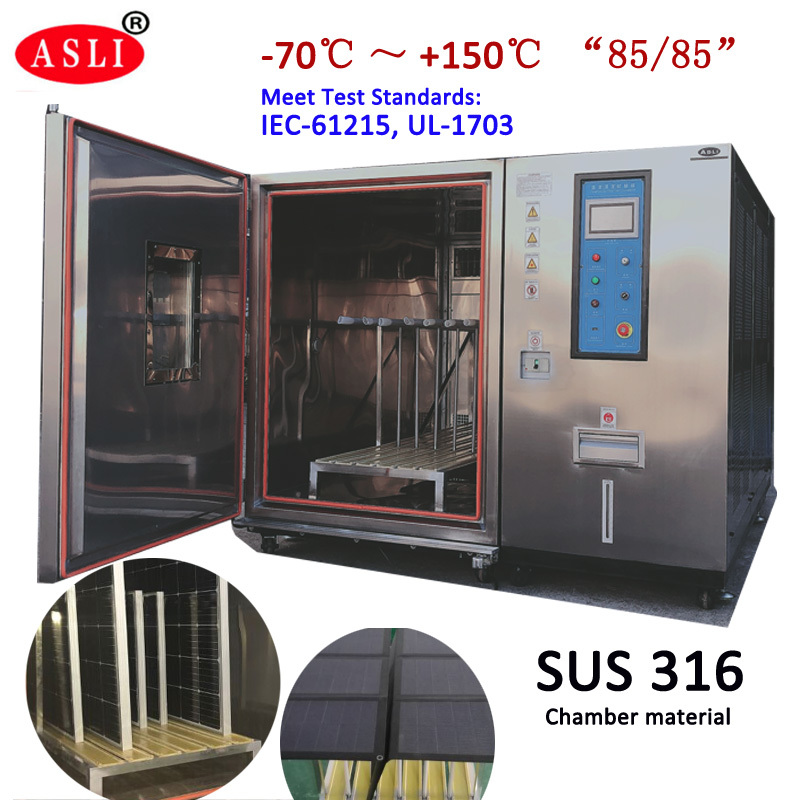

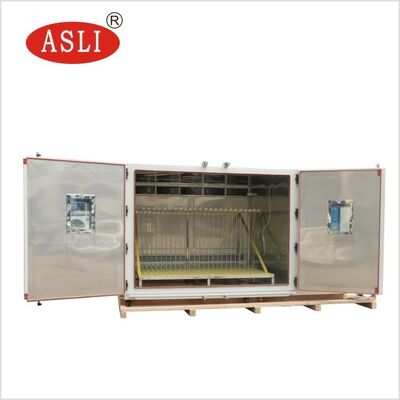

IEC 61215 MQT 13, IEC61730 MST53 Solar Panel Environment Climate Chamber
Product Details
| Temperature Range: | -70°C~150°C | Humidity Range: | 20%~98% R.H. |
|---|---|---|---|
| Internal Dimension: | W1000*H1000*D800mm | Volume: | 800L |
| Cooling Method: | Air Cooling | Material: | SUS 304 Stainless Steel |
| Compressor: | Bizer | Analytic Accuracy: | 0.1°C; 0.1% R.H. |
| Distribution Uniformity: | ±2.0°C; ±3.0% R.H. | Control Accuracy: | ±0.5°C; ±2.5% R.H. |
| Temperature Rising Speed: | 0.1~3.0°C/min | Temperature Falling Speed: | 0.3~1.0°C/min |
| Refrigerant: | DuPont R-404A | Cable Port: | 100mm |
| Observation Window: | Frost Free Function | ||
| Highlight |
IEC 61215 solar panel test chamber,IEC 61730 climate test chamber,solar panel environmental chamber |
||
Product Description
- Available with Chinese and English LCD touch screen for easy operation and programming.
- Displays relative date and system information during operation; graphic display, precautions, maintenance, and troubleshooting appear on screen instantly.
- The Sirocco fan motor provides greater cyclic airflow to eliminate dead corners in the chamber, ensuring uniform temperature and humidity distribution.
- Heating, cooling, dehumidifying, and humidifying systems can be operated independently, reducing testing costs, extending machine operation life, and decreasing failure rates.
- Water supply adopts an automatic watering system with circulating water supply and water filter.
- Stainless steel #304 construction
- Foam-insulated door for rigidity and long service life
- Observation window with frost-free function
- High-performance refrigeration system
- Easy-to-use TEMI-880 PLC controller interface
- One 100mm cable port (customer-specified options available)
- PID-controlled stainless steel humidifier
- DuPont R-404A (fluorine-free) refrigerant; R-23 for temperatures below −40 °C
- USB port for data output
- Anti-explosive interior lamps
- Data logging chart recorders; paperless recorders store data in the PLC
| Product Name | Temperature Humidity Climatic Test Chamber | ||
|---|---|---|---|
| Model | TH-408 (A~F) | TH-800 (A~F) | TH-1000 (A~F) |
| Internal Dimension W×H×D (mm) | 600 × 850 × 800 | 1000 × 1000 × 800 | 1000 × 1000 × 1000 |
| External Dimension W×H×D (mm) | 1200 × 1950 × 1350 | 1600 × 2000 × 1450 | 1600 × 2100 × 1450 |
| Temperature Range | Low Temperature: A: 25 °C, B: 0 °C, C: −20 °C, D: −40 °C, E: −60 °C, F: −70 °C High Temperature: 150 °C |
||
| Humidity Range | 20%–98% R.H. (10%–98% R.H. / 5%–98% R.H. are special optional conditions requiring a dehumidifier) | ||
| Analytic Accuracy / Distribution Uniformity of Temperature and Humidity | 0.1 °C; 0.1% R.H. / ±2.0 °C; ±3.0% R.H. | ||
| Control Accuracy of Temperature and Humidity | ±0.5 °C; ±2.5% R.H. | ||
| Temperature Rising / Falling Speed Rate | Temperature rising approx. 0.1–3.0 °C/min; temperature falling approx. 0.3–1.0 °C/min (Minimum falling speed rate of 1.5 °C per minute is a special optional condition) |
||
| Optional Accessories | Inner door with operation hole, recorder, water purifier, dehumidifier, glass door | ||
Our company has focused on the test instruments manufacturing field for more than 28 years. Our reputation is built on superior quality and outstanding customer service.
We are a factory with 28 years of focus on the test instruments field and 4 years of exporting experience.
Generally about 20 workdays. If we have finished products in stock, we can arrange shipment within 3 workdays. Please be aware that our production lead times depend on specific items and item quantities.
We offer a 12-month warranty. After the warranty period, our professional after-sales service team will provide technical support and help customers solve problems encountered while using our products, handling guest problems and complaints in a professional and timely manner.
Service: OEM service, design service, and buyer label service are available.
Quality: Each instrument must undergo 100% quality examination and testing. Finished products must pass through third-party calibration institutions before shipping and delivery.
If the product is easy to install and operate, customers can learn installation and use from the operation and maintenance manual. If the product is difficult to use, customers can visit the ASLi factory to learn how to install and use it. Our engineers hold passports and can travel overseas for on-site support.
Environmental chambers, temperature (humidity) chambers, PCT/HAST chambers (highly accelerated stress test chambers), ESS chambers, walk-in stability chambers, vacuum ovens, altitude chambers, vibration test systems, mechanical shock testers, environmental combined vibration chambers, and more.
Product Highlights
IEC 61215/61730 compliant climate chamber with -70°C~150°C range, 20%~98% R.H., ±0.5°C accuracy, SUS 304 steel, 800L, frost-free window, and CE/ISO/TUV certification. Custom cable ports and options available.
