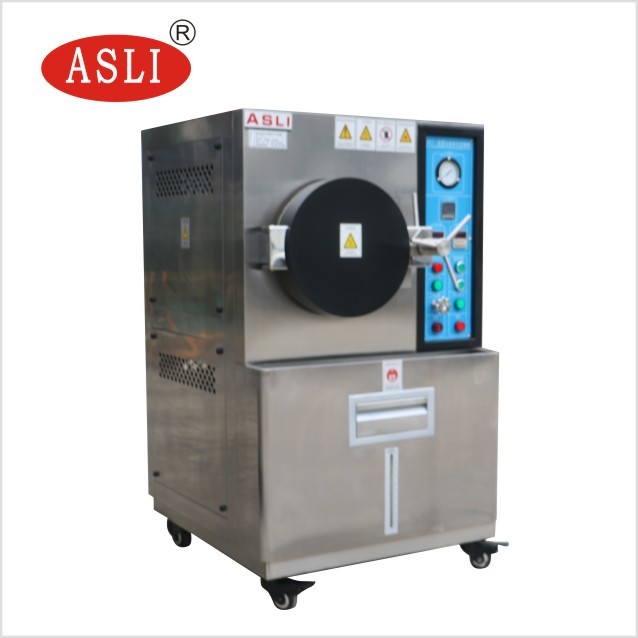

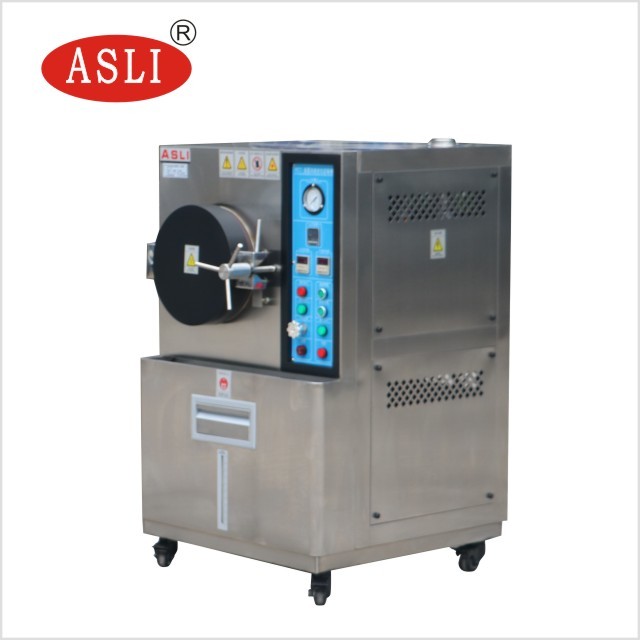

PCT / HAST Highly Accelerated Stress Test Aging Test Chamber
Product Details
| Power Supply: | AC 220v / AC380 | Stem Pressure: | 0.0kg/cm~2.0 Kg/cm(+101.3Kpa) |
|---|---|---|---|
| Temperature Range: | 100ºC~135ºC | Relative Pressure: | Display Values On Pressure Gauge |
| Absolute Pressure: | 100 Kpa + Display Values | Humidity: | 100%RH Saturation Steam Humidity |
| Steam Pressure: | 101.3Kpa +0.0Kg/cm2 ~ 2.0Kg/cm2 | Recursive Device: | Steam Natural Convection Circulation |
| Safety Device: | Water Short Storage Protect, Over Pressure Protect | Accessories: | Two Layers Stainless Steel Plate |
| Internal Dimension: | 300×450, 450×550, 550×650, 650×750 | External Dimension: | 800×1250×930, 960×1380×1050, 1050×1450×1100, 1150x1600x1500 |
| Equipment Capacity: | 17, 43, 87, 155, 250 L | Power: | AC 220V, 1ph 3 Lines, 50/60HZ |
| Door Gasket: | Integrated Silic Gel | ||
| Highlight |
PCT aging test chamber,HAST stress test chamber,environmental test chamber with warranty |
||
Product Description
The PCT / HAST Highly Accelerated Stress Test Aging Test Chamber is engineered for rigorous reliability testing of electronic components and materials under saturated steam and high-pressure conditions. It delivers precise control over temperature, humidity, and pressure to simulate extreme environmental stress.
- Automatic humidity filling system
- Automatic door lock mechanism
- Accommodates wider sample boards
- Convenient, hermetic power-pin system for bias testing
- Pot Safety Device: The machine cannot start if the inner chamber is not properly closed.
- Safety Valve: Automatically relieves pressure when the inner chamber pressure exceeds the machine's rated capacity.
- Double Overheat Protection: Alarms and automatically cuts off heating power when the inner chamber temperature becomes too high.
- Cover Protection: The inner chamber cover is made of aluminum alloy to protect operators from scalding.
| Parameter | PCT-35 | PCT-45 | PCT-55 | PCT-65 |
|---|---|---|---|---|
| Internal Dimension Φ×D (mm) | 300×450 | 450×550 | 550×650 | 650×750 |
| External Dimension Φ×D (mm) | 800×1250×930 | 960×1380×1050 | 1050×1450×1100 | 1150×1600×1500 |
| Equipment Capacity (L) | 17 | 43 | 87 | 155 / 250 |
- Temperature Range of Saturated Steam (Operating Temperature): 100°C–135°C. Standard range: 120°C at 100 Kpa / 133°C at 200 Kpa. (143°C available as special order.)
- Relative Pressure / Absolute Pressure: Relative pressure is the display value indicated on the pressure gauge. Absolute pressure is the display value plus 100 Kpa (the actual value inside the inner chamber).
- Humidity of Saturated Steam: 100% RH saturation steam humidity.
- Steam Pressure (Absolute Pressure): 101.3 Kpa + 0.0 Kg/cm² to 2.0 Kg/cm² (3.0 Kg/cm² available as special standard).
- Recursive Device: Steam natural convection circulation.
- Safety Protective Device: Water short storage protection, over-pressure protection. Features automatic/manual water replenishing and automatic pressure discharge.

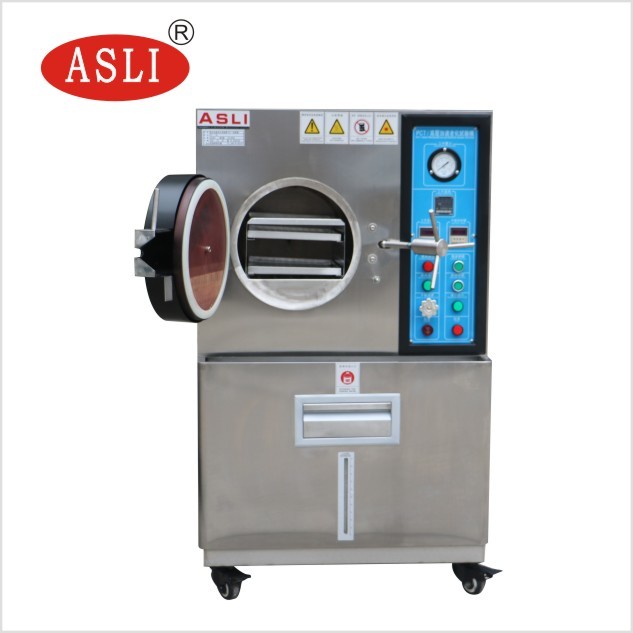

- Accessories: Two layers of stainless steel plate.
- Power: AC 220V, 1 phase, 3 lines, 50/60 Hz.
The HAST Testing Chamber for Altitude Test is widely applied for testing the sealing properties of multi-layer circuit boards, IC sealing packages, LCD screens, LEDs, semiconductors, magnetic materials, NdFeB, rare earths, and magnet iron. It evaluates the resistance to pressure and air tightness of these products under accelerated stress conditions.
- LED Digital Timer: Starts timing once the inner chamber temperature reaches the set value, ensuring test completion.
- Accurate Pressure Monitoring: Temperature chart continuously displays inner chamber pressure and relative humidity.
- Automatic Water Discharge: Automatically discharges non-saturated steam to achieve optimal steam quality.
- Integrated Silicone Gel Door Gasket: Provides excellent air tightness and long operational life.
- Mirror-Polished Inner Chamber: Clean, non-polluting design for reliable pressure cooker testing.
- Automatic Water Adding: Automatically fills water upon water shortage during testing.
- Automatic Operation: Simplifies the test process for ease of use.
- Temperature Control: LED digital temperature controller enables accurate temperature setting, control, and display.
Product Highlights
PCT/HAST aging test chamber with 100-135°C range, 100%RH saturated steam, and auto water filling. Features dual overheat protection, safety valve, and integrated silicone gasket. Available in 17-250L capacities with custom options.
