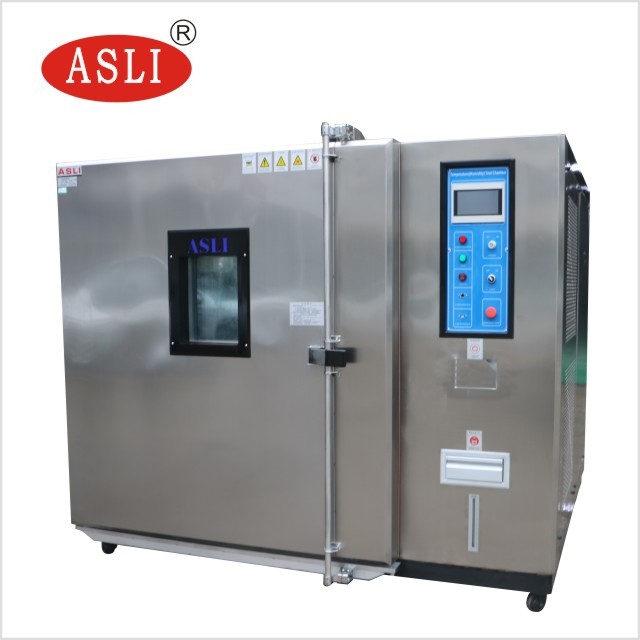

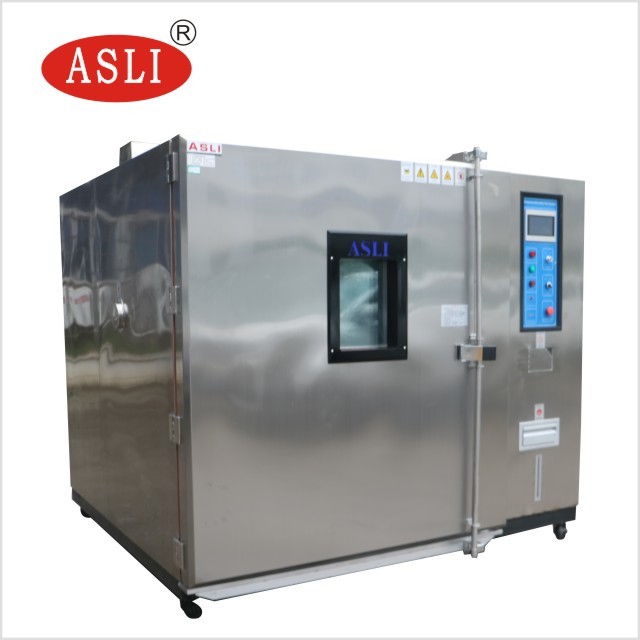

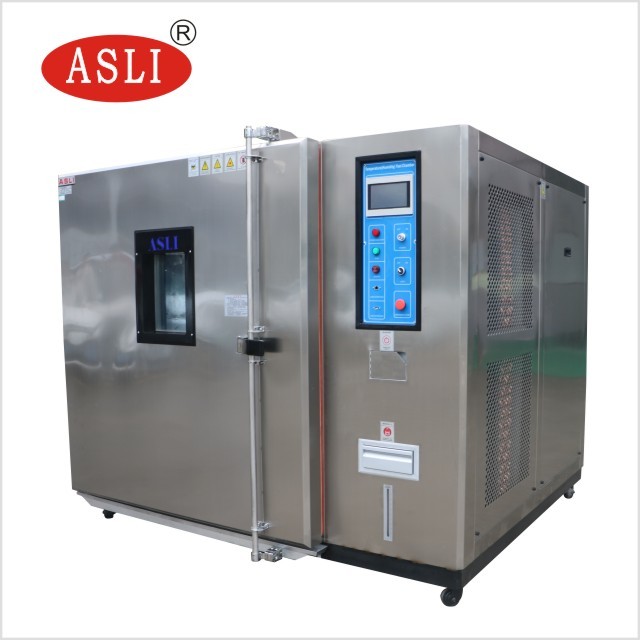

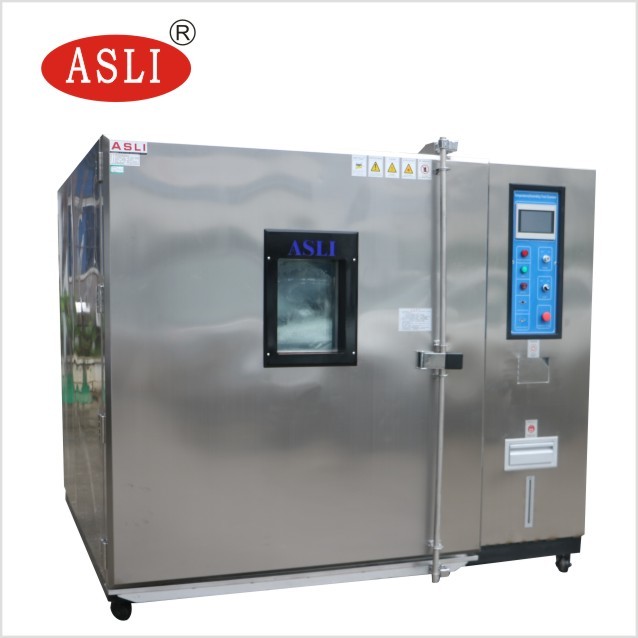

Walk in Temperature and Humidity test Chambers
Product Details
| Power: | 15KW | Voltage: | 380 V |
|---|---|---|---|
| Internal Dimension: | W2000*H2000*D2000mm | Volume: | 8000L |
| Temperature Range: | -70~200C | Humidity Range: | 20%~98%R.H |
| Test Hole: | Dia. 100mm | Viewing Window: | W350*D450mm |
| Material: | SUS 304 Stainless Steel | Protection Class: | IP55 |
| Temperature Rising Velocity: | 0.1~3.0°C/min | Temperature Falling Velocity: | 0.1~1.0°C/min |
| Compressor Brand: | French Tecumseh, Germany Bizer | Display Accuracy: | Temperature 0.1%, Humidity 0.1% |
| Sampling Time: | 1time/S | ||
| Highlight |
walk in temperature test chamber,humidity test chamber with warranty,environmental test chamber for walk in |
||
Product Description
The Laboratory Walk-In Temperature Test Chamber is a large-scale environmental testing system composed of a control panel, electrical panels, moisturizing plate blower, heater, humidifier, and freezer. It provides a spacious interior for testing temperature and humidity on large-scale parts and semi-finished products. It is ideal for testing products that are large in size or high in quantity, such as computer terminals and vehicle parts.
| Model | THR-volume (low-temperature options: A ~ F) |
|---|---|
| Inner Dimensions (cm) | Customers designated space size and design |
| Temperature Range |
Low Temperature (A: 25°C, B: 0°C, C: -20°C, D: -40°C, E: -60°C, F: -70°C) High Temperature 80°C (80°C ~ 200°C is optional) |
| Humidity Range | 20% ~ 98% R.H. (10%–98% R.H. / 5%–98% R.H. is a special optional condition, requires dehumidifier) |
| Temperature Rising / Falling Velocity |
Temperature rising approx. 0.1 ~ 3.0°C/min Temperature falling approx. 0.1 ~ 1.0°C/min (The falling velocity min. 1.0°C/min is optional) |
| Optional Accessories | Slope for cart, Recorder, Water Purifier, Dehumidifier |
| Compressor | French Tecumseh Brand, Germany Bizer Brand |
| Power | AC 380 V (±10%), 50/60 Hz, 3 ph 5 Lines |
- GB11158 — Technical conditions for high-temperature testing room
- GB10589-89 — Technical conditions for low-temperature testing room
- GB/T10586-89 — Technical conditions for humidity testing room
- GB/T2423.1-2001 — Testing methods for low-temperature
- GB/T2423.2-2001 — Testing methods for high-temperature
- GB/T2423.3-93 — Technical conditions for humidity testing room
- GB/T2423.4-93 — Testing method for alternating hot and humid
- IEC60068-2-1.1990 — Testing methods for low-temperature
- IEC60068-2-2.1974 — Testing methods for high-temperature
- GJB150.3 — High-temperature test
- GJB150.4 — Low-temperature test
- GJB150.9 — Muggy test
- GB/T2423.22 — Temperature test
High Quality Assurance
Passed the ISO9001:2008 quality system authentication and ROHS authentication.
Our Factory
Our Workshop
Our Warehouse
Our Team
Packing Details: Export standard plywood case
Delivery Details: 30 days after order
- Professional placement
- Professional shock absorption
- Complete package
- Graceful appearance, circularly shaped body, surface treated with mist strips. Easy to operate, safe and reliable.
- Rectangular double-paned viewing window for viewing sample under test, with interior light.
- Double-layer insulated airtight doors, able to insulate the internal temperature effectively.
- Water supply system that is externally connectable, convenient for refilling water into the humidifying pot and automatically recyclable.
- French Tecumseh is used as compressor, with environment friendly refrigeration R23 or R404A.
- LCD display screen, capable of displaying the measured value as well as the set value and time.
- The control unit has the functions of multiple segment program editing, with quick or ramp rates control of temperature and humidity.
- Casters are provided for ease of mobility, with strong positioning screws.
- Display Mode: LCD display, touch control
- Display Accuracy: Temperature 0.1%, Humidity 0.1%
- Set Accuracy: Temperature 0.1°C, Humidity 0.1%
- Display Resolution: Temperature 0.1°C, Humidity 0.1%
- Sampling Time: 1 time/S
- Graphical Display: Full display of setting and program curve
- Program Capacity: Max. 100 programs, each program with 50 segments, max. 999 cycles
- Grounded protection
- Leakage / breakage protection
- Heater short-circuit protection
- Blower motor overload protection
- Refrigerator over-voltage protection
- Refrigerator overload protection
- Water shortage protection
- We usually quote within 24 hours after we receive your inquiry (except weekends and holidays).
- If you are very urgent to get the price, please email us or contact us in other ways so that we can offer you a quote.
- It depends on the order quantity and the season you place the order.
- Usually we can ship within 7–15 days for small quantity, and about 30 days for large quantity.
T/T, Western Union, , and PayPal. This is negotiable.
- It could be shipped by sea, by air, or by express (EMS, UPS, DHL, TNT, FEDEX, etc.).
- Please confirm with us before placing orders.
- We keep good quality and competitive price to ensure our customers benefit.
- We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
If you want to get more information about the Walk-In Temperature Test Chamber, please don't hesitate to send your inquiry.
