Temperature and Humidity Combined Vibration Testing Chamber

Brand Name: ASLI
Model Number: THV-series
Place of Origin: CHINA
Certification: CE, ISO,SGS, BV
Minimum Order Quantity: 1 set
Price: Negotiable
Supply Ability: 50 sets per quarter
Delivery Time: 50 work days after deposit
Payment Terms: T/T, Western Union, L/C
Standard Packaging: export standard plywood case

Product Details


Temperature Range: -70~150C Humidity Range: 20%~98%R.H.
Vibration Direction: Vertical, Horizontal Temperature Change Rate: Optional
Frequency Range: 5~2000hz Application: Automotive Parts, Electronic Products
Highlight

combined vibration testing chamber

,

temperature humidity test chamber

,

environmental test chamber with vibration

Product Description

Product Overview

The Temperature and Humidity Combined Vibration Testing Chamber provides a controlled temperature and humidity environment for scientific research and production units in aerospace, aviation, petroleum, chemical, electronics, communication, and other industries. It simultaneously applies electric vibration stress to the test product within the chamber at a prescribed period, enabling comprehensive stress screening of temperature, humidity, and vibration on complete machines (or parts), electrical appliances, instruments, and materials.

Compared with single-factor testing, this combined approach more accurately reflects the adaptability of electrical and electronic products to simultaneous changes in temperature, humidity, and vibration during transportation and actual use, effectively exposing product defects.

  • Mobile orbit design for easy operation of combined testing
  • Comprehensive safety devices
  • RS-232 & RS-485 communication interface
  • CE certification
  • Touch screen controller
Specifications
Temperature & Humidity Range
  • Model C: -20°C to 150°C; 20% to 98% RH
  • Model D: -40°C to 150°C; 20% to 98% RH
  • Model F: -70°C to 150°C; 20% to 98% RH
Performance
  • Stability: Temperature ±0.5°C; Humidity ±2.5% RH
  • Uniformity: Temperature ≤ ±2°C; Humidity ±3% RH
  • Test machine size: Customizable
Model Comparison
Name Temperature Humidity Vibration Test System
Model THV-512(A~F) THV-1000(A~F) THV-1500(A~F)
Internal Dimension W×H×D (mm) 800×800×800 1000×1000×1000 1500×1500×1500
External Dimension W×H×D (mm) 1050×1950×2100 1300×2200×2400 1800×2400×3000
Temperature Range Low temperature: (A: 25°C; B: 0°C; C: -20°C; D: -40°C; E: -60°C; F: -70°C)
High temperature: 100°C (150°C)
Humidity Range 20%~98% R.H. (10%~98% R.H. / 5%~98% R.H. is a special optional condition, requires dehumidifier)
Control Accuracy ±0.5°C; ±2.5% R.H.
Temperature Rising / Falling Velocity Rising approx. 0.1~3.0°C/min; Falling approx. 0.3~1.0°C/min (faster temperature change is optional)
Protection Devices Fuse-free switch, overloading protection switch for compressor, high and low voltage coolant protection switch, over-humidity and over-temperature protection switch, fuses, fault warning system, water short storage warning protection
Vibration Test Equipment Choose proper vibration test bench according to customer's test condition. Technical parameters: refer to Electrodynamics Type Vibration Tester's parameters in this catalog.

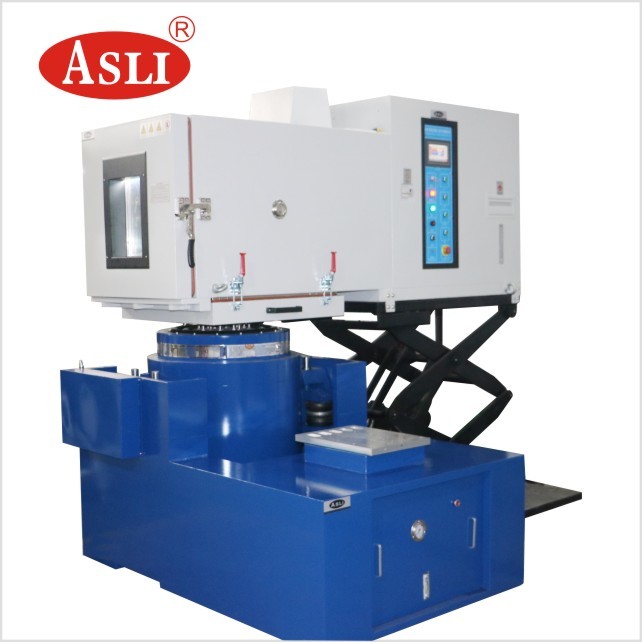

Temperature and humidity combined vibration testing chamber exterior view
Key Features
  1. Combined structure of test chamber and refrigerating system with compact, graceful design; independent console.
  2. Original refrigerating compressor unit and main accessories from international famous brands.
  3. LCD color touch screen controller capable of automatic control of temperature and humidity programs.
  4. RS-232 communication interface. To meet unique demands, users may choose from different models of vibration test bench to ensure good cooling.
  5. Heat and air seal system — the vibration bench also boasts remarkable mechanical vibration effect.
Vibration Test Machine Specifications
Model ES-3 ES-3a ES-6 ES-6a ES-10 ES-20 ES-30 ES-40 ES-50
Rated Sine Force (N) 3000 3000 6000 6000 10000 20000 30000 40000 50000
Rated Random Force (N) 3000 3000 6000 6000 10000 20000 30000 40000 50000
Frequency Range (Hz) 3-3500 3-3500 3-3500 3-3500 3-3000 3-3000 3-2800 3-2800 3-2700
Rated Acceleration (m/s²) 1000 400 1000 1000 1000 1000 1000 1000 1000
Rated Speed (m/s) 1.6 1.6 1.6 1.6 1.8 1.8 1.8 1.8 1.8
Rated Displacement (p-p) mm 25 40 25 51 51 51 51 51 51
Max. Loading (Kg) 100 120 180 250 270 300 450 500 750
Moving Coil (Kg) 3.5 9 6.5 12 14 30 40 50 50
Moving Coil Diameter Φ150 Φ230 Φ230 Φ230 Φ240 Φ320 Φ450 Φ450 Φ450
Vibration test machine technical diagram
Detailed Images

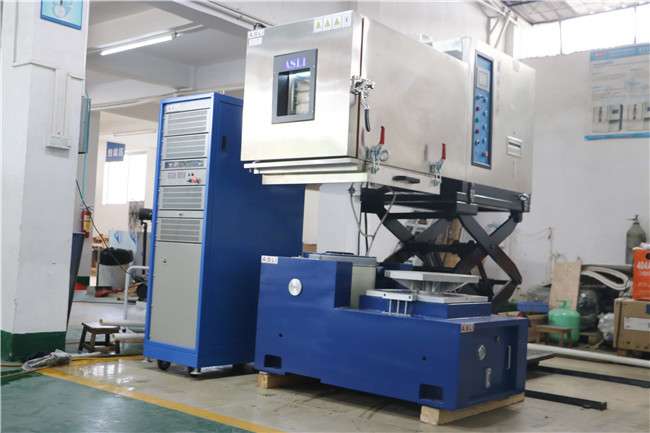

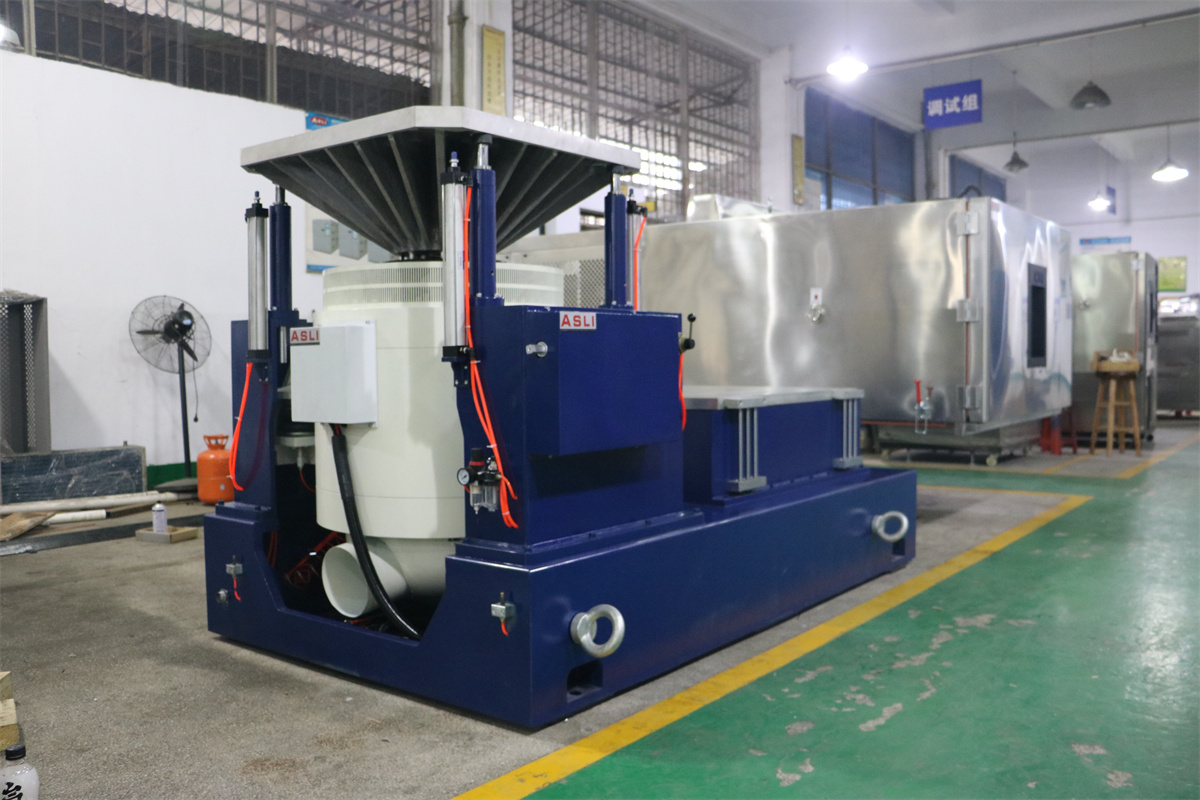

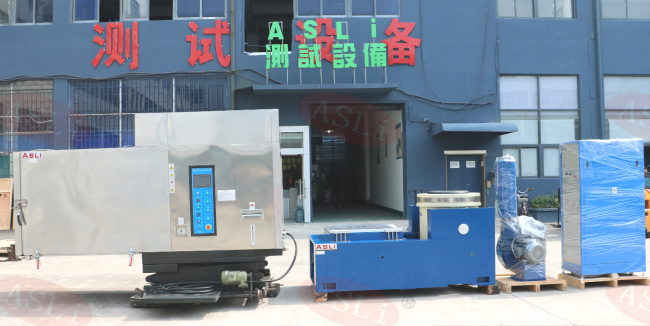

Temperature and humidity combined vibration testing chamber detail view 1 Temperature and humidity combined vibration testing chamber detail view 2 Temperature and humidity combined vibration testing chamber detail view 3 Temperature and humidity combined vibration testing chamber detail view 4 Temperature and humidity combined vibration testing chamber detail view 5 Temperature and humidity combined vibration testing chamber detail view 6
Other Products
Additional testing equipment product lineup
About Our Company
Company facility and manufacturing workshop

We are a testing equipment manufacturer with a long history. Over the past 28 years, we have devoted ourselves to simulation environmental testing equipment and mechanical vibration and shock testing machines. The Temperature and Humidity Combined Vibration Testing Chamber is one of our star products, and we have obtained CE certification for this machine.

Product Highlights

Combined temperature, humidity and vibration testing chamber with -70~150°C range, 20%~98%R.H., 5~2000Hz, vertical/horizontal vibration, CE certified, touch screen control, RS-232/485, customizable sizes.
