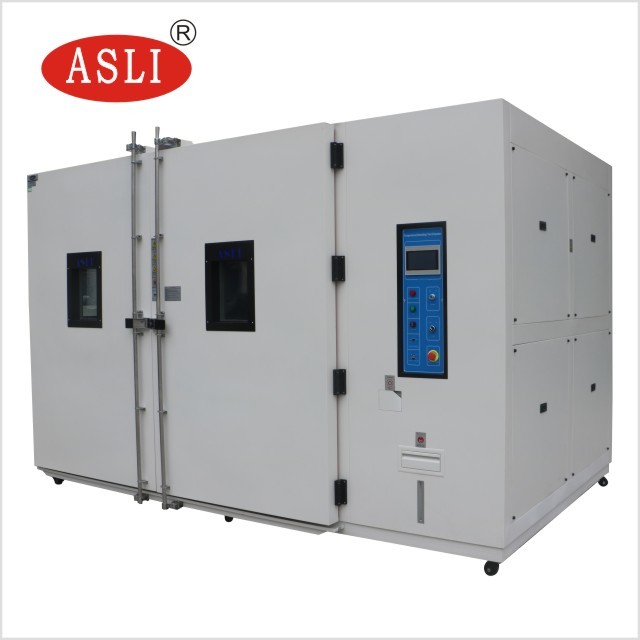

Big Size Temperature and Humidity Environmental Test Chamber

Brand Name: ASLI
Model Number: THR-Series
Place of Origin: CHINA
Certification: CE, ISO,SGS, BV
Minimum Order Quantity: 1 set
Price: negotiable
Supply Ability: 100 sets per quarter
Delivery Time: 40 work days after deposit
Payment Terms: T/T, Western Union, L/C
Standard Packaging: strongly wooden case

Product Details


Internal Dimension: Customized Temperature Range: -70~150℃
Humidity Range: 20~98%R.H. Communication Port: LAN, USB
Test Hole: Dia. 50mm Cooling Method: Air Cooling Or Water Cooled
Highlight

large environmental test chamber

,

temperature humidity test chamber

,

big size climate test chamber

Product Description

Product Description

The Big Size Temperature and Humidity Environmental Test Chamber is designed for large parts and machinery undergoing low-to-high and high-to-low temperature change testing. The chamber size can be customized according to user requirements. It features a patchwork-type construction with an attractive appearance, scientifically designed piping and ductwork, an all-in-one touch screen control panel, and a programmable logic controller to satisfy the diverse needs of clients.

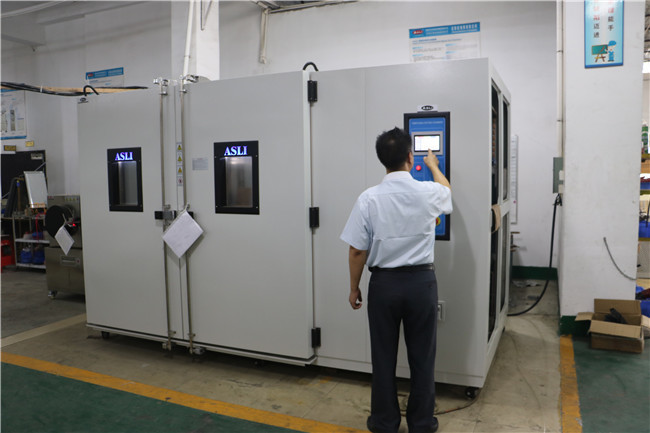

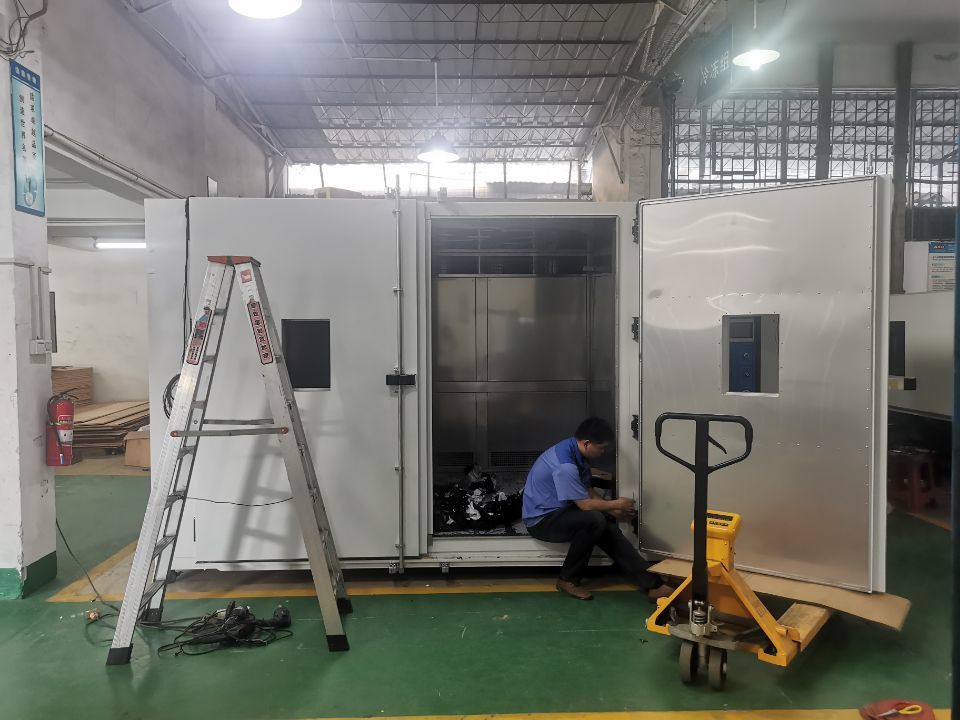

Big Size Temperature and Humidity Environmental Test Chamber exterior viewInterior layout and control panel of the environmental test chamber

Specifications
ModelTHR-volume (low-temperature options: A ~ F)
Inner Dimensions (cm)Customer-designated space size and design
Temperature Range Low Temperature (A: 25°C, B: 0°C, C: -20°C, D: -40°C, E: -60°C, F: -70°C)
High Temperature: 150°C (150°C ~ 200°C is optional)
Humidity Range 20% ~ 98% R.H. (10% ~ 98% R.H. / 5% ~ 98% R.H. is a special optional condition, requiring a dehumidifier)
Control Accuracy of Temperature and Humidity±0.5°C; ±2.5% R.H.
Temperature Rising / Falling Velocity Temperature rising approx. 0.1 ~ 3.0°C/min
Temperature falling approx. 0.3 ~ 1.0°C/min
(Faster temperature change rate is optional)
Cooling SystemAir cooling or water cooled
Protection Devices Fuse-free switch, overloading protection switch for compressor, high and low voltage coolant protection switch, over-humidity & over-temperature protection switch, fuses, fault warning system, water short storage warning protection
Optional AccessoriesSlope for cart, recorder, water purifier, dehumidifier
PowerAC 380 V (±10%), 50/60 Hz, 3 phase, 5 lines

Key Features
  1. Reasonable structural design with a rapid cooling rate.
  2. Imported refrigeration system, internally lined with SUS#304 high-temperature-resistant stainless steel.
  3. More than 30% energy saving is achieved.
  4. The test specimen can be easily observed through the observation window.
  5. Easy to operate, install, and maintain.
  6. Rational construction and fast cooling rate.
  7. Frequency conversion control of wind speed.
  8. Adopts international brand imported parts for the cooling system to improve operation reliability.
  9. Touch screen controller with a friendly man-machine interface and safety devices to ensure simple operation and easy maintenance.
  10. Standards implemented and met.
  11. GB10592-89 Technical requirements for high and low temperature test chambers.
  12. GB2423.1-1989 Low temperature test.
  13. GB2423.2-1989 High temperature test mode.

Standards
  • GB/T2423.2-89 High temperature test method
  • GB2423.1-89 Test A: Low temperature test method
  • IEC60068-2-1 Low temperature test method
  • GJB150.4-1986 Test at low temperature
  • EIA-364-59 Test at low temperature
  • IEC60068-2-38 Temperature cycle
  • IEC60068-2-78 Constant temperature
  • IEC60068-2-30 Temperature cycle
  • EIA-364-31C Temperature resistance
  • GB/T2423.3 Constant heat test method

Functions
  1. The separation of the humidifier circuit from the electric circuit improves safety and protects the circuit against leakage from the water supply line.
  2. Available in Chinese and English LCD touch screen, easy operation and programming.
  3. The programmable temperature humidity test chamber is able to display the relative date and information of the whole operating system in running mode with graphic display. Precautions, maintenance, and troubleshooting appear on the screen instantly.
  4. The Sirocco fan motor provides greater cyclic airflow to avoid dead corners in the chamber, obtaining a uniform distribution of temperature and humidity.
  5. The systems of heating up, cooling down, dehumidifying, and humidifying can be operated independently to reduce the cost of testing, extend the operating life of the machine, and decrease the failure rate.
  6. Water supply adopts an automatic watering system, circulating water supply together with a water filter.

More Pictures for Reference

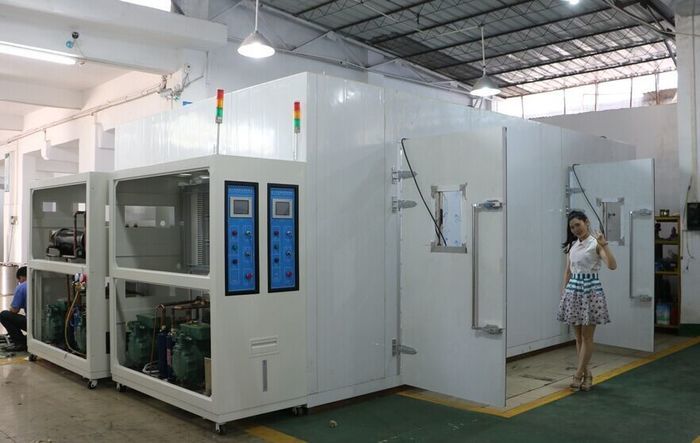

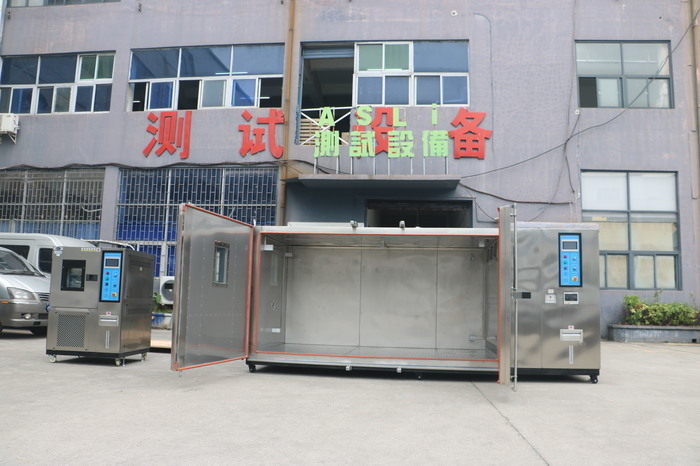

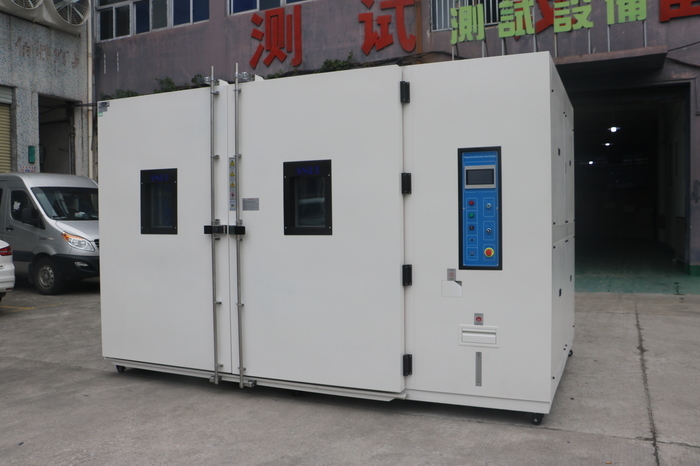

Additional view of the Big Size Temperature and Humidity Environmental Test ChamberClose-up detail of the environmental test chamber components

Packing & Delivery
Professional packaging of the environmental test chamber for safe delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient, and efficient packaging services will be provided.


Company Profile
Company profile image showing manufacturing facility and certifications

We are a long-established testing equipment manufacturer. Over the past 25 years, we have devoted ourselves to simulation environmental testing equipment and mechanical vibration and shock testing machines. The Big Size Temperature and Humidity Environmental Test Chamber is one of our star products, and we have obtained CE certification for this machine.

Product Highlights

Big Size Temperature & Humidity Test Chamber with customizable dimensions, -70~150℃ range, 20~98%R.H., LAN/USB ports, and air or water cooling. Features SUS#304 steel, 30% energy savings, touch screen control, CE certified, and meets GB/IEC standards.
