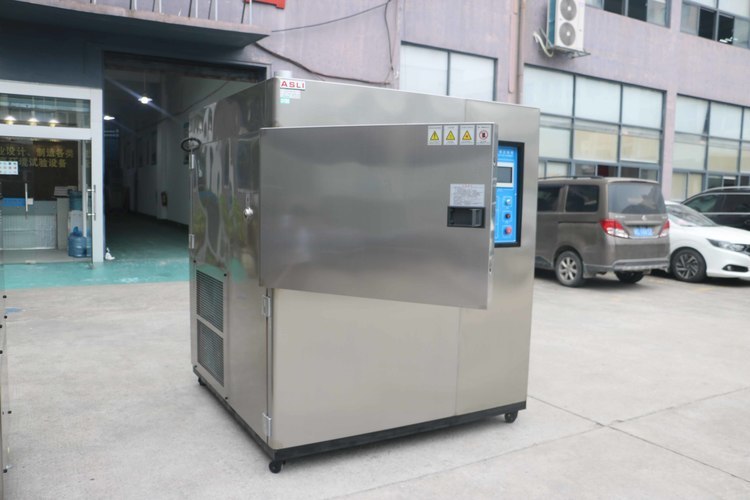

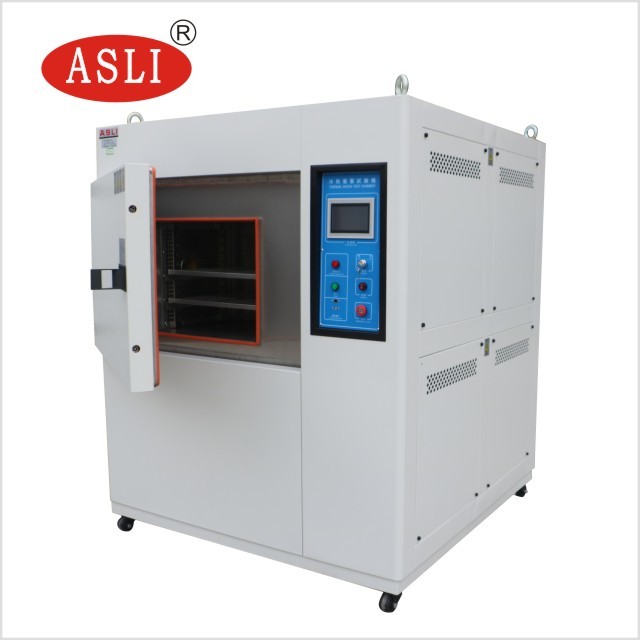

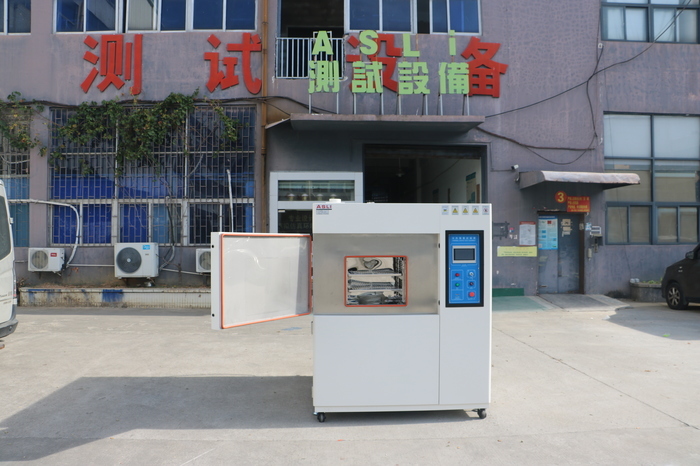

ISO16750 Standard Battery High Temperature Thermal Shock Testing Machine
Product Details
| Internal Dimension: | W600*H500*D500mm | Volume: | 150L |
|---|---|---|---|
| Temperature Range: | -40~150C | Type: | 2 Zones Or 3 Zones |
| Temperature Recovery Time: | Within 5mins | Application: | PCB, Semiconductor, Automotive Parts, Electronic Products |
| Highlight |
ISO16750 battery thermal shock tester,high temperature testing machine for batteries,thermal shock chamber for battery testing |
||
Product Description
The Lithium Battery Thermal Shock Testing Machine is engineered to evaluate the capability of material structures or composite materials to withstand continuous environmental changes between extremely high and low temperatures within a short period. This process helps identify chemical changes or physical damages caused by thermal expansion and contraction in the shortest possible time.
It is applicable to metals, plastics, rubber, electronics, and other materials. Test results serve as a reliable reference or basis for product improvement.
- Competitive price with good quality
- Long service lifetime
- High precision and reliability performance
- Direct manufacturers with more than 28 years of experience
- High accurate temperature control
| Parameter | TS-42(A~C) | TS-80(A~C) | TS-150(A~C) | TS-252(A~C) | TS-450(A~C) |
|---|---|---|---|---|---|
| Internal Dimension W×H×D (mm) | 400×350×350 | 500×400×400 | 600×500×500 | 700×600×600 | 800×750×750 |
| External Dimension W×H×D (mm) | 1400×1800×1400 | 1550×1950×1550 | 1600×2000×1700 | 1700×2100×1750 | 1800×2200×1900 |
| Temperature Range of Testing Zone |
Type A: -40°C ~ +150°C (200°C optional) Type B: -55°C ~ +150°C (200°C optional) Type C: -65°C ~ +150°C (200°C optional) |
||||
| High Temperature Range of Testing Zone | +60°C ~ +150°C (200°C optional) | ||||
| Low Temperature Range of Testing Zone | -10°C ~ -40°C / -55°C / -65°C | ||||
| Exposure Time of High / Low Temperature |
High Temperature: +60°C ~ +150°C (200°C optional) — 30 mins Low Temperature: -10°C ~ Type A: -40°C / Type B: -55°C / Type C: -65°C — 30 mins |
||||
| Temperature of Heat-Storing Slot / Heating Time | RT ~ 200°C / About 45 mins | ||||
| Temperature of Cool-Storing Slot / Cooling Time | RT ~ -75°C / About 100 mins | ||||
| Temperature Recovery Time / Conversion Time | ≤ 5 min / ≤ 5 sec | ||||
| Control Accuracy / Distribution Uniformity | ±0.5°C / ±2°C | ||||
| Internal and External Material | Inner box: SUS 304# stainless steel; Outer box: stainless steel or cold-rolled steel with paint coating | ||||
| Insulation Material | High temperature resistant, high density, formate chlorine, ethyl acetum foam insulation materials | ||||
| Mechanics | P.I.D + S.S.R + Micro-computer balanced temperature control system | ||||

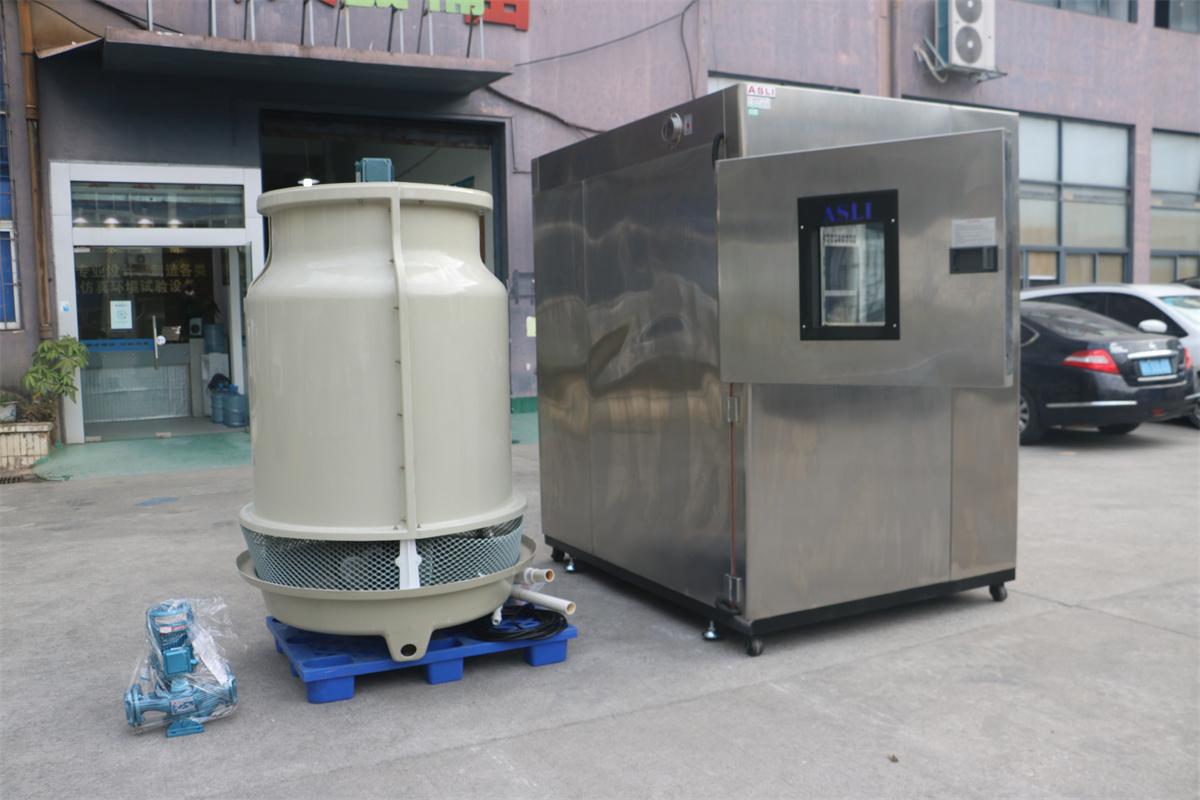

| Cooling System | Semi-hermetic double-stage compressor (water-cooled type) / Hermetic double-stage compressor (air-cooled type) | ||||
| Security Protection Devices | Non-fuse breaker, high and low pressure protective switch of the compressor, refrigerator high-pressure protective switch, failure warning system, electronic alarm | ||||
| Accessories | Viewing window (special order) | ||||
| Compressor | French 'Tecumseh' Brand, Germany Bizer Brand | ||||
| Power | AC220V 1∮ 3 lines, 50/60Hz; AC380V 3∮ 5 lines, 50/60Hz | ||||
| Weight (Approx. kg) | 450 | 600 | 750 | 950 | 1200 |
- The chamber is divided into three zones: high temperature zone, low temperature zone, and testing zone. The test sample remains in static mode.
- Touch-control graphic interface for easy operation.
- Wind route conversion shock method distributes temperature to the testing zone for cold and thermal shock measurement.
- For high or low temperature shock, maximum time is up to 999 hours, and maximum circulation cycles are 9999 times.
- The system supports automatic circulation shock or manual selective shock.
- Binary cooling system with quick cooling effect. Cooling method is water cooling.
- Can return to normal temperature. RS-232 and RS-485 communication supported.
To better ensure the safety of your goods, professional, environmentally friendly, convenient, and efficient packaging services will be provided.

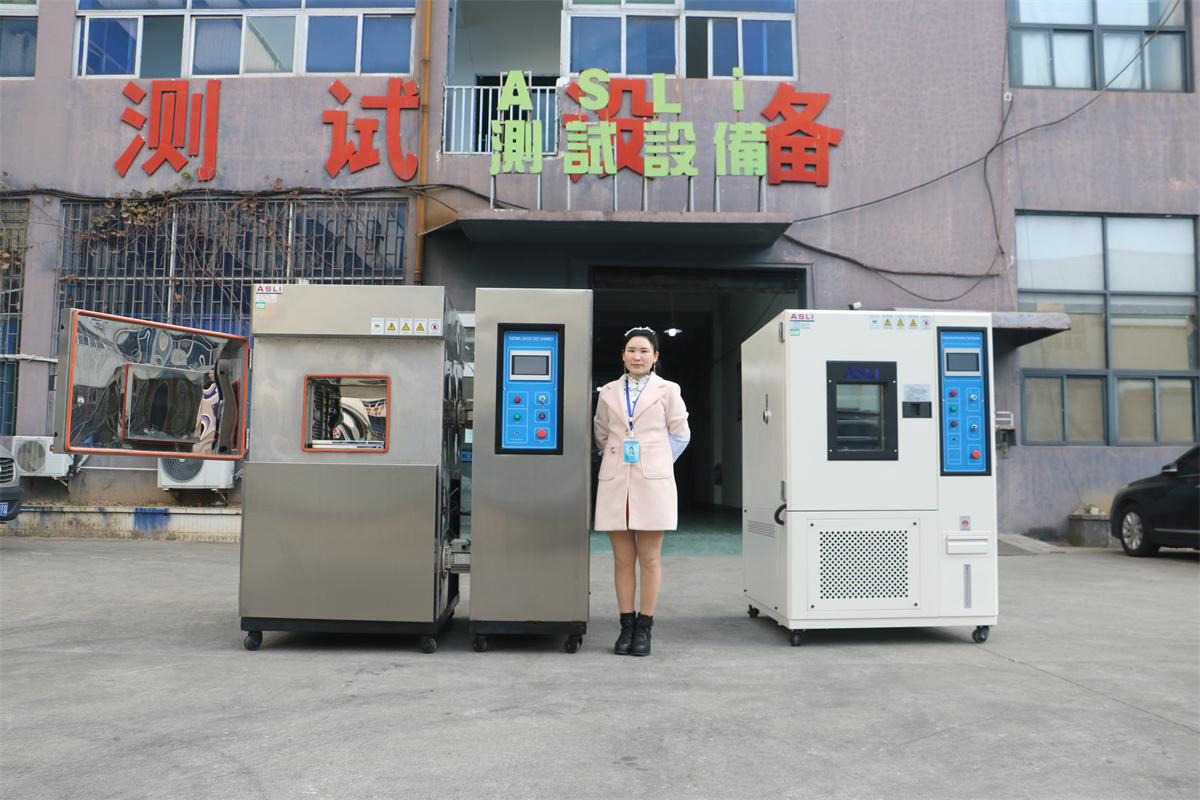

We are a long-established testing equipment manufacturer. Over the past 28 years, we have devoted ourselves to simulation environmental testing equipment and mechanical vibration and shock testing machines. The Thermal Shock Test Chamber is one of our star products, and we have obtained CE certification for this machine.
Product Highlights
ISO16750 thermal shock chamber with -40~150°C range, ≤5min recovery, 150L capacity. 2/3-zone options, SUS304 steel, CE certified. 28-year manufacturer, ideal for PCB, semiconductor, automotive and lithium battery testing.
