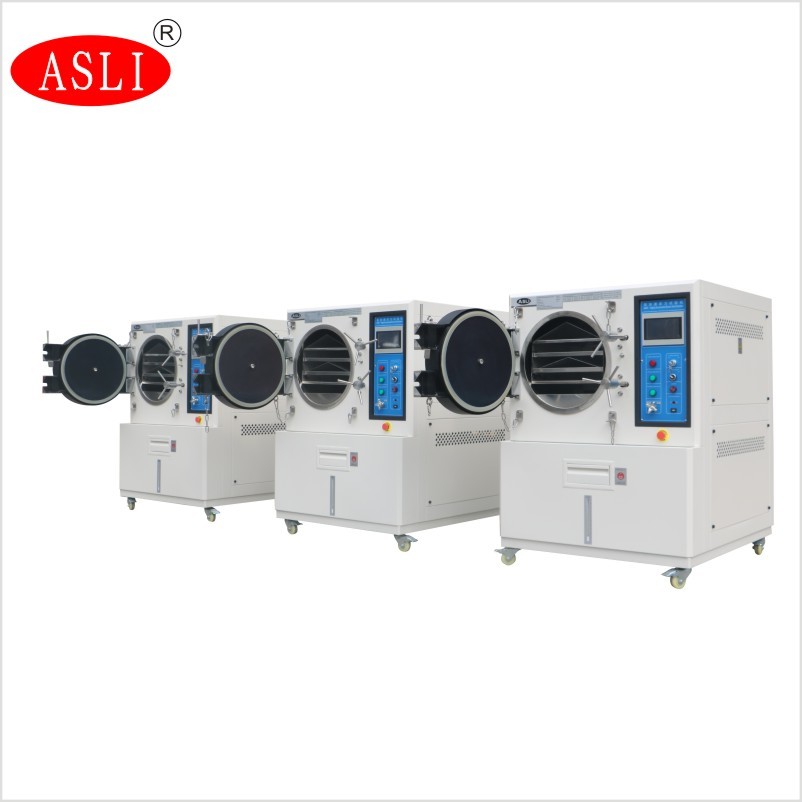

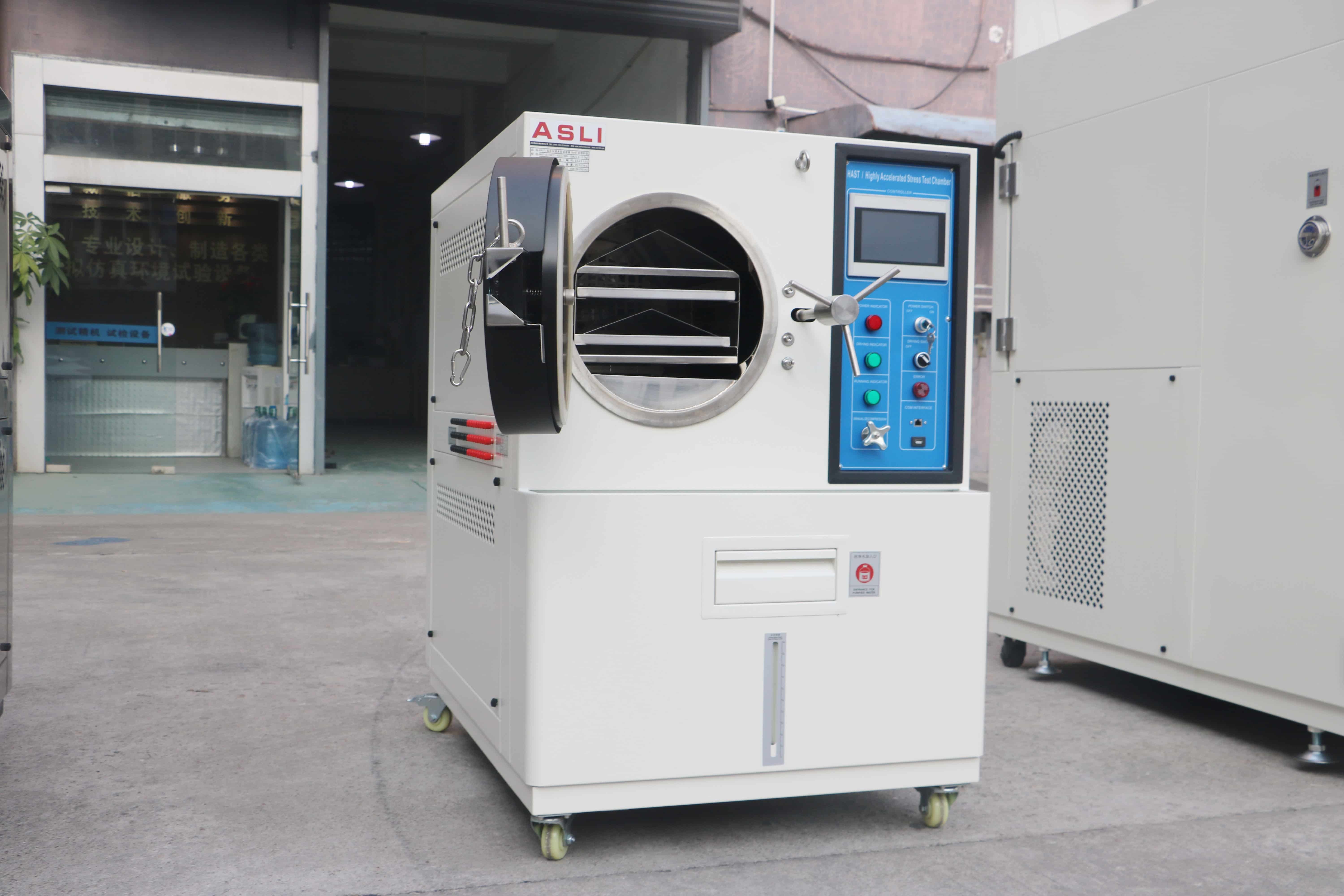

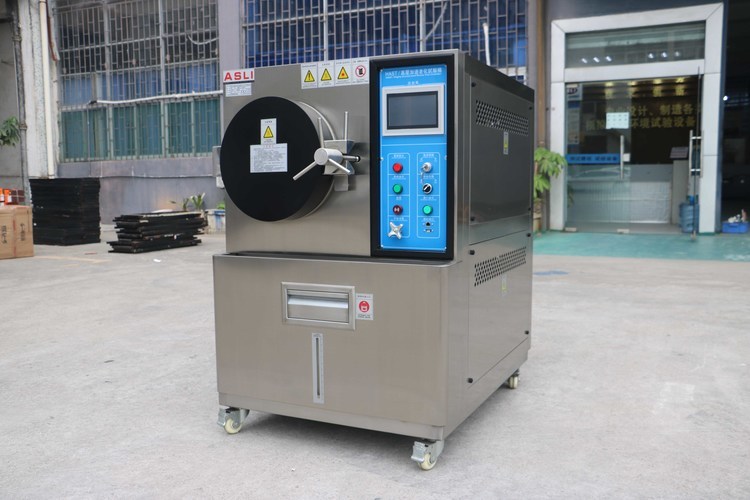

High Pressure Accelerated Aging Life Environmental Test Chamber
Product Details
| Temperature Range: | 105~143c | Humidity Range: | 70%~98%R.H. |
|---|---|---|---|
| Pressure: | Ambient Pressure ~3kg/cm2 | Sample Shelves: | 2 Pcs |
| Power Supply: | AC220V, 1 Phase 3 Lines | Application: | PCB, Semiconductor, Electronic Products |
| Highlight |
high pressure environmental test chamber,accelerated aging test chamber,life testing environmental chamber |
||
Product Description
The High Pressure Accelerated Aging Life Climate Test Chamber is an economical solution designed to meet your budget requirements. It offers easy move-in and assembly, and we accept OEM/ODM orders. Choose from a variety of interior and exterior finishes to match your laboratory requirements. The chamber is configurable to any size to fit your specific needs, and we provide on-site service, installation, commissioning, and training.
This PCT (Pressure Cooker Test) chamber is widely applied to the testing of sealing properties for multi-layer circuit boards, IC sealing packages, LCD screens, LEDs, semiconductors, magnetic materials, NdFeB, rare earths, and magnet iron. It accurately tests the resistance to pressure and air tightness of these products.
| Parameter | Model 1 | Model 2 | Model 3 | Model 4 | Model 5 |
|---|---|---|---|---|---|
| Internal Dimension Φ×D (mm) | 300×250 | 350×450 | 450×550 | 550×650 | 650×750 |
| External Dimension Φ×D (mm) | 850×1300×900 | 900×1350×900 | 1000×1480×1000 | 1150×1650×1200 | 1300×1800×1350 |
| Equipment Capacity (L) | 17 | 43 | 87 | 155 | 250 |
| Steam Temperature Range | 100ºC~135ºC (143ºC is optional) |
| Relative Pressure / Absolute Pressure |
Relative pressure: Display values indicated on the pressure gauge. Absolute pressure: Value that adds 100 Kpa based on display values indicated on the pressure gauge (the actual value in the inner box). |
| Steam Humidity | 70~100% R.H. steam humidity adjustable, or keep 100% R.H. |
| Steam Pressure (Absolute Pressure) | 101.3 Kpa +0.0 Kg/cm² ~ 2.0 Kg/cm²; (3.0~5.0 Kg/cm² is special standard) |
| Recursive Device | Steam in forced-circulation |
| Safety Protective Device | Water short storage protect, over pressure protect. (Has automatically/manual water replenishing, automatically discharge pressure function.) |

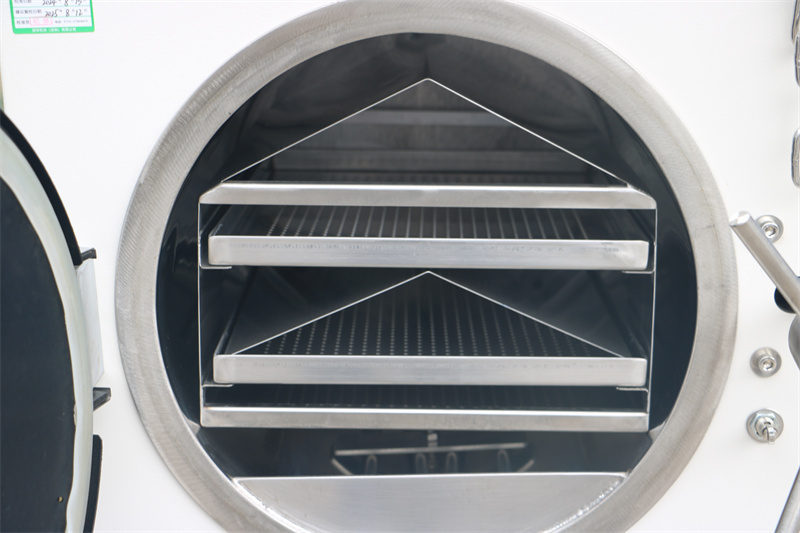

| Accessories | Two layers stainless steel plate |
| Power | AC220V, 1 & 3 Lines, 50/60Hz; AC380V, 3 & 5 Lines, 50/60Hz |
- Automatic adding water function, and automatic filling water upon water short storage while testing.
- Automatic operation to test process finished, easy to use.
- Temperature control: LED digital temperature controller can make accurate testing of temperature setting, control and display.
- LED digital timer, when the inner box's temperature reached the setting value, then start to time to ensure the test complete.
- Accurate pressure: Temperature chart always shows the inner box's pressure and relative humidity.
- Water device is automatically discharge not saturated steam in order to achieve the best steam quality.
- A integrated silica gel door gasket, air tightness is very good, and long operation life.
- The inner box is mirror-polished, graceful and non-pollution.
To better ensure the safety of your goods, professional, environmentally friendly, convenient, and efficient packaging services will be provided.

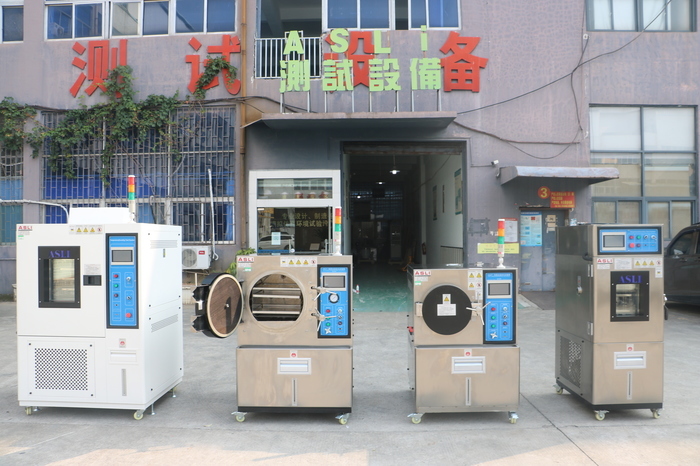

We are a long-established testing equipment manufacturer. Over the past 28 years, we have devoted ourselves to simulation environmental testing equipment and mechanical vibration and shock testing machines. The PCT accelerated aging tester is one of our star products, and we have obtained CE certification for this machine.
Product Highlights
High Pressure Accelerated Aging Test Chamber with 105~143°C, 70~98%R.H., up to 3kg/cm². Durable, efficient, CE certified. Ideal for PCB, semiconductor, LED testing. OEM/ODM, custom sizes, on-site service available.
