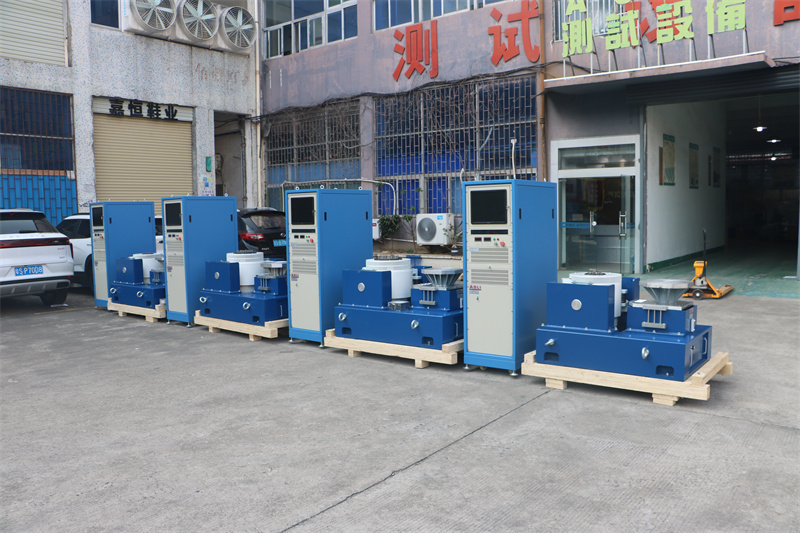

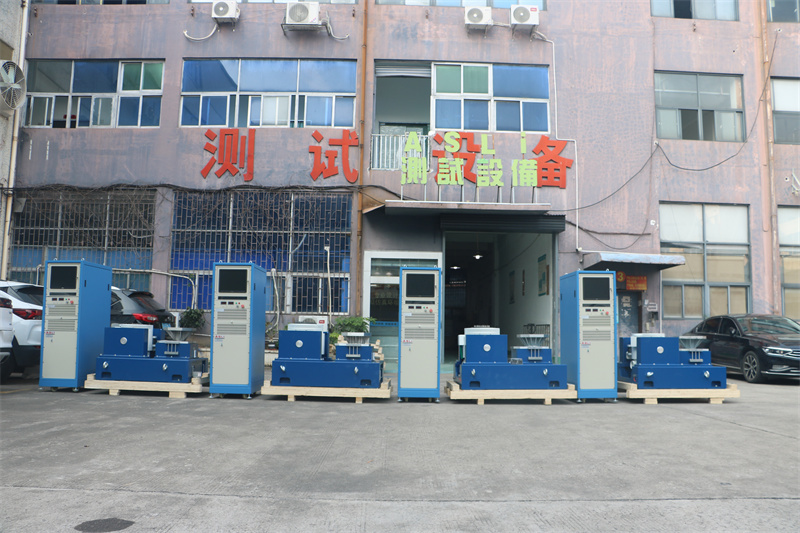

Electromagnetic High Frequency Vibration Testing Machine
Product Details
| Voltage: | 380 V | Rated Speed: | 1.8 M/s |
|---|---|---|---|
| Accuracy: | ±5% | Rated Displacement: | 100mm |
| Frequency Range: | 3~3000HZ | Vibration Force: | 20KN |
| Power: | 25 KW | Protection Class: | IP55 |
| Moving Coil Weight: | 30kg | Test Table Size: | 800*800mm |
| Drive System: | Electrodynamic | Vibration Direction: | X,Y,Z Three-axis |
| Test Types: | Sine Vibration, Random Vibration | Noise Level: | Low Mechanical Noise |
| Fixture Support: | Various Fixtures Available | ||
| Highlight |
Electromagnetic vibration testing machine,High frequency vibration shaker system,Vibration testing machine with warranty |
||
Product Description
- Electrodynamic drive system for high-frequency vibration testing
- Wide frequency range with precise frequency control
- Adjustable vibration acceleration, displacement, and test time
- Suitable for sine vibration and other programmable vibration tests
- Stable operation and low mechanical noise
- Various fixtures and tables available for different test samples
- Safety protection functions for abnormal operating conditions
- Suitable for laboratory and production-line reliability testing

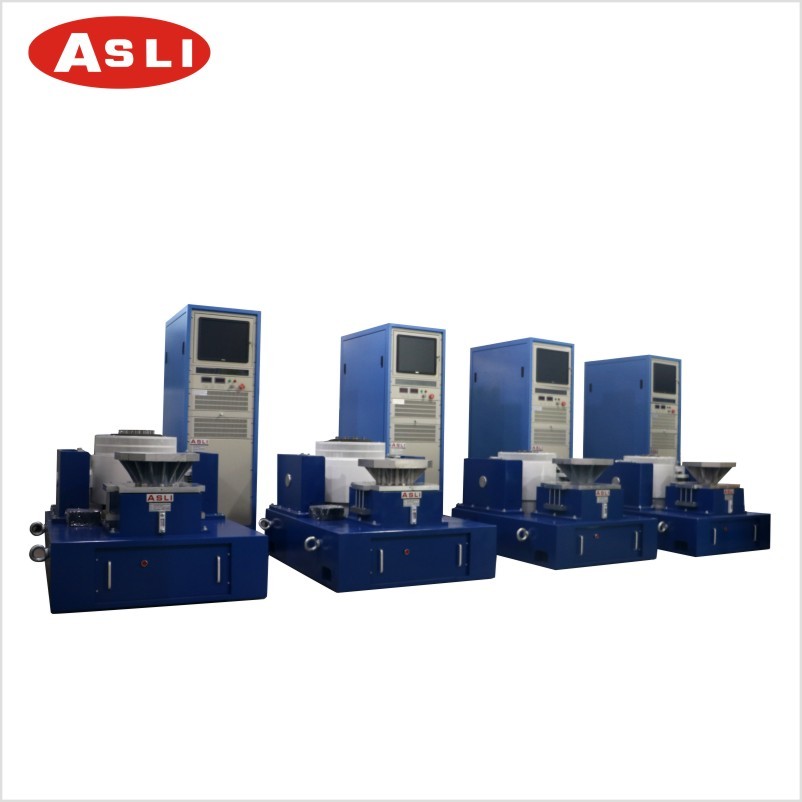

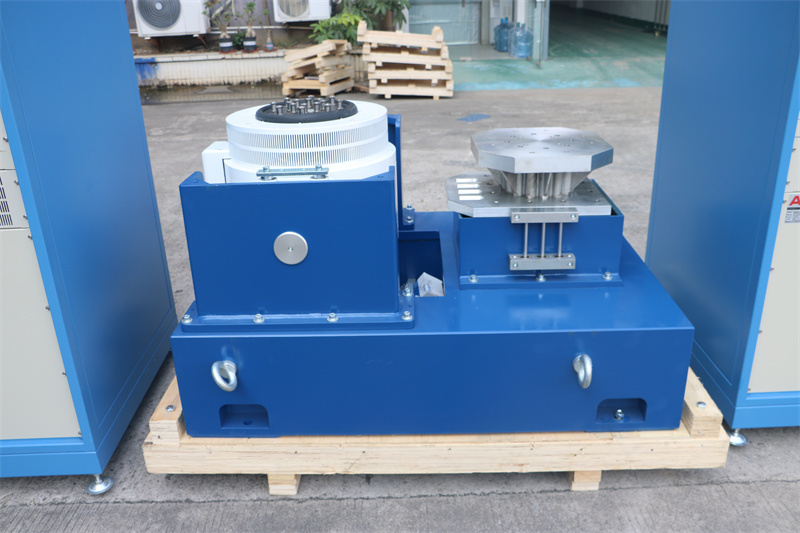

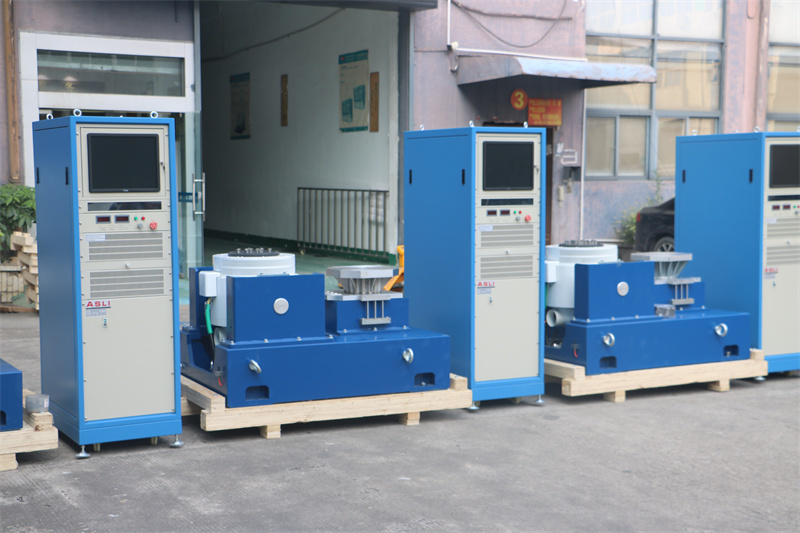

The Big Force Frequency Electrodynamic Vibration Shaker System adopts advanced modern technologies including a double-magnetic circuit structure, self-generated skeleton action circles, airborne support, roller bearings and linear guidance, and trunnion isolation. It can complete X, Y, Z three-axis sinusoidal vibration tests and broadband random vibration tests, as well as classical pulse tests (half-sine, trapezoidal, saw tooth wave) and shock response spectrum tests. These products are widely used in national defense, weapons, aviation, aerospace, communications, electronics, electrical appliances, home appliances, and other fields.

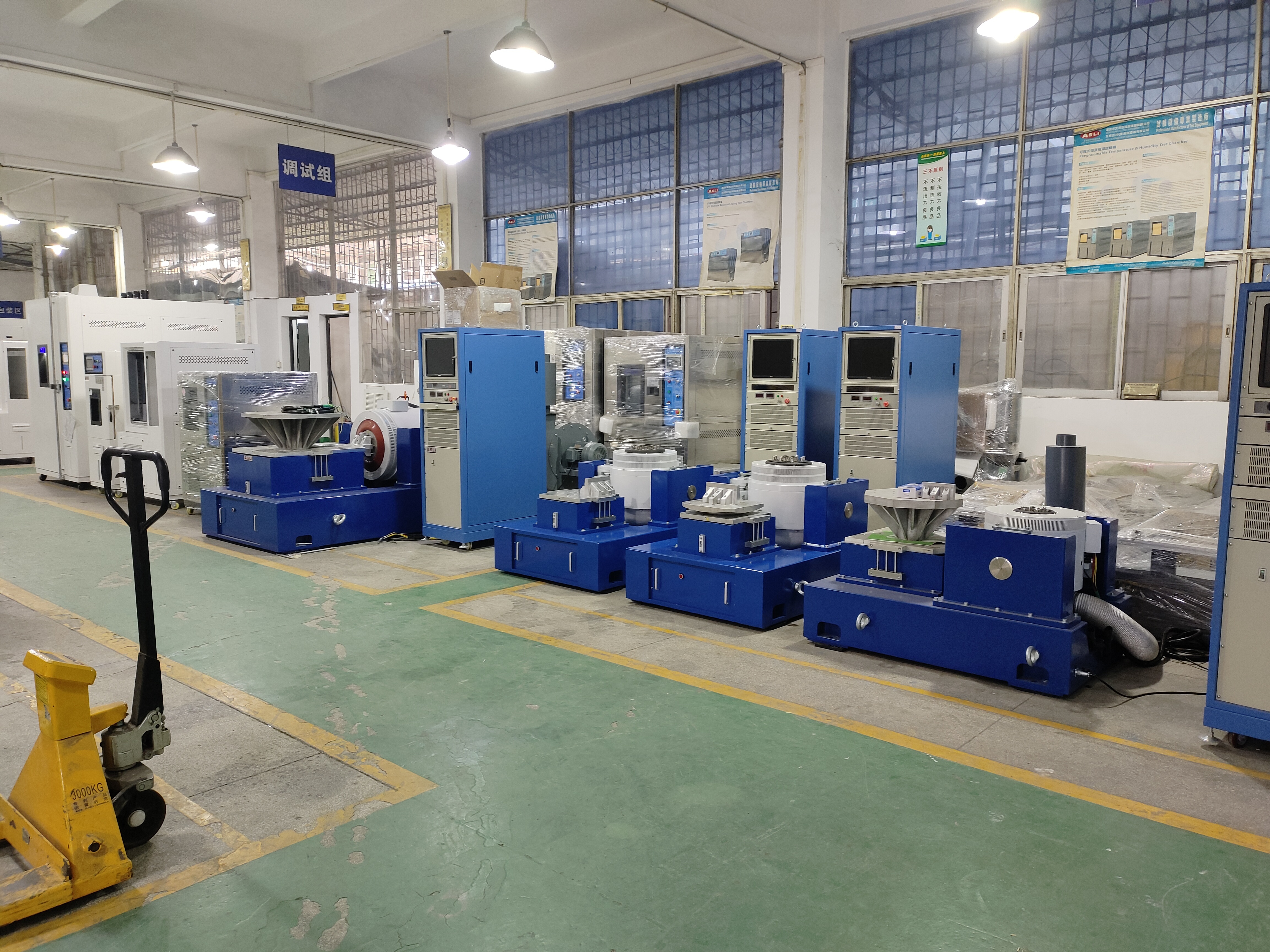

AI SI LI (CHINA) TEST EQUIPMENT CO., LTD. (ASLI) was established in 1988 and is a professional manufacturer of environmental and mechanical test equipment in Dongguan, China. We specialize in the design and manufacture of temperature & humidity chambers, thermal shock chambers, rapid temperature change chambers, walk-in chambers, salt spray chambers, UV/Xenon aging chambers, HAST/PCT chambers, dust chambers, vibration test systems, shock/impact testers, and customized testing equipment.
With decades of experience in testing technology, ASLI provides both standard and customized testing solutions for industries including automotive, electronics, aerospace, photovoltaics, packaging, and pharmaceuticals. Our products are supplied to customers worldwide and are designed according to international testing standards such as IEC, ISO, ASTM, MIL-STD, EN, and GB. As a direct manufacturer, ASLI provides technical consultation, customized design, manufacturing, installation, commissioning, and after-sales technical support.
An electrodynamic vibration shaker is a testing system that uses an electromagnetic drive force to generate controlled vibration. It is widely used to simulate vibration conditions during transportation, operation, and service.
It can be used for electronic components, automotive parts, batteries, packaging, aerospace components, consumer electronics, and other industrial products.
Depending on the configuration, the system can perform sine vibration, frequency sweep, resonance search, vibration endurance, and random vibration tests.
The selection mainly depends on the test sample weight, required frequency range, required acceleration, displacement, and test direction. The fixture and any additional vibration load should also be considered.
Yes. Electrodynamic vibration shakers are particularly suitable for high-frequency vibration testing. The available frequency range depends on the specific model and test load.
Some models and controller configurations support random vibration testing. Please provide the required PSD profile so that we can confirm the suitable configuration.
Yes, but the suitable model must be selected according to the total moving mass, including the sample, fixture, and table. A heavier load will reduce the achievable acceleration.
Product Highlights
Electromagnetic High Frequency Vibration Testing Machine with 3~3000HZ range, 20KN force, ±5% accuracy and IP55 protection. Supports sine, random and shock tests for automotive, electronics and packaging. OEM/ODM/OBM customization, 1-year warranty.
