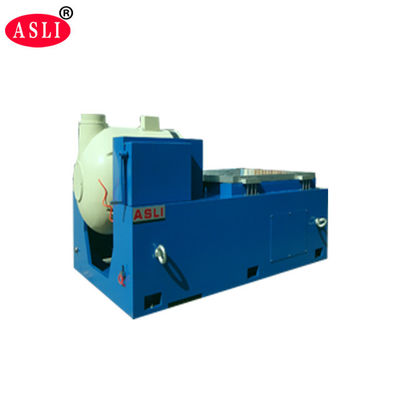

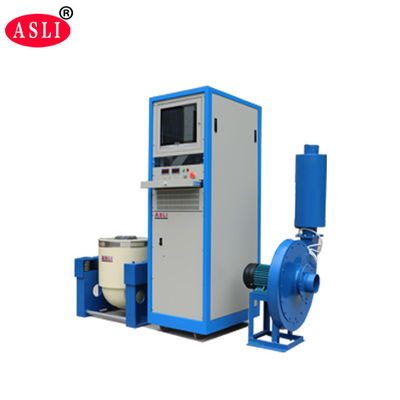

Electrodynamic Vibration Testing Machine with MIL STD 810 and IEC EN AS 60068 2 27 Compliance for Precise Sine and Random Force Testing
Product Details
| Sine Force: | 6000N | Speed: | 1.6m/s |
|---|---|---|---|
| Displacement: | 25mm | Frequency: | 3~3500hz |
| Vibration Direction: | Vertical Or X,y,z | Power: | 380v 3 Phase |
| Highlight |
AS 60068.2.27 Vibration Testing Machine,600kg.f Vibration Testing Machine,AS 60068.2.27 laboratory test equipment |
||
Product Description
Electrodynamic Vibration Shaker System With MIL STD 810 and IEC/EN/AS 60068.2.27
1) Well-designed dynamic circle skeleton, with a higher stage axial resonance frequency.
2) Two-magnetic circuit, magnetic flux leakage low, compact structure and rational.
3) Rocker Rod roller bearings straight and import-oriented composite body stiffness orientation, eccentric load capacity.
4) Trunnion isolation foundation dedicated to hormone use, the installation of mobile convenience.
5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .
6) New duct design and enhance the cooling effect.
Electrodynamic Vibration Shaker System With MIL STD 810 and IEC/EN/AS 60068.2.27 SPECIFICATIONS:
| SPECIFICATIONS FOR Vertical Vibration Chinese Vibration Climatic Chamber for Rubber Plastic Parts | |||||||||
| Model | Rated Sine Force (N) |
Rated Random Force (N) | Frequency Range (Hz) |
Rated Acceleration (m/s2) | Rated Speed (m/s) | Rated displacement (p-p) mm |
Max. Loading (Kg) | moving coil (Kg) | Dimension of Moving coil (mm) |
| ES-3 | 3000 | 3000 | 3-3500 | 1000 | 1.6 | 25 | 100 | 3.5 | Φ150 |
| ES-3a | 3000 | 3000 | 3-3500 | 400 | 1.6 | 40 | 120 | 9 | Φ230 |
| ES-6 | 6000 | 6000 | 3-3500 | 1000 | 1.6 | 25 | 180 | 6.5 | Φ230 |
| ES-6a | 6000 | 6000 | 3-3500 | 1000 | 1.6 | 51 | 250 | 12 | Φ230 |
| ES-10 | 10000 | 10000 | 3-3000 | 1000 | 1.8 | 51 | 270 | 14 | Φ240 |
| ES-20 | 20000 | 20000 | 3-3000 | 1000 | 1.8 | 51 | 300 | 30 | Φ320 |
| ES-30 | 30000 | 30000 | 3-2800 | 1000 | 1.8 | 5l | 450 | 40 | Φ450 |
| ES-40 | 40000 | 40000 | 3-2800 | 1000 | 1.8 | 51 | 500 | 50 | Φ450 |
| ES-50 | 50000 | 50000 | 3-2700 | 1000 | 1.8 | 51 | 750 | 50 | Φ450 |
Electrodynamic Vibration Shaker System With MIL STD 810 and IEC/EN/AS 60068.2.27 Features:
1. Well-designed dynamic circle skeleton, with a higher stage axial resonance frequency.
2. Two-magnetic circuit, magnetic flux leakage low, compact structure and rational.
3. Rocker Rod roller bearings straight and import-oriented composite body stiffness orientation, eccentric load capacity.
4. Trunnion isolation foundation dedicated to hormone use, the installation of mobile convenience.
5. Advanced technology move around the system to ensure that the dynamic circle of high reliability.
6. New duct design and enhance the cooling effect.
7. Static stiffness, dynamic stiffness of the bearing small balloon, raising the vibration table capacity, improve low-frequency performance.

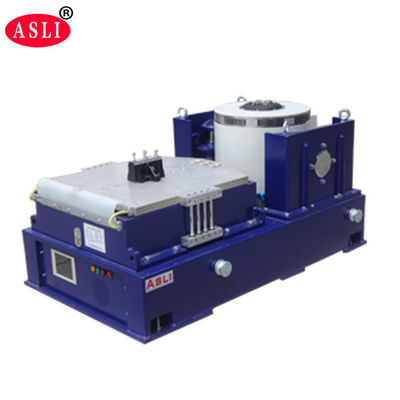

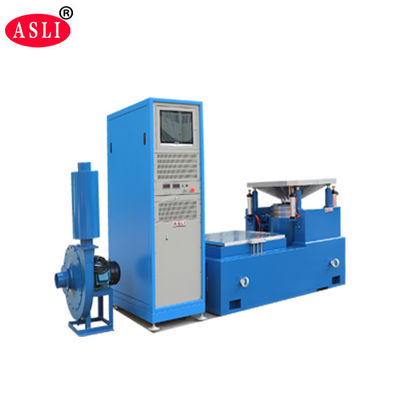

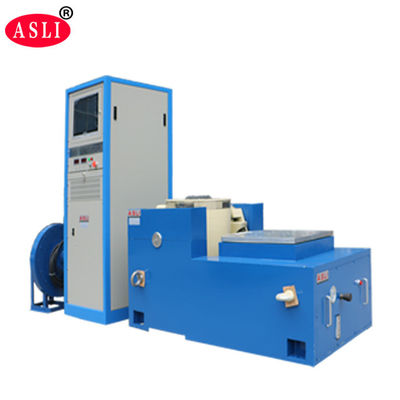

horizontal stand features:
Within small loading bench to realize higher acceleration and working frequency, to improve the loading capacity and performance of whole machine bench.
Horizontal bench and vibration bench are integral type, with perfect structure, convenience to install and adjust.
Static pressure track, V-shape, with capacity of slope-resistant and bias-loading resistant.
Built-in oil pump, good structure and easy operating.
Product Application
Vertical Vibration Chinese Vibration Climatic Chamber for Rubber Plastic Parts is perfect for the vibration testing for the household goods, electronic products, car parts, and so on.
high frequency vibration tester can meet the testing standards such as MIL, ASTM, IEC, ISO,BS, JIS.
It have the big diameter moving coil, equipped with high strength direction guiding, so that can use all kinds of additional table to do different kind of parts and products testing, and can get good vibration transmissibility. The testers can easily to fulfill the small parts testing need, including the transportation simulating testing, integrating vibration testing, and the earthquake simulating testing.
Our service
1.Client is first. We are trying to bring maximum profit to our clients and offer best quality products
2.Credibility is the most important.
3.Quality control is our life.
4.Great sense of responsibility.
Welcome our new and regular customers visit our factory, and any inquiries please feel free to contact us !
