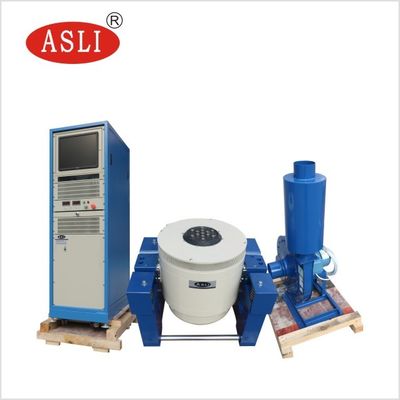

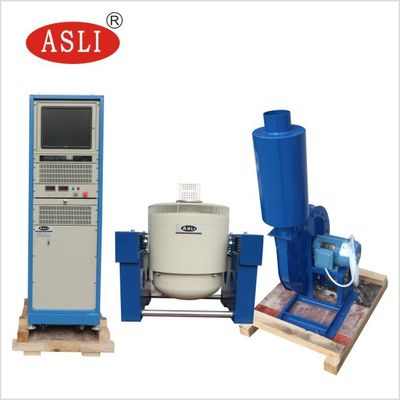

Random Vibration Testing Equipment with 3KN Rated Force and Frequency Range from 3 to 3500 Hertz for Precise Lab Testing Applications
Product Details
| Application: | Materila, Automobile Parts, Packing, House Hold Products | Voltage: | 380V |
|---|---|---|---|
| After-sales Service Provided: | Video Technical Support,Online Support,Engineers Available To Service Machinery Overseas,Field Maintenance And Repair Service | Warranty: | 1 Year |
| Applicable Industries: | Military Industry, Civil, Electronic Appliances, Automotive, Spare Parts, Electronics, Aviation | Product Name: | Vibration Test System |
| Shaker Force: | 3000N | Suitable For: | Not More Than 100kgs Test Items |
| Shaker Type: | Vertical Vibration Type | ||
| Highlight |
3KN Random Vibration Testing Equipment,380V Random Vibration Testing Equipment,Lab Testing Equipment |
||
Product Description
3KN Small Force High Frequecy Electrooic Vibration Shaker System In Lab Equipment Within 100k kgs Load
Model specification in display
| System Specification | |||
| System Model: | ES- 3 | ||
| Frequency Range: | 3~3500 | ||
| Rated Force | Sine N | 3000 | |
| Random N | 3000 | ||
| Shock N | 6000 | ||
| Maximum Acc. | sine (m/s2) | 1000 | |
| Random (m/s2 rms) | 1000 | ||
| Shock(m/s2) | 2000 | ||
| Maximum Vel. | sine (m/s2) | 1.6 | |
| Shock(m/s2) | 1.6 | ||
| Maximum Disp. | Maximum Travel mm (p-p) |
25 | |
| Moving Coil | 3.5kgs | ||
| Dimension of moving coil | Dia 230mm | ||
| Max Load: | 100kgs | ||
Other availabel vibration shaker selections
| Model |
Rated Sine Force (N) |
Rated Random Force (N) |
Frequency Range (Hz) |
Rated Acceleration (m/s2) | Rated Speed(m/s) |
Rated displacement (p-p)mm |
Max. Loading (Kg) | moving coil(Kg) |
Dimension of Moving coil(mm) |
| ES-1 | 1000 | 1000 | 3-3500 | 400 | 1.2 | 25 | 70 | 2.5 | Φ150 |
| ES-2 | 2000 | 2000 | 3-3500 | 800 | 1.6 | 25 | 70 | 2.5 | Φ150 |
| ES-2a | 2000 | 2000 | 3-3500 | 300 | 1.6 | 40 | 70 | 8 | Φ230 |
| ES-3 | 3000 | 3000 | 3-3500 | 1000 | 1.6 | 25 | 100 | 3.5 | Φ150 |
| ES-3a | 3000 | 3000 | 3-3500 | 400 | 1.6 | 40 | 120 | 9 | Φ230 |
| ES-6 | 6000 | 6000 | 3-3500 | 1000 | 1.6 | 25 | 180 | 6.5 | Φ230 |
| ES-6a | 6000 | 6000 | 3-3500 | 1000 | 1.6 | 51 | 250 | 12 | Φ230 |
| ES-10 | 10000 | 10000 | 3-3000 | 1000 | 1.8 | 51 | 270 | 14 | Φ240 |
| ES-20 | 20000 | 20000 | 3-3000 | 1000 | 1.8 | 51 | 300 | 30 | Φ320 |
| ES-30 | 30000 | 30000 | 3-2800 | 1000 | 1.8 | 5l | 450 | 40 | Φ450 |
| ES-40 | 40000 | 40000 | 3-2800 | 1000 | 1.8 | 51 | 500 | 50 | Φ450 |
| ES-50 | 50000 | 50000 | 3-2700 | 1000 | 1.8 | 51 | 750 | 50 | Φ450 |
| ES-60 | 60000 | 60000 | 3-2700 | 1000 | 1.8 | 51 | 750 | 60 | Φ450 |
| ES-100 | 100000 | 100000 | 3-2500 | 1000 | 1.8 | 51 | 1000 | 90 | Φ450 |
| ES-120 | 120000 | 120000 | 3-2200 | 1000 | 1.8 | 51 | 1100 | 90 | Φ500 |
| ES-160 | 160000 | 160000 | 3-2100 | 1000 | 1.8 | 51 | 1500 | 150 | Φ600 |
| ES-200 | 200000 | 200000 | 3-2000 | 1000 | 1.8 | 51 | 2500 | 200 | Φ650 |
| ES-350 | 350000 | 350000 | 3-1700 | 1000 | 1.8 | 51 | 4500 | 300 | Φ870 |
Vibration example for Random testing
Features:
1. Well-designed dynamic circle skeleton, with a higher stage axial resonance frequency.
2. Two-magnetic circuit, magnetic flux leakage low, compact structure and rational.
3. Rocker Rod roller bearings straight and import-oriented composite body stiffness orientation, eccentric load capacity.
4. Trunnion isolation foundation dedicated to hormone use, the installation of mobile convenience.
5. Advanced technology move around the system to ensure that the dynamic circle of high reliability.
6. New duct design and enhance the cooling effect.
7. Static stiffness, dynamic stiffness of the bearing small balloon, raising the vibration table capacity, improve low-frequency performance.
Technical Parameters of Horizontal Vibration Table (X,Y axis test):
Technical Parameters of Vertical Vibration Table(Z, axis test):

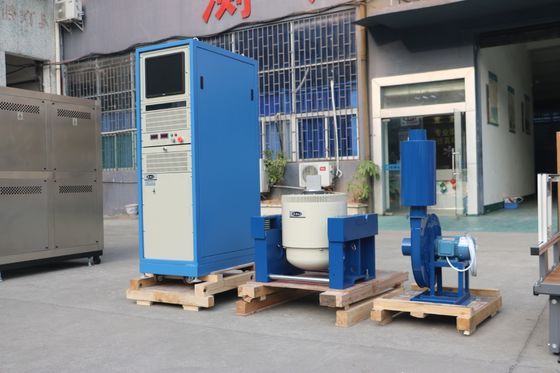

Pics for reference:
Customer Visit ASLi Company:
|
|
