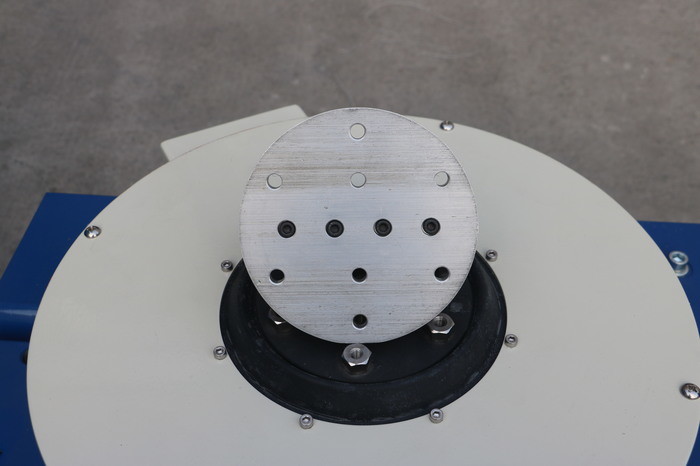

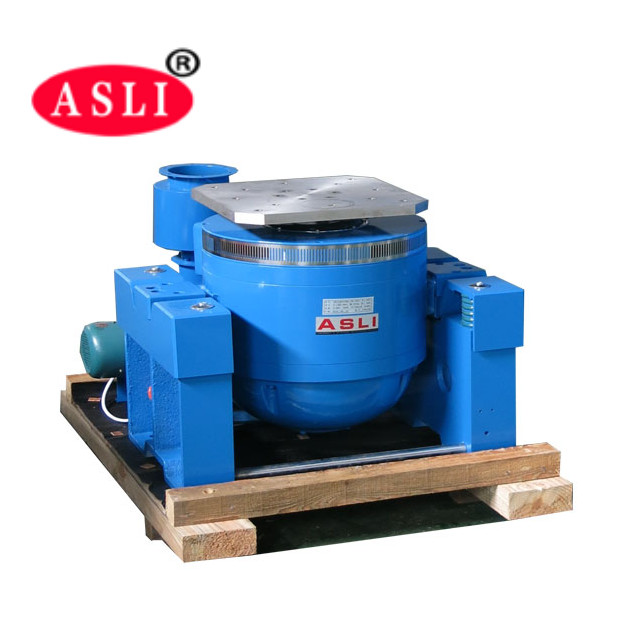

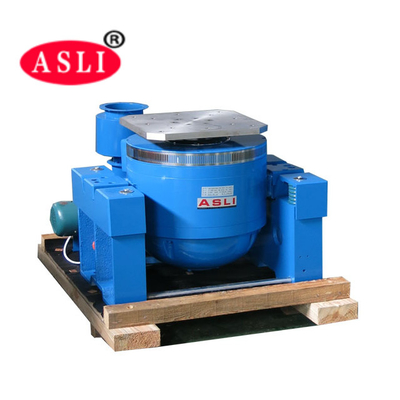

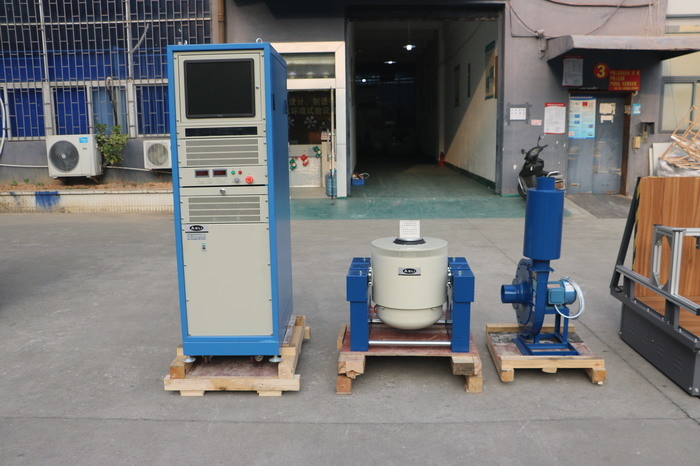

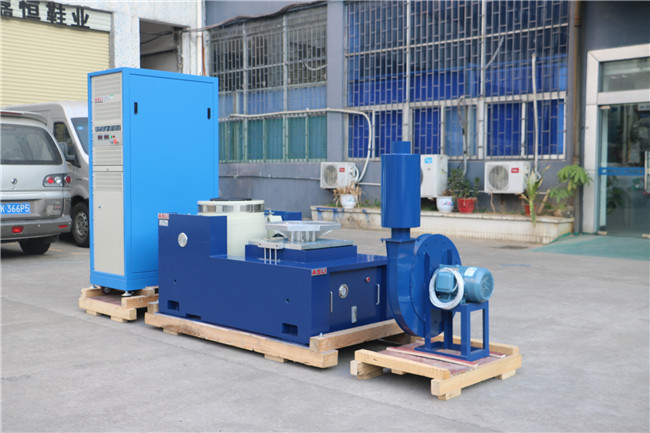

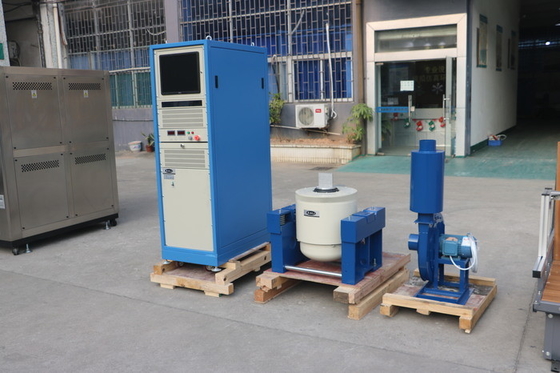

3KN Sine Vibration Testing
Product Details
| Force: | 3000N | Vibration Direction: | Vertical Vibration |
|---|---|---|---|
| Vibration Wave: | Sine | Frequency: | 3~3500hz |
| Displacement: | 25mm | Acceleration: | 1000 M/s2 |
| Table Material: | Aluminum Alloy | Weight: | 450kg |
| Highlight |
Aluminum Alloy Sine Vibration Testing,3KN Sine Vibration Testing,3KN electronic vibration machine |
||
Product Description
High Quality Sine Vibration Testing System with Aluminum Alloy Table
Application:
Features:
1 The careful design of the moving coil skeleton, has higher first-order axial resonant frequency
2 Light armature, high stiffness, 3500 Hz frequency.
3 Computer connecting line control, immediately store materials.
4 Display controlling chart.
5 Low resistance and high performance design, high efficiency, low cost.
6 High reliability, low fault.

vertical extended-bench features:
VT vertical extended-bench and specified clamps, precision calculated, elaborate design, to ensure the customer acquired the best performance according to perfect structure, high quality material and workmanship.
technical parameters of vertical expander:
| Model | Weight (kg) | Max. Frequency (Hz) | Bench Size |
| VT300 | 10 | 2000 | Φ300 |
| VT400 | 16 | 2000 | Φ400 |
| VT500 | 25 | 1500 | Φ500 |
| VT600 | 35 | 1000 | Φ600 |
| VT0303 | 15 | 2000 | 300×300 |
| VT0404 | 22 | 1500 | 400×400 |
| VT0505 | 30 | 500 | 500×500 |
| VT0606 | 58 | 350 | 600×600 |
| VT0808 | 140 | 350 | 800×800 |
| VTl010 | 180 | 350 | 1000×1000 |
| VT1212 | 250 | 350 | 1200 × 1200 |
| VT1212 (Round bench) | 220 | 350 | Φ1200 |
