CE 600kg.F Shaker Table Vibration Testing Lab Test Equipment
Product Details
| Application: | Materila, Automobile Parts, Packing, House Hold Products | Voltage: | 380V |
|---|---|---|---|
| After-sales Service Provided: | Video Technical Support,Online Support,Engineers Available To Service Machinery Overseas,Field Maintenance And Repair Service | Warranty: | 1 Year |
| Applicable Industries: | Military Industry, Civil, Electronic Appliances, Automotive, Spare Parts, Electronics, Aviation | Product Name: | Vibration Test System |
| Shaker Force: | 6KN | Suitable For: | Max Loading 300kgs Test Items |
| Frequency Range: | 3~3500HZ | ||
| Highlight |
600kg.f shaker table vibration testing,CE shaker table vibration testing,600kg.f lab test equipment |
||
Product Description
ASLI Brand Vibration Shaker Vibration Tester Sinusoidal Vibration Test Software Manufacturer Factory Price

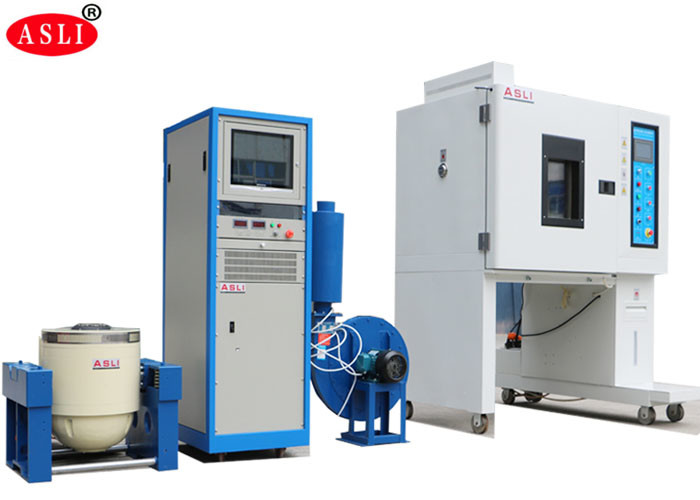

ASLI Brand Vibration Shaker Vibration Tester Sinusoidal Vibration Test Software Manufacturer Factory Price can complete sinusoidal vibration test and broadband random vibration test respectively, and can complete classic (half sinusoid) pulse and shock response spectrum test.It can also combined with a Temperature Humidity Test Chamber together.
It is widely used in the fields of national defense, weapon, aviation, spaceflight, communication, electronics, electric appliance, transportation and household appliances.
For vibration test system, Please prepared for below and send your inquiry, We will help torecommond you suitable model
Specimen Description
Specimen Test Mass
Specimen Dimensions
Test profile if available
Max acceleration of test
X,Y,Z direction test or only Z direction test
Model specification in display
| System Specification | |||
| System Model: | ES- 6 | ||
| Frequency Range: | 3~3500 | ||
| Rated Force | Sine N | 6000 | |
| Random N | 6000 | ||
| Shock N | 12000 | ||
| Maximum Acc. | sine (m/s2) | 1000 | |
| Random (m/s2 rms) | 1000 | ||
| Shock(m/s2) | 2000 | ||
| Maximum Vel. | sine (m/s2) | 1.6 | |
| Shock(m/s2) | 1.6 | ||
| Maximum Disp. | Maximum Travel mm (p-p) |
25 | |
| Moving Coil | 6.5kgs | ||
| Dimension of moving coil | Dia 230mm | ||
| Max Load: | 180kgs | ||
Other availabel vibration shaker selections
| Model |
Rated Sine Force (N) |
Rated Random Force (N) |
Frequency Range (Hz) |
Rated Acceleration (m/s2) | Rated Speed(m/s) |
Rated displacement (p-p)mm |
Max. Loading (Kg) | moving coil(Kg) |
Dimension of Moving coil(mm) |
| ES-1 | 1000 | 1000 | 3-3500 | 400 | 1.2 | 25 | 70 | 2.5 | Φ150 |
| ES-2 | 2000 | 2000 | 3-3500 | 800 | 1.6 | 25 | 70 | 2.5 | Φ150 |
| ES-2a | 2000 | 2000 | 3-3500 | 300 | 1.6 | 40 | 70 | 8 | Φ230 |
| ES-3 | 3000 | 3000 | 3-3500 | 1000 | 1.6 | 25 | 100 | 3.5 | Φ150 |
| ES-3a | 3000 | 3000 | 3-3500 | 400 | 1.6 | 40 | 120 | 9 | Φ230 |
| ES-6 | 6000 | 6000 | 3-3500 | 1000 | 1.6 | 25 | 180 | 6.5 | Φ230 |
| ES-6a | 6000 | 6000 | 3-3500 | 1000 | 1.6 | 51 | 250 | 12 | Φ230 |
| ES-10 | 10000 | 10000 | 3-3000 | 1000 | 1.8 | 51 | 270 | 14 | Φ240 |
| ES-20 | 20000 | 20000 | 3-3000 | 1000 | 1.8 | 51 | 300 | 30 | Φ320 |
| ES-30 | 30000 | 30000 | 3-2800 | 1000 | 1.8 | 5l | 450 | 40 | Φ450 |
| ES-40 | 40000 | 40000 | 3-2800 | 1000 | 1.8 | 51 | 500 | 50 | Φ450 |
| ES-50 | 50000 | 50000 | 3-2700 | 1000 | 1.8 | 51 | 750 | 50 | Φ450 |
| ES-60 | 60000 | 60000 | 3-2700 | 1000 | 1.8 | 51 | 750 | 60 | Φ450 |
| ES-100 | 100000 | 100000 | 3-2500 | 1000 | 1.8 | 51 | 1000 | 90 | Φ450 |
| ES-120 | 120000 | 120000 | 3-2200 | 1000 | 1.8 | 51 | 1100 | 90 | Φ500 |
| ES-160 | 160000 | 160000 | 3-2100 | 1000 | 1.8 | 51 | 1500 | 150 | Φ600 |
| ES-200 | 200000 | 200000 | 3-2000 | 1000 | 1.8 | 51 | 2500 | 200 | Φ650 |
| ES-350 | 350000 | 350000 | 3-1700 | 1000 | 1.8 | 51 | 4500 | 300 | Φ870 |
Vibration example for Random testing
Features:
1. Well-designed dynamic circle skeleton, with a higher stage axial resonance frequency.
2. Two-magnetic circuit, magnetic flux leakage low, compact structure and rational.
3. Rocker Rod roller bearings straight and import-oriented composite body stiffness orientation, eccentric load capacity.
4. Trunnion isolation foundation dedicated to hormone use, the installation of mobile convenience.
5. Advanced technology move around the system to ensure that the dynamic circle of high reliability.
6. New duct design and enhance the cooling effect.
7. Static stiffness, dynamic stiffness of the bearing small balloon, raising the vibration table capacity, improve low-frequency performance.

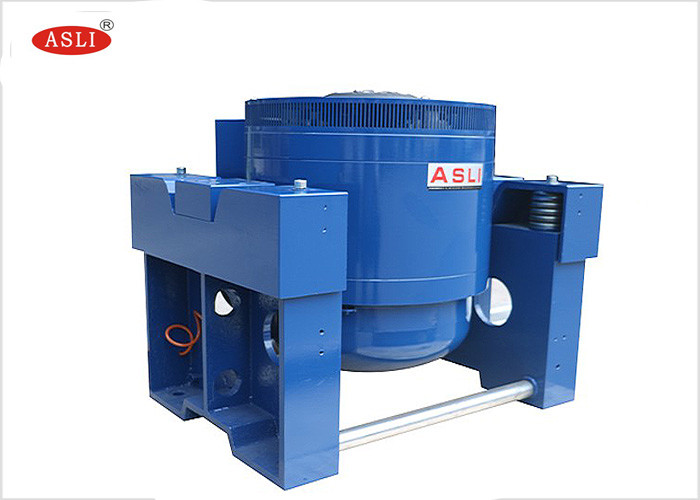

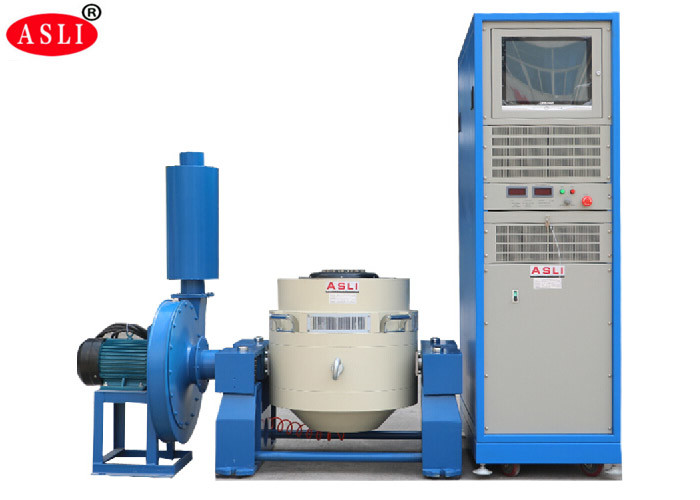

Pics for reference:
Packing image:
Looking to your contact for ASLI Brand Vibration Shaker Vibration Tester Sinusoidal Vibration Test Software Manufacturer Factory Price
