ES-10 mechanical vibration test system.pdf

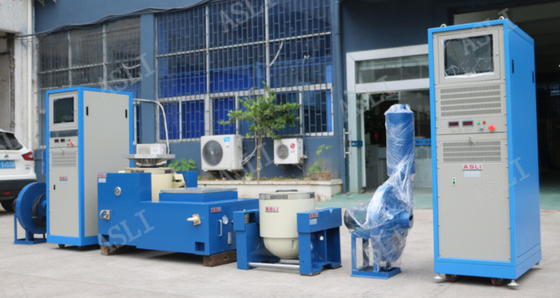

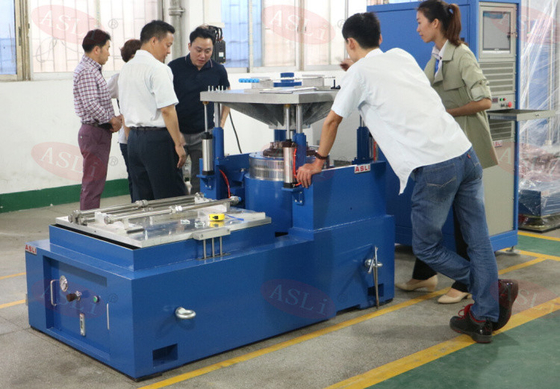

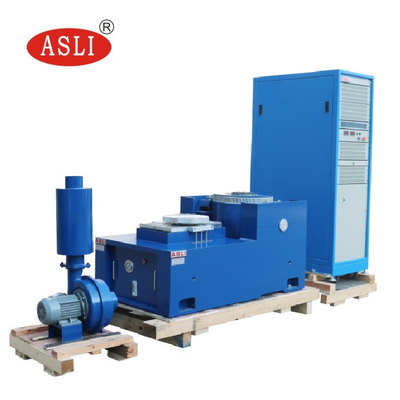

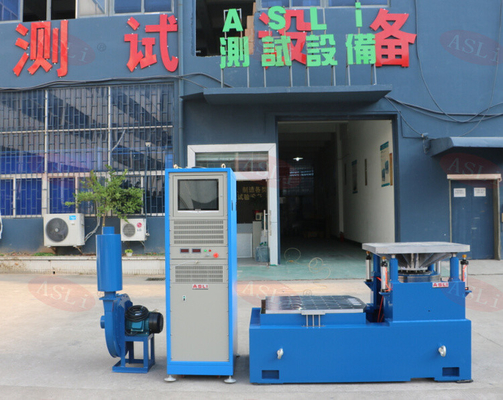

Vertical or Horizontal Operation Vibration Testing Machine for Sine and Random Vibration Test
Independent research and developement production in the same industry for the high performance excelent quality ,maintainance and technical suppport .
technical parameters:
| Model |
Rated Sine Force (N) |
Rated Random Force (N) |
Frequency Range (Hz) |
Rated Acceleration (m/s2) | Rated Speed(m/s) |
Rated displacement (p-p)mm |
Max. Loading (Kg) | moving coil(Kg) |
Dimension of Moving coil(mm) |
| ES-3 | 3000 | 3000 | 3-3500 | 1000 | 1.6 | 25 | 100 | 3.5 | Φ150 |
| ES-3a | 3000 | 3000 | 3-3500 | 400 | 1.6 | 40 | 120 | 9 | Φ230 |
| ES-6 | 6000 | 6000 | 3-3500 | 1000 | 1.6 | 25 | 180 | 6.5 | Φ230 |
| ES-6a | 6000 | 6000 | 3-3500 | 1000 | 1.6 | 51 | 250 | 12 | Φ230 |
| ES-10 | 10000 | 10000 | 3-3000 | 1000 | 1.8 | 51 | 270 | 14 | Φ240 |
| ES-20 | 20000 | 20000 | 3-3000 | 1000 | 1.8 | 51 | 300 | 30 | Φ320 |
| ES-30 | 30000 | 30000 | 3-2800 | 1000 | 1.8 | 5l | 450 | 40 | Φ450 |
| ES-40 | 40000 | 40000 | 3-2800 | 1000 | 1.8 | 51 | 500 | 50 | Φ450 |
MULTI-MODE REGULATION
Sine,random,resonant search and dwell , typical impact and road simulation modes .
STRONGE CARRYING CAPACITY
the central load airbag has large static stiffness ,small dynamic rigidity ,strong carry capacity and good effect when the amplitudes changes .
INTERFERENCE CONTROL
Double magnetic design flux leakage and the magnetic field is uniformly solved to strong electromagnetic field control circuit interference

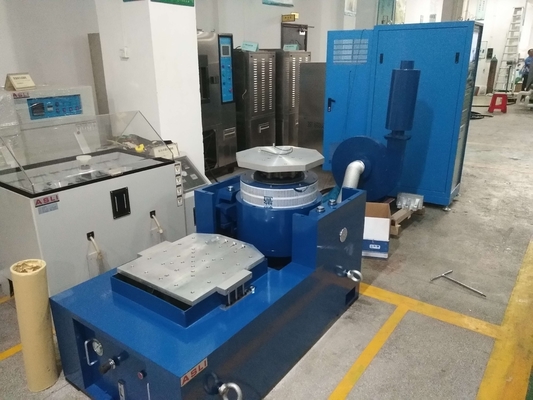

technical parameters of horizontal expander:
| Model | Bench Size (mm) | Frequency Range (Hz) | Weight of Moving Parts (kg) |
| LT0303 | 300×300×22 300×300×26 300×300×30 |
5-1000 5-1500 5-2000 |
6.6 7.8 9.0 |
| LT0404 | 400×400×22 400×400×26 400×400×30 |
5-l000 5-1400 5-2000 |
11.2 13.2 16.0 |
| LT0505 | 500×500×25 500×500×30 500×500×35 |
5-1000 5-1500 5-2000 |
19.3 23.1 27.0 |
technical parameters of vertical expander:
| Model | Weight (kg) | Max. Frequency (Hz) | Bench Size |
| VT300 | 10 | 2000 | Φ300 |
| VT400 | 16 | 2000 | Φ400 |
| VT500 | 25 | 1500 | Φ500 |
| VT600 | 35 | 1000 | Φ600 |
| VT0303 | 15 | 2000 | 300×300 |
| VT0404 | 22 | 1500 | 400×400 |
| VT0505 | 30 | 500 | 500×500 |
| VT0606 | 58 | 350 | 600×600 |
| VT0808 | 140 | 350 | 800×800 |
| VTl010 | 180 | 350 | 1000×1000 |
