High Frequency Vibration Test Stand ES-30.pdf
Vertical & Horizontal Electromagnetic Vibration Tester/ Shaker for Package Testing
Electromagnetic Vibration shaker is dedicated to high quality, high performance and high reliability, precision and accuracy, and convenient operation. It is a test platform that meets all kinds of test specifications, and can be executed including IEC, MIL-STD, JIS, ASTM and other specifications.
| Shaker | |
| Sine force (peak) | 30kN |
| Shock force (peak) | 60 kN |
| Frequency range | 5~2800 Hz |
| Displacement (continuous) | 100 mm |
| Max. Velocity | 1.8 m/s |
| Max. Acceleration | 75 G |
| Armature Diameter | 445 mm |
| 1st order resonant frequency | 2,400 Hz |
| Allowable eccentric moment | >500 Nxm |
| Armature weight | 40 kg |
| HE/ST screw dimension | M10 (metric) |
| Axial vibration isolation frequency | <3 Hz |
| Max. Payload | 500 kg |
| Magnetic flux leakage | ≤1 mT |
| Dimensions (L×W×H, unpacked) | 1,330x860x1,250 mm |
| Weight (unpacked) | 2,500 kg |
| Installation | Rubber mat (anchor bolts required) |
| Power Amplifier | |
| Amplifier output | 30 kVA |
| SNR | >65 dB |
| Rated output voltage | 120 Vrms |
| Dimensions (L×W×H, unpacked) | 800x900x2,100 mm |

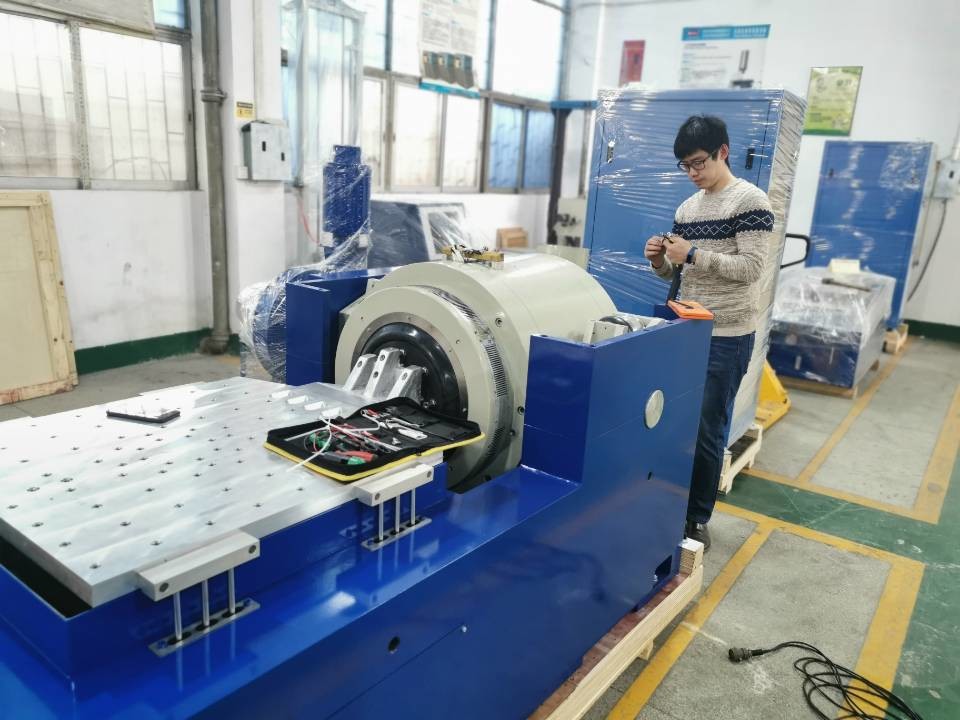

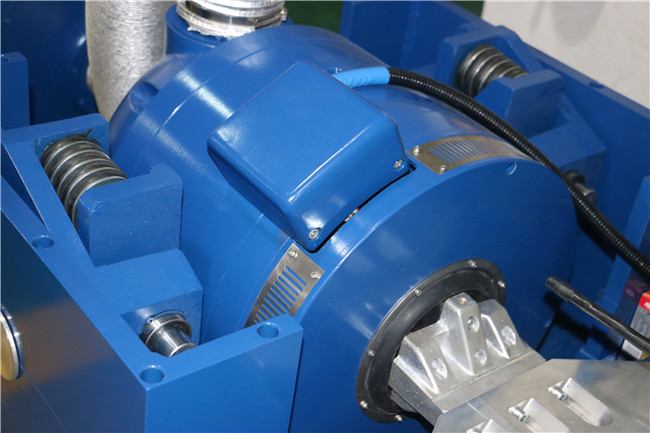

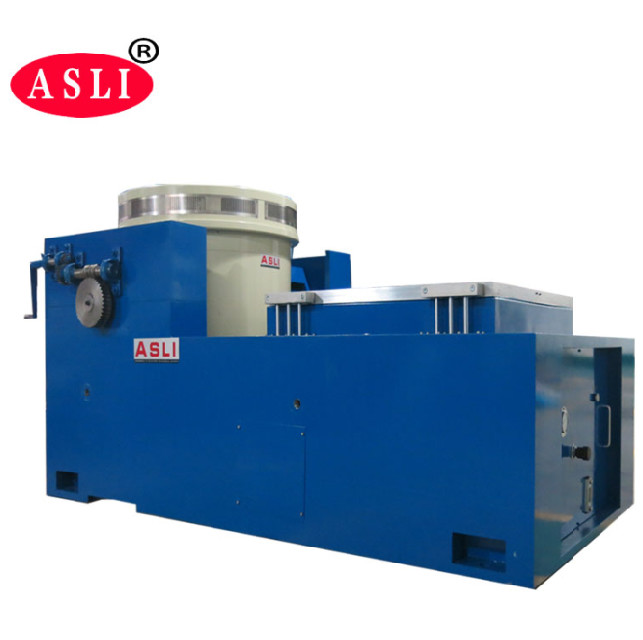

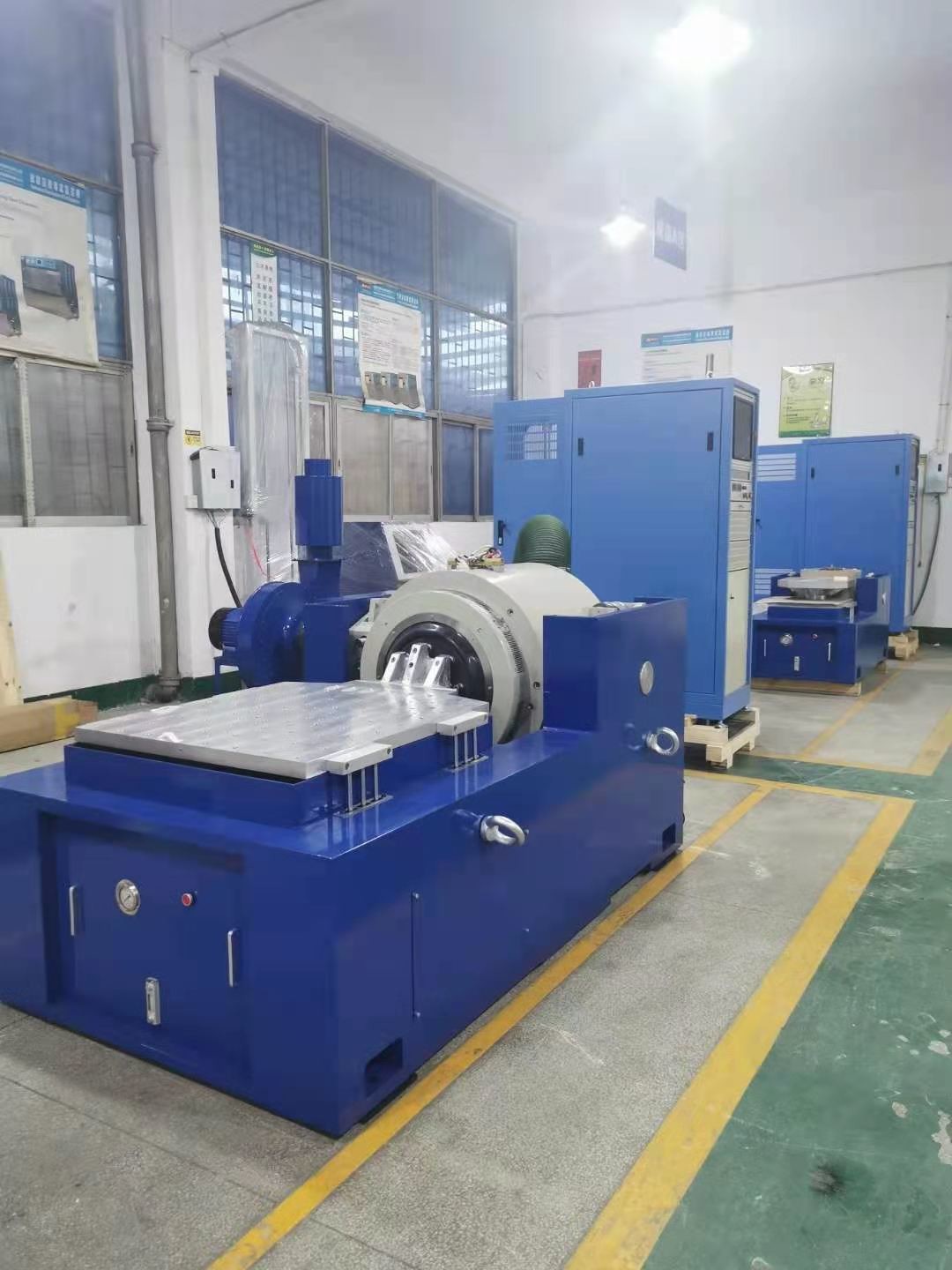

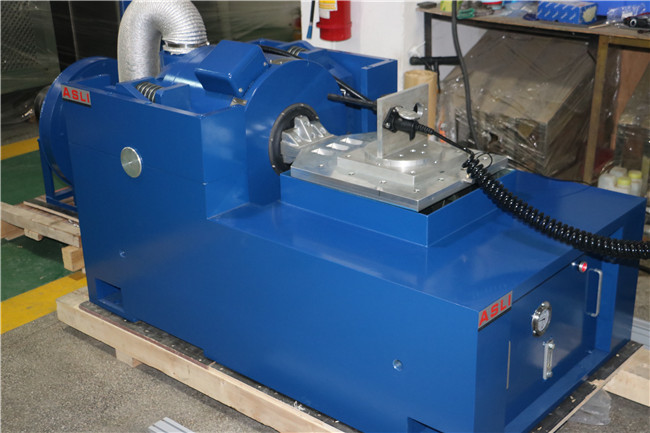

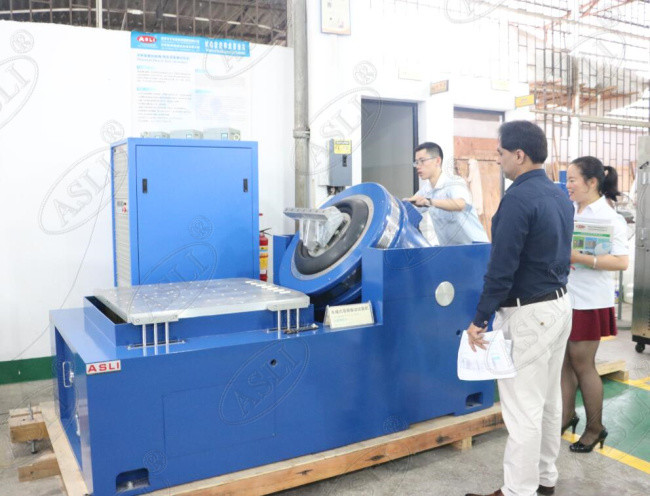

Pictures for reference:
Product features
* Flexible suspension system and straight line guide, strong bearing capacity, good guidance performance and high stability.
* The static stiffness of the central load airbag is large, the dynamic stiffness is small, the bearing capacity is strong, and the dynamic performance is excellent.
* Rapid self-examination diagnosis and chain protection, high safety and reliability;
* The air bag isolating and damping device makes the vibrator do not need the special foundation, perfectly reproduces the vibration wave and reduces the vibration transmission.
* Provide different use of horizontal and vertical expansion platforms;
* It can be used with all kinds of vibration controllers, and the operation is simple.
