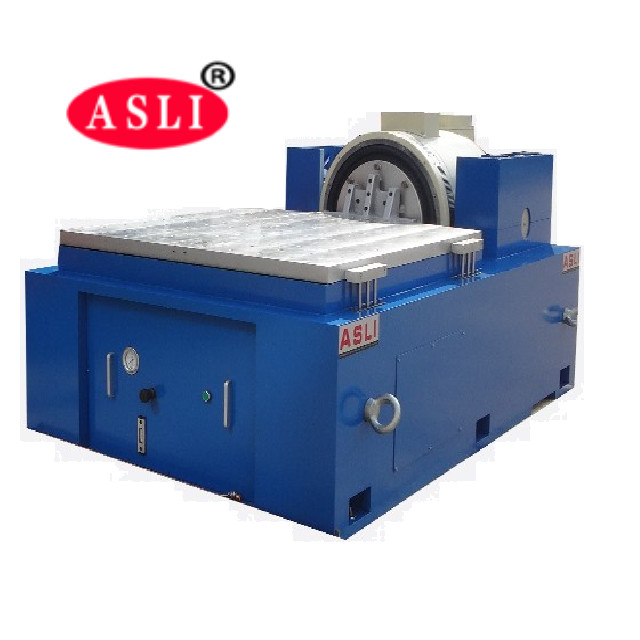

ASTM D4728 300kg.F Electrodynamic Vibration Shaker Lab Testing Instruments
Product Details
| Customized Support: | OEM | Brand: | ASLI |
|---|---|---|---|
| Place Of Origin: | Guangdong, China | Power: | Electronic |
| Certificate: | ISO 9001:2008 | Packing Material: | Poly Wood Case |
| Vibration: | 3 Axis | Vibration Force: | Customized |
| Table Size: | 800X800mm | Max Load: | 300Kg |
| Highlight |
ASTM D4728 vibration shaker,300kg.F electrodynamic shaker,lab testing vibration instrument |
||
Product Description
The ASTM D4728 300kg.F Electrodynamic Vibration Shaker is a high-performance laboratory testing instrument designed for product vibration and shock environmental testing, environmental stress screening, and reliability assessment. It serves as a versatile test platform for products across aerospace, communications, electronics, electrical, home appliances, and other industries. The system complies with a wide range of test specifications, including IEC, MIL-STD, JIS, and ASTM standards.
| Model | Rated Sine Force (N) | Rated Random Force (N) | Frequency Range (Hz) | Rated Acceleration (m/s²) | Rated Speed (m/s) | Rated Displacement (p-p) mm | Max. Loading (Kg) | Moving Coil (Kg) | Dimension of Moving Coil (mm) |
|---|---|---|---|---|---|---|---|---|---|
| ES-3 | 3000 | 3000 | 3–3500 | 1000 | 1.6 | 25 | 100 | 3.5 | Φ150 |
| ES-3a | 3000 | 3000 | 3–3500 | 400 | 1.6 | 40 | 120 | 9 | Φ230 |
| ES-6 | 6000 | 6000 | 3–3500 | 1000 | 1.6 | 25 | 180 | 6.5 | Φ230 |
| ES-6a | 6000 | 6000 | 3–3500 | 1000 | 1.6 | 51 | 250 | 12 | Φ230 |
| ES-10 | 10000 | 10000 | 3–3000 | 1000 | 1.8 | 51 | 270 | 14 | Φ240 |
| ES-20 | 20000 | 20000 | 3–3000 | 1000 | 1.8 | 51 | 300 | 30 | Φ320 |
| ES-30 | 30000 | 30000 | 3–2800 | 1000 | 1.8 | 51 | 450 | 40 | Φ450 |
| ES-40 | 40000 | 40000 | 3–2800 | 1000 | 1.8 | 51 | 500 | 50 | Φ450 |
| ES-50 | 50000 | 50000 | 3–2700 | 1000 | 1.8 | 51 | 750 | 50 | Φ450 |
| ES-60 | 60000 | 60000 | 3–2700 | 1000 | 1.8 | 51 | 750 | 60 | Φ450 |
| ES-100 | 100000 | 100000 | 3–2500 | 1000 | 1.8 | 51 | 1000 | 90 | Φ450 |
| ES-120 | 120000 | 120000 | 3–2200 | 1000 | 1.8 | 51 | 1100 | 90 | Φ500 |
| ES-160 | 160000 | 160000 | 3–2100 | 1000 | 1.8 | 51 | 1500 | 150 | Φ600 |
| ES-200 | 200000 | 200000 | 3–2000 | 1000 | 1.8 | 51 | 2500 | 200 | Φ650 |
| ES-350 | 350000 | 350000 | 3–1700 | 1000 | 1.8 | 51 | 4500 | 300 | Φ870 |
- Flexible suspension system and straight-line guide deliver strong bearing capacity, excellent guidance performance, and high stability.
- Central load airbag provides high static stiffness, low dynamic stiffness, strong bearing capacity, and outstanding dynamic performance.
- Rapid self-diagnosis and chain protection ensure high safety and reliability.
- Airbag isolation and damping device eliminates the need for a special foundation, perfectly reproduces vibration waves, and reduces vibration transmission.
- Compatible with horizontal and vertical expansion platforms for versatile testing setups.
- Works with all types of vibration controllers for simple, straightforward operation.

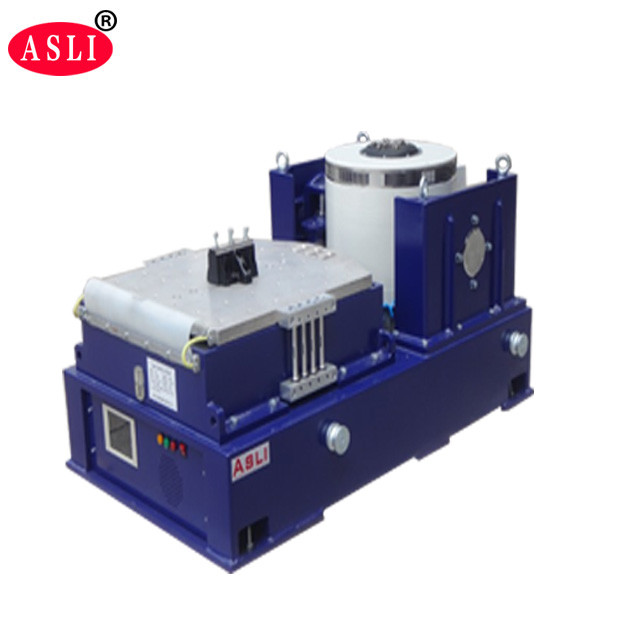

Electromagnetic Vibration Table
Customers' Visit to ASLI
Product Highlights
ASTM D4728 300kg.F Electrodynamic Vibration Shaker with 3-axis testing, 800x800mm table, and ISO 9001:2008 certification. Features flexible suspension, airbag damping, and high stability. Supports OEM customization for vibration force. Ideal for aerospace, electronics, and automotive reliability tests.
