ISO High Frequency 300kg.F Vibration Tester Machine For Laboratory
Product Details
| Vibration Force: | Customized | Brand: | ASLI |
|---|---|---|---|
| Place Of Origin: | Guangdong, China | Power: | Electronic |
| Certificate: | ISO 9001:2008 | Packing Material: | Poly Wood Case |
| Vibration: | Vertical And Horizontal | Table Size: | Customized |
| Max Load: | 300 Kg | ||
| Highlight |
ISO vibration tester machine,300kg.f vibration tester machine,300kg.f laboratory test equipment |
||
Product Description

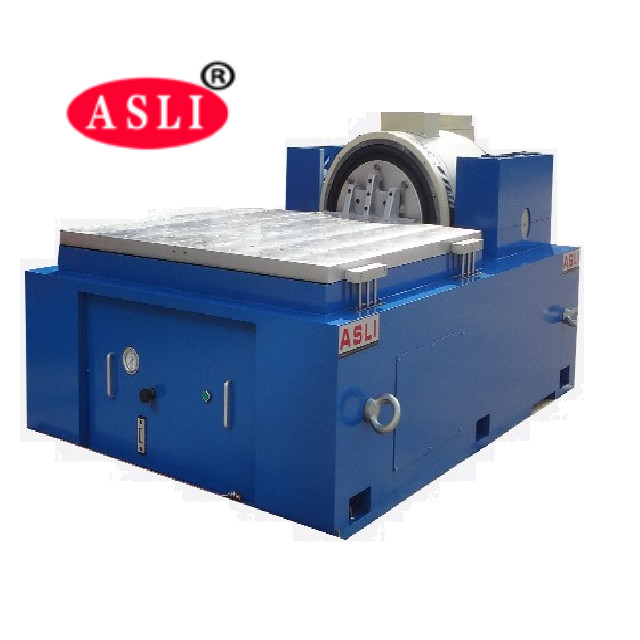

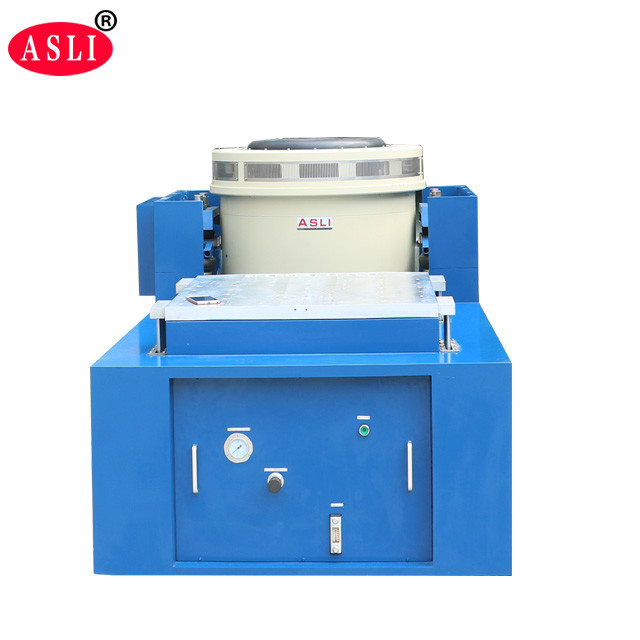

ASTM ISO Triaxial High Frequency Vibration Tester/X+Y+Z Vibration Test Bench
Digital switching power amplifier
The system uses a digital power amplifier with sinusoidal pulse width modulation. The working principle is: using the high-frequency switching capability of the IGBT FET, the low-voltage signal input by the controller is amplified by the digital circuit and restored to the original signal, and then output to the moving coil of the vibrating table to promote the electric vibration. Taiwan movement.
The main components of the intelligent high voltage power amplifier are: front control, power amplifier module, protection circuit, power supply part and electric cabinet. The system adopts high voltage and small current output form, which reduces the power loss during transmission and achieves effective and reasonable impedance matching.
| Sinusoidal thrust | 300kgf |
| Random thrust | 300kgf rms |
| Impact thrust | 600kgf |
| Frequency Range | 5~2800Hz |
| Continuous displacement | 25.4mm |
| Maximum speed | 1.8m/s |
| Switching power amplifier | |
| Amplifier output | 3.5kVA |
| Signal to noise ratio | >65dB |
| IF gain | ≥80 |
| Total harmonic distortion (at rated output) | Less than 0.5% when DC (0.1Hz) to 500Hz; less than 1.0% when 500Hz to 5000Hz |
| Power amplifier frequency response | DC (0.1Hz) to 4500Hz: ±3dB; |
| Mean Time Between Failure (MTBF) | >35,000 hours |
| Vertical expansion countertop | |
| Table size | 600mm×600mm |
| Upper limit ope rating frequency | Sine 2200Hz, random 3500Hz |
| Counter weight | 30kg |
| Countertop material | Aluminum alloy |
| Vibration controller | |
| operating system | Windows |
| Operation interface | Chinese and English interface |
| Software function | Sine, random, classic shock, resonant search and resident |
Any questions, please feel free to send us inquiry. ^_^
