ISTA 6000N Electrodynamic 3 Axis Vibration Table For Mobile Phone
Product Details
| Sine Force: | 6000N | Speed: | 1.6m/s |
|---|---|---|---|
| Displacement: | 25mm | Frequency: | 3~3500HZ |
| Loading: | 180kg | Acceleration: | 100g |
| Armature: | 230mm | ||
| Highlight |
6000N electrodynamic vibration table,3 axis vibration table for mobile phone,ISTA vibration table with warranty |
||
Product Description
Electrodynamic Shaker For Mobile Phone Vibration Test Performed Ista Iec Standard
Application

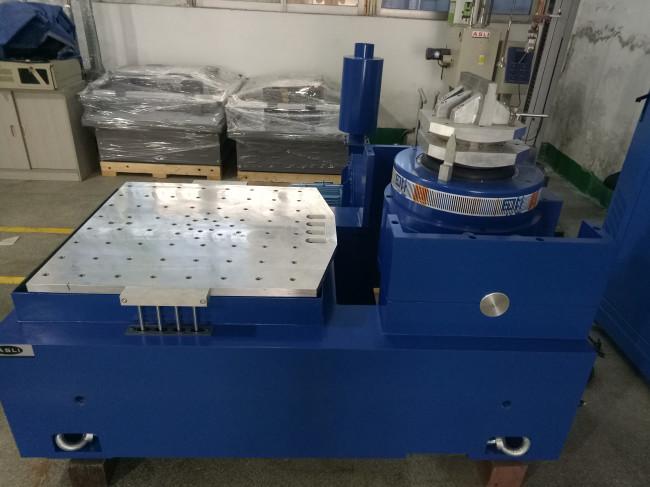

High Frequency Vibration Shaker adopted the 'double-magnetic circuit structure','self-generated skeleton action circles', 'Airborne Support' and 'roller bearings and linear guidance','trunnion isolation' advanced modern technology and special technology, can be completed in X, Y, Z three-axis sinusoidal vibration test and broadband random vibration tests, to be completed by the classical (half - sine) pulse and shock response spectrum test. It widely used in national defense, weapons, aviation, aerospace, communications, electronics, electrical appliances, communications, home appliances and other fields.
(1) Rated Force: sine force 6000N; random force 6000N; shock force 12000N;
(2) Frequency Range: 5Hz to 3500Hz, Fixed frequency, sweep back and forth, sine, random, shock
(3) Sweep-frequency Mode: linear, logarithmic, sweep back and forth, fixed frequency
(4) Sweep-frequency Times: 1 to 32767
(5) Sweep-frequency Time: fixed frequency/single 1-3600mins, sweep-frequency curves can be displayed.
(6) Max. Acceleration 1000m/s2 (non load)
(7) Max Load 180Kg
(8) Max. Displacement: 25mm p-p (non load), double peak
(9) Impact Displacement: 25 mm
(10) Weight of Moving Coil: 6.5kg
(11) Vibration Directions: vertical
(12) Vibration Wave: sine, random, shock

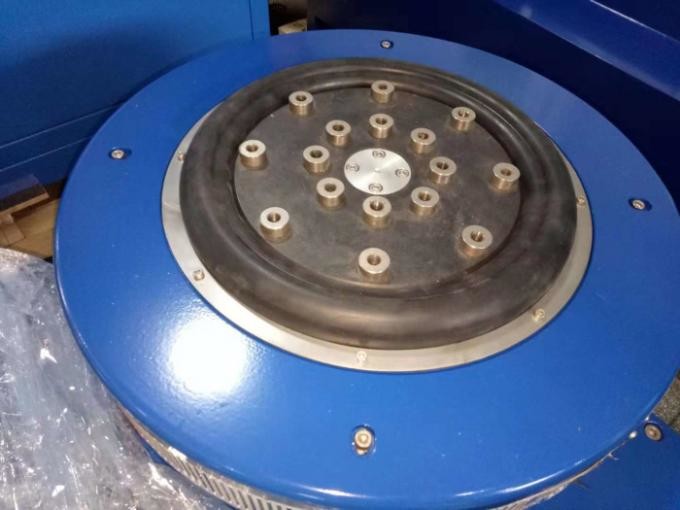

(13) Diameter of the Moving Coil: Φ230 mm
(14) Vibration System Dimension(mm): W850xH750xD550mm
(15) Vibration System weight: 590kg

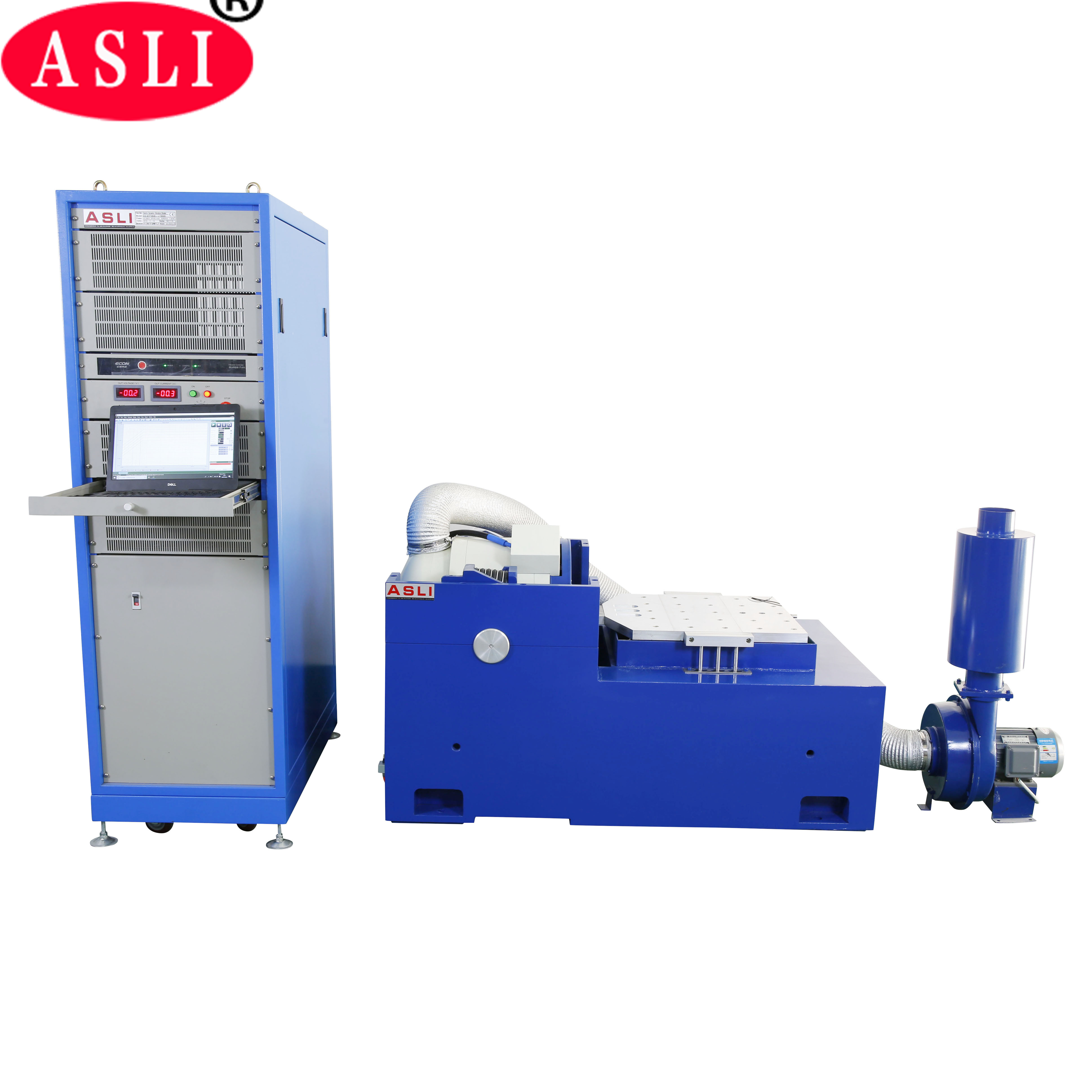

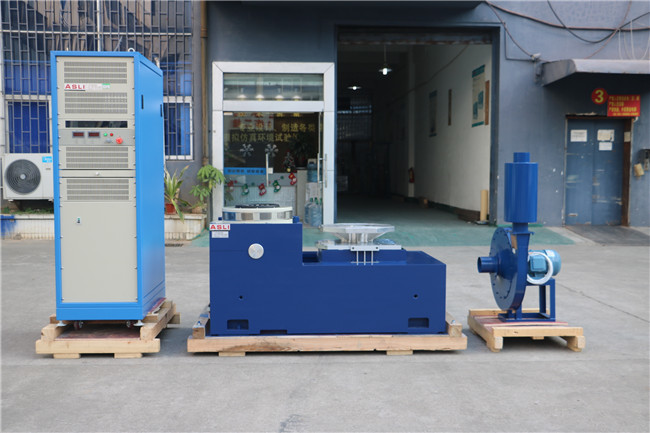

2-2 Vibration Components Details
(1) Vibration Generator 1 set
(2) Vibration Controller 1 set
(3) Communication Connection Chamber 1 set
(4) DA-6 Power Amplifier 1 set
(5) Excitation Power 1 pc
(7) Driver Software 1 set
(8) Cooling System 1 set
(9) Industrial Computer 1 set
Technical Parameters:
| Name | Packing Vibration Table/Vibration Table Tester for Auto Parts | ||||||||
| Model | Rated Sine Force (N) | Rated Random Force (N) | Frequency Range (Hz) | Rated Acceleration (m/s2) | Rated Speed(m/s) | Rated displacement (p-p)mm | Max. Loading (Kg) | moving coil (Kg) | Dimension of Moving coil (mm) |
| ES-6 | 6000 | 6000 | 3-3500 | 1000 | 1.6 | 25 | 180 | 6.5 | Φ230 |
| ES-6a | 6000 | 6000 | 3-3500 | 1000 | 1.6 | 51 | 250 | 12 | Φ230 |
| ES-10 | 10000 | 10000 | 3-3000 | 1000 | 1.8 | 51 | 270 | 14 | Φ240 |
| ES-20 | 20000 | 20000 | 3-3000 | 1000 | 1.8 | 51 | 300 | 30 | Φ320 |
| ES-30 | 30000 | 30000 | 3-2800 | 1000 | 1.8 | 5l | 450 | 40 | Φ450 |
| ES-40 | 40000 | 40000 | 3-2800 | 1000 | 1.8 | 51 | 500 | 50 | Φ450 |
| ES-50 | 50000 | 50000 | 3-2700 | 1000 | 1.8 | 51 | 750 | 50 | Φ450 |
| ES-60 | 60000 | 60000 | 3-2700 | 1000 | 1.8 | 51 | 750 | 60 | Φ450 |
| ES-100 | 100000 | 100000 | 3-2500 | 1000 | 1.8 | 51 | 1000 | 90 | Φ450 |
2. Two-magnetic circuit, magnetic flux leakage low, compact structure and rational.
3. Rocker Rod roller bearings straight and import-oriented composite body stiffness orientation, eccentric load capacity.
4. Trunnion isolation foundation dedicated to hormone use, the installation of mobile convenience.
5. Advanced technology move around the system to ensure that the dynamic circle of high reliability.
6. New duct design and enhance the cooling effect.
7. Static stiffness, dynamic stiffness of the bearing small balloon, raising the vibration table bearing capacity, improve low-frequency performance.
