XYZ Three Axis High Frequency Electrodynamic Shake Vibration Test Bench
Product Details
| Vibration Force: | 6KN | Vibration Direction: | XYZ Three Axis |
|---|---|---|---|
| Frequency: | 5~3500 Hz | Displacement: | 51mm |
| Speed: | 1.8m/s | Application: | Packaging |
| Highlight |
6KN vibration test bench,1.8m/s vibration test bench,6KN laboratory shaker machine |
||
Product Description
Download document for storage -- click here ----→vibration test chamber ES-6.pdf

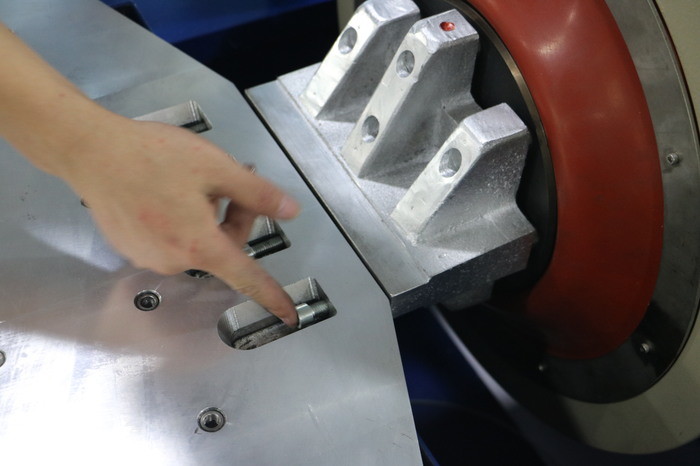

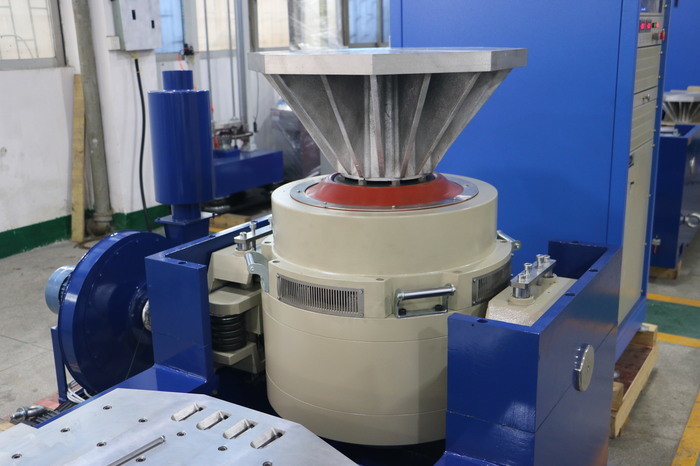

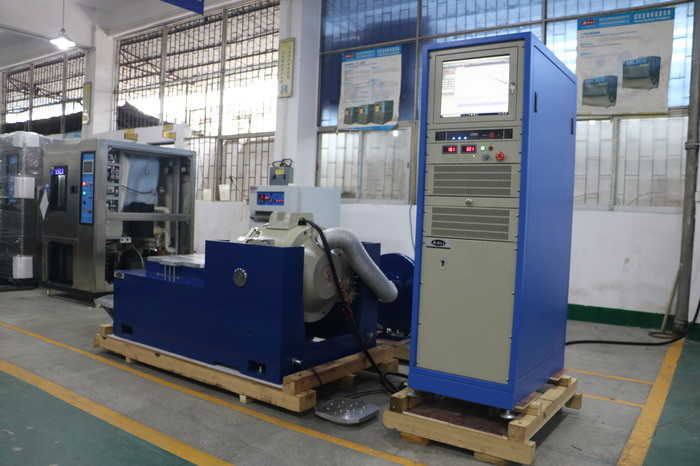

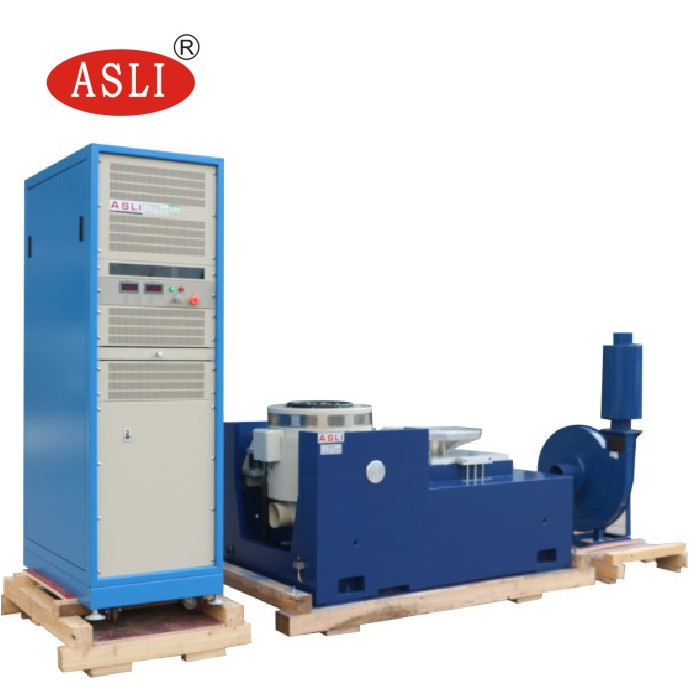

XYZ Three Axis High Frequency Electrodynamic Shake Vibration Test Bench
Electro-dynamic vibration Shaker provides a testing platform for packing and transportation simulation, mechanical shock, mission profile and any other real-world condition simulation. Utilizing the most advanced controller, the closed-loop system can accurately reproduce real-world vibration conditions on products from the industries like electronic, automotive, aerospace, aviation, etc.
TECHNICAL PARAMETERS OF VIBRATION SYSTEM
| Item | Description | |
|
Force (Maximum) |
Sine | 600Kg.f peak |
| Random | 600Kg.f r.ms | |
| Shock | 600Kg.f peak | |
| Frequency Range | 5~3500 Hz | |
| Max. Displacement | (Peak to Peak) 51mm | |
| Max. Velocity | 1.8m/s | |
| Max. Acceleration | 100G (980 m/s2) without loading | |
| Vibration direction | Vertical and horizontal | |
| Armature Diameter | 200 mm | |
| Effective Armature Mass | 6kg | |
| Table screw | 17×M10 | |
| Max. payload | 300kg | |
| Magnetic Leakage | <10gauss | |
| Axial Vibration Isolation Frequency | 2.5HZ | |
| Allowable eccentric moment | >300N.m | |
| Dimension | 1200mm*790mm*840mm (Head Expander is excluded) | |
| Weight | 1600kg (Slip Table is excluded) | |
Features:
1. Well-designed dynamic circle skeleton, with a higher stage axial resonance frequency.
2. Two-magnetic circuit, magnetic flux leakage low, compact structure and rational.
3. Rocker Rod roller bearings straight and import-oriented composite body stiffness orientation, eccentric load capacity.
4. Trunnion isolation foundation dedicated to hormone use, the installation of mobile convenience.
5. Advanced technology move around the system to ensure that the dynamic circle of high reliability.

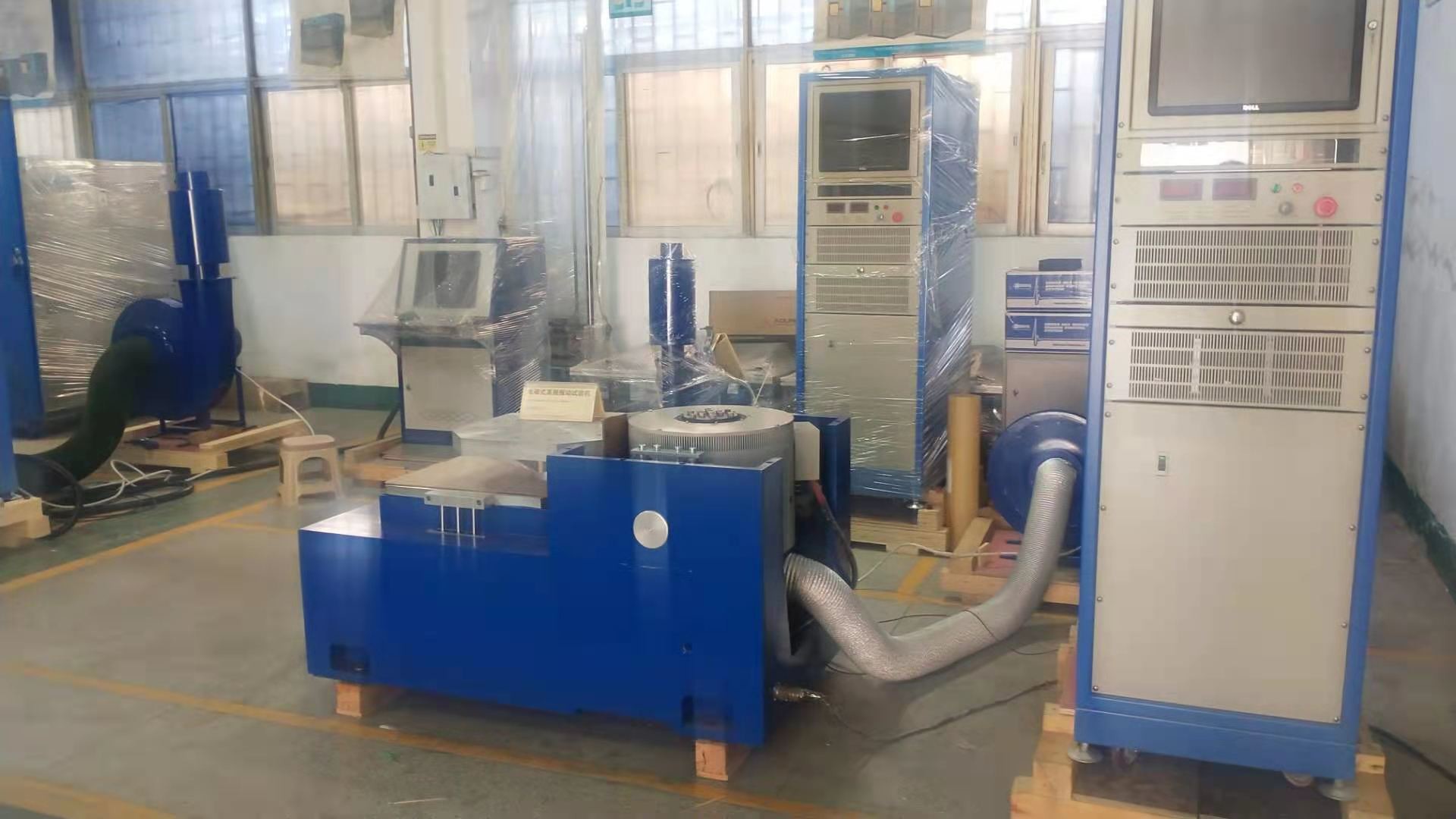

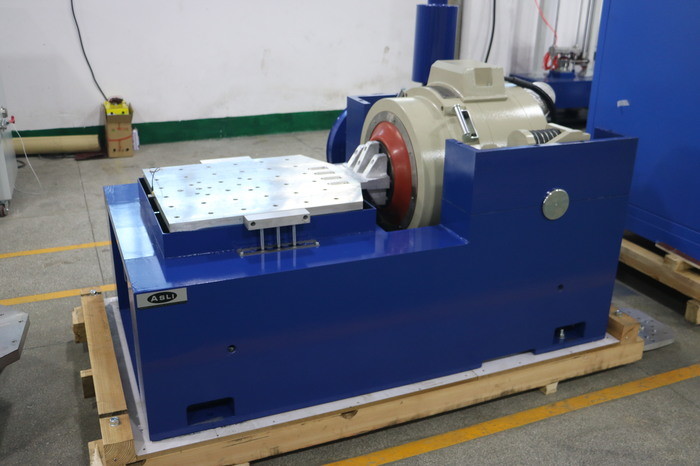

technical parameters of horizontal expander:
| Model | Bench Size (mm) | Frequency Range (Hz) | Weight of Moving Parts (kg) |
| LT0303 | 300×300×22 300×300×26 300×300×30 |
5-1000 5-1500 5-2000 |
6.6 7.8 9.0 |
| LT0404 | 400×400×22 400×400×26 400×400×30 |
5-l000 5-1400 5-2000 |
11.2 13.2 16.0 |
| LT0505 | 500×500×25 500×500×30 500×500×35 |
5-1000 5-1500 5-2000 |
19.3 23.1 27.0 |
| LT0606 | 600×600×25 600×600×30 600×600×40 |
5-1000 5-1200 5-2000 |
27.5 33.0 45 |
