Home /Products/Vibration Table Test Equipment/3 Axis 100kg.F 50Hz Vibration Table Test Equipment For Mobile Phone

3 Axis 100kg.F 50Hz Vibration Table Test Equipment For Mobile Phone

1 set

MOQ

negotiable

Price

3 Axis 100kg.F 50Hz Vibration Table Test Equipment For Mobile Phone

Features Gallery Product Description Request A Quote

Features

Specifications

Vibration Method: Sine &Random Vibration

Application: Electrical Parts

Sine Force: 1000N

Frequency: 3~3500HZ

Max. Speed: 1.8m/s

Vibration Direction: Vertical +horizontal Vibration

High Light:

100kg.f vibration table test equipment

,

50Hz vibration table test equipment

,

100kg.f 3 axis vibration table

Basic Infomation

Place of Origin: CHINA

Brand Name: ASLI

Certification: CE, ISO, SGS

Model Number: ES-10

Payment & Shipping Terms

Packaging Details: PP film + Poly wooden box

Delivery Time: 30~45 days

Payment Terms: T/T, L/C, Western UnionD/A, D/P

Supply Ability: 100 sets per quarter

Gallery

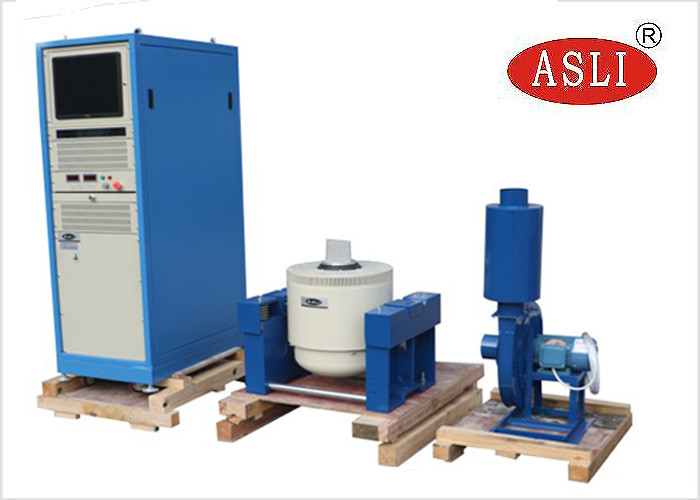

3 Axis 100kg.F 50Hz Vibration Table Test Equipment For Mobile Phone

Product Description

Laboratory Electromagnetic Vibration Tester 3-Axis XYZ High Frequency Mobile Phone Vibration Test Machine

The system uses a digital power amplifier with sinusoidal pulse width modulation. The working principle is: using the high-frequency switching capability of the IGBT FET, the low-voltage signal input by the controller is amplified by the digital circuit and restored to the original signal, and then output to the moving coil of the vibrating table to promote the electric vibration. Taiwan movement.

The main components of the intelligent high voltage power amplifier are: front control, power amplifier module, protection circuit, power supply part and electric cabinet. The system adopts high voltage and small current output form, which reduces the power loss during transmission and achieves effective and reasonable impedance matching.

technical parameters:



			Model
			Rated Sine
Force (N)

			Rated Random
Force (N)

			Frequency
Range (Hz)

			Rated Acceleration (m/s2)
			Rated Speed(m/s)
			Rated displacement
(p-p)mm

			Max. Loading (Kg)
			moving coil(Kg)
			Dimension of
Moving coil(mm)



			ES-3
			3000
			3000
			3-3500
			1000
			1.6
			25
			100
			3.5
			Φ150


			ES-3a
			3000
			3000
			3-3500
			400
			1.6
			40
			120
			9
			Φ230


			ES-6
			6000
			6000
			3-3500
			1000
			1.6
			25
			180
			6.5
			Φ230


			ES-6a
			6000
			6000
			3-3500
			1000
			1.6
			51
			250
			12
			Φ230


			ES-10
			10000
			10000
			3-3000
			1000
			1.8
			51
			270
			14
			Φ240


			ES-20
			20000
			20000
			3-3000
			1000
			1.8
			51
			300
			30
			Φ320


			ES-30
			30000
			30000
			3-2800
			1000
			1.8
			5l
			450
			40
			Φ450


			ES-40
			40000
			40000
			3-2800
			1000
			1.8
			51
			500
			50
			Φ450


Main Features

* An air-cooled electro-dynamic shaker

* vibration controller and power amplifier structured into all-in-one cabinet

* achieving 2400 newton's peak sine thrust.

* Xyz 3 axis testing

Control Functions

* Fixed-frequency sinusoidal vibration

* Swept vibration

* Random vibration

* Classical shock

User Benefits

* Easy installation can be done by user

* User interface: lcd touch screen for local mode and pc-windows (thru ethernet) for remote mode;

* Local mode: quick start a pre-defined test, dozens of test specifications can be stored;

* Remote mode: all operations of the system, including test defining and store the test specifications onto mostar, test control, test data review and documentation.

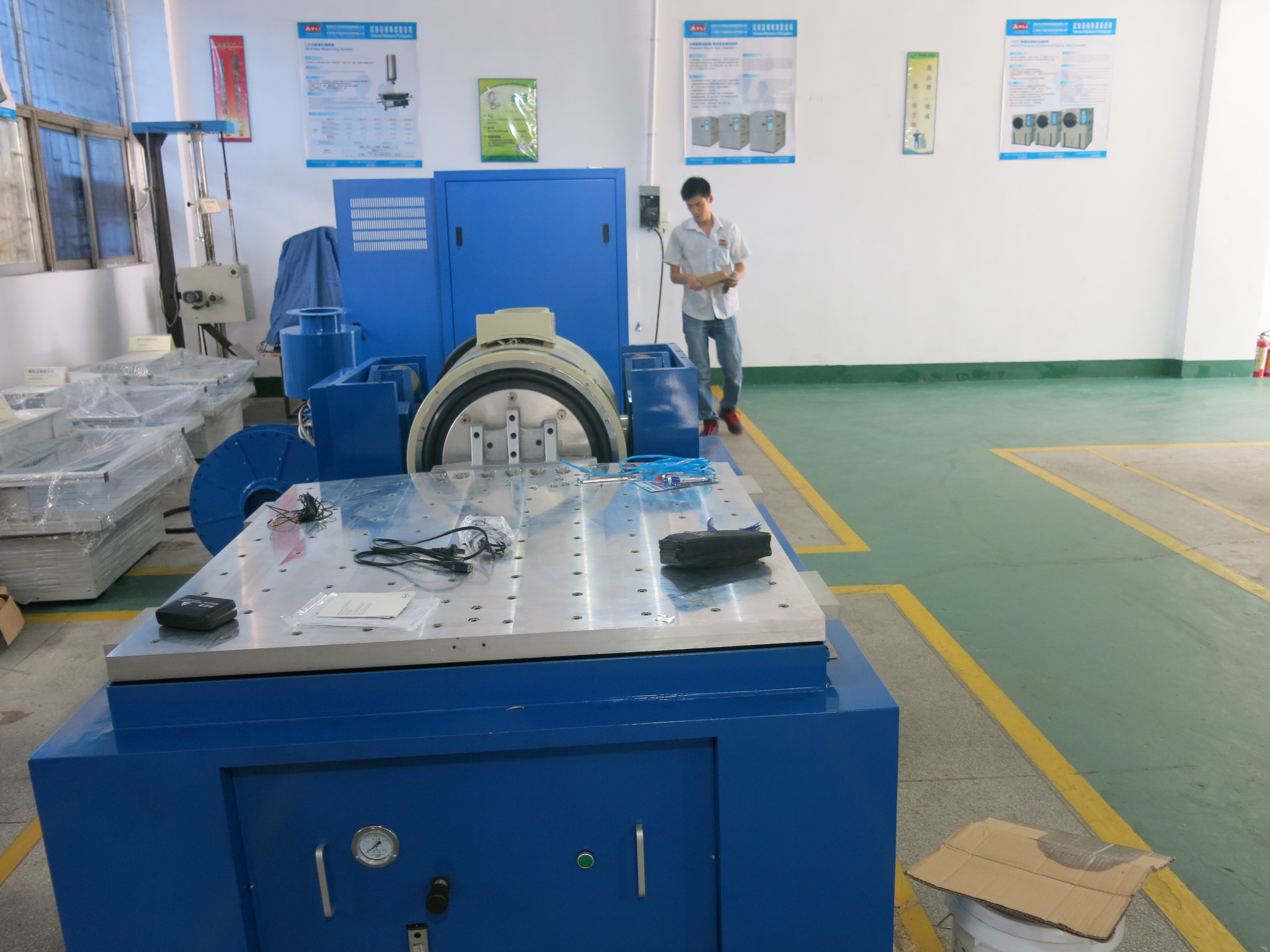

3 Axis 100kg.F 50Hz Vibration Table Test Equipment For Mobile Phone 0

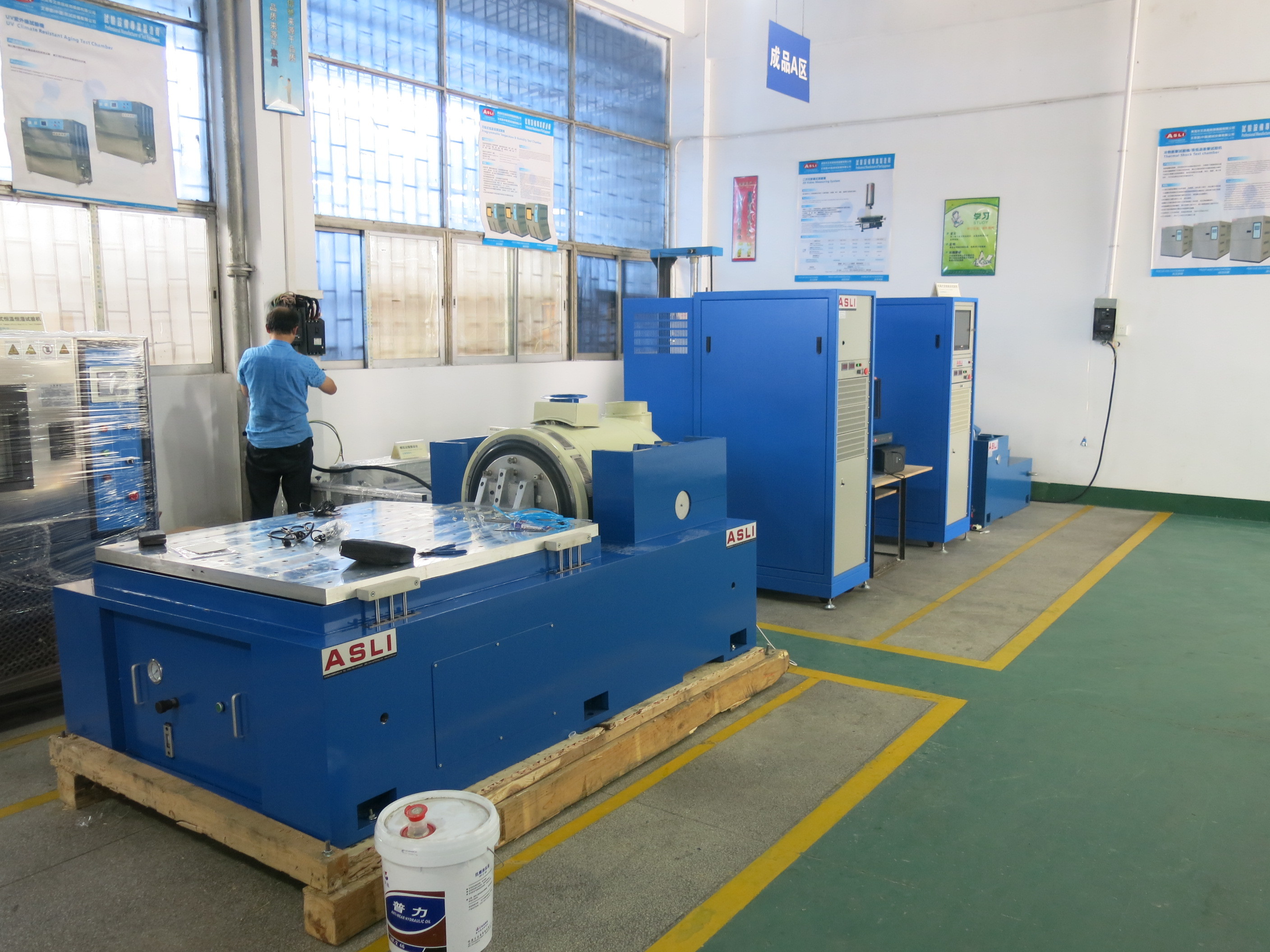

3 Axis 100kg.F 50Hz Vibration Table Test Equipment For Mobile Phone 1
